SV-4B - Little Wonder Engine (Type 1) (SN: 001001 - 999999) Carburetor S/N: 155321 - 327969 Parts Diagram

Engine (Type 1)

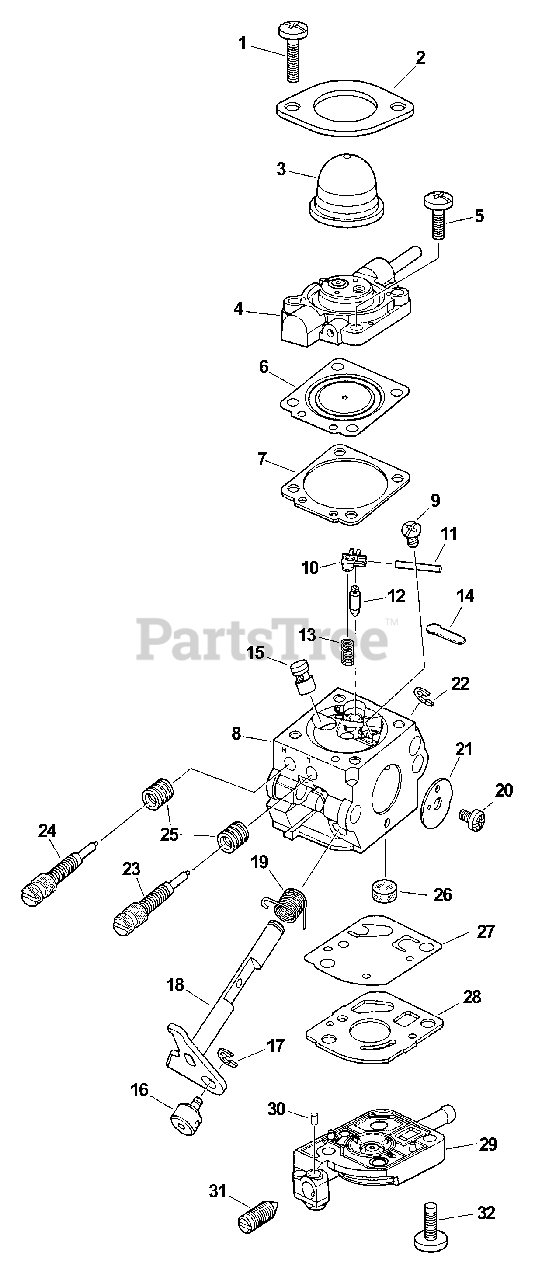

Carburetor S/N: 155321 - 327969 Parts Diagram

  • Title

Echo 12520011823

CARBURETOR C1U-K27B
(Superseded to 12520012820)

Note: Includes ITEMS 1-32

$92.99

$

In Stock, only 4 left!

0

1

Echo 12531005360

SCREW, PURGE BASE

$0.99

$

In Stock, Qty 8

0

2

Echo 12536308560

RETAINER, PURGE BULB

$1.99

$

In Stock, only 2 left!

0

3

Echo 12538108660

BULB, PURGE
(Superseded to P005003120)

$6.99

$

In Stock, Qty 20+

0

4

Echo 12538305360

BASE, PURGE

$21.99

$

Usually ships in 2-4 days

0

5

Echo P005000980

SCREW, RETAINER

$0.99

$

In Stock, Qty 20+

0

6

------------------

DIAPHRAGM, METERING

Note: INCLUDED IN REPAIR KIT P/N 12530006560 AND GASKET/DIAPHRAGM KIT P/N 12530306560

$

$

Not available

7

------------------

GASKET, METERING

Note: INCLUDED IN REPAIR KIT P/N 12530006560 AND GASKET/DIAPHRAGM KIT P/N 12530306560

$

$

Not available

8

------------------

BODY, CARBURETOR

Note: NOT AVAILABLE SEPARATELY

$

$

Not available

9

------------------

SCREW, METERING LEVER PIN

Note: INCLUDED IN REPAIR KIT P/N 12530006560

$

$

Not available

10

------------------

LEVER, METERING

Note: INCLUDED IN REPAIR KIT P/N 12530006560

$

$

Not available

11

------------------

PIN, METERING LEVER

Note: INCLUDED IN REPAIR KIT P/N 12530006560

$

$

Not available

12

------------------

VALVE, INLET NEEDLE

Note: INCLUDED IN REPAIR KIT P/N 12530006560

$

$

Not available

13

------------------

SPRING, METERING LEVER

Note: INCLUDED IN REPAIR KIT P/N 12530006560

$

$

Not available

14

------------------

PLUG, WELCH

Note: INCLUDED IN REPAIR KIT P/N 12530006560

$

$

Not available

15

Echo 12537605360

NOZZLE, CHECK VALVE

$4.99

$

Usually ships in 2-4 days

0

16

Echo 12537242030

SWIVEL

$4.49

$

Usually ships in 2-4 days

0

17

Echo 12532713930

RING, RETAINING

$0.99

$

Usually ships in 2-4 days

0

18

Echo 12531711820

SHAFT, THROTTLE

$5.99

$

Usually ships in 2-4 days

0

19

Echo 12531342030

SPRING, RETURN

$1.49

$

In Stock, Qty 12

0

20

Echo 12531413930

SCREW

$1.49

$

Usually ships in 2-4 days

0

21

Echo 12531642030

VALVE, THROTTLE

$2.49

$

In Stock, only 2 left!

0

22

Echo 12532715130

RING, RETAINING

$0.99

$

Usually ships in 2-4 days

0

23

Echo 12531811820

NEEDLE - LOW SPEED

$3.99

$

Usually ships in 2-4 days

0

24

Echo 12532042030

NEEDLE - HIGH SPEED

$4.49

$

Usually ships in 2-4 days

0

25

Echo 12531942030

SPRING

$1.49

$

In Stock, only 1 left!

0

26

------------------

STRAINER

Note: INCLUDED IN REPAIR KIT P/N 12530006560

$

$

Not available

27

------------------

DIAPHRAGM, PURGE

Note: INCLUDED IN REPAIR KIT P/N 12530006560 AND GASKET/DIAPHRAGM KIT P/N 12530306560

$

$

Not available

28

------------------

GASKET, PURGE

Note: INCLUDED IN REPAIR KIT P/N 12530006560 AND GASKET/DIAPHRAGM KIT P/N 12530306560

$

$

Not available

29

Echo 12532442030

BASE, PURGE

$7.99

$

Usually ships in 2-4 days

0

30

Echo 12537813930

PIECE, FRICTION

$1.99

$

Usually ships in 2-4 days

0

31

Echo 12533413930

SCREW, IDLE ADJUST

$1.49

$

In Stock, only 4 left!

0

32

Echo 12531042030

SCREW, PUMP COVER

$0.99

$

Usually ships in 2-4 days

0

Echo 12530006560

REPAIR KIT

$18.99

$

Usually ships in 2-4 days

0

Echo 12530306560

DIAPHRAGM/GASKET KIT

$9.49

$

In Stock, only 1 left!

0
