SV-4B - Little Wonder Engine (Type 1) (SN: 001001 - 999999) Carburetor S/N: 500001 - 745780 Parts Diagram

Engine (Type 1)

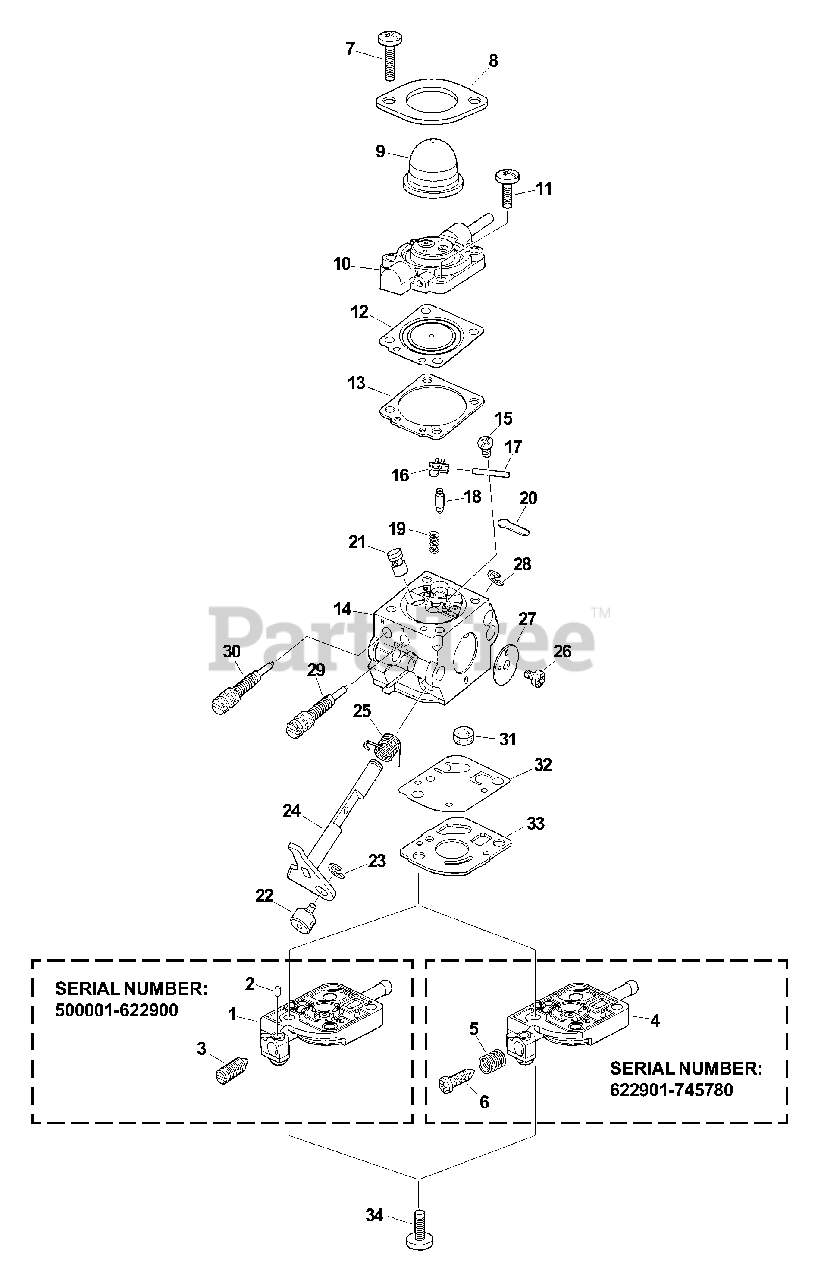

Carburetor S/N: 500001 - 745780 Parts Diagram

  • Title

Echo 12520013120

CARBURETOR C1U-K54
(Superseded to 12520013121)

Note: INCLUDES ITEMS 1-3 & 7-34; S/N: 500001-622900

$92.99

$

In Stock, only 4 left!

0

1

Echo 12530712820

COVER, PUMP

Note: S/N: 500001-622900

$

$

Currently unavailable

2

Echo 12537813930

PIECE, FRICTION

Note: S/N: 500001-622900

$1.99

$

Usually ships in 2-4 days

0

3

Echo 12533413930

SCREW, IDLE ADJUST

$1.49

$

In Stock, only 4 left!

0

Echo 12520013122

CARBURETOR C1U-K54
(Superseded to 12520013123)

Note: INCLUDES ITEMS 4-6 & 7-34; S/N: 622901-745780

$92.99

$

In Stock, only 4 left!

0

4

Echo 12530712820

COVER, PUMP

Note: S/N: 622901-745780

$

$

Currently unavailable

5

Echo 12533306960

SPRING, IDLE ADJUST

Note: S/N: 622901-745780

$1.49

$

In Stock, Qty 10

0

6

Echo 12533406560

SCREW, IDLE ADJUST

Note: S/N: 622901-745780

$

$

Currently unavailable

7

Echo P005000980

SCREW, RETAINER

Note: PUMP RETAINER

$0.99

$

In Stock, Qty 20+

0

8

Echo 12536308560

RETAINER, PURGE BULB

$1.99

$

In Stock, only 2 left!

0

9

Echo 12538108660

BULB, PURGE
(Superseded to P005003120)

$6.99

$

In Stock, Qty 20+

0

10

Echo 12538305360

BASE, PURGE

$21.99

$

Usually ships in 2-4 days

0

11

Echo 12531005360

SCREW, PURGE BASE

$0.99

$

In Stock, Qty 8

0

12

------------------

DIAPHRAGM, METERING

Note: INCLUDED IN REPAIR KIT P/N 12530012820 AND GASKET/DIAPHRAGM KIT P/N 12530320560

$

$

Not available

13

------------------

GASKET, METERING

$

$

Not available

14

------------------

BODY, CARBURETOR

Note: NOT AVAILABLE SEPARATELY

$

$

Not available

15

Echo 12533942030

SCREW, METERING LEVER PIN

$0.99

$

In Stock, Qty 12

0

16

------------------

LEVER, METERING

Note: INCLUDED IN REPAIR KIT P/N 12530012820

$

$

Not available

17

------------------

PIN, METERING LEVER

Note: INCLUDED IN REPAIR KIT P/N 12530012820

$

$

Not available

18

------------------

VALVE, INLET NEEDLE

Note: INCLUDED IN REPAIR KIT P/N 12530012820

$

$

Not available

19

------------------

SPRING, METERING LEVER

Note: INCLUDED IN REPAIR KIT P/N 12530012820

$

$

Not available

20

------------------

PLUG, WELCH

Note: INCLUDED IN REPAIR KIT P/N 12530012820

$

$

Not available

21

Echo 12537649030

NOZZLE, CHECK VALVE
(Superseded to Discontinued)

$

$

Not available

22

Echo 12537242030

SWIVEL

$4.49

$

Usually ships in 2-4 days

0

23

Echo 12532713930

RING, RETAINING

$0.99

$

Usually ships in 2-4 days

0

24

Echo 12531713310

SHAFT, THROTTLE

$6.49

$

In Stock, only 1 left!

0

25

Echo 12531342030

SPRING, RETURN

$1.49

$

In Stock, Qty 12

0

26

Echo 12531413930

SCREW

$1.49

$

Usually ships in 2-4 days

0

27

Echo 12531649030

VALVE, THROTTLE

$2.49

$

Usually ships in 2-4 days

0

28

Echo 12532715130

RING, RETAINING

$0.99

$

Usually ships in 2-4 days

0

29

Echo 12531813120

NEEDLE - LOW SPEED

$4.99

$

Usually ships in 2-4 days

0

30

Echo 12532013310

NEEDLE - HIGH SPEED

$3.99

$

Usually ships in 2-4 days

0

31

------------------

STRAINER

Note: INCLUDED IN REPAIR KIT P/N 12530012820

$

$

Not available

32

------------------

DIAPHRAGM, PURGE

Note: INCLUDED IN REPAIR KIT P/N 12530012820 AND GASKET/DIAPHRAGM KIT P/N 12530320560

$

$

Not available

33

------------------

GASKET, PURGE

Note: INCLUDED IN REPAIR KIT P/N 12530012820 AND GASKET/DIAPHRAGM KIT P/N 12530320560

$

$

Not available

34

Echo 12531012820

SCREW, PUMP COVER

$1.49

$

Usually ships in 2-4 days

0

Echo 12530012820

REPAIR KIT

$15.99

$

In Stock, Qty 13

0

Echo 12530320560

DIAPHRAGM/GASKET KIT

$8.99

$

In Stock, Qty 7

0
