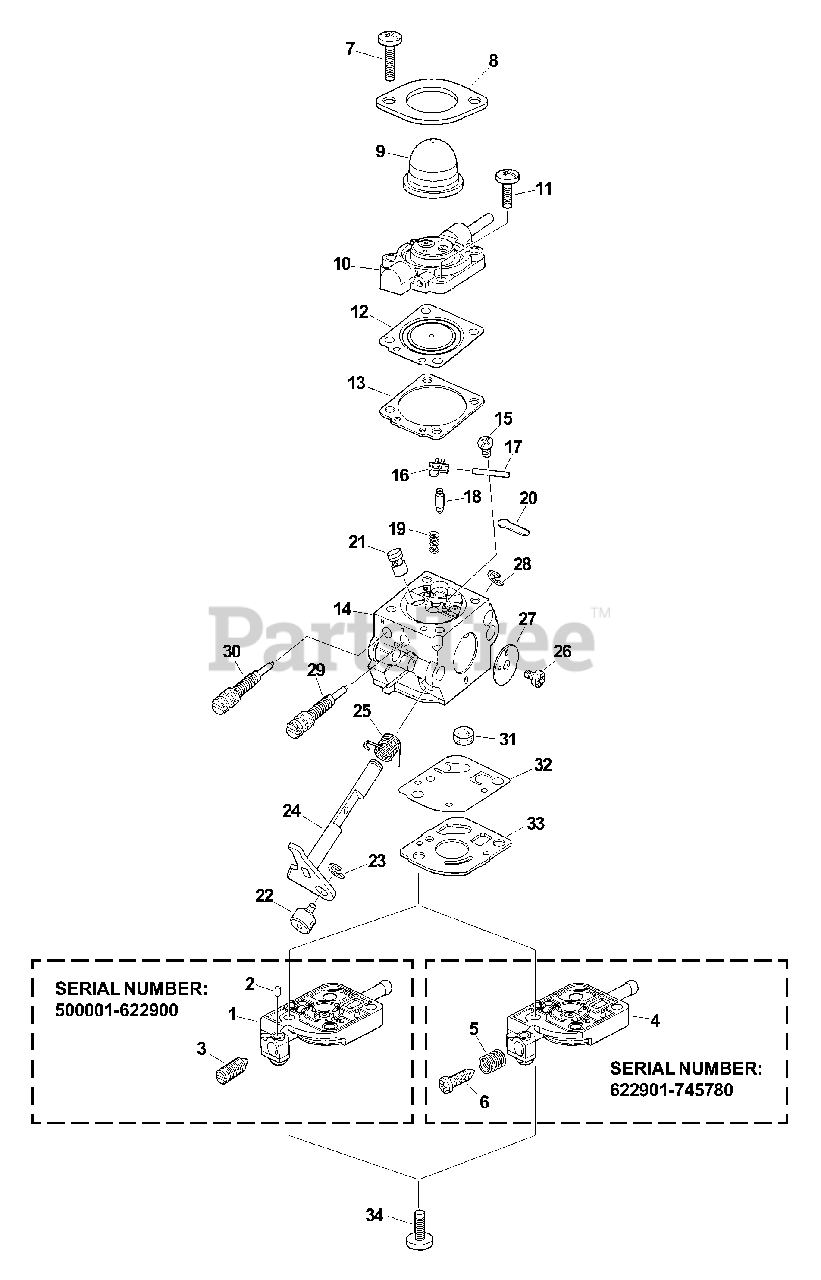

SV-4B - Little Wonder Engine (Type 1) (SN: 001001 - 999999) Carburetor S/N: 500001 - 745780 Parts Diagram

Engine (Type 1)

Carburetor S/N: 500001 - 745780 Parts Diagram

  • Title

Echo 12520013120

CARBURETOR - C1U-K54
(Superseded to 12520013121)

Note: INCLUDES ITEMS 1-3 & 7-34; S/N: 500001-622900

$110.99

$

In Stock, Qty 8

0

1

Echo 12530712820

COVER, PUMP

Note: S/N: 500001-622900

$

$

Currently unavailable

2

Echo 12537813930

PIECE, FRICTION

Note: S/N: 500001-622900

$1.99

$

Usually ships in 2-4 days

0

3

Echo 12533413930

SCREW, IDLE ADJUST

$1.99

$

In Stock, only 2 left!

0

Echo 12520013122

CARBURETOR - C1U-K54
(Superseded to 12520013123)

Note: INCLUDES ITEMS 4-6 & 7-34; S/N: 622901-745780

$110.99

$

In Stock, Qty 8

0

4

Echo 12530712820

COVER, PUMP

Note: S/N: 622901-745780

$

$

Currently unavailable

5

Echo 12533306960

SPRING

Note: S/N: 622901-745780

$1.49

$

In Stock, Qty 8

0

6

Echo 12533406560

SCREW, IDLE ADJUST

Note: S/N: 622901-745780

$

$

Currently unavailable

7

Echo P005000980

SCREW

Note: PUMP RETAINER

$0.99

$

In Stock, Qty 20+

0

8

Echo 12536308560

RETAINER, PURGE BULB

$2.49

$

In Stock, only 1 left!

0

9

Echo 12538108660

BULB, PURGE
(Superseded to P005003120)

$7.49

$

In Stock, Qty 20+

0

10

Echo 12538305360

BODY ASSY, PURGE

$25.99

$

In Stock, only 2 left!

0

11

Echo 12531005360

SCREW

$0.99

$

In Stock, Qty 8

0

12

DIAPHRAGM, METERING

Note: INCLUDED IN REPAIR KIT P/N 12530012820 AND GASKET/DIAPHRAGM KIT P/N 12530320560

$

$

Not available

13

GASKET, METERING

$

$

Not available

14

BODY, CARBURETOR

Note: NOT AVAILABLE SEPARATELY

$

$

Not available

15

Echo 125339-42030

SCREW

$0.99

$

In Stock, Qty 11

0

16

LEVER, METERING

Note: INCLUDED IN REPAIR KIT P/N 12530012820

$

$

Not available

17

PIN, METERING LEVER

Note: INCLUDED IN REPAIR KIT P/N 12530012820

$

$

Not available

18

VALVE, INLET NEEDLE

Note: INCLUDED IN REPAIR KIT P/N 12530012820

$

$

Not available

19

SPRING, METERING LEVER

Note: INCLUDED IN REPAIR KIT P/N 12530012820

$

$

Not available

20

PLUG, WELCH

Note: INCLUDED IN REPAIR KIT P/N 12530012820

$

$

Not available

21

Echo 12537649030

NOZZLE, CHECK VALVE
(Superseded to Discontinued)

$

$

Not available

22

Echo 125372-42030

SWIVEL

$5.49

$

Usually ships in 2-4 days

0

23

Echo 125327-13930

CLIP

$0.99

$

In Stock, Qty 5

0

24

Echo 12531713310

SHAFT, THROTTLE

$7.99

$

In Stock, only 1 left!

0

25

Echo 125313-42030

SPRING, THROTTLE RETURN

$1.49

$

In Stock, Qty 12

0

26

Echo 125314-13930

SCREW

$1.49

$

Usually ships in 2-4 days

0

27

Echo 12531649030

VALVE, THROTTLE

$2.99

$

Usually ships in 2-4 days

0

28

Echo 125327-15130

E-RING

$0.99

$

In Stock, Qty 5

0

29

Echo 12531813120

NEEDLE, MIXTURE

$5.99

$

Usually ships in 2-4 days

0

30

Echo 12532013310

NEEDLE, HIGH SPEED

$4.49

$

Usually ships in 2-4 days

0

31

STRAINER

Note: INCLUDED IN REPAIR KIT P/N 12530012820

$

$

Not available

------------------

DIAPHRAGM, PUMP

Note: INCLUDED IN REPAIR KIT P/N 12530012820 AND GASKET/DIAPHRAGM KIT P/N 12530320560

$

$

Not available

------------------

GASKET, PUMP

Note: INCLUDED IN REPAIR KIT P/N 12530012820 AND GASKET/DIAPHRAGM KIT P/N 12530320560

$

$

Not available

34

Echo 12531012820

SCREW

$1.49

$

Usually ships in 2-4 days

0

Echo 12530012820

REBUILD KIT

$18.99

$

In Stock, only 3 left!

0

Echo 12530320560

GASKET / DIAPHRAGM KIT

$10.99

$

In Stock, only 2 left!

0
