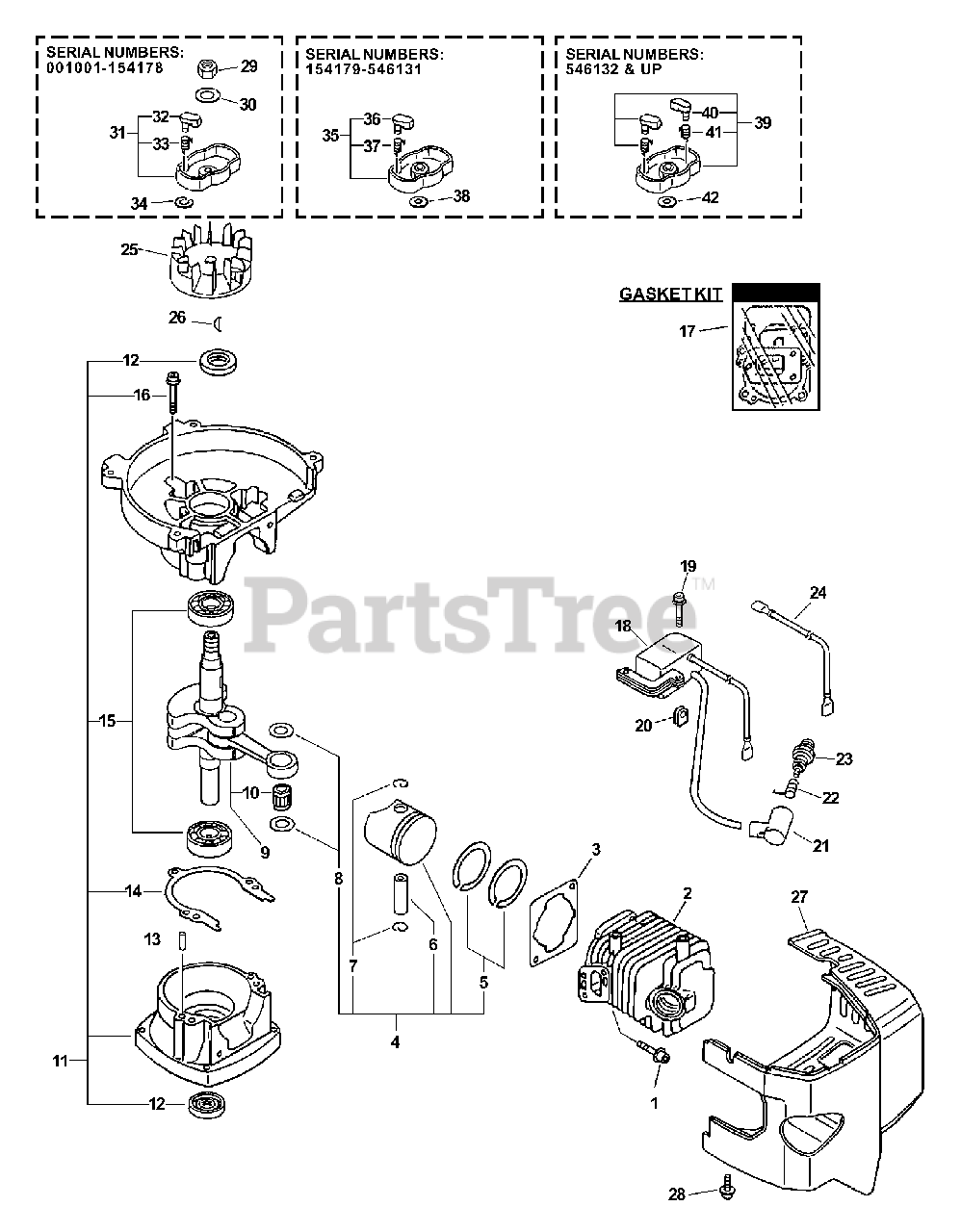

SV-4B - Little Wonder Engine (Type 1) (SN: 001001 - 999999) Engine, Ignition, Starter Pawl Asy, Cylinder Cover Parts Diagram

Engine (Type 1)

Engine, Ignition, Starter Pawl Asy, Cylinder Cover Parts Diagram

  • Title

1

Echo 900162-05022

BOLT 5×22

$0.99

$

In Stock, only 3 left!

0

2

Echo 101011-45230

CYLINDER

$153.99

$

Usually ships in 2-4 days

0

2

Echo 10101106562

CYLINDER

$130.99

$

Usually ships in 2-4 days

0

3

Echo 101010-44332

GASKET, CYLINDER

Note: Included In GASKET KIT

$4.99

$

In Stock, Qty 7

0

4

Echo P021001101

PISTON KIT
(Superseded to P021001102)

Note: INCLUDES ITEMS 5-8

$93.99

$

In Stock, only 2 left!

0

5

Echo A101000000

RING, PISTON

$10.99

$

In Stock, Qty 8

0

6

Echo 100013-11520

PIN, PISTON 8

$8.49

$

In Stock, only 2 left!

0

7

Echo 100015-04630

RING, SNAP
(Superseded to 10001504630)

$0.99

$

In Stock, Qty 20+

0

8

Echo 100014-11520

WASHER, THRUST

$3.99

$

In Stock, only 2 left!

0

9

Echo 10010011521

CRANKSHAFT ASSY
(Superseded to 10010011522)

$

$

Not available

9

Echo 10010013121

CRANKSHAFT ASSY
(Superseded to Discontinued)

$

$

Not available

10

Echo V553000010

BEARING, NEEDLE 8

$11.99

$

In Stock, only 2 left!

0

11

Echo 10020411520

CRANKCASE KIT
(Superseded to 10020411521)

Note: Includes ITEMS 12-16

$155.99

$

Usually ships in 2-4 days

0

12

Echo 100212-42031

SEAL, OIL 12

$7.99

$

In Stock, Qty 20+

0

13

Echo V622000020

PIN, LOCATING 4

$0.99

$

In Stock, only 4 left!

0

14

Echo 100242-42030

GASKET, CRANKCASE

Note: Included In GASKET KIT

$1.99

$

In Stock, Qty 17

0

15

Echo 9403536201

BEARING, BALL - 6201 C3

$9.99

$

In Stock, only 3 left!

0

16

Echo 900162-05028

BOLT 5×28

$2.49

$

In Stock, Qty 10

0

17

Echo 88900045131

GASKET KIT

$34.99

$

Usually ships in 2-4 days

0

18

Echo 15662611820

COIL, IGNITION
(Superseded to Discontinued)

Note: S/N: 001001-154178

$

$

Not available

18

Echo A411000080

COIL, IGNITION
(Superseded to A411000081)

$125.99

$

Usually ships in 2-4 days

0

19

Echo 90016204022

SCREW 4×22

$0.99

$

In Stock, Qty 20+

0

20

Echo 15611004920

GROMMET

$0.99

$

In Stock, Qty 20+

0

21

Echo 159012-01620

CAP, SPARK PLUG

$1.99

$

In Stock, Qty 11

0

22

Echo 159011-03432

TERMINAL, SPARK PLUG
(Superseded to 15901103432)

$1.99

$

In Stock, Qty 20+

0

23

Echo 15901010230

SPARK PLUG - BPMR7A

$3.99

$

In Stock, Qty 20+

0

24

Echo 16202152830

LEAD
(Superseded to V485001080)

$4.49

$

In Stock, only 2 left!

0

25

Echo 15080144330

FLYWHEEL
(Superseded to 15680144330)

$135.99

$

Usually ships in 2-4 days

0

25

Echo 15680144330

FLYWHEEL

Note: S/N: 001001-154178

$135.99

$

Usually ships in 2-4 days

0

25

Echo 15680105360

FLYWHEEL

$105.99

$

Usually ships in 2-4 days

0

26

Echo 61032502730

KEY

$1.99

$

In Stock, only 2 left!

0

27

Echo 10160611520

COVER, ENGINE
(Superseded to 10150612820)

Note: S/N: 001001-500000

$

$

Not available

27

Echo 10150612821

COVER, CYLINDER
(Superseded to Discontinued)

Note: S/N: 001001-154178

$

$

Not available

28

Echo 90023804018

SCREW 4×18

$0.99

$

In Stock, only 3 left!

0

29

Echo 90050200008

NUT 8×1.25

Note: S/N: 001001-154178

$0.99

$

In Stock, Qty 7

0

30

Echo 90060000008

WASHER 8.5×16×1.2

Note: S/N: 001001-154178

$0.99

$

Usually ships in 2-4 days

0

31

Echo 17720242030

STARTER PAWL ASSY
(Superseded to 17720244330)

Note: INCLUDES ITEMS 32-34 S/N: 001001-154178

$19.99

$

In Stock, only 2 left!

0

32

Echo 17721842030

PAWL, STARTER

Note: S/N: 001001-154178

$4.49

$

Usually ships in 2-4 days

0

33

Echo 17723412220

SPRING, RETURN

Note: S/N: 001001-154178

$4.99

$

In Stock, Qty 13

0

34

Echo 90070000004

E-RING 4

Note: S/N: 001001-154178

$0.99

$

In Stock, Qty 20+

0

35

Echo 177202-44330

PAWL ASSY, STARTER

Note: INCLUDES ITEMS 36-37 S/N: 154179-546131

$11.99

$

In Stock, Qty 9

0

36

Echo 177218-44330

PAWL, STARTER - BLACK

Note: S/N: 154179-546131

$4.49

$

In Stock, Qty 20+

0

37

Echo 17723412220

SPRING, RETURN

Note: S/N: 154179-546131

$4.99

$

In Stock, Qty 13

0

38

Echo 90060500008

WASHER, SPRING 8

Note: S/N: 154179-546131

$0.99

$

In Stock, Qty 20+

0

39

Echo 17720212220

PAWL ASSY, STARTER

Note: INCLUDES ITEMS 40-41 S/N: 546132 & UP

$19.99

$

In Stock, only 2 left!

0

40

Echo 17723412220

SPRING, RETURN

Note: S/N: 546132 & UP

$4.99

$

In Stock, Qty 13

0

41

Echo 177218-44330

PAWL, STARTER - BLACK

Note: S/N: 546132 & UP

$4.49

$

In Stock, Qty 20+

0

42

Echo 90060500008

WASHER, SPRING 8

Note: S/N: 546132 & UP

$0.99

$

In Stock, Qty 20+

0
