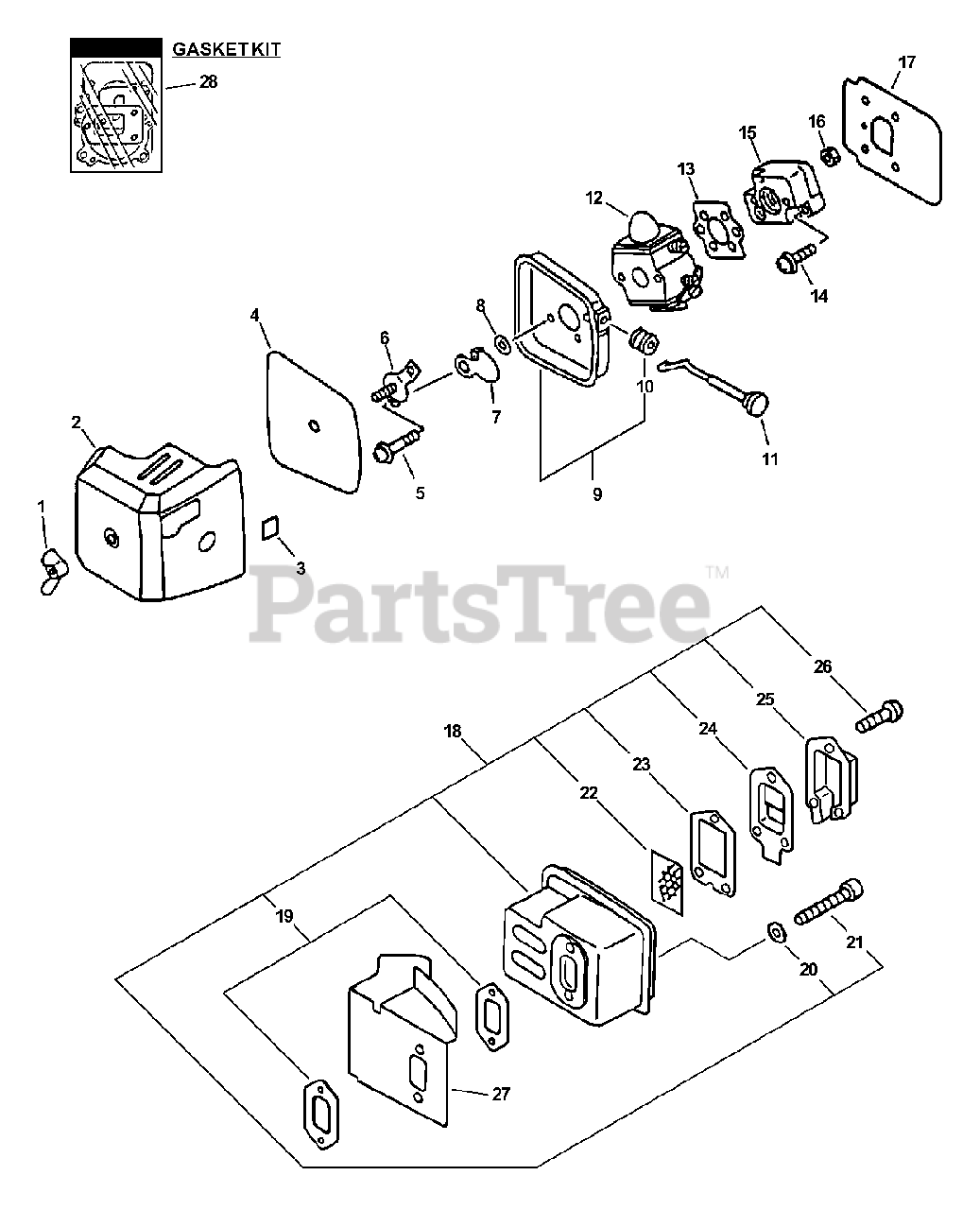

SV-4BH - Little Wonder Engine (Type 1E) Intake, Exhaust Parts Diagram

Engine (Type 1E)

Intake, Exhaust Parts Diagram

  • Title

1

Echo 90052800005

WINGNUT - 6

$1.99

$

In Stock, Qty 5

0

2

Echo 13032611522

COVER, AIR FILTER

$12.99

$

In Stock, Qty 5

0

3

Echo X506000070

LABEL, CHOKE

$0.99

$

In Stock, Qty 7

0

4

Echo 13031004560

FILTER, AIR

$5.99

$

In Stock, Qty 9

0

5

Echo 900242-05057

SCREW 5×57

$0.99

$

In Stock, only 3 left!

0

6

Echo 13041005360

PLATE, PREVENT

$11.99

$

In Stock, only 2 left!

0

7

Echo 17851504560

SHUTTER, CHOKE

$2.99

$

In Stock, Qty 10

0

8

Echo 178516-00830

WASHER 5.2×8×0.8T

$0.99

$

In Stock, Qty 20+

0

9

Echo 13030104560

CASE, AIR FILTER

Note: Includes ITEM 10

$10.99

$

In Stock, only 2 left!

0

10

Echo 17881005230

GROMMET, CHOKE

$2.49

$

In Stock, only 3 left!

0

11

Echo 17851004560

ROD, CHOKE

$8.99

$

In Stock, only 2 left!

0

12

Echo 12520013120

CARBURETOR - C1U-K54
(Superseded to 12520013121)

Note: S/N: 001001-012520

$110.99

$

In Stock, Qty 8

0

12

Echo 12520013122

CARBURETOR - C1U-K54
(Superseded to 12520013123)

Note: S/N: 012521-020200

$110.99

$

In Stock, Qty 8

0

12

Echo 12520013124

CARBURETOR - C1U-K54A
(Superseded to 12520013125)

Note: S/N: 020201 & UP

$110.99

$

In Stock, Qty 8

0

13

Echo 130016-42031

GASKET, INTAKE

Note: Included In GASKET KIT

$1.49

$

In Stock, Qty 20+

0

14

Echo 900238-05020

SCREW 5×20

$0.99

$

In Stock, Qty 8

0

15

Echo 130017-42031

INSULATOR, INTAKE

$11.99

$

In Stock, Qty 8

0

16

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

17

Echo V103000490

HEAT SHIELD, INTAKE
(Superseded to V103001360)

Note: Included In GASKET KIT

$2.99

$

In Stock, Qty 12

0

18

Echo 14580011821

MUFFLER ASSY
(Superseded to Discontinued)

$

$

Not available

19

Echo V104000160

GASKET, EXHAUST

Note: Included In GASKET KIT

$2.49

$

In Stock, Qty 20+

0

20

Echo 900600-00005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0

21

Echo 90010505050

BOLT M5×50

$1.99

$

In Stock, Qty 11

0

22

Echo 14586240630

SCREEN, SPARK ARRESTER

$2.49

$

In Stock, Qty 20+

0

23

Echo 145866-42031

GASKET, EXHAUST

Note: Included In GASKET KIT

$2.99

$

In Stock, only 2 left!

0

24

Echo 14587642030

GUIDE, EXHAUST

$4.99

$

In Stock, only 3 left!

0

25

Echo 14586311520

GUIDE, EXHAUST - INNER

$5.49

$

Usually ships in 2-4 days

0

26

Echo 900242-04010

SCREW 4×10

$0.99

$

In Stock, Qty 20+

0

27

Echo 14587105360

COVER, MUFFLER

$11.99

$

Usually ships in 2-4 days

0

28

Echo 88900045131

GASKET KIT

$34.99

$

Usually ships in 2-4 days

0
