SV-4BH - Little Wonder Engine (Type 1E) Starter, Clutch, Fuel System Parts Diagram

Engine (Type 1E)

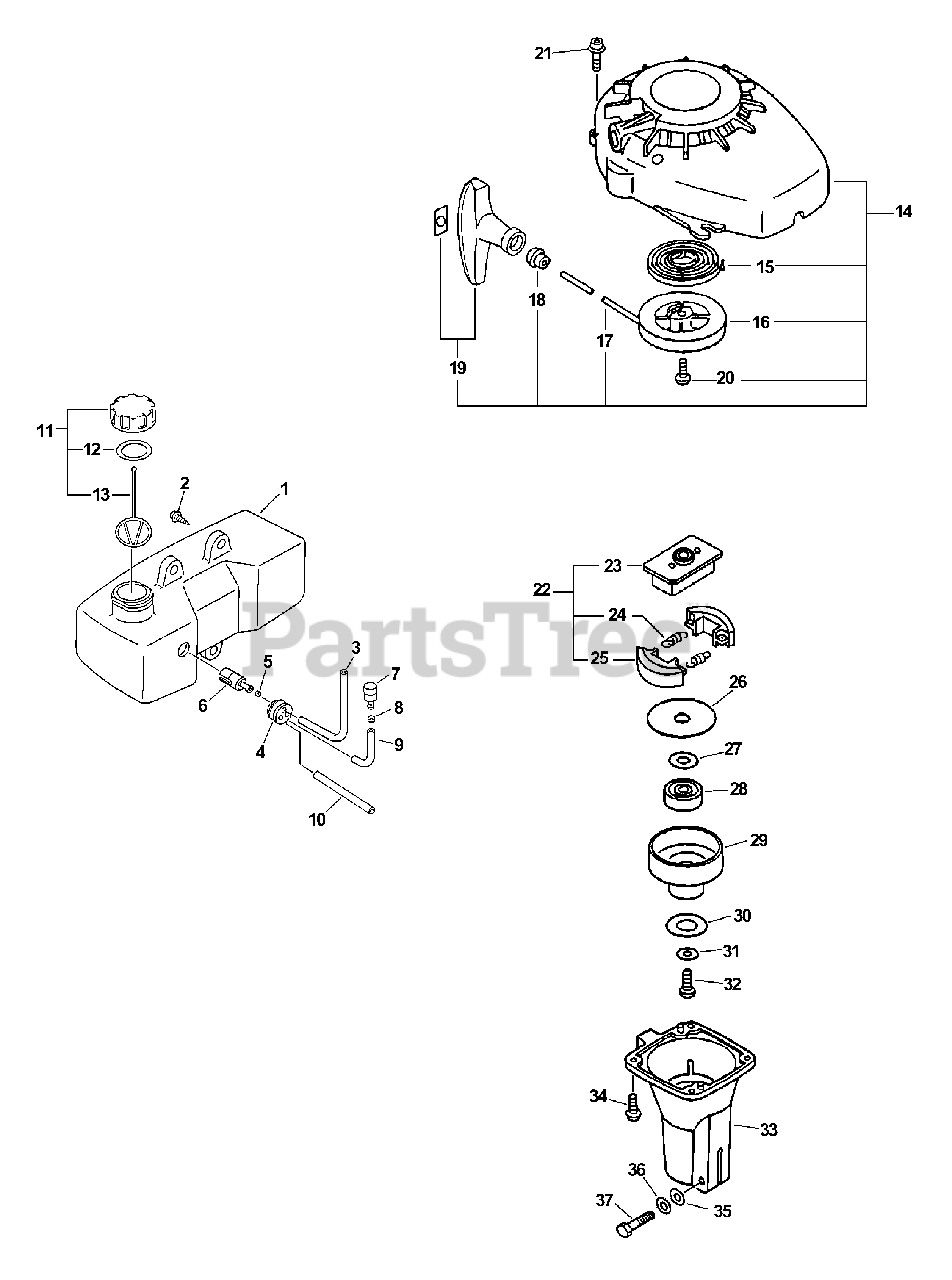

Starter, Clutch, Fuel System Parts Diagram

  • Title

1

Echo 13100511820

TANK, FUEL
(Superseded to 13100511821)

$26.99

$

In Stock, only 3 left!

0

2

Echo 90027505015

SCREW 5×15

$0.99

$

In Stock, Qty 11

0

3

Echo V471001230

PIPE, FUEL 3×5×210 BLACK
(Superseded to V471001231)

Note: RePower BULK OPTION: 90014

$5.99

$

In Stock, only 2 left!

0

4

Echo V137000030

GROMMET, FUEL
(Superseded to 13211546730)

$2.49

$

In Stock, Qty 20+

0

5

Echo 132013-09820

CLIP 6 MM

$0.99

$

In Stock, Qty 8

0

6

Echo 131205-07320

FILTER, FUEL

$6.49

$

In Stock, Qty 20+

0

7

Echo A356000031

VENT ASSY

$9.49

$

In Stock, Qty 20+

0

8

Echo 130111-00530

CLIP 5.5

$0.99

$

In Stock, Qty 20+

0

9

Echo V471001200

PIPE, FUEL 3x-5x-70 BLACK
(Superseded to V471001201)

Note: RePower BULK OPTION: 90014

$2.49

$

In Stock, Qty 20+

0

10

Echo 13201049030

PIPE, FUEL 3×6×50

Note: RePower BULK OPTION: 90017

$1.99

$

In Stock, Qty 19

0

11

Echo 13100409060

CAP ASSY
(Superseded to P100006610)

Note: Includes ITEMS 12-13

$10.99

$

In Stock, only 2 left!

0

12

Echo 131016-55830

GASKET, FUEL CAP

$

$

Not available

13

Echo 13105156030

CONNECTOR, CAP L= 100 MM

$1.49

$

In Stock, Qty 6

0

14

Echo 17720012820

STARTER ASSY
(Superseded to A051000950)

Note: Includes ITEMS 15-20

$123.99

$

Usually ships in 2-4 days

0

15

Echo 177220-42030

SPRING, RECOIL
(Superseded to P022019680)

$11.99

$

In Stock, Qty 10

0

16

Echo 177215-44430

REEL, ROPE

$10.99

$

In Stock, Qty 7

0

17

Echo 17722605530

ROPE, STARTER

Note: RePower BULK OPTION: 99944440000

$4.99

$

In Stock, Qty 5

0

18

Echo 177227-42030

GUIDE, ROPE
(Superseded to 17722742030)

$2.99

$

Usually ships in 2-4 days

0

19

Echo 17722811120

GRIP, STARTER

$6.99

$

Usually ships in 2-4 days

0

20

Echo 177236-44330

SCREW
(Superseded to 17723644330)

$3.99

$

In Stock, Qty 10

0

21

Echo 900238-04016

SCREW 4×16

$0.99

$

Usually ships in 2-4 days

0

22

Echo 17500007531

CLUTCH ASSY

Note: INCLUDES ITEMS 23-25

$70.99

$

Usually ships in 2-4 days

0

23

Echo 17501605020

HUB, CLUTCH

$12.99

$

Usually ships in 2-4 days

0

24

Echo 17501805130

SPRING, CLUTCH

$1.99

$

In Stock, only 2 left!

0

25

Echo 17500905131

SHOE, CLUTCH

$25.99

$

In Stock, only 2 left!

0

26

Echo 17501904630

PLATE, CLUTCH

$3.49

$

Usually ships in 2-4 days

0

27

Echo 900600-00010

WASHER 10.5×18×1.6

$0.99

$

In Stock, Qty 9

0

28

Echo 90080836000

BEARING, BALL 6000-2RLB

$18.99

$

Usually ships in 2-4 days

0

29

Echo 17501004633

DRUM, CLUTCH
(Superseded to 17501004634)

$36.99

$

Usually ships in 2-4 days

0

30

Echo 17504404630

SPACER

$1.99

$

Usually ships in 2-4 days

0

31

Echo 17501411520

WASHER, CLUTCH

$2.99

$

Usually ships in 2-4 days

0

32

Echo 90023806012

SCREW 6×12

$0.99

$

Usually ships in 2-4 days

0

33

Echo 61022311520

CASE, CLUTCH

$73.99

$

Usually ships in 2-4 days

0

34

Echo 90023804014

SCREW 4×14

$0.99

$

In Stock, Qty 6

0

35

Echo 900600-00005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0

36

Echo 900605-00005

WASHER, SPRING 5

$0.99

$

In Stock, Qty 9

0

37

Echo 13041611520

BOLT 5
(Superseded to Discontinued)

$

$

Not available

Echo 90014

BULK PIPE - 3×5 MM BLACK (4 PIECES×2 M)

Note: OPTIONAL

$50.99

$

In Stock, only 2 left!

0

Echo 90017

BULK PIPE - 3×6 MM CLEAR (4 PIECES×2 M)

Note: CLEAR

$69.99

$

In Stock, only 2 left!

0

Echo 99944444000

3 MM (1/8")×1000 MM (39-1/2"), BULK

Note: OPTIONAL

$

$

Currently unavailable
