SV-5C/1 - Little Wonder Engine (SN: 08001001 - 08999999) Intake, Exhaust Parts Diagram

Engine

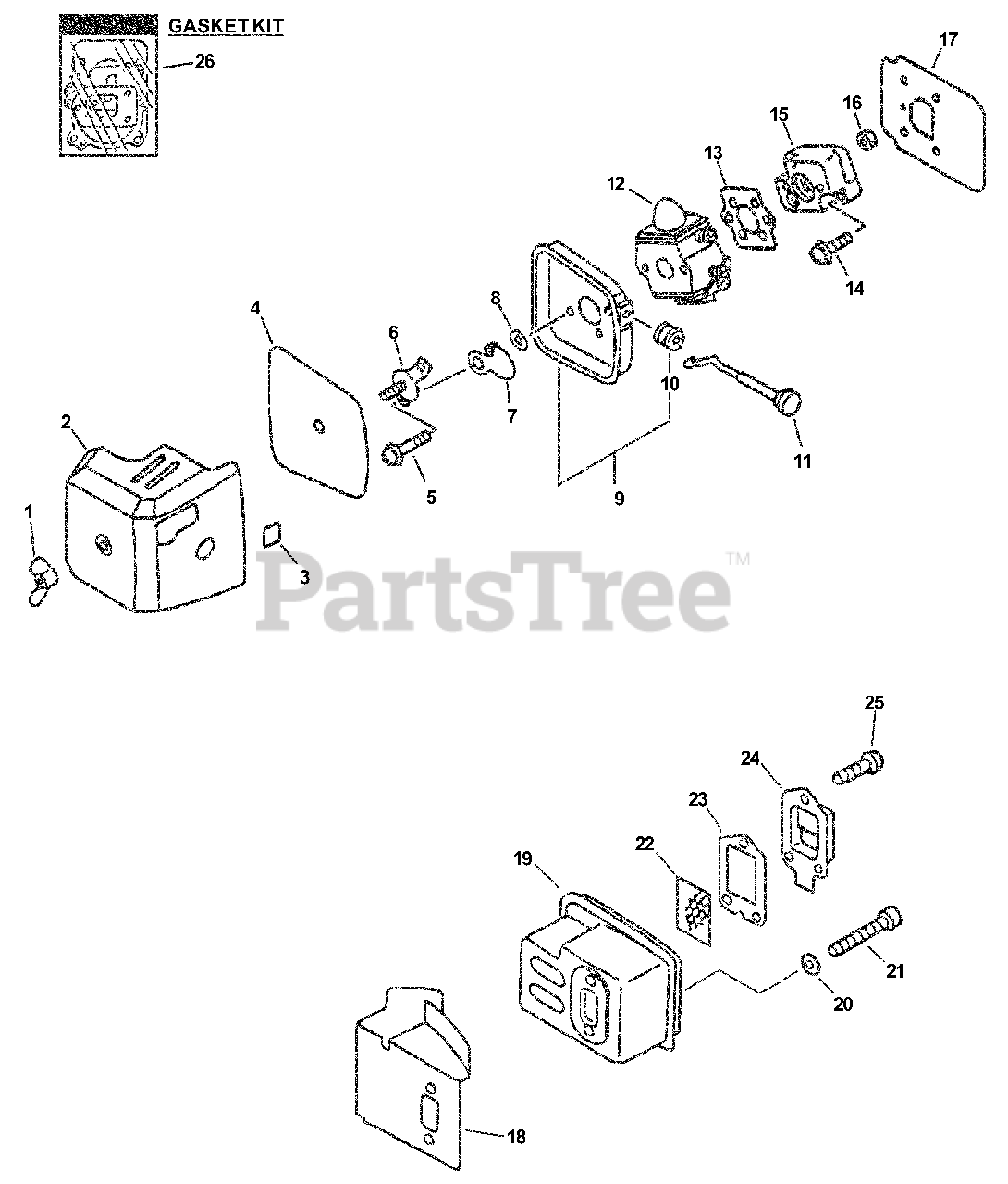

Intake, Exhaust Parts Diagram

  • Title

1

Echo 90052800005

WINGNUT - 6

$1.99

$

In Stock, Qty 5

0

2

Echo 13032611522

COVER, AIR FILTER

$12.99

$

In Stock, Qty 5

0

3

Echo 89012147530

LABEL, CHOKE

$4.99

$

In Stock, only 1 left!

0

4

Echo 13031004560

FILTER, AIR

$5.99

$

In Stock, Qty 9

0

5

Echo 900242-05057

SCREW 5×57

$0.99

$

In Stock, only 3 left!

0

6

Echo 13041005360

PLATE, PREVENT

$11.99

$

In Stock, only 2 left!

0

7

Echo 17851504560

SHUTTER, CHOKE

$2.99

$

In Stock, Qty 10

0

8

Echo 178516-00830

WASHER 5.2×8×0.8T

$0.99

$

In Stock, Qty 20+

0

9

Echo 13030104560

CASE, AIR FILTER

Note: Includes ITEM 10

$10.99

$

In Stock, only 2 left!

0

10

Echo 17881005230

GROMMET, CHOKE

$2.49

$

In Stock, only 3 left!

0

11

Echo 17851004560

ROD, CHOKE

$8.99

$

In Stock, only 2 left!

0

12

Echo 12520013124

CARBURETOR - C1U-K54A
(Superseded to 12520013125)

$110.99

$

In Stock, Qty 8

0

13

Echo 130016-42031

GASKET, INTAKE

Note: Included In GASKET KIT

$1.49

$

In Stock, Qty 20+

0

14

Echo 900238-05020

SCREW 5×20

$0.99

$

In Stock, Qty 8

0

15

Echo 130017-42031

INSULATOR, INTAKE

$11.99

$

In Stock, Qty 8

0

16

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

17

Echo V103000490

HEAT SHIELD, INTAKE
(Superseded to V103001360)

Note: Included In GASKET KIT

$2.99

$

In Stock, Qty 12

0

18

Echo V104000590

HEAT SHIELD, EXHAUST

Note: Included In GASKET KIT

$12.99

$

Usually ships in 2-4 days

0

19

Echo 14581011520

MUFFLER

$63.99

$

Usually ships in 2-4 days

0

20

Echo 900600-00005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0

21

Echo 90010505050

BOLT M5×50

$1.99

$

In Stock, Qty 11

0

22

Echo 14586240630

SCREEN, SPARK ARRESTER

$2.49

$

In Stock, Qty 20+

0

23

Echo 145866-42031

GASKET, EXHAUST

Note: Included In GASKET KIT

$2.99

$

In Stock, only 2 left!

0

24

Echo A313000610

GUIDE, EXHAUST

$11.99

$

Usually ships in 2-4 days

0

25

Echo 900242-04010

SCREW 4×10

$0.99

$

In Stock, Qty 20+

0

26

Echo P021007600

GASKET KIT

$33.99

$

Usually ships in 2-4 days

0
