SV-5C/2 - Little Wonder Engine (SN: 09001001 - 09999999) Engine Cover, Fancase, Starter Parts Diagram

Engine

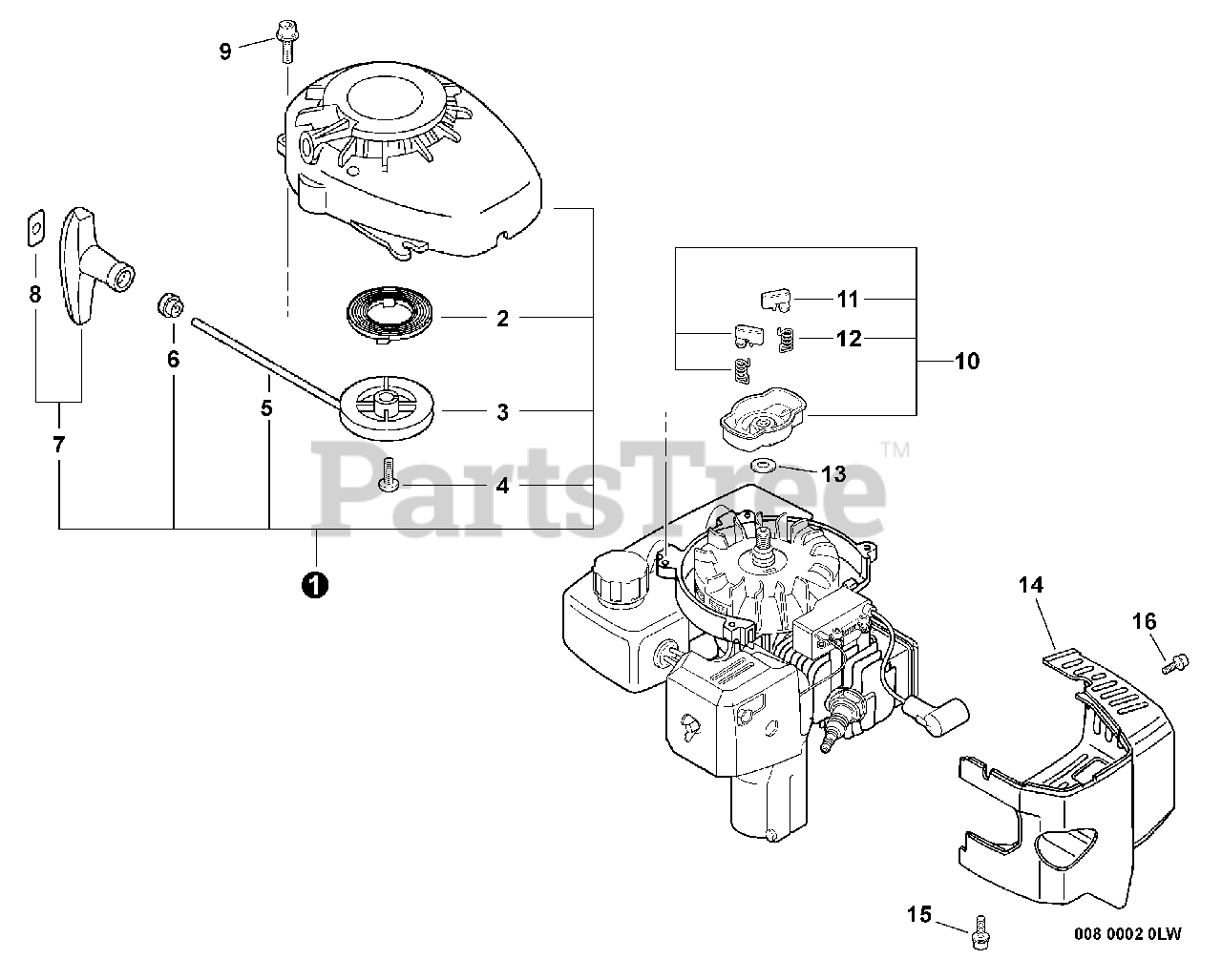

Engine Cover, Fancase, Starter Parts Diagram

  • Title

1

Echo A051000950

STARTER ASSY

Note: INCLUDES ITEMS 2-8

$123.99

$

Usually ships in 2-4 days

0

2

Echo 177220-42030

SPRING, RECOIL
(Superseded to P022019680)

$11.99

$

In Stock, Qty 10

0

3

Echo 177215-44430

REEL, ROPE

$10.99

$

In Stock, Qty 6

0

4

Echo 177236-44330

SCREW
(Superseded to 17723644330)

$3.99

$

In Stock, Qty 10

0

5

Echo 17722605530

ROPE, STARTER

Note: RePower BULK OPTION: 99944440000

$4.99

$

In Stock, Qty 5

0

6

Echo 177227-42030

GUIDE, ROPE
(Superseded to 17722742030)

$2.99

$

Usually ships in 2-4 days

0

7

Echo 17722811120

GRIP, STARTER

Note: Includes ITEM 8

$6.99

$

Usually ships in 2-4 days

0

8

Echo 177246-11120

RETAINER, ROPE
(Superseded to P022037670)

$2.49

$

In Stock, only 2 left!

0

9

Echo 900238-04016

SCREW 4×16

$0.99

$

Usually ships in 2-4 days

0

10

Echo 17720212220

PAWL ASSY, STARTER

Note: Includes ITEMS 11-12

$19.99

$

In Stock, only 2 left!

0

11

Echo 177218-44330

PAWL, STARTER - BLACK

$4.49

$

In Stock, Qty 20+

0

12

Echo 17723412220

SPRING, RETURN

$4.99

$

In Stock, Qty 13

0

13

Echo 90060500008

WASHER, SPRING 8

$0.99

$

In Stock, Qty 20+

0

14

Echo A160000610

COVER, ENGINE

$26.99

$

Usually ships in 2-4 days

0

15

Echo 90023804018

SCREW 4×18

$0.99

$

In Stock, only 3 left!

0

16

Echo 9110704008

BOLT 4×8

$0.99

$

In Stock, Qty 20+

0
