SV-5C/2 - Little Wonder Engine (SN: 10001001 - 10999999) Engine, Short Block -- SB1087 Parts Diagram

Engine

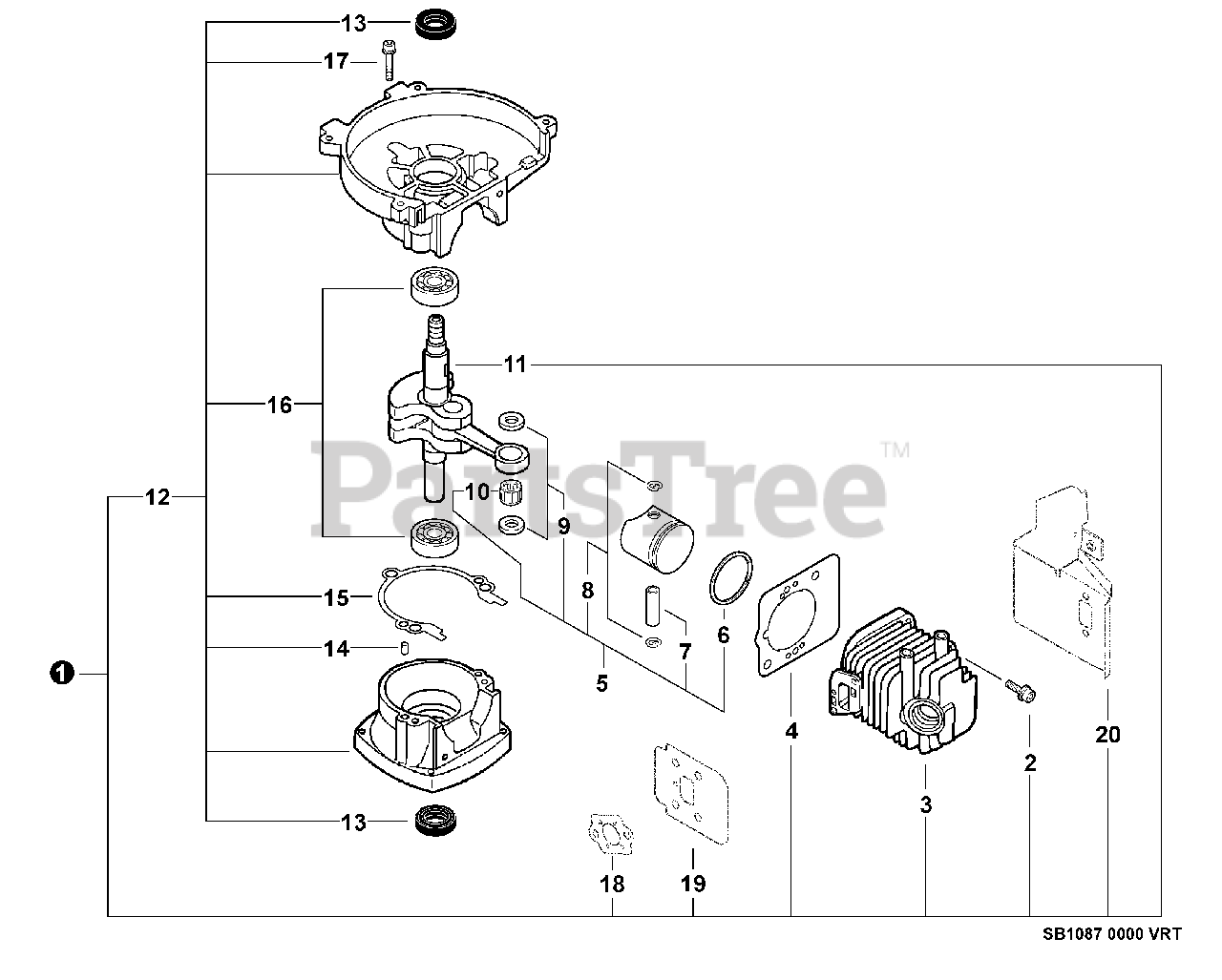

Engine, Short Block -- SB1087 Parts Diagram

  • Title

1

Echo SB1087

SHORT BLOCK

Note: Includes ITEMS 2-17

$199.99

$

Usually ships in 2-4 days

0

2

Echo 900162-05022

BOLT 5×22

$0.99

$

In Stock, only 3 left!

0

3

Echo A130000550

CYLINDER

$107.99

$

In Stock, only 2 left!

0

4

Echo V100000160

GASKET, CYLINDER

Note: Included In GASKET KIT

$7.49

$

In Stock, Qty 11

0

5

Echo P021007712

PISTON KIT

Note: Includes ITEMS 6-9

$

$

Not available

6

Echo A101000090

RING, PISTON

$

$

Not available

7

Echo 100013-11520

PIN, PISTON 8

$8.49

$

In Stock, only 2 left!

0

8

Echo 100015-04630

RING, SNAP
(Superseded to 10001504630)

$0.99

$

In Stock, Qty 20+

0

9

Echo 100014-11520

WASHER, THRUST

$3.99

$

In Stock, only 2 left!

0

10

Echo A011000390

CRANKSHAFT ASSY
(Superseded to A011000391)

Note: Includes ITEM 11

$184.99

$

Usually ships in 2-4 days

0

11

Echo V553000060

BEARING, NEEDLE 8

$12.99

$

In Stock, only 2 left!

0

12

Echo 10020411521

CRANKCASE KIT

Note: Includes ITEMS 13-17

$155.99

$

Usually ships in 2-4 days

0

13

Echo 100212-42031

SEAL, OIL 12

$7.99

$

In Stock, Qty 20+

0

14

Echo V622000020

PIN, LOCATING 4

$0.99

$

In Stock, only 4 left!

0

15

Echo 100242-42030

GASKET, CRANKCASE

Note: Included In GASKET KIT

$1.99

$

In Stock, Qty 17

0

16

Echo 9403536201

BEARING, BALL - 6201 C3

$9.99

$

In Stock, only 3 left!

0

17

Echo 900162-05028

BOLT 5×28

$2.49

$

In Stock, Qty 10

0

18

GASKET, INTAKE

Note: Included In GASKET KIT

$

$

Not available

19

SHIELD, INTAKE

Note: Included In GASKET KIT

$

$

Not available

20

SHIELD, EXHAUST

Note: Included In GASKET KIT

$

$

Not available
