SV-5C/2 - Little Wonder Engine (SN: 10001001 - 10999999) Intake Parts Diagram

Engine

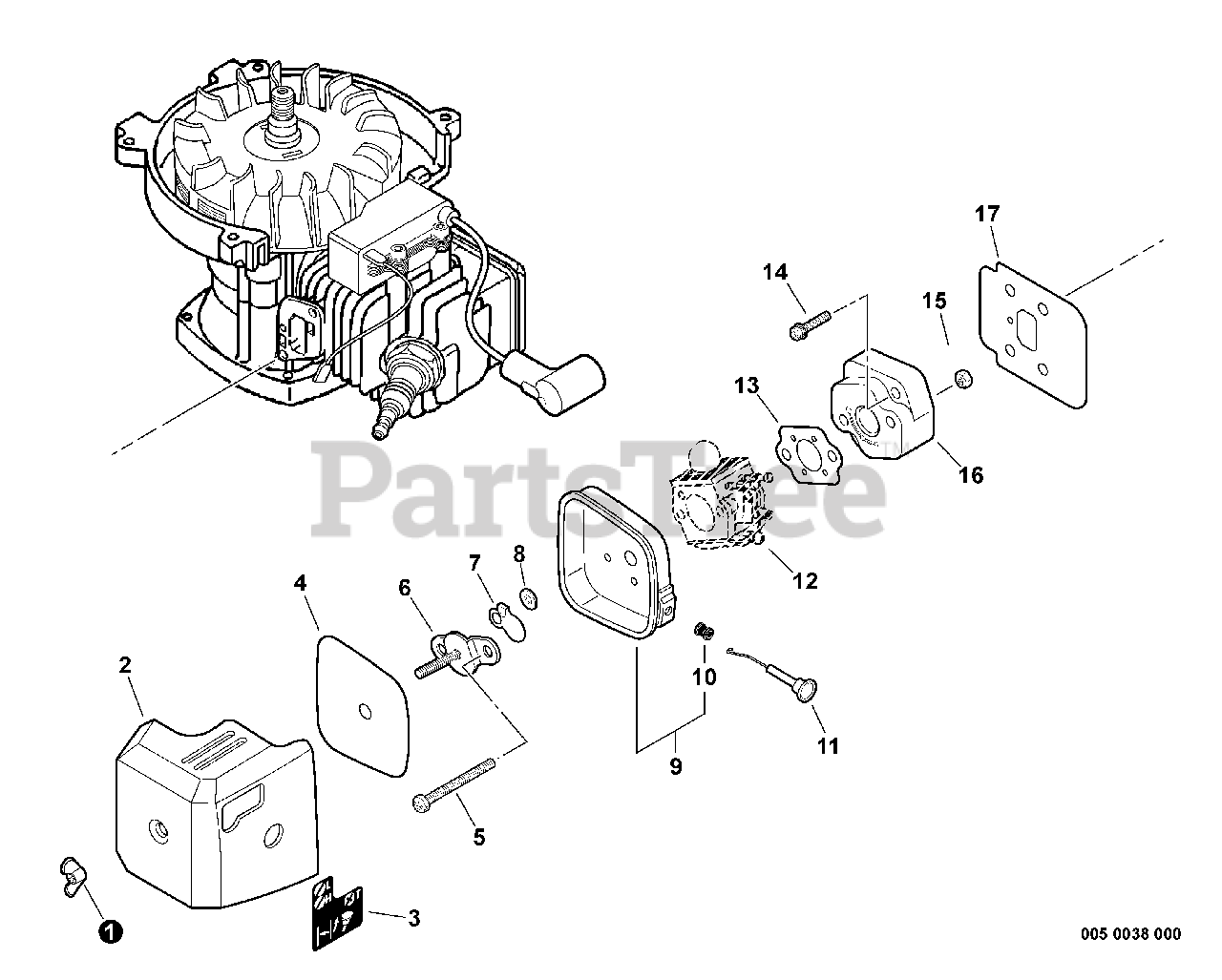

Intake Parts Diagram

  • Title

1

Echo 90052800005

WINGNUT - 6

$1.49

$

In Stock, Qty 20+

0

2

Echo 13032611522

COVER, AIR FILTER

$10.99

$

In Stock, only 2 left!

0

3

Echo 89012147530

LABEL - CHOKE

$3.99

$

In Stock, only 3 left!

0

4

Echo 13031004560

FILTER, AIR

$4.99

$

In Stock, Qty 20+

0

5

Echo 90024205057

SCREW - 5X57

$0.99

$

In Stock, Qty 8

0

6

Echo 13041005360

PLATE, PREVENT

$9.99

$

Usually ships in 2-4 days

0

7

Echo 17851504560

SHUTTER, CHOKE

$2.49

$

In Stock, only 1 left!

0

8

Echo 17851600830

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

9

Echo 13030104560

CASE, AIR FILTER

Note: Includes ITEM 10

$8.49

$

Usually ships in 2-4 days

0

10

Echo 17881005230

GROMMET

$1.99

$

In Stock, Qty 16

0

11

Echo 17851004560

ROD, CHOKE

$7.49

$

In Stock, only 1 left!

0

12

------------------

CARBURETOR

Note: See Carburetor Diagram For Details

$

$

Not available

13

Echo 13001642031

GASKET, INTAKE

$1.49

$

In Stock, Qty 20+

0

14

Echo 90023805020

SCREW - 5X20

$0.99

$

In Stock, Qty 20+

0

15

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

16

Echo 13001742031

INSULATOR, INTAKE

$9.49

$

In Stock, Qty 16

0

17

Echo V103000490

SHIELD, INTAKE
(Superseded to V103001360)

$2.49

$

In Stock, Qty 20+

0
