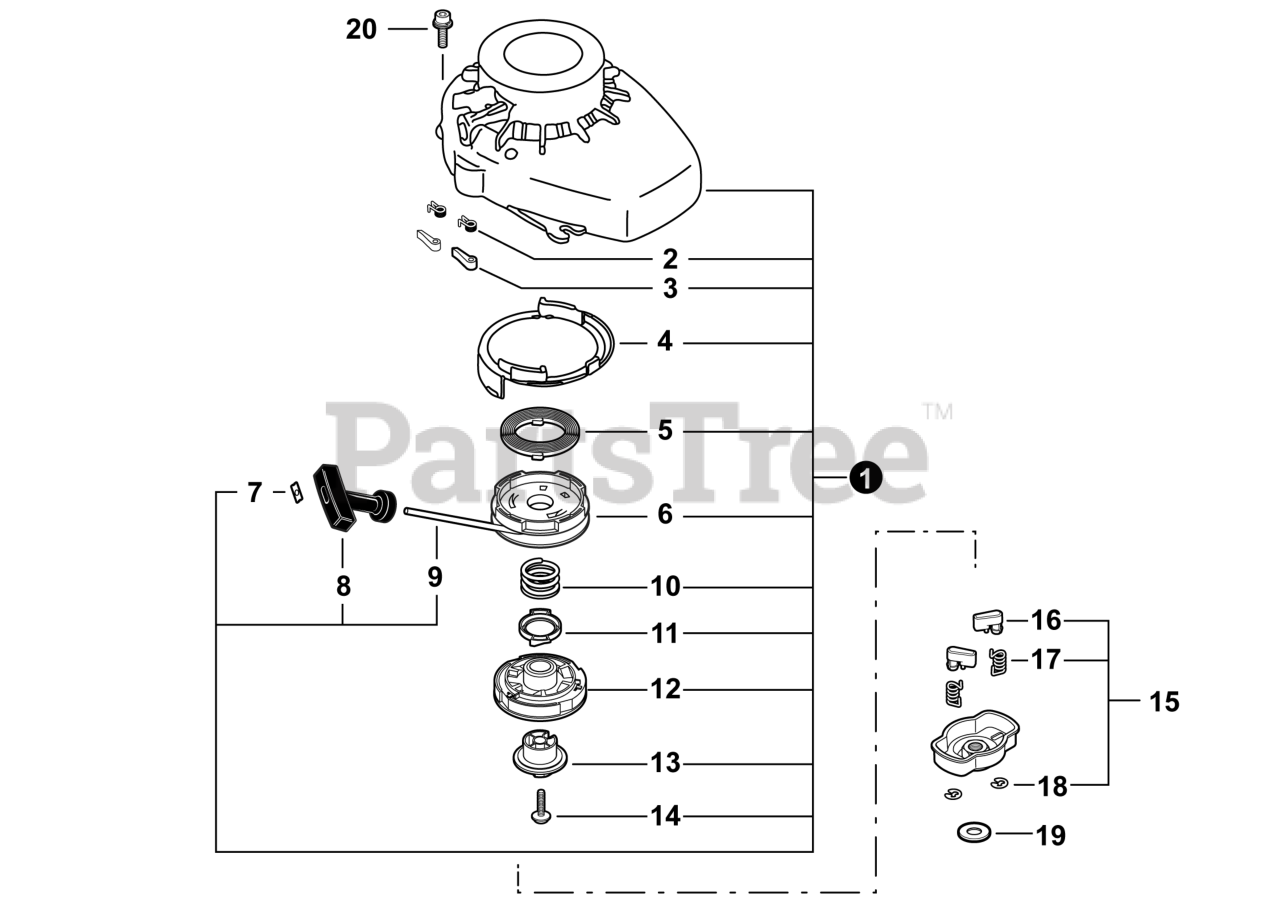

SV-5Ci/2 - Little Wonder Engine (SN: E14914100001 - E14914999999) Starter Parts Diagram

Engine

Starter Parts Diagram

  • Title

1

Echo A051000640

STARTER ASSY
(Superseded to Discontinued)

Note: Includes Items 2-14

$

$

Not available

2

Echo P022004610

SPRING

$1.99

$

Usually ships in 2-4 days

0

3

Echo P022004620

PAWL, STARTER

$3.99

$

Usually ships in 2-4 days

0

4

Echo P022006500

CASE, STARTER

$13.99

$

Usually ships in 2-4 days

0

5

Echo P022004680

SPRING, RECOIL

$12.99

$

In Stock, only 4 left!

0

6

Echo P022004690

PULLEY, STARTER

$8.99

$

Usually ships in 2-4 days

0

7

Echo 17724611120

RETAINER, ROPE
(Superseded to P022037670)

$2.49

$

In Stock, only 2 left!

0

8

Echo P022004990

GRIP, STARTER

$5.99

$

Usually ships in 2-4 days

0

9

Echo P022004600

ROPE, STARTER
(Superseded to Discontinued)

$

$

Not available

10

Echo P022004660

SPRING, RETURN

$3.99

$

In Stock, only 2 left!

0

11

Echo P022004670

PAWL, STARTER

$5.49

$

Usually ships in 2-4 days

0

12

Echo P022004700

SPRING ASSY

$72.99

$

Usually ships in 2-4 days

0

13

Echo P022004640

PLATE, CAM

$7.99

$

Usually ships in 2-4 days

0

14

Echo P022004630

SCREW

$1.99

$

Usually ships in 2-4 days

0

15

Echo A052000150

PAWL ASSY, STARTER

Note: Includes Items 16-18

$17.99

$

Usually ships in 2-4 days

0

16

Echo P022004740

PAWL, STARTER

$3.99

$

Usually ships in 2-4 days

0

17

Echo 17723412220

SPRING, RETURN

$4.99

$

In Stock, Qty 15

0

18

Echo P022002100

E-RING 4

$0.99

$

In Stock, Qty 8

0

19

Echo 90060500008

WASHER, SPRING 8

$0.99

$

In Stock, Qty 20+

0

20

Echo 90023804016

SCREW 4x16
(Superseded to Discontinued)

$

$

Not available
