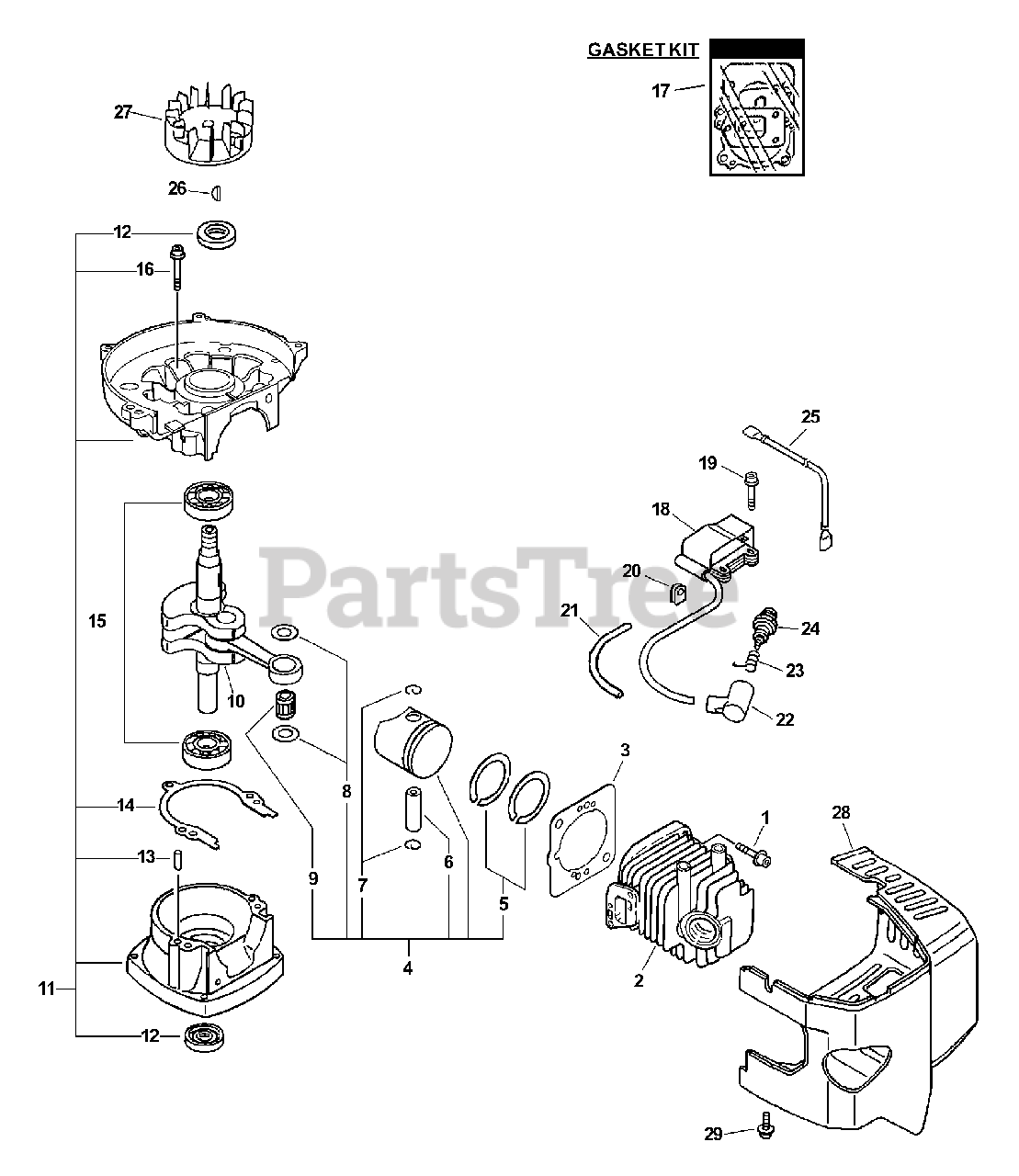

SV-5Ci - Little Wonder Engine (SN: 05001001 - 05999999) Engine, Ignition, Cylinder Cover Parts Diagram

Engine

Engine, Ignition, Cylinder Cover Parts Diagram

  • Title

1

Echo 90016205022

SCREW - 5X22

$0.99

$

In Stock, Qty 8

0

2

Echo A130000420

CYLINDER

$112.99

$

Usually ships in 2-4 days

0

3

Echo V100000080

GASKET, CYLINDER

$6.99

$

In Stock, only 2 left!

0

4

Echo P021001101

PISTON KIT
(Superseded to P021001102)

Note: INCLUDES ITEMS 5-9

$93.99

$

In Stock, only 1 left!

0

5

Echo A101000000

RING, PISTON

$10.99

$

In Stock, Qty 15

0

6

Echo 10001311520

PIN, PISTON

$8.49

$

In Stock, only 2 left!

0

7

Echo 10001504630

RING, RETAINING

$0.99

$

In Stock, Qty 20+

0

8

Echo 10001411520

SPACER, PISTON

$3.99

$

In Stock, only 2 left!

0

9

Echo V553000010

BEARING, NEEDLE - 8

$11.99

$

In Stock, only 2 left!

0

10

Echo A011000210

CRANKSHAFT ASSY

$204.99

$

Usually ships in 2-4 days

0

11

Echo 10020411521

CRANKCASE KIT

Note: Includes ITEMS 12-16

$155.99

$

Usually ships in 2-4 days

0

12

Echo 10021242031

SEAL, OIL

$7.99

$

In Stock, Qty 7

0

13

Echo V622000020

PIN - LOCATING

$0.99

$

In Stock, Qty 5

0

14

Echo 10024242030

GASKET, CRANKCASE

$1.99

$

In Stock, Qty 10

0

15

Echo 9403536201

BEARING, BALL - 6201

$9.99

$

Usually ships in 2-4 days

0

16

Echo 90016205028

SCREW - 5X28

$2.49

$

In Stock, Qty 11

0

17

Echo P021004670

GASKET KIT
(Superseded to P021004671)

$26.99

$

Usually ships in 2-4 days

0

18

Echo A411000130

COIL, IGNITION
(Superseded to A411000131)

$85.99

$

In Stock, Qty 20+

0

19

Echo 90016204020

SCREW - 4X20

$1.49

$

In Stock, Qty 20+

0

20

Echo 15611004920

GROMMET

$0.99

$

In Stock, Qty 20+

0

21

Echo V475002200

TUBE, INSULATOR

$1.99

$

In Stock, Qty 9

0

22

Echo 15901201620

CAP, SPARK PLUG

$1.99

$

In Stock, only 3 left!

0

23

Echo 15901103432

TERMINAL, SPARK PLUG CAP

$1.99

$

In Stock, Qty 15

0

24

Echo 15901019830

SPARK PLUG -- BPM-8Y

$3.99

$

In Stock, Qty 20+

0

25

Echo 16202152830

LEAD - IGNITION
(Superseded to V485001080)

$4.49

$

In Stock, only 2 left!

0

26

Echo 61032502730

KEY

$1.99

$

In Stock, only 2 left!

0

27

Echo A409000150

FLYWHEEL

$91.99

$

Usually ships in 2-4 days

0

28

Echo 10150612821

COVER, ENGINE
(Superseded to Discontinued)

$

$

Not available

29

Echo 90023804018

SCREW - 4X18

$0.99

$

In Stock, Qty 7

0
