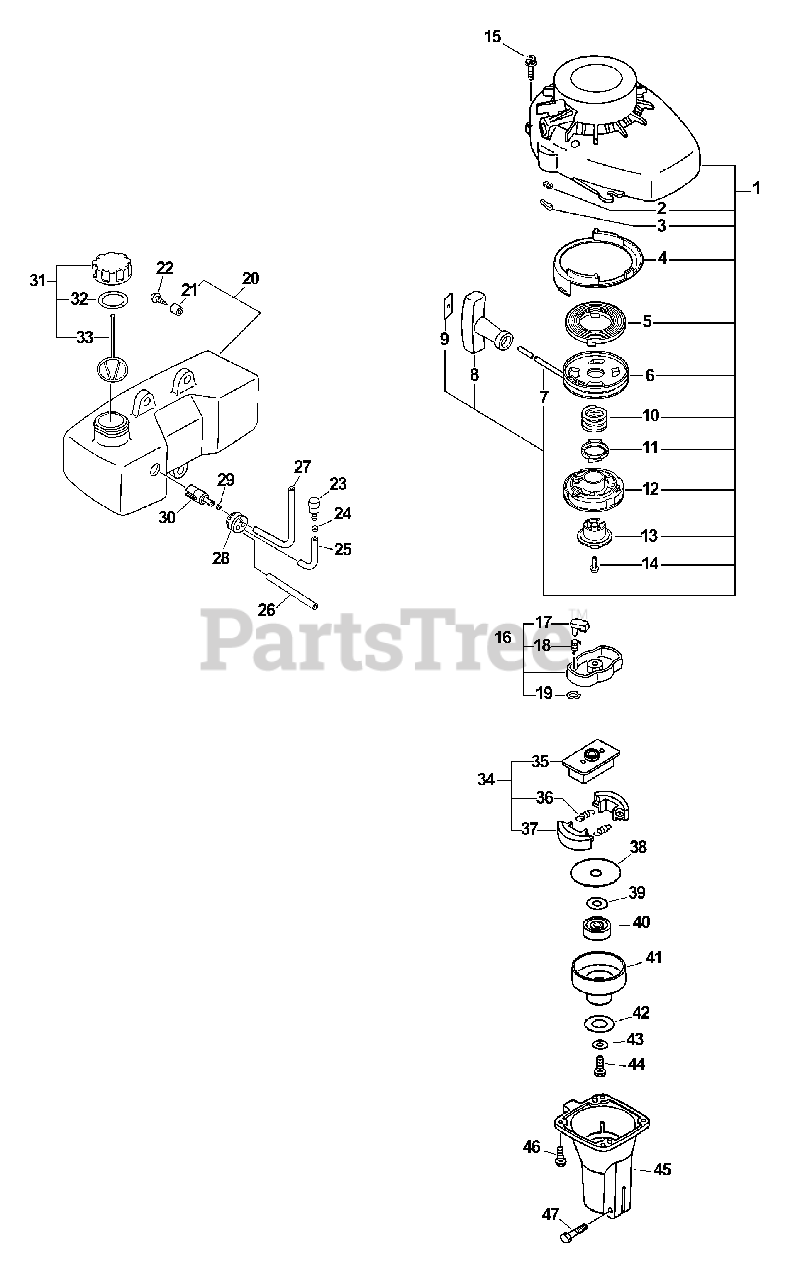

SV-5Ci - Little Wonder Engine (SN: 05001001 - 05999999) Starter, Clutch, Fuel System Parts Diagram

Engine

Starter, Clutch, Fuel System Parts Diagram

  • Title

1

Echo A051000640

STARTER ASSY
(Superseded to Discontinued)

Note: INCLUDES ITEMS 2-14

$

$

Not available

2

Echo P022004610

SPRING

$1.99

$

Usually ships in 2-4 days

0

3

Echo P022004620

PAWL, STARTER

$3.99

$

Usually ships in 2-4 days

0

4

Echo P022006500

CASE, STARTER

$13.99

$

Usually ships in 2-4 days

0

5

Echo P022004680

SPRING, RECOIL

$12.99

$

In Stock, Qty 7

0

6

Echo P022004690

PULLEY, STARTER

$8.99

$

Usually ships in 2-4 days

0

7

Echo P022004600

ROPE, STARTER
(Superseded to Discontinued)

Note: RePower BULK OPTION: 99944440000

$

$

Not available

8

Echo P022004990

GRIP, STARTER

$5.99

$

Usually ships in 2-4 days

0

9

Echo 177246-11120

RETAINER, ROPE
(Superseded to P022037670)

$2.49

$

In Stock, only 2 left!

0

10

Echo P022004660

SPRING, RETURN

$3.99

$

In Stock, only 2 left!

0

11

Echo P022004670

PAWL, STARTER

$5.49

$

Usually ships in 2-4 days

0

12

Echo P022004700

SPRING ASSY

$72.99

$

Usually ships in 2-4 days

0

13

Echo P022004640

PLATE, CAM

$7.99

$

Usually ships in 2-4 days

0

14

Echo P022004630

SCREW

$1.99

$

Usually ships in 2-4 days

0

15

Echo 900238-04016

SCREW 4×16

$0.99

$

Usually ships in 2-4 days

0

16

Echo A052000150

PAWL ASSY, STARTER

Note: Includes ITEMS 17-19

$17.99

$

Usually ships in 2-4 days

0

17

Echo P022004740

PAWL, STARTER

$3.99

$

Usually ships in 2-4 days

0

18

Echo 17723412220

SPRING, RETURN

$4.99

$

In Stock, Qty 13

0

19

Echo P022002100

E-RING 4

$0.99

$

In Stock, Qty 5

0

20

Echo A350000300

TANK ASSY, FUEL

Note: Includes ITEM 21

$26.99

$

In Stock, only 3 left!

0

21

Echo 13104528230

SPACER 6.2×7.8×6

$1.99

$

In Stock, Qty 20+

0

22

Echo 90027505015

SCREW 5×15

$0.99

$

In Stock, Qty 11

0

23

Echo A356000031

VENT ASSY

$9.49

$

In Stock, Qty 20+

0

24

Echo 130111-00530

CLIP 5.5

$0.99

$

In Stock, Qty 20+

0

25

Echo V471001200

PIPE, FUEL 3x-5x-70 BLACK
(Superseded to V471001201)

Note: RePower BULK OPTION: 90014

$2.49

$

In Stock, Qty 20+

0

26

Echo 13201049030

PIPE, FUEL 3×6×50

Note: RePower BULK OPTION: 90017

$1.99

$

In Stock, Qty 19

0

27

Echo V471001230

PIPE, FUEL 3×5×210 BLACK
(Superseded to V471001231)

Note: RePower BULK OPTION: 90014

$5.99

$

In Stock, only 2 left!

0

28

Echo V137000030

GROMMET, FUEL
(Superseded to 13211546730)

$2.49

$

In Stock, Qty 20+

0

29

Echo 132013-09820

CLIP 6 MM

$0.99

$

In Stock, Qty 7

0

30

Echo 131205-07320

FILTER, FUEL

$6.49

$

In Stock, Qty 20+

0

31

Echo 13100409060

CAP ASSY
(Superseded to P100006610)

Note: INCLUDES ITEMS 32-33

$10.99

$

In Stock, only 2 left!

0

32

Echo 131016-55830

GASKET, FUEL CAP

$

$

Not available

33

Echo 13105156030

CONNECTOR, CAP L= 100 MM

$1.49

$

In Stock, Qty 6

0

34

Echo 17500007531

CLUTCH ASSY

Note: INCLUDES ITEMS 35-37

$70.99

$

Usually ships in 2-4 days

0

35

Echo 17501605020

HUB, CLUTCH

$12.99

$

Usually ships in 2-4 days

0

36

Echo 17501805130

SPRING, CLUTCH

$1.99

$

In Stock, only 2 left!

0

37

Echo 17500905131

SHOE, CLUTCH

$25.99

$

In Stock, only 2 left!

0

38

Echo 17501904630

PLATE, CLUTCH

$3.49

$

Usually ships in 2-4 days

0

39

Echo 900600-00010

WASHER 10.5×18×1.6

$0.99

$

In Stock, Qty 9

0

40

Echo 90080836000

BEARING, BALL 6000-2RLB

$18.99

$

Usually ships in 2-4 days

0

41

Echo 17501004633

DRUM, CLUTCH
(Superseded to 17501004634)

$36.99

$

Usually ships in 2-4 days

0

42

Echo 17504404630

SPACER

$1.99

$

Usually ships in 2-4 days

0

43

Echo 17501411520

WASHER, CLUTCH

$2.99

$

Usually ships in 2-4 days

0

44

Echo 90023806012

SCREW 6×12

$0.99

$

Usually ships in 2-4 days

0

45

Echo 61022311520

CASE, CLUTCH

$73.99

$

Usually ships in 2-4 days

0

46

Echo 90023804014

SCREW 4×14

$0.99

$

In Stock, Qty 6

0

47

Echo 13041611520

BOLT 5
(Superseded to Discontinued)

$

$

Not available

Echo 99944444000

3 MM (1/8")×1000 MM (39-1/2"), BULK

$

$

Currently unavailable

Echo 90014

BULK PIPE - 3×5 MM BLACK (4 PIECES×2 M)

$50.99

$

In Stock, only 1 left!

0

Echo 90017

BULK PIPE - 3×6 MM CLEAR (4 PIECES×2 M)

Note: CLEAR

$69.99

$

In Stock, only 2 left!

0
