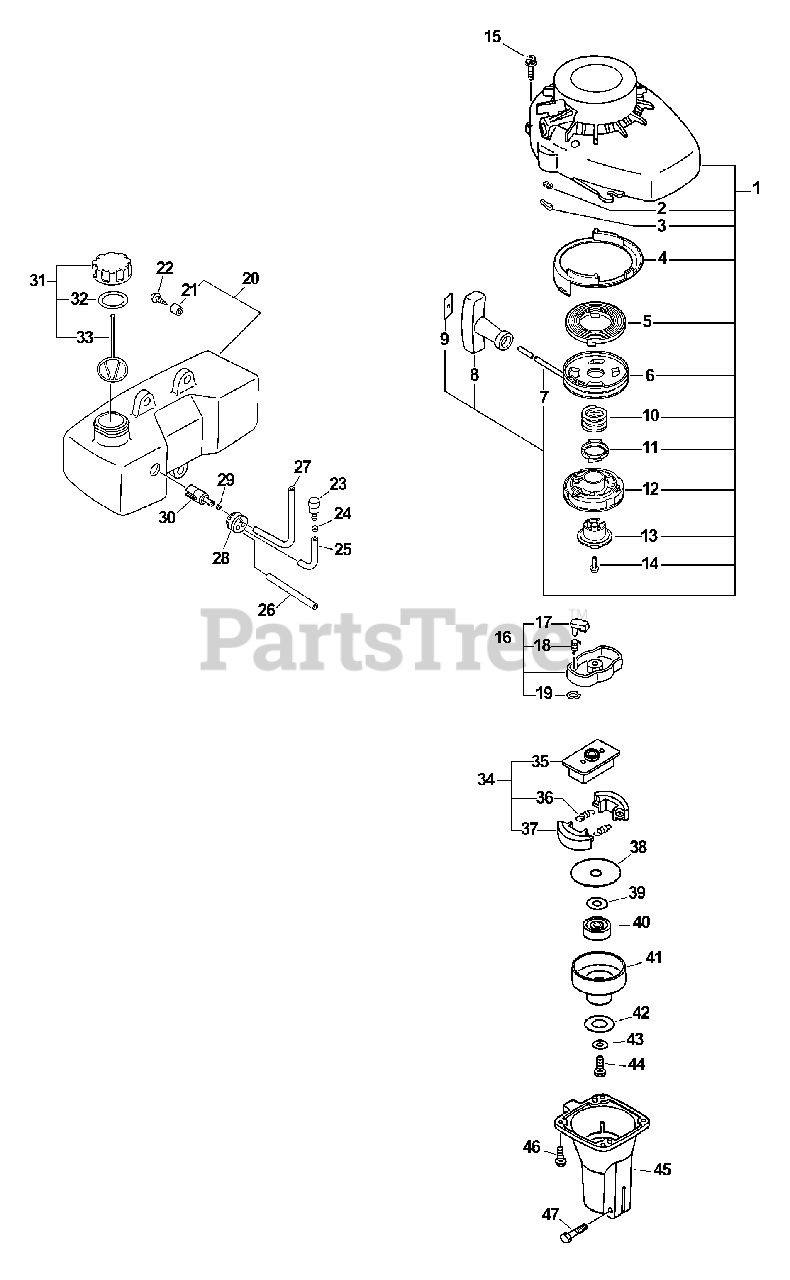

SV-5Ci - Little Wonder Engine (SN: 05001001 - 05999999) Starter, Clutch, Fuel System Parts Diagram

Engine

Starter, Clutch, Fuel System Parts Diagram

  • Title

1

Echo A051000640

STARTER ASSY
(Superseded to Discontinued)

Note: INCLUDES ITEMS 2-14

$

$

Not available

2

Echo P022004610

SPRING, PAWL RETURN

$1.99

$

Usually ships in 2-4 days

0

3

Echo P022004620

PAWL, STARTER

$3.49

$

Usually ships in 2-4 days

0

4

Echo P022006500

CASE, STARTER

$11.99

$

Usually ships in 2-4 days

0

5

Echo P022004680

SPRING, REWIND

$10.99

$

In Stock, Qty 10

0

6

Echo P022004690

REEL, ROPE

$7.49

$

Usually ships in 2-4 days

0

7

Echo P022004600

ROPE, STARTER - 3X800
(Superseded to Discontinued)

Note: RePower BULK OPTION: 99944440000

$

$

Not available

8

Echo P022004990

GRIP, STARTER

$4.99

$

Usually ships in 2-4 days

0

9

Echo 17724611120

RETAINER, ROPE
(Superseded to P022037670)

$2.49

$

In Stock, Qty 8

0

10

Echo P022004660

SPRING, RETURN

$3.49

$

In Stock, only 2 left!

0

11

Echo P022004670

PAWL

$4.99

$

Usually ships in 2-4 days

0

12

Echo P022004700

SPRING ASSY

$60.99

$

Usually ships in 2-4 days

0

13

Echo P022004640

PLATE, CAM

$6.49

$

Usually ships in 2-4 days

0

14

Echo P022004630

SCREW

$1.99

$

Usually ships in 2-4 days

0

15

Echo 90023804016

SCREW - 4X16
(Superseded to Discontinued)

$

$

Not available

16

Echo A052000150

STARTER PAWL ASSY

Note: Includes ITEMS 17-19

$14.99

$

Usually ships in 2-4 days

0

17

Echo P022004740

PAWL, STARTER

$3.49

$

Usually ships in 2-4 days

0

18

Echo 17723412220

SPRING, RETURN

$3.99

$

In Stock, Qty 20+

0

19

Echo P022002100

RING, RETAINING - 4

$0.99

$

In Stock, Qty 20+

0

20

Echo A350000300

FUEL TANK ASSY

Note: Includes ITEM 21

$22.99

$

In Stock, Qty 11

0

21

Echo 13104528230

SLEEVE

$1.49

$

In Stock, Qty 20+

0

22

Echo 90027505015

SCREW - 5X15

$0.99

$

In Stock, Qty 19

0

23

Echo A356000031

VENT, FUEL TANK

$7.99

$

In Stock, Qty 20+

0

24

Echo 13011100530

CLIP - 5.5

$0.99

$

In Stock, Qty 20+

0

25

Echo V471001200

PIPE - 3X5X70 -- BLACK
(Superseded to V471001201)

Note: RePower BULK OPTION: 90014

$1.99

$

In Stock, Qty 20+

0

26

Echo 13201049030

PIPE - 3X6X50 -- CLEAR

Note: RePower BULK OPTION: 90017

$1.99

$

In Stock, Qty 20+

0

27

Echo V471001230

PIPE - 3X5X210 -- BLACK
(Superseded to V471001231)

Note: RePower BULK OPTION: 90014

$5.99

$

In Stock, Qty 20+

0

28

Echo V137000030

GROMMET
(Superseded to 13211546730)

$1.99

$

In Stock, Qty 20+

0

29

Echo 13201309820

CLIP - 6

$0.99

$

In Stock, Qty 20+

0

30

Echo 13120507320

FILTER, FUEL
(Superseded to 13120507321)

$5.49

$

In Stock, Qty 20+

0

31

Echo 13100409060

CAP ASSY
(Superseded to P100006610)

Note: INCLUDES ITEMS 32-33

$8.99

$

Usually ships in 2-4 days

0

32

Echo 13101655830

GASKET, CAP
(Superseded to V107000190)

$1.49

$

In Stock, Qty 20+

0

33

Echo 13105156030

CONNECTOR, CAP

$1.49

$

In Stock, Qty 20+

0

34

Echo 17500007531

CLUTCH ASSY

Note: INCLUDES ITEMS 35-37

$58.99

$

Usually ships in 2-4 days

0

35

Echo 17501605020

HUB, CLUTCH

$10.99

$

Usually ships in 2-4 days

0

36

Echo 17501805130

SPRING, CLUTCH

$1.99

$

In Stock, only 4 left!

0

37

Echo 17500905131

SHOE, CLUTCH

$21.99

$

In Stock, only 2 left!

0

38

Echo 17501904630

PLATE, CLUTCH

$2.99

$

Usually ships in 2-4 days

0

39

Echo 90060000010

WASHER - 10

$0.99

$

In Stock, Qty 12

0

40

Echo 90080836000

BEARING, BALL - 6000

$15.99

$

Usually ships in 2-4 days

0

41

Echo 17501004633

DRUM, CLUTCH
(Superseded to 17501004634)

$30.99

$

Usually ships in 2-4 days

0

42

Echo 17504404630

WASHER, CLUTCH

$1.49

$

Usually ships in 2-4 days

0

43

Echo 17501411520

WASHER, CLUTCH

$2.49

$

Usually ships in 2-4 days

0

44

Echo 90023806012

SCREW - 6X12

$0.99

$

Usually ships in 2-4 days

0

45

Echo 61022311520

CASE, CLUTCH

$61.99

$

Usually ships in 2-4 days

0

46

Echo 90023804014

SCREW - 4X14

$0.99

$

In Stock, Qty 20+

0

47

Echo 13041611520

BOLT - 5X25
(Superseded to Discontinued)

$

$

Not available

Echo 99944444000

RePower BULK ROPE - 200 FEET

$

$

Currently unavailable

Echo 90014

RePower BULK PIPE - 25 FEET

$42.99

$

In Stock, Qty 20+

0

Echo 90017

RePower BULK PIPE - 25 FEET

Note: CLEAR
