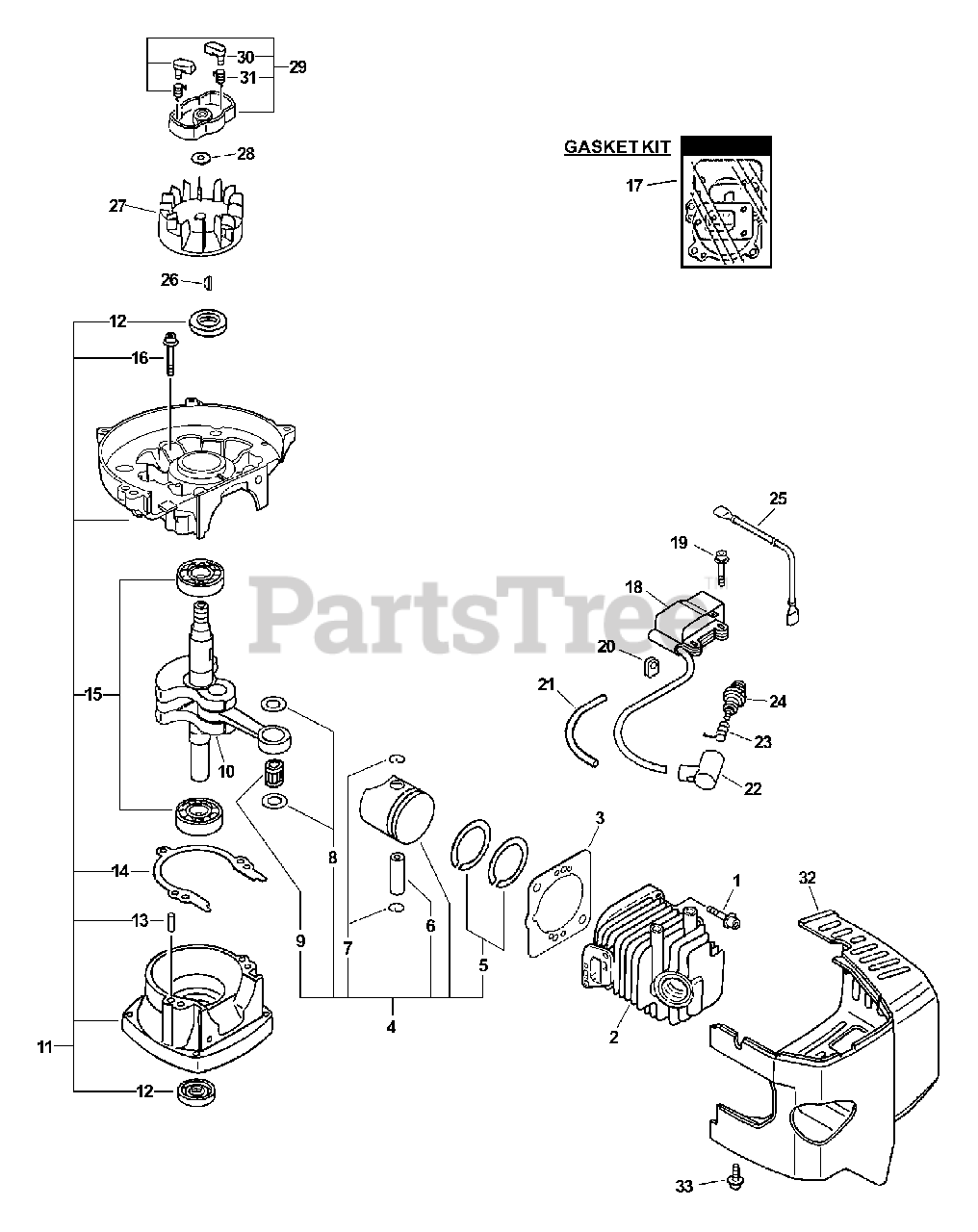

SV-5H/2 - Little Wonder Engine (SN: 05001001 - 05999999) Engine, Ignition, Starter Pawl Asy, Cylinder Cover Parts Diagram

Engine

Engine, Ignition, Starter Pawl Asy, Cylinder Cover Parts Diagram

  • Title

1

Echo 900162-05022

BOLT 5×22

$0.99

$

In Stock, only 3 left!

0

2

Echo A130000420

CYLINDER

$112.99

$

In Stock, only 1 left!

0

3

Echo V100000080

GASKET, CYLINDER

Note: Included In GASKET KIT

$6.99

$

In Stock, only 4 left!

0

4

Echo P021001111

PISTON KIT
(Superseded to P021001112)

Note: INCLUDES ITEMS 5-9

$69.99

$

In Stock, only 2 left!

0

5

Echo A101000000

RING, PISTON

$10.99

$

In Stock, Qty 8

0

6

Echo 100013-11520

PIN, PISTON 8

$8.49

$

In Stock, only 2 left!

0

7

Echo 100015-04630

RING, SNAP
(Superseded to 10001504630)

$0.99

$

In Stock, Qty 20+

0

8

Echo 10001408960

WASHER, THRUST

$3.99

$

Usually ships in 2-4 days

0

9

Echo V555000050

BEARING, NEEDLE

$9.99

$

Usually ships in 2-4 days

0

10

Echo A011000200

CRANKSHAFT ASSY

$

$

Currently unavailable

11

Echo 10020411521

CRANKCASE KIT

Note: Includes ITEMS 12-16

$155.99

$

Usually ships in 2-4 days

0

12

Echo 100212-42031

SEAL, OIL 12

$7.99

$

In Stock, Qty 20+

0

13

Echo V622000020

PIN, LOCATING 4

$0.99

$

In Stock, only 4 left!

0

14

Echo 100242-42030

GASKET, CRANKCASE

Note: Included In GASKET KIT

$1.99

$

In Stock, Qty 17

0

15

Echo 9403536201

BEARING, BALL - 6201 C3

$9.99

$

In Stock, only 3 left!

0

16

Echo 900162-05028

BOLT 5×28

$2.49

$

In Stock, Qty 10

0

17

Echo P021004670

GASKET KIT
(Superseded to P021004671)

$26.99

$

Usually ships in 2-4 days

0

18

Echo A411000130

COIL, IGNITION
(Superseded to A411000131)

$85.99

$

In Stock, Qty 20+

0

19

Echo 90016204020

BOLT 4×20

$1.49

$

In Stock, Qty 20+

0

20

Echo 15611004920

GROMMET

$0.99

$

In Stock, Qty 20+

0

21

Echo V475002200

TUBE, INSULATOR

$1.99

$

In Stock, Qty 9

0

22

Echo 159012-01620

CAP, SPARK PLUG

$1.99

$

In Stock, Qty 11

0

23

Echo 159011-03432

TERMINAL, SPARK PLUG
(Superseded to 15901103432)

$1.99

$

In Stock, Qty 20+

0

24

Echo 15901019830

SPARK PLUG - BPM8Y

$3.99

$

In Stock, Qty 20+

0

25

Echo 16202152830

LEAD
(Superseded to V485001080)

$4.49

$

In Stock, only 2 left!

0

26

Echo 61032502730

KEY

$1.99

$

In Stock, only 2 left!

0

27

Echo A409000150

FLYWHEEL

$91.99

$

Usually ships in 2-4 days

0

28

Echo 90060500008

WASHER, SPRING 8

$0.99

$

In Stock, Qty 20+

0

29

Echo 17720212220

PAWL ASSY, STARTER

Note: INCLUDES ITEMS 30-31

$19.99

$

In Stock, only 2 left!

0

30

Echo 17721842030

PAWL, STARTER

$4.49

$

Usually ships in 2-4 days

0

31

Echo 17723412220

SPRING, RETURN

$4.99

$

In Stock, Qty 13

0

32

Echo 10150612821

COVER, CYLINDER
(Superseded to Discontinued)

$

$

Not available

33

Echo 90023804018

SCREW 4×18

$0.99

$

In Stock, only 3 left!

0
