SV-5H/2 - Little Wonder Engine (SN: 09001001 - 09999999) Engine Parts Diagram

Engine

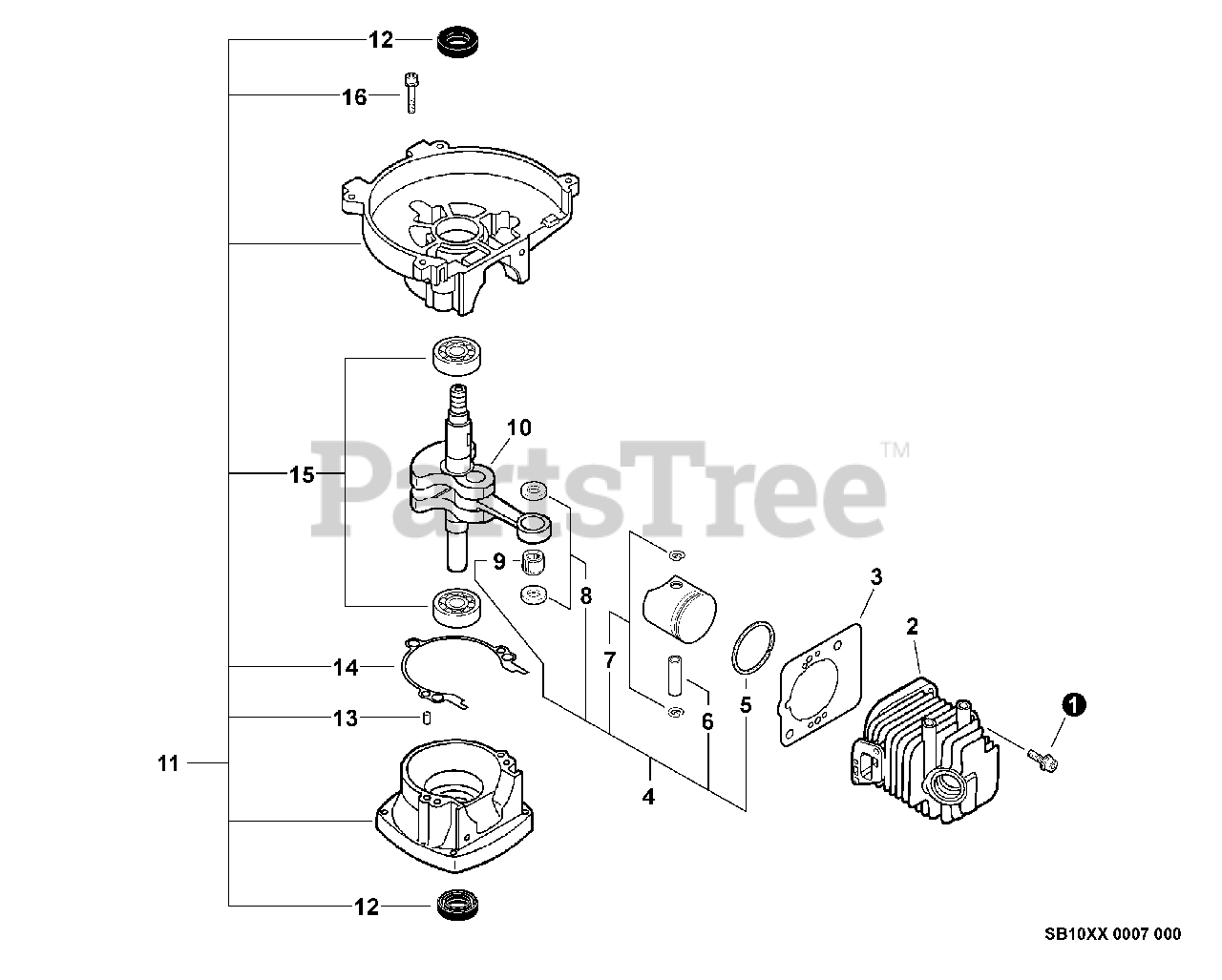

Engine Parts Diagram

  • Title

1

Echo 90016205022

SCREW - 5X22

$0.99

$

In Stock, Qty 20+

0

2

Echo A130000550

CYLINDER

$100.99

$

In Stock, only 2 left!

0

3

Echo V100000160

GASKET, CYLINDER

$6.99

$

In Stock, Qty 13

0

4

Echo P021007772

PISTON KIT

Note: Includes ITEMS 5-9

$52.99

$

Usually ships in 2-4 days

0

5

Echo A101000090

RING, PISTON

$

$

Not available

6

Echo 10001311520

PIN, PISTON

$7.99

$

Usually ships in 2-4 days

0

7

Echo 10001504630

RING, RETAINING

$0.99

$

In Stock, Qty 20+

0

8

Echo 10001408960

WASHER

$3.99

$

Usually ships in 2-4 days

0

9

Echo 10011305930

BEARING, NEEDLE - 8

$12.99

$

Usually ships in 2-4 days

0

10

Echo A011000440

CRANKSHAFT ASSY
(Superseded to Discontinued)

$

$

Not available

11

Echo 10020411521

CRANKCASE KIT

Note: Includes ITEMS 12-16

$144.99

$

Usually ships in 2-4 days

0

12

Echo 10021242031

SEAL, OIL

$7.49

$

In Stock, Qty 15

0

13

Echo V622000020

PIN - LOCATING

$0.99

$

In Stock, Qty 7

0

14

Echo 10024242030

GASKET, CRANKCASE

$1.49

$

In Stock, Qty 20+

0

15

Echo 9403536201

BEARING, BALL - 6201

$8.99

$

In Stock, Qty 19

0

16

Echo 90016205028

SCREW - 5X28

$2.49

$

In Stock, Qty 11

0
