SV-5H/2 - Little Wonder Engine (SN: E15012001001 - E15012999999) Fuel System Parts Diagram

Engine

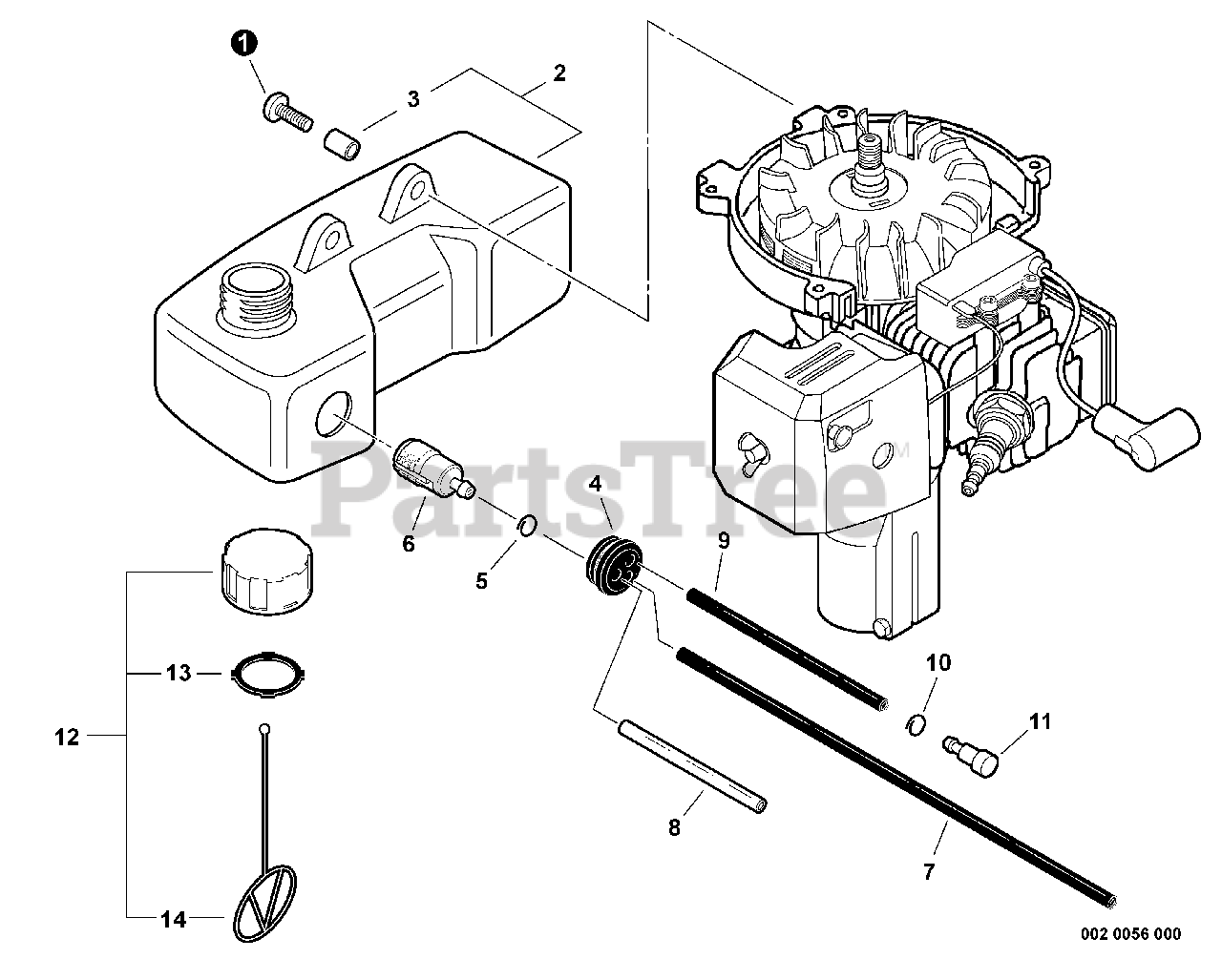

Fuel System Parts Diagram

  • Title

1

Echo 90027505015

SCREW 5×15

$0.99

$

In Stock, Qty 11

0

2

Echo A350001360

TANK, FUEL
(Superseded to P021036463)

Note: Includes ITEM 3

$51.99

$

In Stock, Qty 5

0

3

Echo 13104528230

SPACER 6.2×7.8×6

$1.99

$

In Stock, Qty 20+

0

4

Echo 13211546730

GROMMET, FUEL Ø5

$2.49

$

In Stock, Qty 20+

0

5

Echo 132013-09820

CLIP 6 MM

$0.99

$

In Stock, Qty 7

0

6

Echo 131205-07320

FILTER, FUEL

$6.49

$

In Stock, Qty 20+

0

7

Echo V471001230

PIPE, FUEL 3×5×210 BLACK
(Superseded to V471001231)

Note: RePower BULK OPTION: 90014

$5.99

$

In Stock, only 2 left!

0

8

Echo 13201049030

PIPE, FUEL 3×6×50

Note: RePower BULK OPTION: 90017

$1.99

$

In Stock, Qty 19

0

9

Echo V471001200

PIPE, FUEL 3x-5x-70 BLACK
(Superseded to V471001201)

Note: RePower BULK OPTION: 90014

$2.49

$

In Stock, Qty 20+

0

10

Echo 130111-00530

CLIP 5.5

$0.99

$

In Stock, Qty 20+

0

11

Echo 13130054631

VENT ASSY

$

$

Currently unavailable

12

Echo P021034480

CAP ASSY

Note: Includes ITEMS 13- 14

$6.49

$

Usually ships in 2-4 days

0

13

Echo 131016-55830

GASKET, FUEL CAP

$

$

Not available

14

Echo 13105156030

CONNECTOR, CAP L= 100 MM

$1.49

$

In Stock, Qty 6

0
