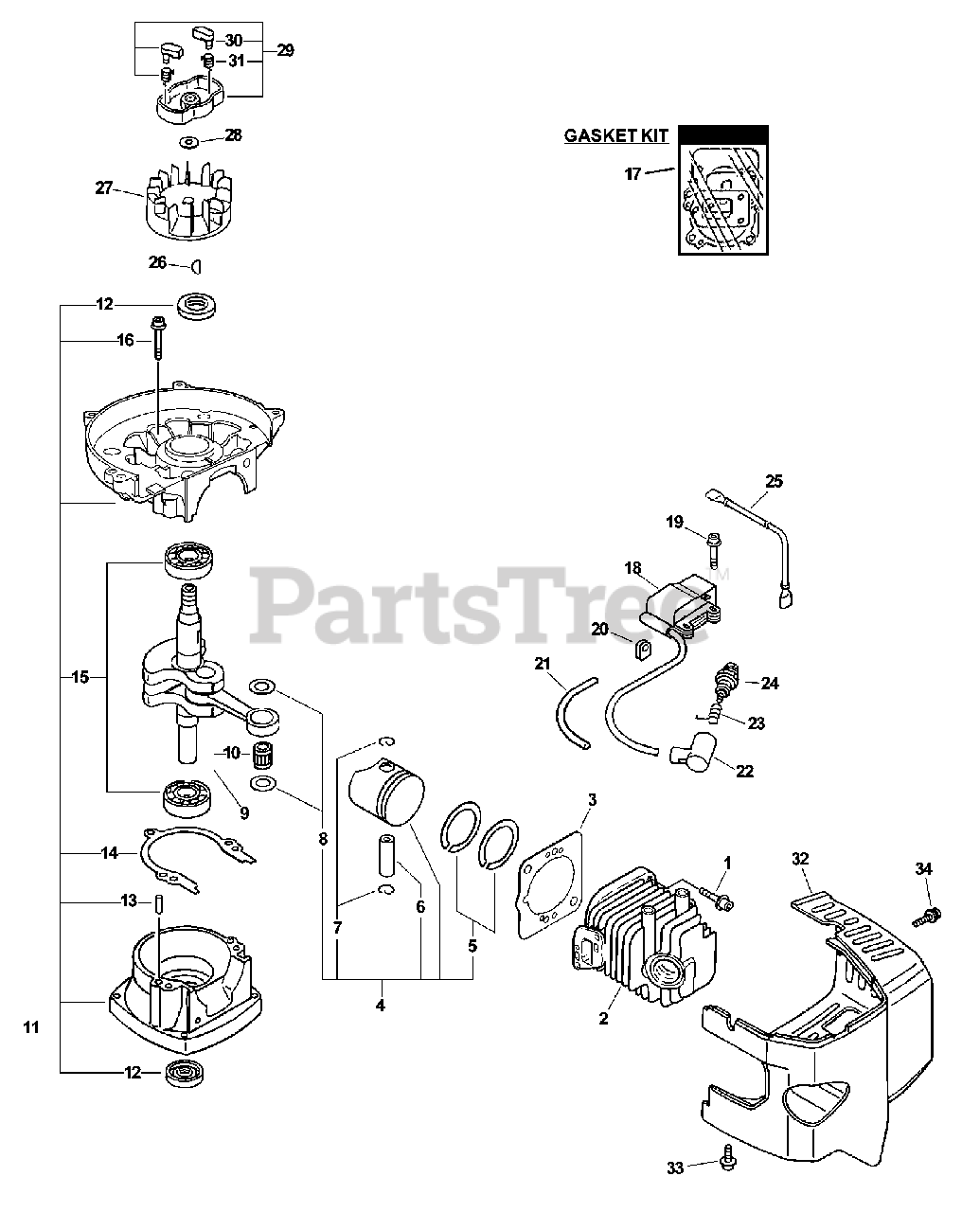

SV-6/1 - Little Wonder Engine (SN: 36001001 - 36999999) Engine, Ignition, Starter Pawl Asy, Cylinder Cover Parts Diagram

Engine

Engine, Ignition, Starter Pawl Asy, Cylinder Cover Parts Diagram

  • Title

1

Echo 900162-05022

BOLT 5×22

$0.99

$

In Stock, only 3 left!

0

2

Echo A130000531

CYLINDER

$128.99

$

Usually ships in 2-4 days

0

3

Echo V100000080

GASKET, CYLINDER

Note: Included In GASKET KIT

$6.99

$

In Stock, only 4 left!

0

4

Echo P021001101

PISTON KIT
(Superseded to P021001102)

Note: INCLUDES ITEMS 5-8

$93.99

$

In Stock, only 2 left!

0

5

Echo A101000000

RING, PISTON

$10.99

$

In Stock, Qty 8

0

6

Echo 100013-11520

PIN, PISTON 8

$8.49

$

In Stock, only 2 left!

0

7

Echo 100015-04630

RING, SNAP
(Superseded to 10001504630)

$0.99

$

In Stock, Qty 20+

0

8

Echo 100014-11520

WASHER, THRUST

$3.99

$

In Stock, only 2 left!

0

9

Echo A011000271

CRANKSHAFT ASSY
(Superseded to Discontinued)

Note: Includes ITEM 10

$

$

Not available

10

Echo V553000010

BEARING, NEEDLE 8

$11.99

$

In Stock, only 2 left!

0

11

Echo 10020411521

CRANKCASE KIT

Note: Includes ITEMS 12-16

$155.99

$

Usually ships in 2-4 days

0

12

Echo 100212-42031

SEAL, OIL 12

$7.99

$

In Stock, Qty 20+

0

13

Echo V622000020

PIN, LOCATING 4

$0.99

$

In Stock, only 4 left!

0

14

Echo 100242-42030

GASKET, CRANKCASE

Note: Included In GASKET KIT

$1.99

$

In Stock, Qty 17

0

15

Echo 9403536201

BEARING, BALL - 6201 C3

$9.99

$

In Stock, only 1 left!

0

16

Echo 900162-05028

BOLT 5×28

$2.49

$

In Stock, Qty 10

0

17

Echo P021006190

GASKET KIT
(Superseded to P021006193)

$34.99

$

Usually ships in 2-4 days

0

18

Echo A411000171

COIL, IGNITION

$174.99

$

Usually ships in 2-4 days

0

19

Echo 90016204020

BOLT 4×20

$1.49

$

In Stock, Qty 20+

0

20

Echo 15611004920

GROMMET

$0.99

$

In Stock, Qty 20+

0

21

Echo V475002200

TUBE, INSULATOR

$1.99

$

In Stock, Qty 9

0

22

Echo 159012-01620

CAP, SPARK PLUG

$1.99

$

In Stock, Qty 9

0

23

Echo 159011-03432

TERMINAL, SPARK PLUG
(Superseded to 15901103432)

$1.99

$

In Stock, Qty 20+

0

24

Echo 15901010230

SPARK PLUG - BPMR7A

$3.99

$

In Stock, Qty 20+

0

25

Echo V485000450

LEAD - IGNITION

$7.99

$

Usually ships in 2-4 days

0

26

Echo 61032502730

KEY

$1.99

$

In Stock, only 2 left!

0

27

Echo A409000150

FLYWHEEL

$91.99

$

Usually ships in 2-4 days

0

28

Echo 90060500008

WASHER, SPRING 8

$0.99

$

In Stock, Qty 20+

0

29

Echo 17720212220

PAWL ASSY, STARTER

Note: INCLUDES ITEMS 30-31

$19.99

$

In Stock, only 2 left!

0

30

Echo 177218-44330

PAWL, STARTER - BLACK

$4.49

$

In Stock, Qty 20+

0

31

Echo 17723412220

SPRING, RETURN

$4.99

$

In Stock, Qty 13

0

32

Echo P021006161

COVER, ENGINE

$62.99

$

Usually ships in 2-4 days

0

33

Echo 90023804018

SCREW 4×18

$0.99

$

In Stock, only 3 left!

0

34

Echo 9110704008

BOLT 4×8

$0.99

$

In Stock, Qty 20+

0
