SV-6 - Little Wonder Engine (SN: 35001001 - 35999999) Intake, Exhaust Parts Diagram

Engine

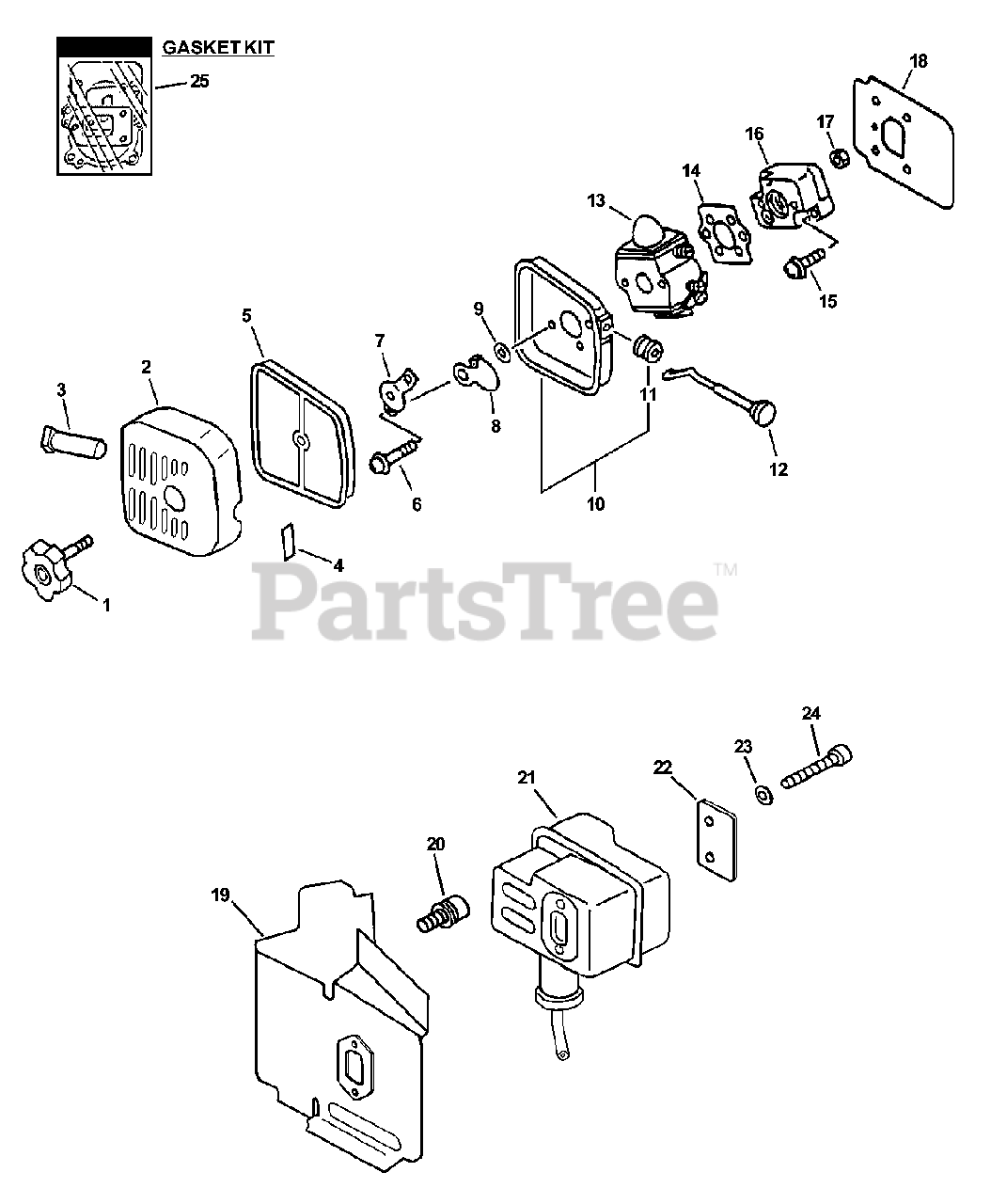

Intake, Exhaust Parts Diagram

  • Title

1

Echo 13040652131

THUMBSCREW

$6.49

$

In Stock, Qty 20+

0

2

Echo A232000041

COVER, AIR FILTER
(Superseded to A232000042)

$11.99

$

In Stock, Qty 7

0

3

Echo V141000010

PLUG

$0.99

$

Usually ships in 2-4 days

0

4

Echo X506000070

LABEL, CHOKE

$0.99

$

In Stock, Qty 7

0

5

Echo 13031051830

FILTER, HEAVY-DUTY AIR

$8.49

$

In Stock, Qty 9

0

6

Echo 900242-05057

SCREW 5×57

$0.99

$

In Stock, only 3 left!

0

7

Echo 12901152130

PLATE, PREVENT
(Superseded to 12901152131)

$6.49

$

In Stock, only 1 left!

0

8

Echo 17851505060

SHUTTER, CHOKE

$3.49

$

In Stock, only 2 left!

0

9

Echo 178516-00830

WASHER 5.2×8×0.8T

$0.99

$

In Stock, Qty 20+

0

10

Echo 13030151730

CASE ASSY, AIR FILTER

Note: Includes ITEM 11

$25.99

$

Usually ships in 2-4 days

0

11

Echo 17881005230

GROMMET, CHOKE

$2.49

$

In Stock, only 3 left!

0

12

Echo 17851051730

ROD, CHOKE

$7.99

$

In Stock, only 4 left!

0

13

Echo 12520013124

CARBURETOR - C1U-K54A
(Superseded to 12520013125)

$110.99

$

In Stock, Qty 8

0

14

Echo 130016-42031

GASKET, INTAKE

Note: Included In GASKET KIT

$1.49

$

In Stock, Qty 20+

0

15

Echo 900238-05020

SCREW 5×20

$0.99

$

In Stock, Qty 8

0

16

Echo 130017-42031

INSULATOR, INTAKE

Note: Included In GASKET KIT

$11.99

$

In Stock, Qty 8

0

17

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

18

Echo V103000490

HEAT SHIELD, INTAKE
(Superseded to V103001360)

Note: Included In GASKET KIT

$2.99

$

In Stock, Qty 9

0

19

Echo V104000410

HEAT SHIELD, EXHAUST

Note: Included In GASKET KIT

$12.99

$

In Stock, only 2 left!

0

20

Echo 9110704008

BOLT 4×8

$0.99

$

In Stock, Qty 20+

0

21

Echo A300000410

MUFFLER
(Superseded to A300000411)

$122.99

$

Usually ships in 2-4 days

0

22

Echo V150000371

PLATE, EYE

$1.49

$

In Stock, Qty 8

0

23

Echo 900600-00005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0

24

Echo 90010505070

SCREW - 5×70

$1.99

$

Usually ships in 2-4 days

0

28

Echo P021006190

GASKET KIT
(Superseded to P021006193)

$34.99

$

Usually ships in 2-4 days

0
