SV4200 (9717-2) - Generac 4,200 Watt Portable Generator SV-4200 AC Generator No. 92459 Parts Diagram

4,200 Watt Portable Generator

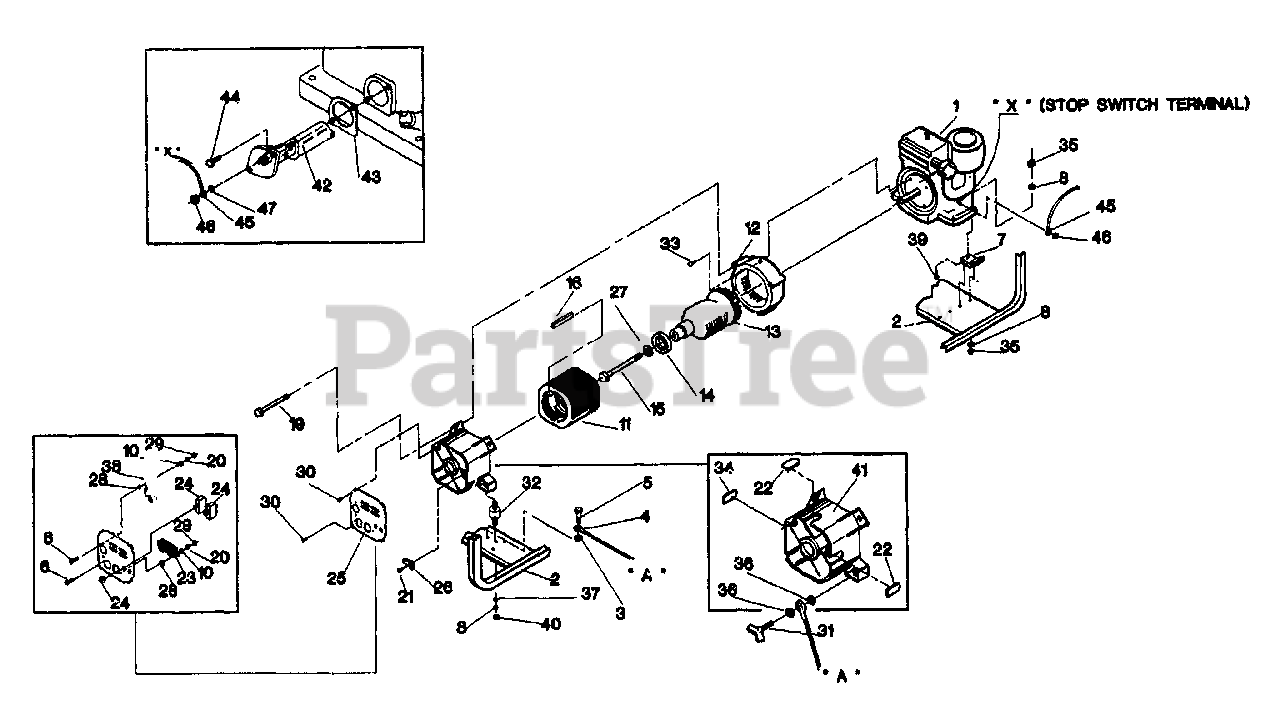

SV-4200 AC Generator No. 92459 Parts Diagram

  • Title

1

Briggs & Stratton 91008

Briggs & Stratton 8 HP Engine with Low Oil Shutdown
(Superseded to 7091008YP)

$4.99

$

In Stock, only 1 left!

0

2

Briggs & Stratton 91019

Cradle assembly

$

$

Currently unavailable

3

Briggs & Stratton 22769

No. 10 Shakeproof Washer
(Superseded to 22769GS)

$3.49

$

Usually ships in 2-12 days

0

4

14353621

Ground wire

$

$

Not available

5

Briggs & Stratton 86292

No. 10 Self-drilling Capscrew
(Superseded to 313085GS)

$4.99

$

In Stock, only 1 left!

0

6

Briggs & Stratton 75475

M4-0.7 x 10mm Screw

$

$

Not available

7

Briggs & Stratton 70642

Engine Vibration mount
(Superseded to 70642GS)

$31.99

$

In Stock, only 3 left!

0

8

Briggs & Stratton 22129

M8 Lock Washer
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

10

Briggs & Stratton 38150

No. 8 Flat Washer
(Superseded to 38150GS)

$2.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 91838

Stator Assembly
(Superseded to 690291)

$19.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 66365G

Engine Adaptor Housing
(Superseded to 66365GGS)

$69.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 91836

Rotor Assembly

$

$

Currently unavailable

14

Briggs & Stratton 65791

Ball Bearing
(Superseded to 65791GS)

$34.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 36180

5/16"-24 x 6-3/8" Rotor Bolt
(Superseded to 36180GS)

$11.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 81917

Roll Pin
(Superseded to 81917GS)

$3.49

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 86308

M6-1.0 x 115mm Stator Bolt
(Superseded to 86308GS)

$3.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 22264

No. 8 Lock Washer

$

$

Not available

21

Briggs & Stratton 66849

M5-0.8 x 15mm Screw
(Superseded to 66849GS)

$4.99

$

In Stock, only 1 left!

0

22

Briggs & Stratton 84242

Grommet - Rear Bearing Carrier
(Superseded to 84242GS)

$4.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 68759

120 volts, 20 amp Receptacle
(Superseded to 68759GS)

$24.99

$

In Stock, only 2 left!

0

24

Briggs & Stratton 77247

20 amp Circuit Breaker
(Superseded to 77247GS)

$10.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 83589

Sheet Metal - Control Panel

$

$

Currently unavailable

26

Briggs & Stratton 91825

Brush Holder Assembly and Bridge Rectifier

$

$

Not available

27

Briggs & Stratton 67451

Flat Washer (special)

$

$

Currently unavailable

28

Briggs & Stratton 23365

No. 8 Lock Washer (serrated)
(Superseded to 5023365)

$462.99

$

In Stock, only 2 left!

0

29

Briggs & Stratton 51715

M4-0.7 Hex Nut
(Superseded to 51715GS)

$2.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 74908

M5-0.8 x 10mm Screw
(Superseded to 74908GS)

$2.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 86494

M6-1.0 x 16mm Wing Screw
(Superseded to 86494GS)

$2.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 82857

Vibration Mount
(Superseded to 82857GS)

$12.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 86307

5/16"-24 x 3/4" Capscrew
(Superseded to 86307GS)

$2.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 67022

Bearing Carrier Grommet
(Superseded to 67022GS)

$3.49

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 52858

M8-1.25 Hex Nut
(Superseded to 52858GS)

$3.99

$

In Stock, only 1 left!

0

36

Briggs & Stratton 26850

M6 (1/4) Shakeproof Washer

$

$

Not available

37

Briggs & Stratton 22145

M8 Flat Washer

$

$

Not available

38

Briggs & Stratton 68867

120/240 Volts, 20 amp Twistlock Outlet
(Superseded to 68867GS)

$46.99

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 76222

M8 x 40mm Pan Head Screw
(Superseded to 76222GS)

$4.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 25244

5/16"-18 Hex Nut
(Superseded to 25244GS)

$3.49

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 66825C

Rear Bearing Carrier
(Superseded to SRV66825DGS)

$137.99

$

Usually ships in 2-12 days

0

42

Briggs & Stratton 88977

Low Oil Shutdown

$

$

Currently unavailable

43

Briggs & Stratton 91841

Low Oil Shutdown Gasket

$

$

Not available

44

Briggs & Stratton 32713

No. 10-32 x 5/8" Hex Head Screw
(Superseded to 32713GS)

$3.49

$

Usually ships in 2-12 days

0

45

Briggs & Stratton 91842A

Low Oil Shutdown Wire
(Superseded to 91842AGS)

$6.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 22471

No. 8-32 Nut (LOS assembly)
(Superseded to 22471GS)

$3.99

$

Usually ships in 2-12 days

0

47

Briggs & Stratton 23365

No. 8 Shakeproof Washer
(Superseded to 5023365)

$462.99

$

In Stock, only 2 left!

0
