SVP5000T (1312-0) - Generac 5,000 Watt Portable Generator (Lowes) Generator Parts Diagram

5,000 Watt Portable Generator (Lowes)

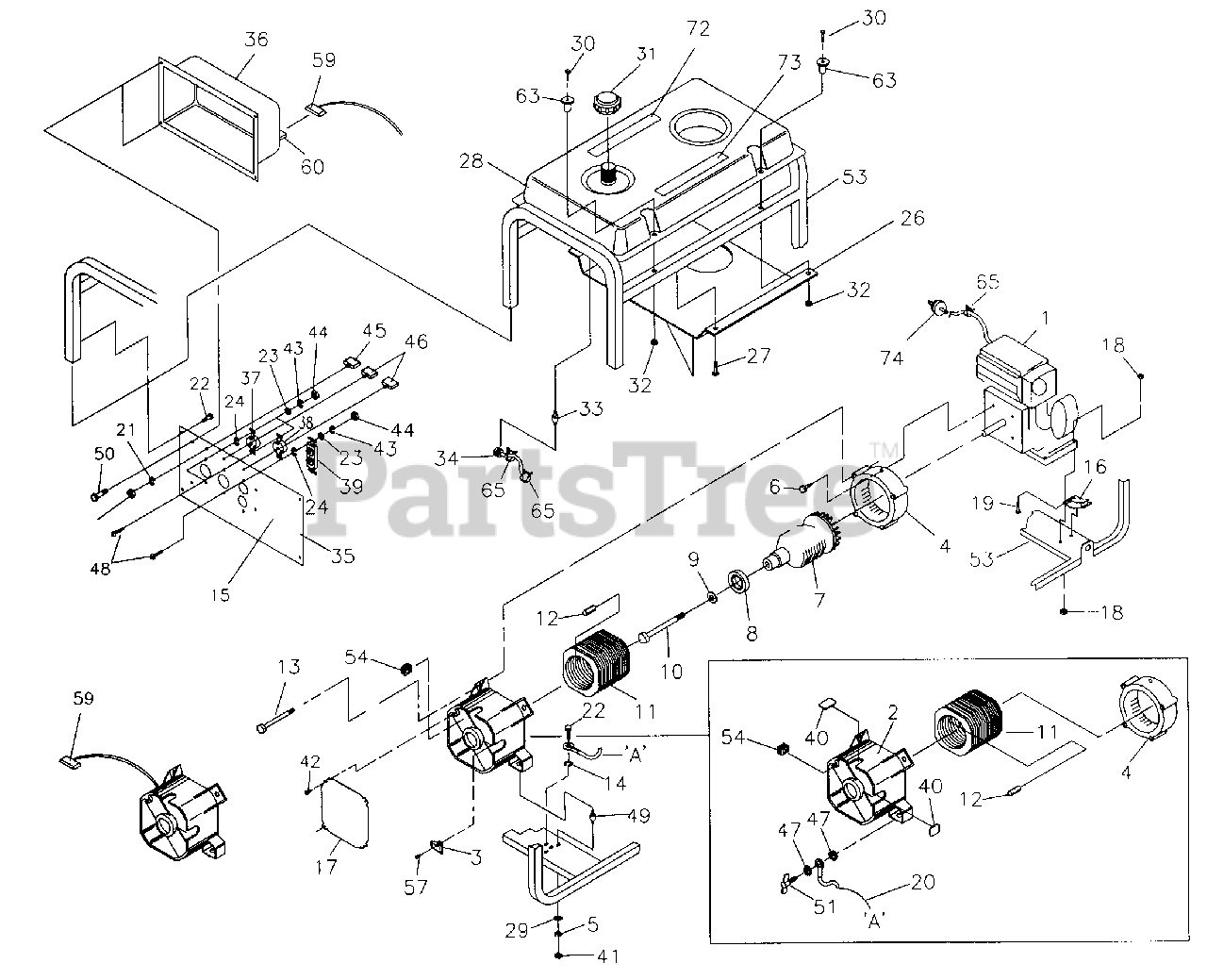

Generator Parts Diagram

  • Title

1

ENGINE, Tecumseh 10HP

Note: (NSP)

$

$

Not available

2

Briggs & Stratton 66825B

CARRIER, Rear Bearing

$

$

Currently unavailable

3

Briggs & Stratton 91825

ASSEMBLY, Brush & Bridge Rectifier

$

$

Not available

4

Briggs & Stratton 66365D

ADAPTER, Housing
(Superseded to 66365DGS)

$70.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 22129

LOCK WASHER, M8
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

6

Briggs & Stratton 86307

SCREW, Hex Hd 5/16-24 x 3/4 Sems
(Superseded to 86307GS)

$2.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 74716J

ASSEMBLY, Rotor
(Superseded to 74716JGS)

$

$

Not available

8

Briggs & Stratton 65791

BEARING
(Superseded to 65791GS)

$34.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 96796

WASHER, Special
(Superseded to 96796GS)

$3.49

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 75431

BOLT, Rotor
(Superseded to 75431GS)

$4.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton B91859J

ASSEMBLY, Stator

$

$

Currently unavailable

12

Briggs & Stratton 81917

PIN, Roll M4 x 10 Lg.
(Superseded to 81917GS)

$3.49

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 86308C

BOLT, Stator
(Superseded to 86308CGS)

$5.49

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 22769

WASHER, Internal Lock #10
(Superseded to 22769GS)

$3.49

$

Usually ships in 2-12 days

0

15

Briggs & Stratton B4349

DECAL, Control Panel
(Superseded to B4349GS)

$25.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 70642

MOUNT, Vibration - 45°.
(Superseded to 70642GS)

$31.99

$

In Stock, only 3 left!

0

17

Briggs & Stratton B67025

COVER, Bearing Carrier

$

$

Not available

18

Briggs & Stratton 52858

LOCK NUT, M8-1.25 Flange
(Superseded to 52858GS)

$3.99

$

In Stock, only 1 left!

0

19

Briggs & Stratton 76222

PPHMS, M8-1.25 x 40 mm
(Superseded to 76222GS)

$4.99

$

Usually ships in 2-12 days

0

20

14353621

WIRE, Ground

$

$

Not available

21

Briggs & Stratton 82881

WASHER, Internal Lock
(Superseded to 82881GS)

$1.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 86292

SCREW, #10 Self Drilling
(Superseded to 313085GS)

$4.99

$

In Stock, only 1 left!

0

23

Briggs & Stratton 38150

WASHER, #8 Flat
(Superseded to 38150GS)

$2.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 23365

WASHER, Lock Serrated No. 8
(Superseded to 5023365)

$462.99

$

In Stock, only 2 left!

0

26

Briggs & Stratton B78951B

SHIELD, Heat
(Superseded to B78951BGS)

$75.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 56892

10-24 x 3/8 Lg. Crimptite
(Superseded to 56892GS)

$3.49

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 77374

TANK, Gas Plastic 5 Gal.

$

$

Currently unavailable

29

Briggs & Stratton 22145

FLAT Washer, 5/16 - M8

$

$

Not available

30

Briggs & Stratton 78831B

CAPSCW., Hex Hd. M6 x 60mm Blk
(Superseded to 78831BGS)

$

$

Not available

31

Briggs & Stratton 90878

CAP, Fuel Tank
(Superseded to 846987)

$21.99

$

In Stock, Qty 6

0

32

Briggs & Stratton 77395

NUT, Hex Lock - M6
(Superseded to 77395GS)

$3.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 78299

BUSHING, Plastic Tank
(Superseded to 192980GS)

$17.99

$

In Stock, Qty 20+

0

34

Briggs & Stratton 80270

VALVE, Plastic Tank
(Superseded to 192980GS)

$17.99

$

In Stock, Qty 20+

0

35

Briggs & Stratton 81897

PANEL, Control

$

$

Currently unavailable

36

Briggs & Stratton 81919

PANEL, Control Back Plastic
(Superseded to 81919GS)

$136.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 68868

OUTLET-120 Volt 30Amp. Twist Lock
(Superseded to 705932)

$37.99

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 68867

OUTLET, 120/240 Twist Lock
(Superseded to 68867GS)

$46.99

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 68759

OUTLET, 120 Volt 20Amp. Duplex
(Superseded to 68759GS)

$24.99

$

In Stock, only 2 left!

0

40

Briggs & Stratton 84242

GROMMET, Rubber
(Superseded to 84242GS)

$4.99

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 45771

NUT, Hex 5/16 - 18

$

$

Not available

42

Briggs & Stratton 74908

SCREW, Hex M5 - 0.80 x 10
(Superseded to 74908GS)

$2.99

$

Usually ships in 2-12 days

0

43

Briggs & Stratton 22264

WASHER, #8 Lock

$

$

Not available

44

Briggs & Stratton 51715

NUT, Hex - M4 - 0.7
(Superseded to 51715GS)

$2.99

$

Usually ships in 2-12 days

0

45

75207A

CIRCUIT BREAKER - 30amp.

$

$

Not available

46

Briggs & Stratton 75207

CIRCUIT BREAKER - 20amp.
(Superseded to 209872GS)

$9.99

$

Usually ships in 2-12 days

0

47

Briggs & Stratton 26850

WASHER, Shakeproof 1/4"

$

$

Not available

48

Briggs & Stratton 75475

SCREW, M4 - 0.7 x 10 Pan Head

$

$

Not available

49

Briggs & Stratton 85652

MOUNT, Rubber
(Superseded to 194153GS)

$11.99

$

In Stock, Qty 12

0

50

Briggs & Stratton 82308

SCREW, Self Tapping
(Superseded to 82308GS)

$2.99

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 86494

SCREW, M6 x 16 Lg. Wing
(Superseded to 86494GS)

$2.99

$

Usually ships in 2-12 days

0

53

Briggs & Stratton BB1635

CRADLE

$

$

Not available

54

Briggs & Stratton 67022

GROMMET, Rubber
(Superseded to 67022GS)

$3.49

$

Usually ships in 2-12 days

0

57

Briggs & Stratton 66849

SCREW, M5 - 0.8 x 15
(Superseded to 66849GS)

$4.99

$

In Stock, only 1 left!

0

59

Briggs & Stratton 22695

6-PIN CONNECTOR, Male
(Superseded to 22695GS)

$6.99

$

Usually ships in 2-12 days

0

60

Briggs & Stratton 22694

6-PIN CONNECTOR
(Superseded to 22694GS)

$5.99

$

Usually ships in 2-12 days

0

63

Briggs & Stratton 83465

GROMMET, Mounting Tank
(Superseded to 83465GS)

$3.99

$

In Stock, Qty 20+

0

65

Briggs & Stratton 48031C

CLAMP, Hose - 1/4"

$

$

Not available

72

Briggs & Stratton 92982

DECAL, Danger
(Superseded to 194799GS)

$11.99

$

In Stock, only 1 left!

0

73

Briggs & Stratton 93826

DECAL, Operating Instructions
(Superseded to 93826GS)

$14.99

$

Usually ships in 2-12 days

0

74

Briggs & Stratton 68740

FILTER, Fuel
(Superseded to 68740GS)

$11.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 37806

120 Volt AC 30 Amp Plug
(Superseded to 100523GS)

Note: (Optional Accessories Not

$20.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 43483

120/240 Volt AC 20 Amp Plug
(Superseded to 100522GS)

Note: (Optional Accessories Not

$34.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 84883

Cord Wrap
(Superseded to 84883GS)

Note: (Optional Accessories Not

$29.99

$

Usually ships in 2-12 days

0
