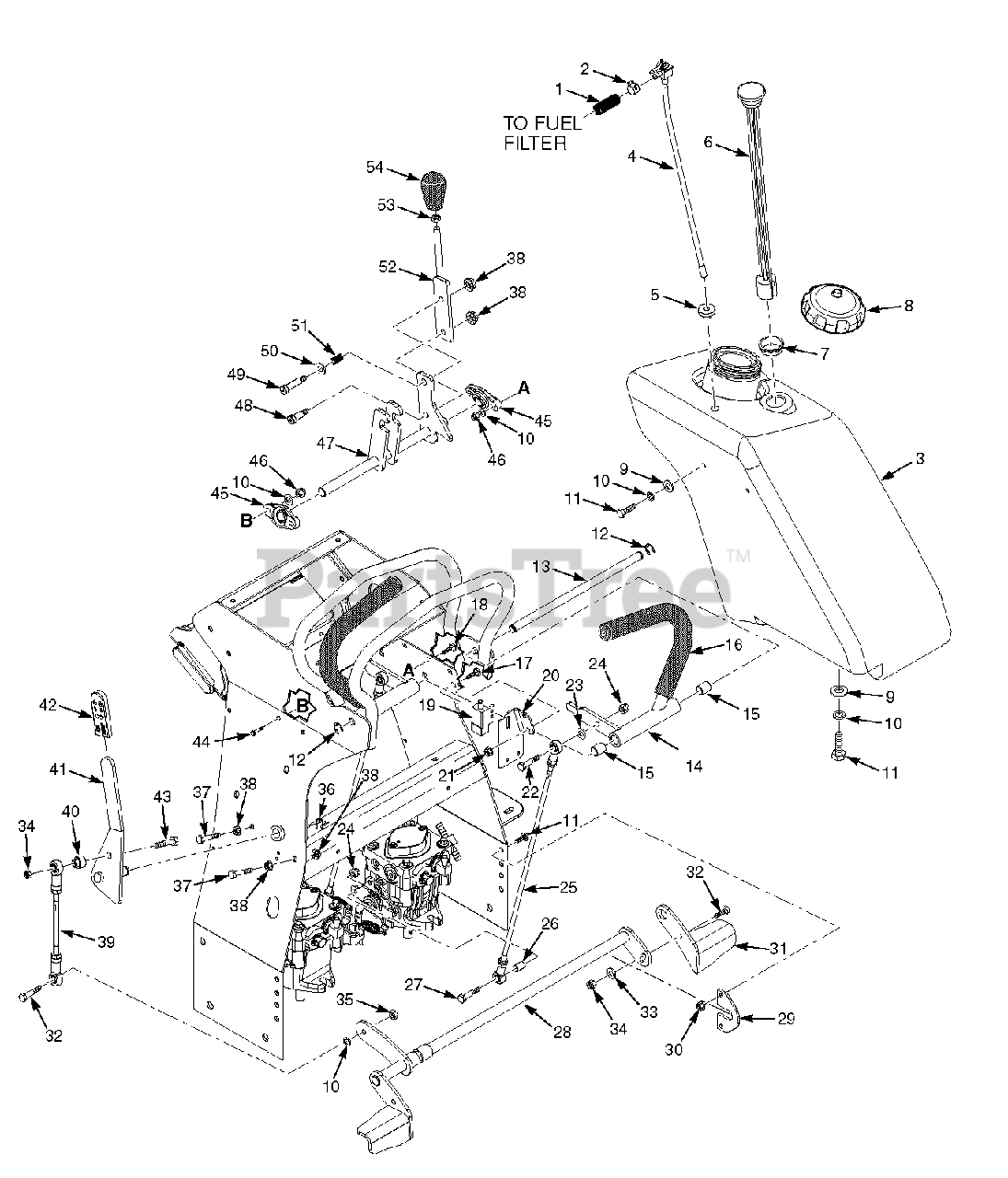

SVR61V-29FX - Scag V-Ride 61" Stand-On Mower, 29hp Kawasaki (SN: F2900001 - F2999999) Steering Controls And Fuel Components Parts Diagram

V-Ride 61" Stand-On Mower, 29hp Kawasaki

Steering Controls And Fuel Components Parts Diagram

  • Title

1

Scag 483617

Fuel Hose 1/4" ID

Note: (Order by Inch)

$0.99

$

In Stock, Qty 20+

0

2

Scag 48059-01

Clamp, Fuel Hose 1/4" ID

$0.99

$

In Stock, Qty 20+

0

3

Scag 462205

Fuel Tank Assy.
(Superseded to 462761)

Note: (Incl. #4, 5, 6, 7)

$115.99

$

Usually ships in 2-12 days

0

4

Scag 483896

Valve, Fuel Shut Off

$51.99

$

Usually ships in 2-12 days

0

5

Scag 482571

Bushing, .56 Viton

$12.99

$

In Stock, Qty 20+

0

6

Scag 484246

Fuel Gauge Assembly

$89.99

$

Usually ships in 2-12 days

0

7

Scag 483536

Grommet, Fuel Gauge

$5.99

$

In Stock, only 1 left!

0

8

Scag 483792

Cap, Fuel Tank

$27.99

$

In Stock, Qty 8

0

9

Scag 04040-15

Flatwasher, 5/16-.375 x .875 x .083

$0.99

$

In Stock, Qty 9

0

10

Scag 04030-03

Lockwasher, 5/16" Spring

$0.99

$

In Stock, Qty 20+

0

11

Scag 04001-08

Bolt, Hex Heaf 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 20+

0

12

Scag 04050-10

Retaining Ring, .50 External

$0.99

$

In Stock, Qty 6

0

13

Scag 43820

Shaft, Steering Handles

$47.99

$

Usually ships in 2-12 days

0

14

Scag 462220

Handle Bar Assy., LH

Note: (Incl. # 15, 16)

$127.99

$

Usually ships in 2-12 days

0

Scag 462221

Handle Bar Assy., RH

Note: (Incl. # 15, 16)

$127.99

$

Usually ships in 2-12 days

0

15

Scag 483453-19

Bearing

$7.99

$

Usually ships in 2-12 days

0

16

Scag 484092

Grip, Control Lever

$5.49

$

Usually ships in 2-12 days

0

17

Scag 04003-02

Bolt, Carriage 1/4-20 x 3/4"

$0.99

$

In Stock, Qty 20+

0

18

Scag 04003-06

Bolt, Carriage 1/4-20 x 1"

$0.99

$

In Stock, Qty 6

0

19

Scag 481545

Switch, Interlock

$17.99

$

Usually ships in 2-12 days

0

20

Scag 425307

Bracket, Neutral Switch

$12.99

$

Usually ships in 2-12 days

0

21

Scag 04019-02

Nut, Serrated Flange 1/4-20

$0.99

$

In Stock, Qty 20+

0

22

Scag 04001-10

Bolt, Hex Head 5/16-18 x 1-1/4"

$0.99

$

In Stock, Qty 20+

0

23

Scag 04040-04

Flatwasher, 5/16-.344 x .688 x .065

$0.99

$

In Stock, Qty 20+

0

24

Scag 04021-10

Nut, Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 20+

0

25

Scag 484072

Linkage Assembly

$70.99

$

Usually ships in 2-12 days

0

26

Scag 43749

Spacer, Pump

$7.49

$

Usually ships in 2-12 days

0

27

Scag 04001-12

Bolt, Hex Head 5/16-18 x 1-3/4"

$0.99

$

In Stock, Qty 20+

0

28

Scag 452166

Bellcrank, Brake Weldment

$206.99

$

Usually ships in 2-12 days

0

29

Scag 425467

Brake Keeper Plate - SVR-61V

$12.99

$

Usually ships in 2-12 days

0

30

Scag 04019-03

Nut, Serrated Flange 5/16-18

$0.99

$

In Stock, Qty 16

0

31

Scag 452167

Brake Weldment, LH

$42.99

$

Usually ships in 2-12 days

0

32

Scag 04001-32

Bolt, Hex Head 3/8-16 x 1-1/4"

$0.99

$

In Stock, Qty 15

0

33

Scag 04040-12

Flatwasher, 3/8-.438 x 1.0 x .083

$2.99

$

Usually ships in 2-12 days

0

34

Scag 04021-09

Nut, Elastic Stop 3/8-16

$0.99

$

In Stock, Qty 20+

0

35

Scag 04021-05

Nut, Center Lock 3/8-16

$0.99

$

In Stock, Qty 20+

0

36

Scag 04050-01

Retaining Ring, .625 External "E"

$0.99

$

In Stock, Qty 20+

0

37

Scag 04001-11

Bolt, Hex Head 5/16-18 x 1-1/2"

$0.99

$

In Stock, Qty 15

0

38

Scag 04019-03

Nut, Serrated Flange 5/16-18

$0.99

$

In Stock, Qty 16

0

39

Scag 484090

Linkage Assembly, Brake

$70.99

$

Usually ships in 2-12 days

0

40

Scag 43750

Spacer

$10.99

$

Usually ships in 2-12 days

0

41

Scag 491607

Brake Lever w/Grip - SVR-61V

$

$

Currently unavailable

42

Scag 481548

Grip, Brake Lever

$6.49

$

In Stock, Qty 10

0

43

Scag 04001-45

Bolt, Hex Head 3/8-16 x 2"

$0.99

$

In Stock, Qty 13

0

44

Scag 04001-14

Bolt, Hex Head 1/4-20 x 1"

$0.99

$

In Stock, Qty 10

0

45

Scag 483504

Bearing

$17.99

$

Usually ships in 2-12 days

0

46

Scag 04021-08

Nut, Elastic Stop 1/4-20

$0.99

$

In Stock, Qty 10

0

47

Scag 452117

Lock Weldment, Neutral

$63.99

$

Usually ships in 2-12 days

0

48

Scag 04009-14

Bolt, Shoulder 3/8 x .375

$5.99

$

In Stock, only 4 left!

0

49

Scag 04009-11

Bolt, Shoulder 3/8 x 1"

$2.99

$

In Stock, only 4 left!

0

50

Scag 04050-05

Flatwasher, 3/8-.406 x .812 x .065

$0.99

$

In Stock, Qty 20+

0

51

Scag 483601

Spring, Neutral Lever

$2.99

$

Usually ships in 2-12 days

0

52

Scag 452118

Handle Weldment

$35.99

$

Usually ships in 2-12 days

0

53

Scag 04020-12

Nut, Jam 3/8-16

$0.99

$

In Stock, only 3 left!

0

54

Scag 484093

Knob, Soft Touch

$12.99

$

Usually ships in 2-12 days

0
