Scag SVR61V-801FX - Scag V-Ride 61" Stand-On Mower, Kawasaki 801FX (SN: G1300001 - G1399999) 61V Cutter Deck Parts Lookup with Diagrams

1

Scag 04020-09

Nut, 5/8-11 UNC

$0.99

$

In Stock, Qty 20+

2

Scag 04001-172

Bolt, Hex Head 1/4-20 x 1"

$0.99

$

In Stock, Qty 20+

3

Scag 48926

Tapered Hub

$31.99

$

In Stock, Qty 14

4

Scag 483286

Pulley, 6.32 O.D. (61V)

$38.99

$

In Stock, Qty 5

5

Scag 04021-09

Nut, 3/8-16 Elastic Stop

$0.99

$

In Stock, Qty 20+

6

Scag 484197

Belt, Cutter Deck (61V)

$103.99

$

Usually ships in 2-12 days

7

Scag 424615

Bracket, Belt Guide

$5.49

$

Usually ships in 2-12 days

8

Scag 04043-04

Flatwasher, 3/8-.391 x .938 x .105 HD

$0.99

$

In Stock, Qty 20+

9

Scag 424367

Dust Shield

$2.49

$

In Stock, Qty 7

10

Scag 483210

Pulley, 5" Idler

$56.99

$

In Stock, Qty 17

11

Scag 483215

Pulley, 5" Idler

$62.99

$

In Stock, Qty 20+

12

Scag 04019-04

Nut, Serrated Flange 3/8-16

$0.99

$

In Stock, Qty 20+

13

Scag 48224

Bearing

$13.99

$

In Stock, Qty 20+

14

Scag 462333

Idler Arm Assembly

Note: (incl. # 13)

$139.99

$

Usually ships in 2-12 days

15

Scag 43681

Pivot, Idler

$24.99

$

In Stock, only 1 left!

16

Scag 04001-136

Bolt, Hex Head 3/8-16 x 1-1/2"

Note: Grade 8

$0.99

$

In Stock, Qty 20+

17

Scag 04001-62

Bolt, Hex Head 3/8-16 x 3-1/4"

$1.49

$

In Stock, Qty 20+

18

Scag 04001-09

Bolt, Hex Head 5/16-18 x 1"

$0.99

$

In Stock, Qty 20+

19

Scag 451724

Shaft Weldment, Push Arm Mount

$36.99

$

In Stock, only 2 left!

20

Scag 04019-03

Nut, Serrated Flange 5/16-18

$0.99

$

In Stock, Qty 20+

21

Scag 462323

Pusharm Assembly, LH

$123.99

$

Usually ships in 2-12 days

21

Scag 462324

Pusharm Assembly, RH

$123.99

$

In Stock, only 1 left!

22

Scag 04020-16

Nut, 5/8-18 UNF

$0.99

$

In Stock, Qty 19

23

Scag 48763

Rod End, Male 5/8"

$59.99

$

In Stock, Qty 10

24

Scag 48114-08

Grease Fitting

$4.49

$

Usually ships in 2-12 days

25

Scag 452076

Shaft Weldment

$54.99

$

Usually ships in 2-12 days

26

Scag 483997

Guide Roller

$31.99

$

In Stock, only 2 left!

27

Scag 483361

Lever, Deck Level

$22.99

$

In Stock, only 1 left!

28

Scag 04110-03

U-Nut, 3/8-16

$2.49

$

In Stock, Qty 19

29

Scag 04003-42

Bolt, Carriage 7/16-14

$2.49

$

In Stock, only 4 left!

30

Scag 04107-04

Bolt, Hex Head 3/8-16 x 2" Special

$1.49

$

In Stock, only 4 left!

31

Scag 04021-11

Nut, Elastic Stop 7/16-14

$0.99

$

In Stock, Qty 9

32

Scag 462334

Cutter Deck w/Decals

$1884.99

$

Usually ships in 2-12 days

33

Scag 04021-22

Nut, Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 20+

34

Scag 04030-03

Lockwasher, 5/16" Spring

$0.99

$

In Stock, Qty 20+

35

Scag 484020

Spring, Cutter Deck

$65.99

$

Usually ships in 2-12 days

36

Scag 461663

Spindle Assembly

$263.99

$

In Stock, Qty 14

37

Scag 43589

Shaft, Spindle

$59.99

$

In Stock, Qty 6

38

Scag 481024

Seal, Upper

$4.99

$

In Stock, Qty 19

39

Scag 481022

Bearing Assembly

$61.99

$

In Stock, Qty 7

40

Scag 48114-04

Grease Fitting

$1.49

$

In Stock, Qty 20+

41

Scag 48677

Valve Grease Relief

$9.49

$

In Stock, only 1 left!

42

Scag 43644

Housing, Spindle

$60.99

$

Usually ships in 2-12 days

43

Scag 43312

Spacer, Outside

$19.99

$

In Stock, only 1 left!

44

Scag 43296

Spacer, Inside

$8.49

$

In Stock, only 2 left!

45

Scag 481025

Seal, Lower

$4.99

$

In Stock, Qty 20+

46

Scag 43297

Bushing, Lower

$9.99

$

In Stock, only 2 left!

47

Scag 481035

Nut, Special 1-1/16" - 18

$7.99

$

In Stock, only 3 left!

48

Scag 483176

Pad, Deck Wear

$34.99

$

In Stock, Qty 14

49

Scag 04021-04

Nut, Center Lock 5/16-18

$0.99

$

In Stock, Qty 20+

50

Scag 04040-04

Flatwasher, 5/16-.344 x .688 x .065

$0.99

$

In Stock, Qty 20+

51

Scag 04003-12

Bolt, Carriage 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 20+

52

Scag 04063-08

Key, 1/4 x 1/4 x 1"

$1.49

$

In Stock, Qty 20+

53

Scag 04001-176

Bolt, Hex Head 5/16-18 x 1-3/4"

$0.99

$

In Stock, Qty 20+

54

Scag 43590

Spacer, Spindle Bottom

$17.99

$

In Stock, Qty 20+

55

Scag 482881

Cutter Blade, 21"

$32.99

$

In Stock, Qty 9

56

Scag 04043-06

Flatwasher, 5/8-.688 x 1.75 x .134 HD

$1.99

$

In Stock, Qty 20+

57

Scag 04001-41

Bolt, Hex Head 5/8-11 x 9-1/2"

$15.99

$

In Stock, Qty 20+

58

Scag 424841

Baffle, Flange 61V

$122.99

$

In Stock, only 1 left!

59

Scag 04003-23

Bolt, Carriage 3/8-16 x 1"

$1.49

$

In Stock, Qty 20+

60

Scag 482295

Wheel, Anti-Scalp

$9.99

$

In Stock, Qty 20+

61

Scag 45944

Shaft Weldment

$22.99

$

In Stock, Qty 15

62

Scag 04001-47

Bolt, Hex Head 3/8-16 x 5"

$3.49

$

Usually ships in 2-12 days

63

Scag 04041-38

Flatwasher, 3/8-.406 x 2.25 x .1875

$3.49

$

In Stock, Qty 10

64

Scag 04001-62

Bolt, Hex Head 3/8-16 x 3-1/4"

$1.49

$

In Stock, Qty 20+

65

Scag 04001-136

Bolt, Hex Head 3/8-16 x 1-1/2"

Note: Grade 8

$0.99

$

In Stock, Qty 20+

66

Scag 481632

Wheel, Anti-Scalp

Note: (incl. # 67)

$27.99

$

In Stock, Qty 20+

67

Scag 48100-15

Bushing, Bronze

$4.99

$

In Stock, Qty 20+

68

Scag 04003-26

Bolt, Carriage 3/8-16 x 4"

$1.99

$

In Stock, Qty 20+

69

Scag 04021-05

Nut, Center Lock 3/8-16

$0.99

$

In Stock, Qty 20+

70

Scag 422478

Bracket, Anti-Scalp Wheel

$28.99

$

Usually ships in 2-12 days

71

Scag 04017-27

Bolt, Hex Head 3/8-16 x 1" Serrated Flange

$1.49

$

In Stock, Qty 20+

72

Scag 04001-12

Bolt, Hex Head 5/16-18 x 1-3/4"

$0.99

$

In Stock, Qty 20+

73

Scag 04021-10

Nut, 5/16-18 Elastic Stop

$0.99

$

In Stock, Qty 20+

74

Scag 482245

Spring, Discharge Chute

$11.99

$

In Stock, only 4 left!

75

Scag 04001-154

Bolt, Hex Head 5/16-18 x 4-3/4"

$2.99

$

In Stock, Qty 8

76

Scag 461846

Discharge Chute Assembly

$68.99

$

Usually ships in 2-12 days

77

Scag 481625-01

Knob w/Stud

$2.99

$

In Stock, Qty 20+

78

Scag 425474

Belt Cover, SVR-61V

$75.99

$

In Stock, only 1 left!

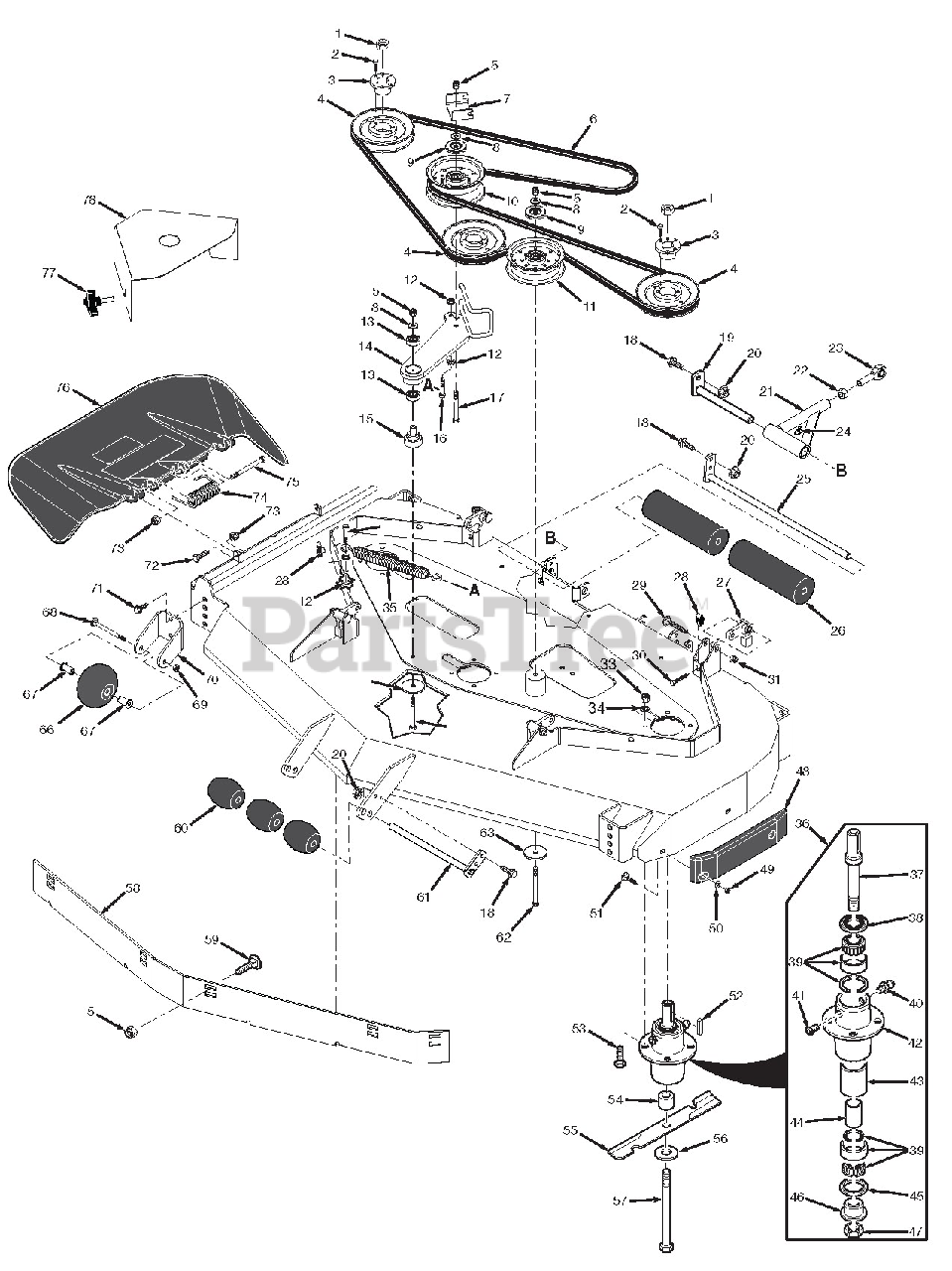

SVR61V-801FX - Scag V-Ride 61" Stand-On Mower, Kawasaki 801FX (SN: G1300001 - G1399999) 61V Cutter Deck Parts Diagram

61V Cutter Deck Parts Diagram
