SVRII-36A-15FS - Scag V-Ride II 36" Stand-On Mower, 15hp Kawasaki 541FS (SN: M9500001 - M9599999) SVRII-36A Electrical System - Recoil Start Models Parts Diagram

V-Ride II 36" Stand-On Mower, 15hp Kawasaki 541FS

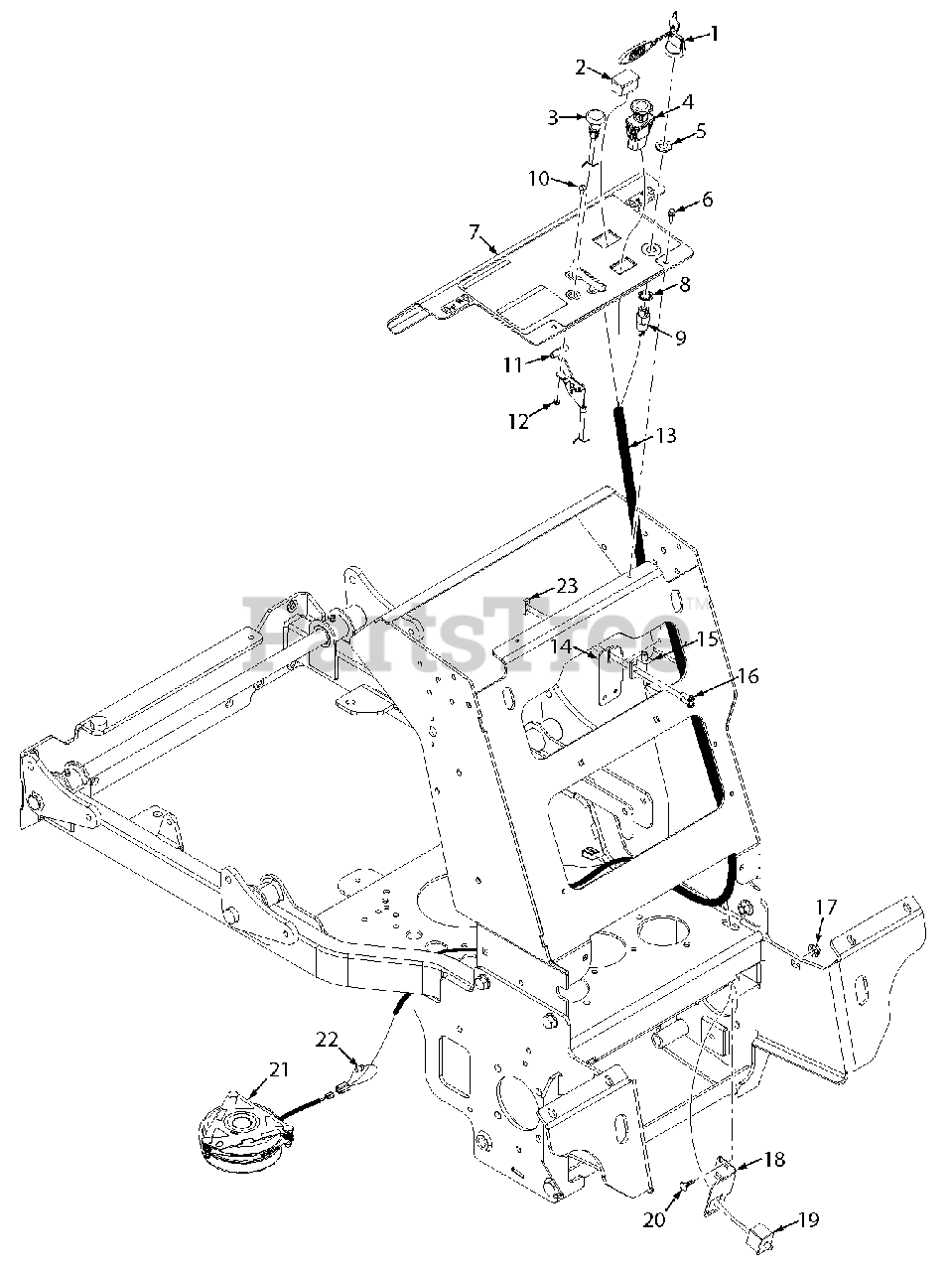

SVRII-36A Electrical System - Recoil Start Models Parts Diagram

  • Title

1

Scag 462069

Key Assy., w/Fob

$9.99

$

In Stock, Qty 9

0

2

Scag 484566

Hourmeter

$51.99

$

Usually ships in 2-12 days

0

3

Scag 483976

Choke Control

$23.99

$

In Stock, only 2 left!

0

4

Scag 483957

Switch, PTO
(Superseded to 463034)

$46.99

$

In Stock, Qty 20+

0

5

Scag 48017-04

Nut, Special 5/8-32

$1.99

$

In Stock, Qty 5

0

6

Scag 04011-14

Screw, 1/4-20 x 3/4" Taptite

$0.99

$

In Stock, Qty 13

0

7

Scag 462985

Instrument Panel w/Decal - SVRII36

$61.99

$

Usually ships in 2-12 days

0

8

Scag 48017-03

Lockwasher, 5/8" Internal Tooth

$0.99

$

In Stock, Qty 7

0

9

Scag 48609

Switch, Key

$13.99

$

In Stock, Qty 7

0

10

Scag 04003-43

Bolt, Carriage #10-24 x 1/2"

$0.99

$

In Stock, Qty 8

0

11

Scag 483975

Throttle Cable

$25.99

$

In Stock, Qty 17

0

12

Scag 04021-26

Nut, Elastic Stop #10-24

$0.99

$

In Stock, Qty 9

0

13

Scag 485960

Wire Harness, SVRII Recoil Start

$177.99

$

Usually ships in 2-12 days

0

14

Scag 427269

Bracket, Neutral Switch

$13.99

$

Usually ships in 2-12 days

0

15

Scag 481545

Switch, Interlock

$17.99

$

Usually ships in 2-12 days

0

16

Scag 04010-12

Screw, #10-32 x 3/4" Taptite

$0.99

$

In Stock, only 1 left!

0

17

Scag 04019-02

Nut, Serrated Flange 1/4-20

$0.99

$

In Stock, Qty 20+

0

18

Scag 427481

Switch Bracket, Operator Presence

$6.99

$

Usually ships in 2-12 days

0

19

Scag 484497

Switch, Double Pole - N.O. / N.O.

$17.99

$

Usually ships in 2-12 days

0

20

Scag 04003-02

Bolt, Carriage 1/4-20 x 3/4"

$0.99

$

In Stock, Qty 20+

0

21

Scag 462166

Clutch w/Tag GT2.5-FE02

$420.99

$

In Stock, only 1 left!

0

22

Scag 483958

Diode, 600V - 6A

$2.49

$

In Stock, only 1 left!

0

23

Scag 422373

Plate, Threaded

$11.99

$

Usually ships in 2-12 days

0
