SVRII-36A-15FS - Scag V-Ride II 36" Stand-On Mower, 15hp Kawasaki 541FS (SN: N5900001 - N5999999) 36A CUTTER DECK Parts Diagram

V-Ride II 36" Stand-On Mower, 15hp Kawasaki 541FS

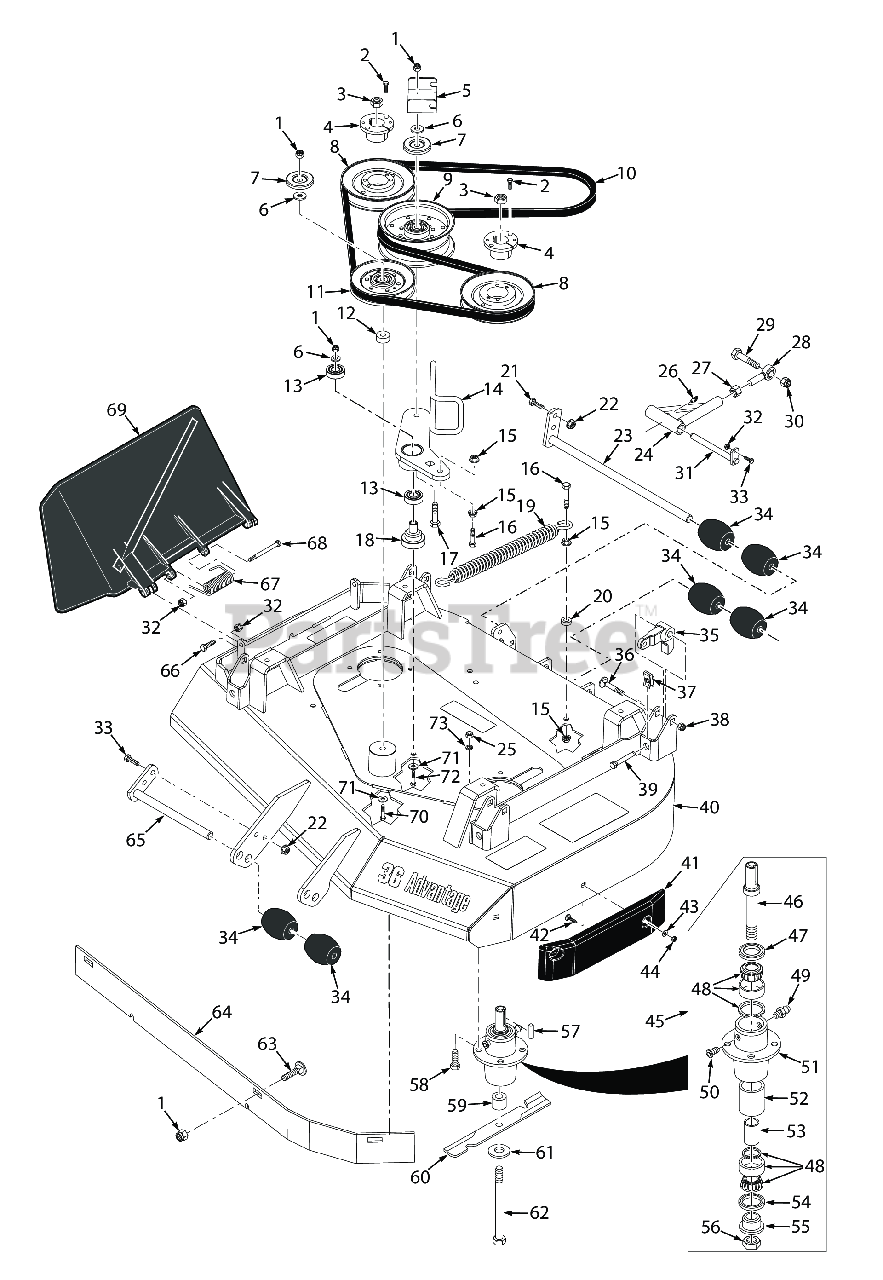

36A CUTTER DECK Parts Diagram

  • Title

1

Scag 04021-09

HEX NUT, ELASTIC STOP LOCK, 3/8-16

$0.99

$

In Stock, Qty 20+

0

2

Scag 04001-172

Bolt, Hex Head 1/4-20 x 1" Grade 8 Black

$0.99

$

In Stock, Qty 20+

0

3

Scag 04020-09

Hex Locknut, Elastic Stop, 3/8-16

$0.99

$

In Stock, Qty 20+

0

4

Scag 48926

Hub, Tapered 1-1/8" Bore

$31.99

$

In Stock, Qty 16

0

5

Scag 424615

Bracket, Belt Guide

$5.49

$

Usually ships in 2-12 days

0

6

Scag 04043-04

Flatwasher, 3/8 (.391 x .938 x .105 HD) Grade 8

$0.99

$

In Stock, Qty 20+

0

7

Scag 424367

Quick Pin, 5/16" Dia.

$2.49

$

In Stock, Qty 7

0

8

Scag 483284

Pulley, 5.73 OD Tapered Bore

$37.99

$

In Stock, only 1 left!

0

9

Scag 483210

Pulley, Idler 5" Dia.

$56.99

$

In Stock, Qty 17

0

10

Scag 485936

Belt, Cutter Deck
(Superseded to 486023)

$73.99

$

In Stock, Qty 7

0

11

Scag 48181

IDLER PULLEY, "V" GROOVE

$26.99

$

In Stock, Qty 10

0

12

Scag 43077

SPACER, J PULL ROD

$4.99

$

In Stock, only 1 left!

0

13

Scag 48224

BEARINGS, BALL, NEUTRAL RETURN

$13.99

$

In Stock, Qty 20+

0

14

Scag 462984

Idler Arm Assembly

$64.99

$

In Stock, only 1 left!

0

15

Scag 04019-04

NUT, 3/8-16 SERRATED FLANGE HEX HEAD

$0.99

$

In Stock, Qty 20+

0

16

Scag 04001-136

Bolt, Hex Head 3/8-16 x 1-1/2" Grade 8 Black

$0.99

$

In Stock, Qty 20+

0

17

Scag 04001-62

Capscrew, Hex Head 3/8-16 x 3.25"

$1.49

$

In Stock, Qty 20+

0

18

Scag 43816

Pivot, Idler

$26.99

$

Usually ships in 2-12 days

0

19

Scag 484020

Spring, Cutter Deck

$65.99

$

In Stock, only 1 left!

0

20

Scag 43063

SPACER, IDLER

$9.99

$

Usually ships in 2-12 days

0

21

Scag 04003-04

Bolt, Carriage 5/16-18x1" (large frame units only)

$0.99

$

In Stock, only 2 left!

0

22

Scag 04117-01

Nut, Flange Head Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 20+

0

23

Scag 452236

Shaft Weldment

$34.99

$

Usually ships in 2-12 days

0

24

Scag 462323

Pusharm Assembly, LH

$123.99

$

Usually ships in 2-12 days

0

24

Scag 462324

Pusharm Assemblly, RH

$123.99

$

In Stock, only 1 left!

0

25

Scag 04021-22

Lock Nut, 5/16-18 Elastic Stop Grade 8

$0.99

$

In Stock, Qty 20+

0

26

Scag 48114-08

Grease Fitting, 90 Degree

$4.49

$

Usually ships in 2-12 days

0

27

Scag 04020-16

Nut, Hex Head 5/8-18 UNF

$0.99

$

In Stock, Qty 19

0

28

Scag 48763

Rod End, 5/8" Male RH Thread

$59.99

$

In Stock, Qty 10

0

29

Scag 04001-79

BOLT, HEX HEAD 5/8-11 X 4-1/2"

$4.99

$

In Stock, Qty 9

0

30

Scag 04021-13

HEX LOCKNUT, ELASTIC STOP, 5/8-11

$1.49

$

In Stock, Qty 9

0

31

Scag 451724

Shaft Weldment, Pusharm Mounting

$36.99

$

In Stock, only 2 left!

0

32

Scag 04021-10

HEX NUT, ELASTIC STOP LOCK, 5/16-18

$0.99

$

In Stock, Qty 20+

0

33

Scag 04001-09

Bolt, Heax Head 5/16-18 x 1" (48V / 52V)

$0.99

$

In Stock, Qty 20+

0

34

Scag 482295

Wheel, Anti-Scalp

$9.99

$

In Stock, Qty 20+

0

35

Scag 485528

Lever, Deck Level

$23.99

$

Usually ships in 2-12 days

0

36

Scag 04003-42

Bolt, Carriage 7/16-14 x 2-1/4"

$2.49

$

In Stock, only 4 left!

0

37

Scag 04110-03

U-Nut, 3/8-16 (short)

$2.49

$

In Stock, Qty 20+

0

38

Scag 04021-11

HEX LOCKNUT, ELASTIC STOP, 7/16-14

$0.99

$

In Stock, Qty 9

0

39

Scag 04107-04

Bolt, Hex Head 3/8-16 x 2" Special Lock

$1.49

$

In Stock, Qty 10

0

40

Scag 462986

Cutter Deck w/Decals

$1097.99

$

Usually ships in 2-12 days

0

41

Scag 483174

Pad, Deck Wear

$34.99

$

In Stock, only 2 left!

0

42

Scag 04003-12

Bolt, 5/16-18 x .75 RHSN Carriage

$0.99

$

In Stock, Qty 20+

0

43

Scag 04040-04

Flatwasher, 5/16-.344 x .688 x .065 (48V / 52V)

$0.99

$

In Stock, Qty 20+

0

44

Scag 04021-04

Nut, Center Lock, 5/16-18(32)

$0.99

$

In Stock, Qty 20+

0

45

Scag 461663

Cutter Spindle Assembly

$263.99

$

In Stock, Qty 20+

0

46

Scag 43589

Spindle Shaft, Tapered Brng

$59.99

$

In Stock, Qty 7

0

47

Scag 481024

SEAL, 2.00 O.D. X 1.50 BORE

$4.99

$

In Stock, Qty 19

0

48

Scag 481022

Tapered Bearing Set (Two Bearings W/Race)

$61.99

$

In Stock, Qty 11

0

49

Scag 48114-04

GREASE FITTING, STR. 1/4-28 SELF TAP.

$1.49

$

In Stock, Qty 20+

0

50

Scag 48677

RELIEF FITTING, TAPERED BEARING SPINDLE

$9.49

$

In Stock, only 1 left!

0

51

Scag 43644

Housing, Spindle

$60.99

$

Usually ships in 2-12 days

0

52

Scag 43312

Spacer, Outside, Cutter Spindle

$19.99

$

In Stock, only 1 left!

0

53

Scag 43296

SLEEVE, CUTTER SPINDLE

$8.49

$

In Stock, only 3 left!

0

54

Scag 481025

Seal, 2.00" O.D. x 1.625" Bore

$4.99

$

In Stock, Qty 20+

0

55

Scag 43297

SPINDLE BUSHING, BOTTOM

$9.99

$

In Stock, only 2 left!

0

56

Scag 481035

Nut , Spec ial 1 -1/ 1 6 - 1 8

$7.99

$

In Stock, only 3 left!

0

57

Scag 04063-08

Key, 1/4 x 1/4 x 2.0"

$1.49

$

In Stock, Qty 20+

0

58

Scag 04001-175

Bolt, Hex Head 5/16-18 x 1-1/2" Grade 8

$0.99

$

In Stock, Qty 12

0

59

Scag 43590

Spacer, Spindle Bottom

$17.99

$

In Stock, Qty 20+

0

60

Scag 482878

Cutter Blade, 18" (52V)

$24.99

$

In Stock, Qty 20+

0

61

Scag 04043-06

Flatwasher, 5/8-.688 x 1-3/4 x .134 HD

$1.99

$

In Stock, Qty 20+

0

62

Scag 04001-41

BOLT, HEX HEAD, 5/8-11 X 9-1/2 GR.5

$15.99

$

In Stock, Qty 20+

0

63

Scag 04003-23

Carriage Bolt, 3/8-16 x 1.0"

$1.49

$

In Stock, Qty 20+

0

64

Scag 423783

Baffle, Flange - 36A

$77.99

$

Usually ships in 2-12 days

0

65

Scag 451926

Shaft Weldment, Guide Roller

$26.99

$

In Stock, only 1 left!

0

66

Scag 04001-12

Bolt, Hex Head 5/16-18 x 1-1/2" - Front

$0.99

$

In Stock, Qty 20+

0

67

Scag 482245

Spring, Discharge Chute

$11.99

$

In Stock, Qty 5

0

68

Scag 04001-154

Bolt, 5/16-18 x 4-3/4" Hex Head

$2.99

$

In Stock, Qty 9

0

69

Scag 461295

Discharge Chute Advantage - Small

$70.99

$

In Stock, only 2 left!

0

69

Scag 462469

Discharge Chute Assy. (CA)

$152.99

$

In Stock, only 2 left!

0

70

Scag 04001-198

Bolt, Hex Head 3/8-16 x 4-3/4"

$2.49

$

Usually ships in 2-12 days

0

71

Scag 04041-11

Flatwasher, 3/8-.406 x 1-1-1/2 x 7 Gauge

$1.99

$

In Stock, Qty 20+

0

72

Scag 04001-62

Capscrew, Hex Head 3/8-16 x 3.25"

$1.49

$

In Stock, Qty 20+

0

73

Scag 04030-03

Lockwasher, 5/16 (.317 x .586 x .078) Helical Spring

$0.99

$

In Stock, Qty 20+

0
