SVRII-36A-15FS - Scag V-Ride II 36" Stand-On Mower, 15hp Kawasaki 541FS (SN: N5900001 - N5999999) SVRII-36A HYDRAULICS AND ENGINE COMPONENTS Parts Diagram

V-Ride II 36" Stand-On Mower, 15hp Kawasaki 541FS

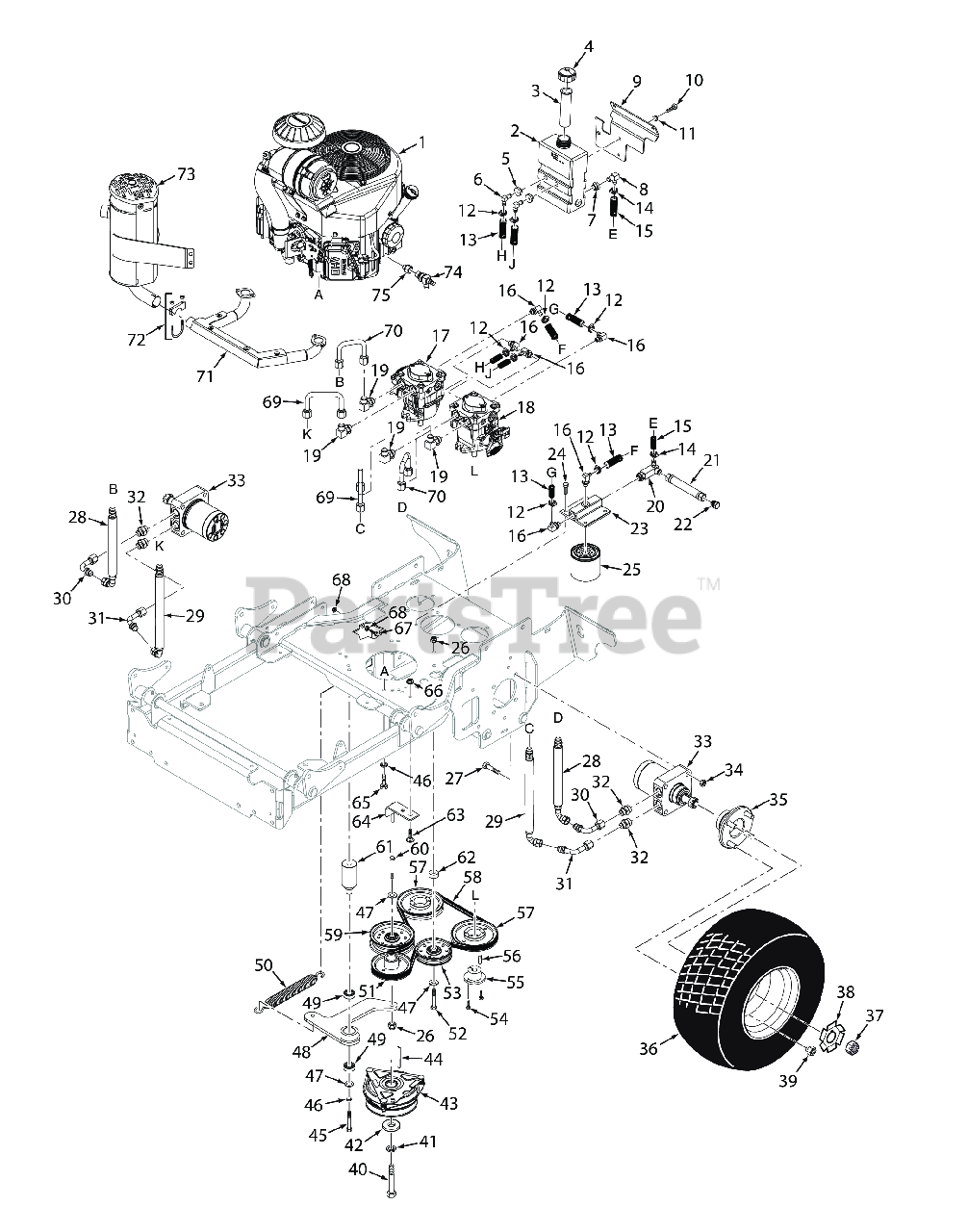

SVRII-36A HYDRAULICS AND ENGINE COMPONENTS Parts Diagram

  • Title

1

Scag 485018

Engine, 15hp Kawasaki FS541V

$

$

Currently unavailable

1

Scag 485019

Engine, 19hp Kawasaki FX600V

$

$

Currently unavailable

2

Scag 462946

Hydro Tank Assy., SVRII

$192.99

$

Usually ships in 2-12 days

0

3

Scag 481507

Insert, Filler Neck

$13.99

$

In Stock, only 1 left!

0

4

Scag 481164

CAP, HYDRAULIC TANK

$18.99

$

In Stock, only 4 left!

0

5

Scag 482571

Bushing, 0.56" Dia. Viton

$12.99

$

In Stock, Qty 20+

0

6

Scag 482572

Elbow, 90 Degree, 9/16-18 JIC x 9/16 O-Ring

$10.99

$

Usually ships in 2-12 days

0

7

Scag 482573

Bushing, 0.78" Dia. Viton

$13.99

$

In Stock, only 1 left!

0

8

Scag 482574

Fitting, 90 Degree - 1/2" Hose

$18.99

$

Usually ships in 2-12 days

0

9

Scag 427280

Bracket, Hydro Tank Mounting

$22.99

$

Usually ships in 2-12 days

0

10

Scag 04001-08

BOLT, SERRATED FLANGE HEX HEAD 5/16-18 X 3/4"

$0.99

$

In Stock, Qty 20+

0

11

Scag 04030-03

Lockwasher, 5/16 (.317 x .586 x .078) Helical Spring

$0.99

$

In Stock, Qty 20+

0

12

Scag 48136-13

Clamp, .69" Max. / .25" Min. Dia.

$7.49

$

In Stock, only 3 left!

0

13

Scag 48811

Hose, 3/8" ID - 10-1/4" Long (Order By The Inch)

$0.99

$

In Stock, Qty 20+

0

14

Scag 48136-05

Clamp, Cable 3/4" I.D.

$3.99

$

In Stock, only 2 left!

0

15

Scag 48351

Hose Assembly, 1/2" ID (Oil Reservoir to Filter Base)

$0.99

$

In Stock, Qty 6

0

16

Scag 482266-01

Elbow, 90 Degree - 9/16" O-Ring x 3/8" Hose

$32.99

$

Usually ships in 2-12 days

0

17

Scag 483863

Pump, LH - 10cc (36 Only)

$798.99

$

Usually ships in 2-12 days

0

18

Scag 483862

Pump, RH - 10cc (36 Only)

$798.99

$

Usually ships in 2-12 days

0

19

Scag 48350-02

Elbow, 90 Degree 3/4-16 JIC x 3/4-16 O-Ring

$26.99

$

Usually ships in 2-12 days

0

20

Scag 485847

Tee, 3/4" O-Ring

$28.99

$

Usually ships in 2-12 days

0

21

Scag 485963

Drain Hose Assy.

$45.99

$

Usually ships in 2-12 days

0

22

Scag 48771-02

Plug, JIC 3/4-16 UNF

$2.99

$

Usually ships in 2-12 days

0

23

Scag 482417

Filter Head Assembly

$128.99

$

Usually ships in 2-12 days

0

24

Scag 04001-08

BOLT, SERRATED FLANGE HEX HEAD 5/16-18 X 3/4"

$0.99

$

In Stock, Qty 20+

0

25

Scag 48462-01

OIL FILTER, SPECIAL

$26.99

$

In Stock, Qty 20+

0

26

Scag 04021-09

HEX NUT, ELASTIC STOP LOCK, 3/8-16

$0.99

$

In Stock, Qty 20+

0

27

Scag 04001-52

Bolt, Hex Hd. 1/2-13 x 2-1/2" (lower)

$1.99

$

In Stock, only 1 left!

0

28

Scag 485922

Hose Assy., 11-1/4"

$74.99

$

Usually ships in 2-12 days

0

29

Scag 484503

Hose Assy., 13-1/4"

$77.99

$

In Stock, only 1 left!

0

30

Scag 485903

Tube Assy., 1/2 x 2 x 2"

$42.99

$

Usually ships in 2-12 days

0

31

Scag 485904

Tube Assy., 1/2 x 2 x 3-1/4"

$44.99

$

Usually ships in 2-12 days

0

32

Scag 48572-02

TUBE UNION, 3/4-16 JIC TO 7/8-14 "O" RING

$12.99

$

Usually ships in 2-12 days

0

33

Scag 483388

Wheel Motor

$701.99

$

Usually ships in 2-12 days

0

33

Scag 04063-40

Key, Woodruff 3/16 x 3/4"

$4.49

$

Usually ships in 2-12 days

0

34

Scag 04021-19

Locknut, Hex 1/2-13 Center Lock

$0.99

$

In Stock, Qty 19

0

35

Scag 462275

Wheel Hub Assembly

$126.99

$

In Stock, only 1 left!

0

35

Scag 04008-01

Bolt, Serr. Flange 1/2-20 x 4.563"

$3.99

$

In Stock, Qty 20+

0

36

Scag 485920

Wheel Assy., 20 x 8 - 10

$254.99

$

Usually ships in 2-12 days

0

36

Scag 485917

Tire, 20 x 8 - 10

$176.99

$

Usually ships in 2-12 days

0

36

Scag 485918

Rim w/ Valve

$219.99

$

In Stock, only 1 left!

0

37

Scag 48679

HEX CASTLE NUT, 3/4-28 UNEF

$27.99

$

Usually ships in 2-12 days

0

38

Scag 422214

Lock Washer, Wheel Motor

$4.49

$

In Stock, only 1 left!

0

39

Scag 04028-02

Wheel Nut, 1/2-20 x 13/16

$1.99

$

In Stock, Qty 20+

0

40

Scag 04102-03

Bolt, Hex Head 7/16-20 x 2-1/4" w/Patch (Kawasaki)

$2.49

$

In Stock, Qty 10

0

41

Scag 04030-05

Lockwasher, 7/16� Spring

$0.99

$

In Stock, Qty 14

0

42

Scag 04041-28

Flatwasher, 7/16-.469 x 1.75 x .25 (48, 52)

$2.99

$

In Stock, Qty 10

0

43

Scag 462166

Clutch w/Tag GT2.5-FE02 (48 / 52)

$420.99

$

In Stock, only 1 left!

0

44

Scag 04063-28

Key, 1/4 x 1/4 x 3-1/2"

$1.49

$

In Stock, only 4 left!

0

45

Scag 04001-51

Capscrew, Hex Head 3/8-16 x 3-3/4"

$1.49

$

In Stock, Qty 20+

0

46

Scag 04030-04

Lockwasher, 3/8" Spring, Kawasaki FX / FS

$0.99

$

In Stock, Qty 20+

0

47

Scag 04043-04

Flatwasher, 3/8 (.391 x .938 x .105 HD) Grade 8

$0.99

$

In Stock, Qty 20+

0

48

Scag 462983

Idler Arm Assy., Pump Drive - SVRII-36
(Superseded to 463205)

$213.99

$

Usually ships in 2-12 days

0

49

Scag 48224

BEARINGS, BALL, NEUTRAL RETURN

$13.99

$

In Stock, Qty 20+

0

50

Scag 483526

Spring, Transmission Idler

$25.99

$

In Stock, Qty 16

0

51

Scag 483802

Pulley, 4-3/4" OD - 1.125 Bore

$78.99

$

In Stock, only 1 left!

0

52

Scag 04001-46

Bolt, Hex Head 3/8-16 x 2-1/4" - 61"

$0.99

$

In Stock, Qty 20+

0

53

Scag 483214

Pulley, Idler 4� Dia.

$27.99

$

In Stock, Qty 5

0

54

Scag 04001-172

Bolt, Hex Head 1/4-20 x 1" Grade 8 Black

$0.99

$

In Stock, Qty 20+

0

55

Scag 482085

Hub, Tapered, 15mm Bore

$28.99

$

In Stock, Qty 5

0

56

Scag 04063-14

KEY, 5 MM X 5 MM X 25 MM

$0.99

$

In Stock, Qty 20+

0

57

Scag 482649

Pulley, 5.45 OD - Tapered Bore"

$49.99

$

In Stock, only 1 left!

0

58

Scag 485902

Belt, Pump Drive - SVRII-36

$29.99

$

In Stock, only 2 left!

0

59

Scag 484128

Pulley, 4" Dia. Idler

$23.99

$

In Stock, only 4 left!

0

60

Scag 04001-39

BOLT, HEX HEAD, 5/16-18 X 2-1/4

$0.99

$

In Stock, only 3 left!

0

61

Scag 43683

Pivot, Idler

$55.99

$

Usually ships in 2-12 days

0

62

Scag 43720

Spacer, Idler Pulley - SFZ61

$4.99

$

Usually ships in 2-12 days

0

63

Scag 04003-12

Bolt, 5/16-18 x .75 RHSN Carriage

$0.99

$

In Stock, Qty 20+

0

64

Scag 452923

ANTI-ROTATION WLMT, SVRII

$20.99

$

In Stock, only 2 left!

0

65

Scag 04001-32

Bolt, Hex Head 3/8-16 x 1-1/4", Kawasaki FX / FS

$0.99

$

In Stock, Qty 14

0

66

Scag 04019-03

Nut, Serrated Flange 5/16-18 (Right Front Engine Mounting, Briggs and Kohler Only)

$0.99

$

In Stock, Qty 16

0

67

Scag 04001-136

Bolt, Hex Head 3/8-16 x 1-1/2" Grade 8 Black

$0.99

$

In Stock, Qty 20+

0

68

Scag 04019-04

NUT, 3/8-16 SERRATED FLANGE HEX HEAD

$0.99

$

In Stock, Qty 20+

0

69

Scag 484524

1/2" U-Tube Assembly, 4" Wide

$25.99

$

Usually ships in 2-12 days

0

70

Scag 484523

1/2" U-Tube Assembly, 3" Wide

$23.99

$

In Stock, only 1 left!

0

71

Exhaust Manifold, 15 HP Kawasaki FS

$

$

Not available

72

Scag 484334

Muffler Clamp

$22.99

$

Usually ships in 2-12 days

0

73

Scag 484620

Muffler, Kawasaki (FS481, FS541, FS600)

$177.99

$

In Stock, only 3 left!

0

74

Scag 485930

Oil Drain, SVRII-36
(Superseded to 485961)

$10.99

$

In Stock, only 1 left!

0

74

Scag 483280

Tubing, Oil Drain (order by inch)

$3.49

$

Usually ships in 2-12 days

0

75

Scag 485960

Wire Harness, SVRII Recoil Start

$177.99

$

Usually ships in 2-12 days

0
