SW 10 (5900895) - Snapper Pro SW10 Series 32" Walk-Behind Mower, 13hp Kawasaki, Rear-Discharge 32" Rear Discharge Mower Deck - Housing, Spindles, Blades & Pulleys Group Parts Diagram

SW10 Series 32" Walk-Behind Mower, 13hp Kawasaki, Rear-Discharge

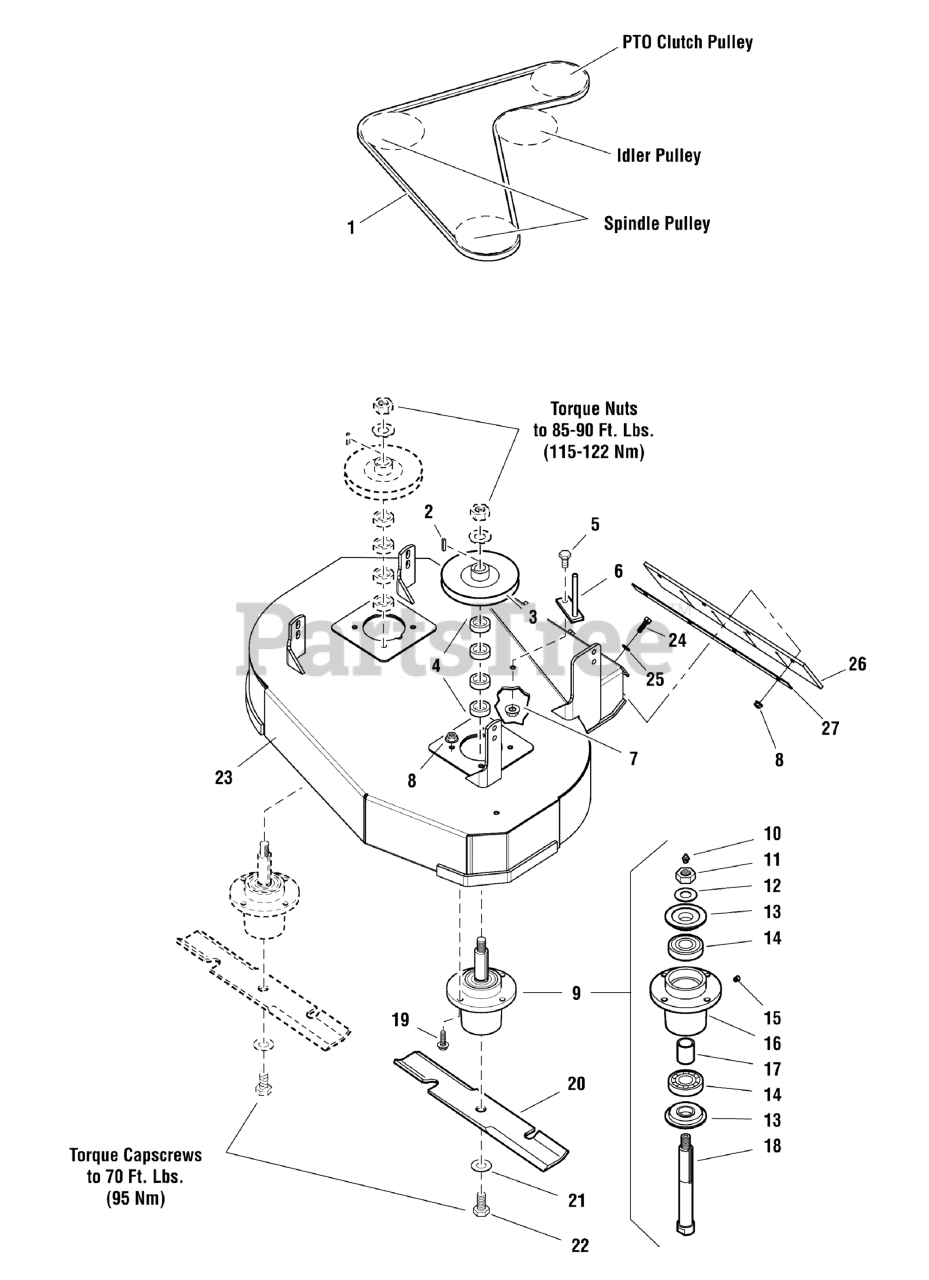

32" Rear Discharge Mower Deck - Housing, Spindles, Blades & Pulleys Group Parts Diagram

  • Title

1

Snapper Pro 5022918

BELT
(Superseded to 5022918SM)

$48.99

$

Usually ships in 2-12 days

0

2

Snapper Pro 5050407X1

KEY, 1/4 SQ. X 1
(Superseded to 5050407X8SM)

$3.99

$

Usually ships in 2-12 days

0

3

Snapper Pro 5047638

SPINDLE PULLEY
(Superseded to 5047638SM)

$57.99

$

Usually ships in 2-12 days

0

4

Snapper Pro 5041476

SPACER, 1.02 X 1.56 X .50
(Superseded to 5041476SM)

$5.49

$

Usually ships in 2-12 days

0

5

Snapper Pro 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, only 4 left!

0

6

Snapper Pro 5047777D

BELT GUIDE

$

$

Currently unavailable

7

Snapper Pro 5025126

NUT, 1/4-20 HEX SERR. FLANGE
(Superseded to 5025126FS)

$4.49

$

Usually ships in 2-12 days

0

8

Snapper Pro 5025392

NUT, 5/16-18 Hex Nylock Flange
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

9

Snapper Pro 5061096

SPINDLE ASSM, ALUMINUM, LONG SHAFT
(Superseded to 5061096SM)

Note: (Includes Ref No. 10 - 18)

$243.99

$

Usually ships in 2-12 days

0

10

Snapper Pro 5023329

GREASE FITTING
(Superseded to 5023329SM)

$5.49

$

In Stock, only 2 left!

0

11

Snapper Pro 5025405

NUT, 3/4-16 Hex
(Superseded to 5025405SM)

$3.99

$

In Stock, only 2 left!

0

12

Snapper Pro 5025406

WASHER, 3/4" Belleville
(Superseded to 5025406FS)

$3.99

$

Usually ships in 2-12 days

0

13

Snapper Pro 5049793

TRASH SHIELD
(Superseded to 5049793SM)

$16.99

$

In Stock, only 2 left!

0

14

Snapper Pro 5023330

BEARING
(Superseded to 5023330SM)

$23.99

$

In Stock, only 3 left!

0

15

Snapper Pro 5023296

RELIEF VALVE
(Superseded to 5023296SM)

$7.49

$

In Stock, only 1 left!

0

16

Snapper Pro 5061097

SPINDLE HOUSING

$

$

Currently unavailable

17

Snapper Pro 5061099

SPACER, 1.00 X 1.25 X 1.75
(Superseded to 5061099SM)

$11.99

$

Usually ships in 2-12 days

0

18

Snapper Pro 5061100

SPINDLE SHAFT
(Superseded to 5061100SM)

$75.99

$

Usually ships in 2-12 days

0

19

Snapper Pro 5023156

BOLT, Flange Head, 5/16-18 x 1-1/4
(Superseded to 5023156SM)

$3.99

$

In Stock, Qty 5

0

20

Snapper Pro 5020843X2

MOWER BLADE, 16-1/4"

Note: (SET OF TWO)

$53.99

$

Usually ships in 2-12 days

0

21

Snapper Pro 5025477

WASHER, BLADE BOLT, 9/16" F436, CZ
(Superseded to 5025477SM)

$3.99

$

In Stock, only 2 left!

0

22

Snapper Pro 5025320X14

BOLT, 5/8-11 x 1-3/4
(Superseded to 5025320X14FS)

$3.49

$

Usually ships in 2-12 days

0

23

Snapper Pro 5600326

DECK SHELL W/ DECALS (5405152B)

Note: (Includes safety decals)

$1424.99

$

Usually ships in 2-12 days

0

24

Snapper Pro 5025011X8

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

Usually ships in 2-12 days

0

25

Snapper Pro 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

26

Snapper Pro 5405149

FLAP, RUBBER, 32RD

$53.99

$

Usually ships in 2-12 days

0

27

Snapper Pro 5405260D

PLATE, RETAINING, 32RD - RED

$

$

Currently unavailable
