SW 10 (5900896) - Snapper Pro SW10 Series 32" Walk-Behind Mower, 13hp Kawasaki, Side-Discharge Electrical Group - Electric Start Parts Diagram

SW10 Series 32" Walk-Behind Mower, 13hp Kawasaki, Side-Discharge

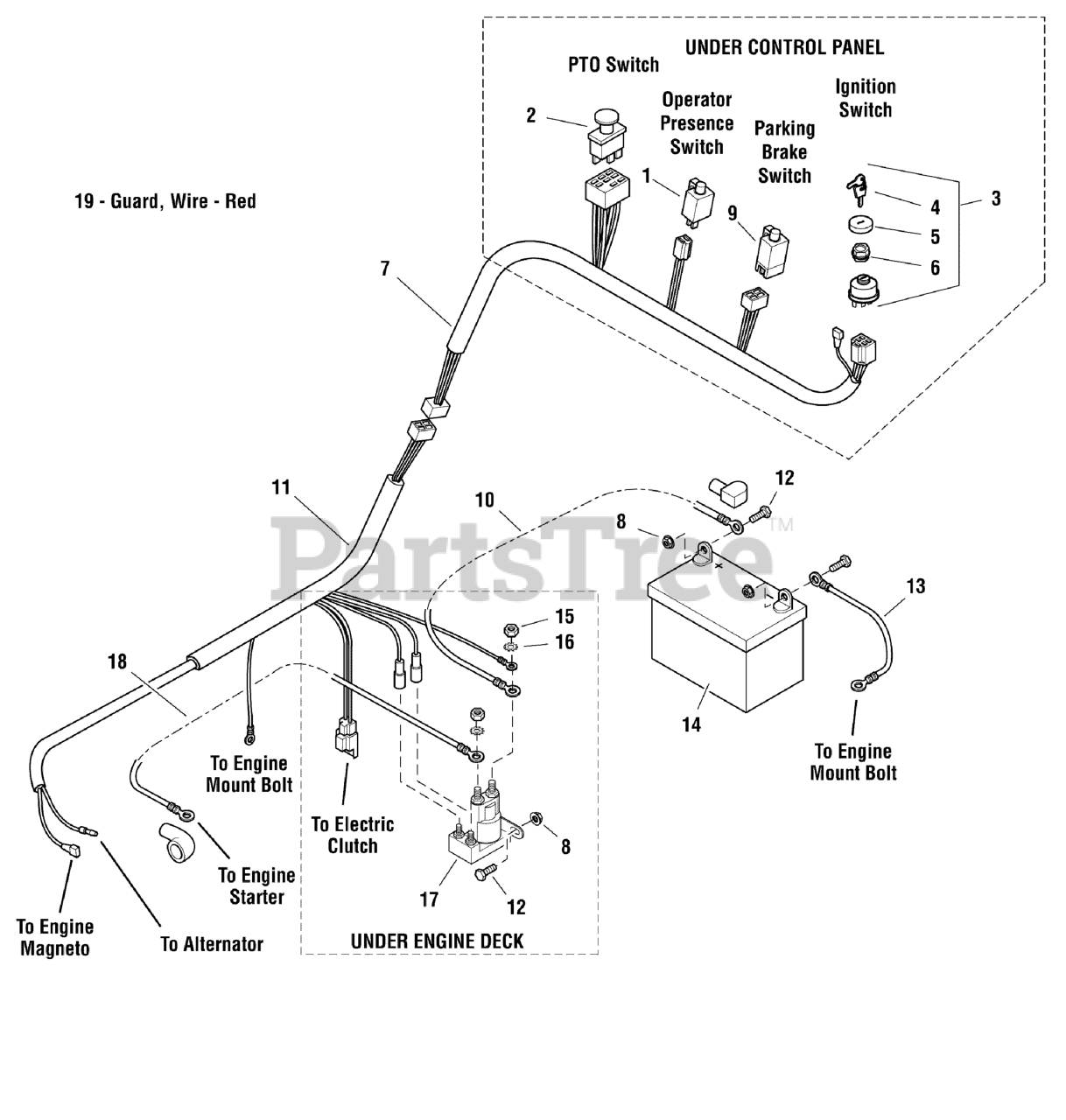

Electrical Group - Electric Start Parts Diagram

  • Title

1

Snapper Pro 5021769

SWITCH, PLUNGER, N.C.
(Superseded to 5021769SM)

Note: (OPERATOR PRESENCE)

$14.99

$

In Stock, only 1 left!

0

2

Snapper Pro 5022180

SWITCH, BLADE ENGAGEMENT
(Superseded to 1722887SM)

Note: (PTO SWITCH)

$33.99

$

In Stock, Qty 20+

0

3

Snapper Pro 5020927

SWITCH, IGNITION, 6 POST
(Superseded to 5020927FS)

Note: (IGNITION SWITCH)

$33.99

$

Usually ships in 2-12 days

0

4

Snapper Pro 5022789

KEY, IGNITION MOLDED SET

Note: (SV)

$

$

Currently unavailable

5

Snapper Pro 5022790

COVER, PLASTIC, SNAP ON
(Superseded to 1704346SM)

Note: (SV)

$4.49

$

In Stock, only 1 left!

0

6

Snapper Pro 5022791

PLASTIC NUT
(Superseded to 5022791SM)

Note: (SV)

$3.49

$

Usually ships in 2-12 days

0

7

Snapper Pro 5404588

WIRE HARNESS, HANDLE BAR
(Superseded to 5404588YP)

$153.99

$

Usually ships in 2-12 days

0

8

Snapper Pro 5025126

NUT, 1/4-20 HEX SERR. FLANGE
(Superseded to 5025126FS)

$4.49

$

Usually ships in 2-12 days

0

9

Snapper Pro 5022438

SWITCH, PLUNGER, NO/NO, BOLT-IN
(Superseded to 5022438SM)

Note: (PARKING BRAKE)

$20.99

$

In Stock, only 1 left!

0

10

Snapper Pro 5021405

BATTERY CABLE, POSITIVE, 22"
(Superseded to 5021405SM)

Note: (BATTERY TO SOLENOID)

$18.99

$

Usually ships in 2-12 days

0

11

Snapper Pro 5404590

WIRE HARNESS, ENGINE DECK, KAWASAKI

$

$

Currently unavailable

12

Snapper Pro 5025010X6

BOLT, 1/4-20 X 3/4
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 13

0

13

Snapper Pro 5021406

BATTERY CABLE, NEG, 22, 1/4-5/16
(Superseded to 5021406SM)

$16.99

$

Usually ships in 2-12 days

0

14

BATTERY, WET ( BCIU1, 340 CCA)

$

$

Not available

15

Snapper Pro 5023216

NUT, HEX JAM 5/16-24
(Superseded to 5023216SM)

Note: (SV)

$2.99

$

Usually ships in 2-12 days

0

16

Snapper Pro 5023217

WASHER, LIGHT LOCK, 5/16
(Superseded to 5023217SM)

Note: (SV)

$3.49

$

Usually ships in 2-12 days

0

17

Snapper Pro 1724815

SOLENOID-4 POLE 12 VOLT DC (TROMBETTA)
(Superseded to 1724815FS)

$29.99

$

Usually ships in 2-12 days

0

18

Snapper Pro 5048729

BATTERY CABLE, POSITIVE, 35"
(Superseded to 5048729SM)

$15.99

$

Usually ships in 2-12 days

0

19

Snapper Pro 5061717D

GUARD, WIRE - RED

Note: (To keep wires away from tires.)

$

$

Currently unavailable
