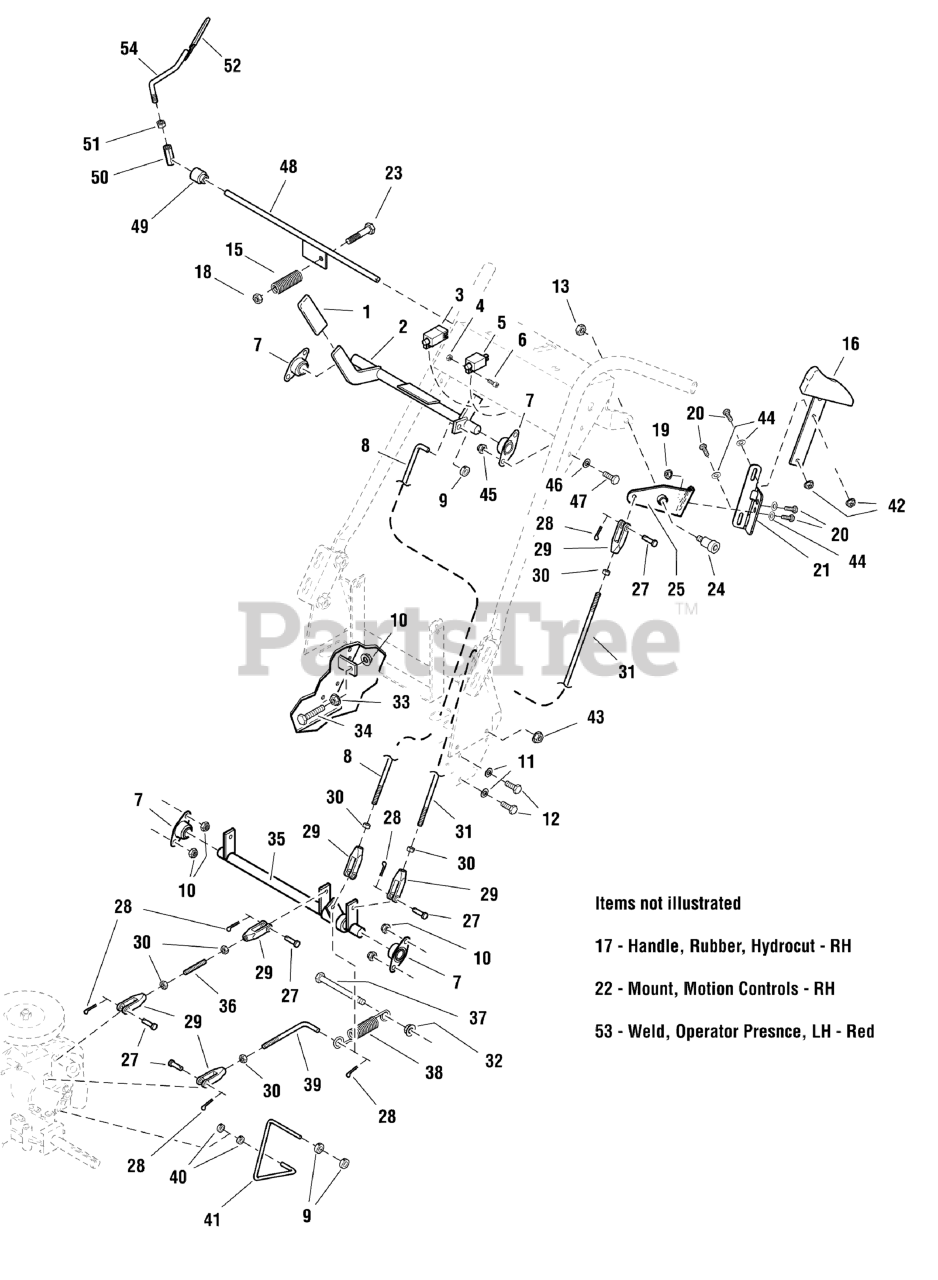

SW 10 (5900896) - Snapper Pro SW10 Series 32" Walk-Behind Mower, 13hp Kawasaki, Side-Discharge Motion Control, Parking Brake & Operator Presence Group Parts Diagram

SW10 Series 32" Walk-Behind Mower, 13hp Kawasaki, Side-Discharge

Motion Control, Parking Brake & Operator Presence Group Parts Diagram

  • Title

1

Snapper Pro 5025510

GRIP, FOAM, 1/4 X 1 X 4.1
(Superseded to 5025510SM)

$6.49

$

In Stock, only 2 left!

0

2

Snapper Pro 5061278D

WELD, BRAKE CONTROL

$

$

Currently unavailable

3

Snapper Pro 5022438

SWITCH, Plunger, NO/NO
(Superseded to 5022438SM)

$20.99

$

In Stock, only 1 left!

0

4

Snapper Pro 5025029

NUT, #10-24 HEX
(Superseded to 5025029SM)

$2.99

$

Usually ships in 2-12 days

0

5

Snapper Pro 5021769

SWITCH, PLUNGER, N.C.
(Superseded to 5021769SM)

$14.99

$

In Stock, only 1 left!

0

6

Snapper Pro 5025179X4

SCREW, #10-24 X 1/2" ROUND PHILLIPS

$

$

Currently unavailable

7

Snapper Pro 5021098

BEARING, BRONZE FLANGE, 3/4
(Superseded to 5021098SM)

$13.99

$

In Stock, Qty 7

0

8

Snapper Pro 5061495

ROD, PARKING BRAKE LINKAGE

$

$

Currently unavailable

9

Snapper Pro 5020047

COLLAR, 5/16" SET
(Superseded to 5020047SM)

$7.49

$

Usually ships in 2-12 days

0

10

Snapper Pro 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

11

Snapper Pro 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

12

Snapper Pro 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, Qty 6

0

13

Snapper Pro 5025046

NUT, 3/8-16 HEX TOP LOCK
(Superseded to 5025046SM)

$3.49

$

In Stock, Qty 6

0

14

Snapper Pro 5021490

GRIP, VINYL, 1/2 X 4
(Superseded to 5021490SM)

$4.49

$

In Stock, Qty 12

0

15

Snapper Pro 5020637

SPRING, COMPRESSION
(Superseded to 5020637YP)

$5.99

$

Usually ships in 2-12 days

0

16

Snapper Pro 5061691

HANDLE, RUBBER HYDROCUT - LH
(Superseded to 5061691SM)

$46.99

$

Usually ships in 2-12 days

0

17

Snapper Pro 5061702

HANDLE, RUBBER HYDROCUT - RH (Not Shown)

$

$

Currently unavailable

18

Snapper Pro 5025391

NUT, 1/4-20 HEX NYLOCK FLANGE
(Superseded to 5025391FS)

$3.99

$

Usually ships in 2-12 days

0

19

Snapper Pro 5025126

NUT, 1/4-20 HEX SERR. FLANGE
(Superseded to 5025126FS)

$4.49

$

Usually ships in 2-12 days

0

20

Snapper Pro 5025010X6

BOLT, 1/4-20 X 3/4" GD5 YZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 13

0

21

Snapper Pro 5404461A

MOUNT, MOTION CONTROLS - LH
(Superseded to 5404461AYP)

$12.99

$

Usually ships in 2-12 days

0

22

Snapper Pro 5404462A

MOUNT, MOTION CONTROLS - RH (Not Shown)
(Superseded to 5404462AYP)

$12.99

$

Usually ships in 2-12 days

0

23

Snapper Pro 5025010X24

BOLT, 1/4-20 X 3" GD5 YZ
(Superseded to 5025010X24YP)

$3.99

$

Usually ships in 2-12 days

0

24

Snapper Pro 5025223

BOLT, 3/8-16 X 1.0", 1/2" SHOULDER
(Superseded to 5025223SM)

$7.99

$

Usually ships in 2-12 days

0

25

Snapper Pro 5061683D

WELD, ARM CONTROL, LH

$

$

Not available

26

Snapper Pro 5061685D

WELD, ARM CONTROL, RH (Not Shown)

$

$

Not available

27

Snapper Pro 5025213X8

PIN, CLEVIS, 5/16" X 1
(Superseded to 5025213X8SM)

$4.99

$

In Stock, only 1 left!

0

28

Snapper Pro 80002736

PIN, 3/32 X 0.750, COT, ZINC/CLEAR
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

29

Snapper Pro 5020979

CLEVIS, 5/16-24, PLASTIC
(Superseded to 5023323SM)

$9.49

$

Usually ships in 2-12 days

0

30

Snapper Pro 5025033

NUT, 5/16-24 HEX
(Superseded to 5025033FS)

$3.49

$

Usually ships in 2-12 days

0

31

Snapper Pro 5047642

ROD, THUMB CONTROL LINKAGE

$

$

Currently unavailable

32

Snapper Pro 5025128

NUT, 3/8-16 HEX SERRATED FLANGE
(Superseded to 5025128SM)

$3.49

$

Usually ships in 2-12 days

0

33

Snapper Pro 5025139

NUT, 5/16-18 HEX SERRATED FLANGE (LARGE)
(Superseded to 5025139SM)

$3.49

$

In Stock, only 2 left!

0

34

Snapper Pro 5023157

BOLT, 5/16-18 X 1 1/2" FLANGE
(Superseded to 5023157SM)

$3.99

$

Usually ships in 2-12 days

0

35

Snapper Pro 5047697D

WELD, CONTROL SHAFT

$

$

Currently unavailable

36

Snapper Pro 5047740

LINK, STUD
(Superseded to 5047740SM)

$11.99

$

Usually ships in 2-12 days

0

37

Snapper Pro 5025013X32

BOLT, 3/8-16 X 4" GD5 CZ
(Superseded to 5025013X32SM)

$3.99

$

In Stock, only 1 left!

0

38

Snapper Pro 5049352

SPRING, EXT, 3.875 X .70 LOOP

$

$

Currently unavailable

39

Snapper Pro 5048328

LINK, PARKING BRAKE LOWER
(Superseded to 5048328SM)

$16.99

$

Usually ships in 2-12 days

0

40

Snapper Pro 5022481

COLLAR, 1/4" SET
(Superseded to 5022481SM)

$6.99

$

Usually ships in 2-12 days

0

41

Snapper Pro 5047732

LEVER, DUMP VALVE

$

$

Currently unavailable

42

Snapper Pro 5025391

NUT, 1/4-20 HEX NYLOCK FLANGE
(Superseded to 5025391FS)

$3.99

$

Usually ships in 2-12 days

0

43

Snapper Pro 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

44

Snapper Pro 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

45

Snapper Pro 5025394

NUT, 3/8"-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

46

Snapper Pro 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

47

Snapper Pro 5025013X6

BOLT, 3/8-16 X 3/4" GD5 CZ
(Superseded to 5025013X6SM)

$3.99

$

Usually ships in 2-12 days

0

48

Snapper Pro 5101679

ROD, OPC SWITCH, SPACER
(Superseded to 5101679YP)

$45.99

$

Usually ships in 2-12 days

0

49

Snapper Pro 5045943

SPACER, SHOULDER
(Superseded to 5045943SM)

$11.99

$

In Stock, only 2 left!

0

50

Snapper Pro 5043417

ADJUSTER, LINKAGE

$

$

Currently unavailable

51

Snapper Pro 5025034

NUT, 3/8-16 HEX
(Superseded to 5025034SM)

$2.99

$

Usually ships in 2-12 days

0

52

Snapper Pro 5049176D

ASSM, OPERATOR PRESENCE, RH - RED

Note: (Includes item # 14)

$

$

Currently unavailable

53

Snapper Pro 5049175D

ASSM, OPERATOR PRESENCE, LH - RED

Note: (Includes item # 14)

$

$

Currently unavailable
