SW 10528L (31AH957T596) - Cub Cadet 28" Snow Thrower (2010) Auger & Housing Parts Diagram

28" Snow Thrower

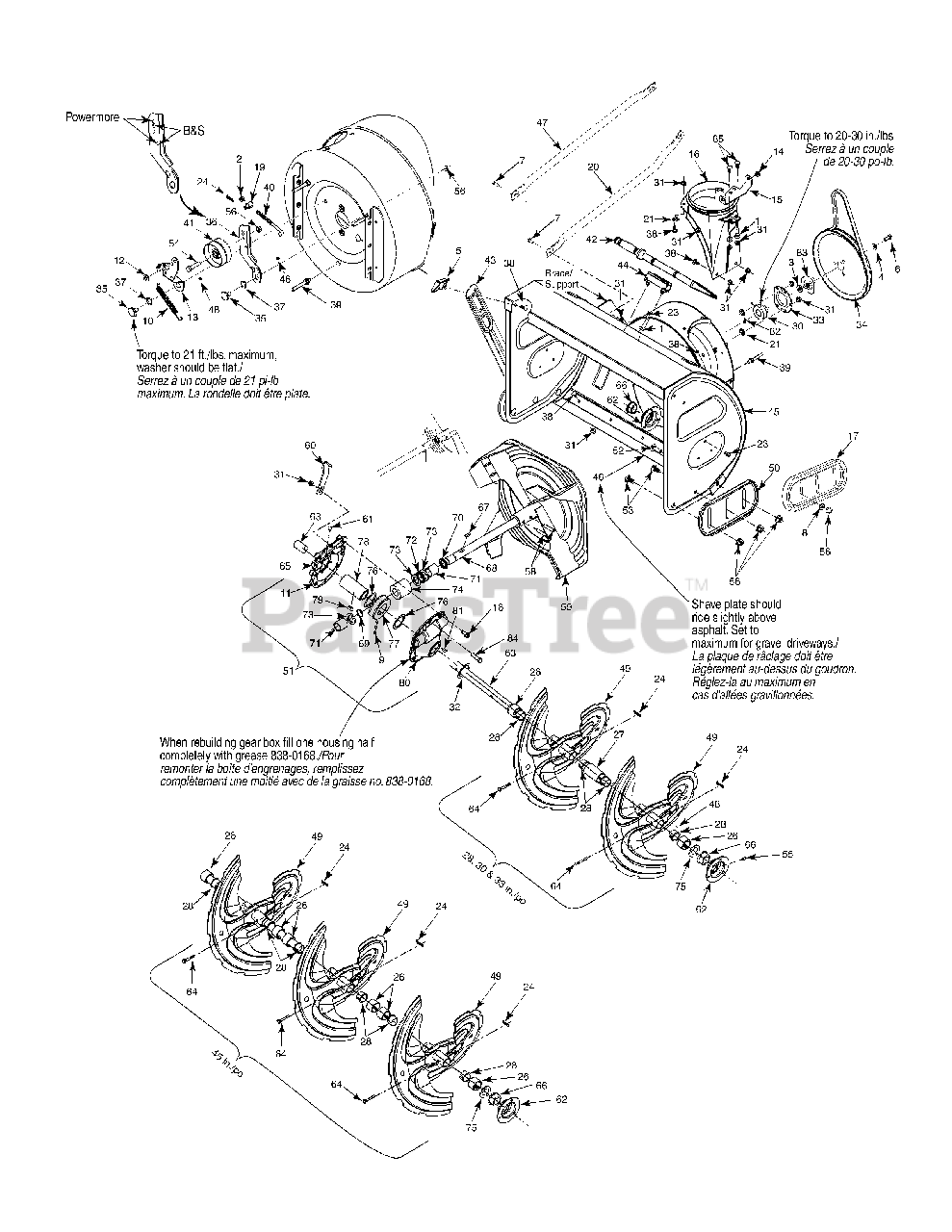

Auger & Housing Parts Diagram

  • Title

1

Cub Cadet 936-0159

Flat Washer .349 ID x .879 OD x .063
(Superseded to 736-0159)

$

$

Not available

2

Cub Cadet 712-3007

Hex Jam Nut 5/16-18 Gr. 5

$6.99

$

In Stock, Qty 5

0

3

Cub Cadet 736-0188

Flat Washer .760 ID x 1.49 OD

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 736-0505

Flat Washer .34 x 1.5 x .150

$6.49

$

In Stock, Qty 5

0

5

Cub Cadet 720-04072A

Handle Knob Assembly

$6.99

$

In Stock, Qty 20+

0

6

Cub Cadet 710-1245B

Hex Screw 5/16-24 x .875 Gr. 8 Lock

$8.49

$

In Stock, only 4 left!

0

7

Cub Cadet 710-3008

Hex Hd Cap Scr. 5/16-18 x .75 Gr. 5

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 736-0262

Flat Washer .385 x .870 x .092

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 737-0168A

Alvania Grease

Note: (use 3 oz.)

$30.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 732-0858

Extension Spring .470 Dia. x 4.75

$24.99

$

In Stock, Qty 6

0

11

Cub Cadet N/A

Ultra Grey Loctite #5699

$

$

Currently unavailable

12

Cub Cadet 936-3008

Flat Washer .344 ID x .75 OD x .120

$6.99

$

In Stock, only 1 left!

0

13

Cub Cadet 918-0281A

Brake Bracket Ass’y (900 Series)

$64.99

$

In Stock, only 4 left!

0

14

Cub Cadet 941-0475

Plastic Bushing .380 ID

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 790-00329

Chute Brkt.

Variations

Cub Cadet 790-00329-0637

BRACKET-CHUTE CRANK - POWDER BLACK (0637)

$16.99

$

Usually ships in 3-6 days

0

$13.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 731-1696B

Chute Adapter

$91.99

$

In Stock, only 2 left!

0

17

Cub Cadet 731-06007

Reversible Slide Shoe (Plastic)

$45.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 710-1260A

Screw, 5/16-18 x .5

$3.99

$

In Stock, Qty 20+

0

19

Cub Cadet 911-0677

Adjustment Ferrule

$17.99

$

In Stock, only 4 left!

0

20

Cub Cadet 749-04489-0637

Support Tubing RH (w/Plastic panel)

$32.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 749-04485-0637

Support Tubing LH (w/Plastic panel)

$34.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 926-04012

Push-on Nut .25 diam
(Superseded to 726-04012)

$

$

Not available

23

Cub Cadet 710-04484

Hex TT Screw 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

24

Cub Cadet 714-04040

Bow Tie Cotter Pin

$1.49

$

In Stock, Qty 20+

0

26

Cub Cadet 731-05163

Spacer 1.5 x 1.0 ID x 1.0" Lg.

$7.49

$

In Stock, Qty 20+

0

27

Cub Cadet 731-05162

Spacer 1.5 x 1.0 ID x 2.5" Lg.

$7.49

$

Usually ships in 3-6 days

0

28

Cub Cadet 741-0494

Flange Bushing 1.05 ID x 1.16 OD

$3.99

$

In Stock, only 4 left!

0

30

Cub Cadet 941-04024

Self-Aligning Bearing .875 ID

$64.99

$

In Stock, only 1 left!

0

31

Cub Cadet 712-04063

Hex Flg. L-Nut 5/16-18 Gr. F Nylon

$3.99

$

In Stock, Qty 20+

0

32

Cub Cadet 736-3046A

Flat Washer 1.010 x 1.88 x .060

$8.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 05244B

Bearing Housing

$23.99

$

In Stock, only 2 left!

0

34

Cub Cadet 756-04244A

Pulley .5 ID x 10 OD

$60.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 938-0281

Shoulder Scr .625 Dia x .170
(Superseded to 738-0281)

$

$

Not available

36

Cub Cadet 784-0385D

Auger Idler Bracket

$29.99

$

In Stock, only 1 left!

0

37

Cub Cadet 736-0174

Wave Washer .625 ID x .885 OD x .015

$6.99

$

In Stock, only 2 left!

0

38

Cub Cadet 710-0451

Carriage Bolt 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

39

Cub Cadet 710-04606A

Screw 5/16-18 x .43 (w/stud)

$7.49

$

In Stock, only 2 left!

0

40

Cub Cadet 747-0980A

Auger Idler Rod

$47.99

$

Usually ships in 3-6 days

0

41

Cub Cadet 756-04224

Flat Idler Pulley

$26.99

$

In Stock, Qty 20+

0

42

Cub Cadet 931-2643

Cleanout Tool

$19.99

$

In Stock, Qty 7

0

43

Cub Cadet 790-00181

Drift Cutter

Variations

Cub Cadet 790-00181-0637

BLADE-GUIDE (DRIFT - POWDER BLACK (0637)

$43.99

$

Usually ships in 3-6 days

0

Cub Cadet 790-00181-0691

BLADE-GUIDE (DRIFT - BLACK JACK (0691)

$43.99

$

Usually ships in 3-6 days

0

Cub Cadet 790-00181-0606

BLADE-GUIDE (DRIFT - MAJESTIC ORANGE (0606)

$40.99

$

Usually ships in 3-6 days

0

Cub Cadet 790-00181-0638

BLADE-GUIDE (DRIFT - MTD/TROY-BILT RED (0638)

$43.99

$

Usually ships in 3-6 days

0

Cub Cadet 790-00181-0650

BLADE-GUIDE (DRIFT - RED METALLIC (0650)

$40.99

$

Usually ships in 3-6 days

0

Cub Cadet 790-00181-0662

BLADE-GUIDE (DRIFT - OYSTER GRAY (0662)

$40.99

$

Usually ships in 3-6 days

0

Cub Cadet 790-00181-0689

BLADE-GUIDE (DRIFT - POLO GREEN (0689)

$34.99

$

Usually ships in 3-6 days

0

Cub Cadet 790-00181-0709

BLADE-GUIDE (DRIFT - MASTERCRAFT GREEN (0709)

$34.99

$

Usually ships in 3-6 days

0

Cub Cadet 790-00181-0721

USE 790-00181-4044 BLADE-GUID - SEARS RED (0721)

$40.99

$

Usually ships in 3-6 days

0

Cub Cadet 790-00181-4021

BLADE-GUIDE - CUB YELLOW 2 (4021)

$40.99

$

Usually ships in 3-6 days

0

Cub Cadet 790-00181-4044

BLADE-GUIDE (DRIFT - CRAFTSMAN RED (4044)

$40.99

$

Usually ships in 3-6 days

0

$43.99

$

Usually ships in 3-6 days

0

44

Cub Cadet 731-2635

Cleanout Tool Mount
(Superseded to 731-11421)

$11.99

$

In Stock, only 2 left!

0

45

Cub Cadet 684-04299-4021

Auger Housing 28" - Yellow

$

$

Not available

46

Cub Cadet 784-5716B-4021

Shave Plate 28" - Yellow
(Superseded to 784-5716B-0637)

$49.99

$

Usually ships in 3-6 days

0

47

Cub Cadet 749-04384-0637

Support Tubing (w/steel panel)

$21.99

$

Usually ships in 3-6 days

0

48

Cub Cadet 737-0318-CRTG

Arctic Grease

$23.99

$

Usually ships in 3-6 days

0

49

Cub Cadet 684-04151-4021

Augers LH - Yellow
(Superseded to 684-04151)

$249.99

$

Usually ships in 3-6 days

0

49

Cub Cadet 684-04152-4021

Augers RH - Yellow
(Superseded to 684-04152-0637)

$261.99

$

Usually ships in 3-6 days

0

50

Cub Cadet 784-5697

Reversible Slide Shoe

Variations

Cub Cadet 784-5697-0498

Snow Skid Shoe, Yellow - OLD CUB YELLOW (0498)

$44.99

$

In Stock, only 2 left!

0

Cub Cadet 784-5697-0716

Snow Skid Shoe, Yellow - CUB YELLOW-99 (0716)

$44.99

$

In Stock, only 2 left!

0

Cub Cadet 784-5697-0606

Snow Skid Shoe, Orange - MAJESTIC ORANGE (0606)

$44.99

$

In Stock, Qty 7

0

Cub Cadet 784-5697-0637

Snow Skid Shoe, Black - POWDER BLACK (0637)

$44.99

$

In Stock, only 2 left!

0

Cub Cadet 784-5697-0717

Snow Skid Shoe, Sliver - SILVER MIST (0717)

$45.99

$

Usually ships in 3-6 days

0

Cub Cadet 784-5697-0638

Snow Skid Shoe, Red - MTD/TROY-BILT RED (0638)

$44.99

$

In Stock, only 2 left!

0

Cub Cadet 784-5697-0650

Snow Skid Shoe, Red - RED METALLIC (0650)

$44.99

$

In Stock, only 2 left!

0

Cub Cadet 784-5697-0684

SHOE-SKID - ZINC YELLOW (0684)

$45.99

$

Usually ships in 3-6 days

0

Cub Cadet 784-5697-4033

Snow Skid Shoe, Flint - FLINT MICA (4033)

$44.99

$

In Stock, only 2 left!

0

Cub Cadet 784-5697-0691

SHOE-SKID - BLACK JACK (0691)

$44.99

$

In Stock, only 2 left!

0

Cub Cadet 784-5697-4021

SHOE-SKID - CUB YELLOW 2 (4021)

$44.99

$

In Stock, only 2 left!

0

$45.99

$

Usually ships in 3-6 days

0

51

Cub Cadet 918-04515

Worm Gear Box Ass’y (w/o grease Fitting)

$734.99

$

In Stock, only 1 left!

0

51

Cub Cadet 918-04514

Worm Gear Box Ass’y (w/ grease Fitting)

$543.99

$

Usually ships in 3-6 days

0

52

Cub Cadet 710-3168

Carriage Bolt 3/8-16 x 1.00" (w/steel shoe)

$3.99

$

In Stock, Qty 20+

0

52

Cub Cadet 710-3034

Carriage Bolt 3/8-16 x 1.25" (w/Plastic shoe)

$3.99

$

In Stock, Qty 7

0

53

Cub Cadet 710-0389

Carriage Bolt 3/8-16 x .75" (w/steel shoe)

$4.49

$

In Stock, Qty 10

0

53

Cub Cadet 710-3168

Carriage Bolt 3/8-16 x 1.00" (w/Plastic shoe)

$3.99

$

In Stock, Qty 20+

0

54

Cub Cadet 710-0347

Hex Hd. Cap Scr 3/8-16 x 1.75 Gr. 5

$5.49

$

In Stock, Qty 20+

0

55

Cub Cadet 937-3000

Grease Fitting

$4.99

$

In Stock, Qty 20+

0

56

Cub Cadet 712-04065

Hex Flange L-Nut 3/8-16 Gr. F Nylon

$3.99

$

In Stock, Qty 20+

0

58

Cub Cadet 915-0118

Spring Spirol Pin Heavy - 5/16 dia x 1.7
(Superseded to 715-0118)

$

$

Not available

59

Cub Cadet 684-0090B-0637

Blower Fan Ass’y Complete

$425.99

$

Usually ships in 3-6 days

0

60

Cub Cadet 790-00264A-0637

Gear Housing Support Bracket

$19.99

$

Usually ships in 3-6 days

0

61

Cub Cadet 721-0325

Barbed Plug

$4.49

$

Usually ships in 3-6 days

0

62

Cub Cadet 05845C

Bearing Housing

Variations

Cub Cadet 05845C-0637

Bearing Housing - POWDER BLACK (0637)

$23.99

$

In Stock, only 2 left!

0

Cub Cadet 05845C-0665

HOUSING:BEARING - YARDMAN GREEN (0665)

$

$

Not available

$19.99

$

Usually ships in 3-6 days

0

62

Cub Cadet 784-0315A

Bearing Housing (w/grease Fitting)

Variations

Cub Cadet 784-0315A-0637

Housing Bearing - POWDER BLACK (0637)

$

$

Not available

$15.99

$

Usually ships in 3-6 days

0

63

Cub Cadet 738-04156

Auger Shaft 28"

$149.99

$

Usually ships in 3-6 days

0

63

Cub Cadet 938-04157

Auger Shaft 30"

$154.99

$

Usually ships in 3-6 days

0

63

Cub Cadet 938-04158

Auger Shaft 33"

$186.99

$

Usually ships in 3-6 days

0

63

Cub Cadet 738-04159

Auger Shaft 45"

$229.99

$

Usually ships in 3-6 days

0

64

Cub Cadet 738-04155

Shear Pin 5/16-18 x 1.75

$1.99

$

In Stock, Qty 20+

0

65

Cub Cadet 918-0246

Gear Housing Half - RH

$

$

Not available

66

Cub Cadet 741-0192

Flange Bearing
(Superseded to 941-0170)

$19.99

$

Usually ships in 3-6 days

0

67

Cub Cadet 914-0126

#9 HI-Pro Key 3/16 x 3/4 Dia HT
(Superseded to 714-0126)

$4.99

$

In Stock, Qty 20+

0

68

Cub Cadet 711-04714

Auger Drive Shaft

$66.99

$

Usually ships in 3-6 days

0

69

Cub Cadet 716-0111

Snap Ring for .875 dia. shaft

$6.99

$

In Stock, Qty 10

0

70

Cub Cadet 921-0145

Oil seal for .875 ID Garlock (76 x 6133)

$9.99

$

In Stock, only 4 left!

0

71

Cub Cadet 941-0217

Sleeve Bearing .875 ID

$17.99

$

In Stock, Qty 11

0

72

Cub Cadet 741-0184

Thrust Bearing .88 ID x 1.44 OD x .078

$16.99

$

In Stock, only 4 left!

0

73

Cub Cadet 936-0291

Flat Washer .88 ID x 1.4 OD x .125
(Superseded to 736-0291)

$11.99

$

Usually ships in 3-6 days

0

74

Cub Cadet 917-0299

Worm Gear LH Double Thread

$124.99

$

In Stock, only 2 left!

0

75

Cub Cadet 950-04020

Spacer

$12.99

$

In Stock, only 1 left!

0

76

Cub Cadet 936-0266

Flat Washer 1.5 ID x 2.0 OD x .03
(Superseded to 736-0266)

$

$

Not available

77

Cub Cadet 917-1425

Worm Gear LH Double Thread (Bronze)

$177.99

$

In Stock, only 2 left!

0

78

Cub Cadet 738-0275

Worm Gear Shaft

$112.99

$

Usually ships in 3-6 days

0

79

Cub Cadet 914-0135

#91 Woodruff Key 1/4 x 3/4 Dia.
(Superseded to 714-0135)

$

$

Not available

80

Cub Cadet 918-0247

Gear Housing Half LH

$103.99

$

In Stock, only 1 left!

0

80

Cub Cadet 918-0435

Gear Housing Half LH (w/grease Fitting hole)

$109.99

$

Usually ships in 3-6 days

0

81

Cub Cadet 914-0135

#91 Wood ruff Key 1/4 x 3/4 Dia.
(Superseded to 714-0135)

$

$

Not available

82

Cub Cadet 737-04085

Low Temperature grease
(Superseded to 937-04085)

$8.49

$

Usually ships in 3-6 days

0

83

Cub Cadet 748-04067A

Pulley Adapter .75 Dia. w/pins

$26.99

$

Usually ships in 3-6 days

0

84

Cub Cadet 710-0376

Hex Hd. Cap Scr. 5/16-18 x 1.0 Gr. 5

$3.99

$

In Stock, Qty 16

0

85

Cub Cadet 710-0276

Carriage Bolt 5/16-18 x 1.00" Lg

$3.99

$

In Stock, Qty 20+

0
