SW-14KH - Scag Walk-Behind Mower, 14hp Kohler (SN: 40000 - 49999) HANDLE ASSEMBLY Parts Diagram

Walk-Behind Mower, 14hp Kohler

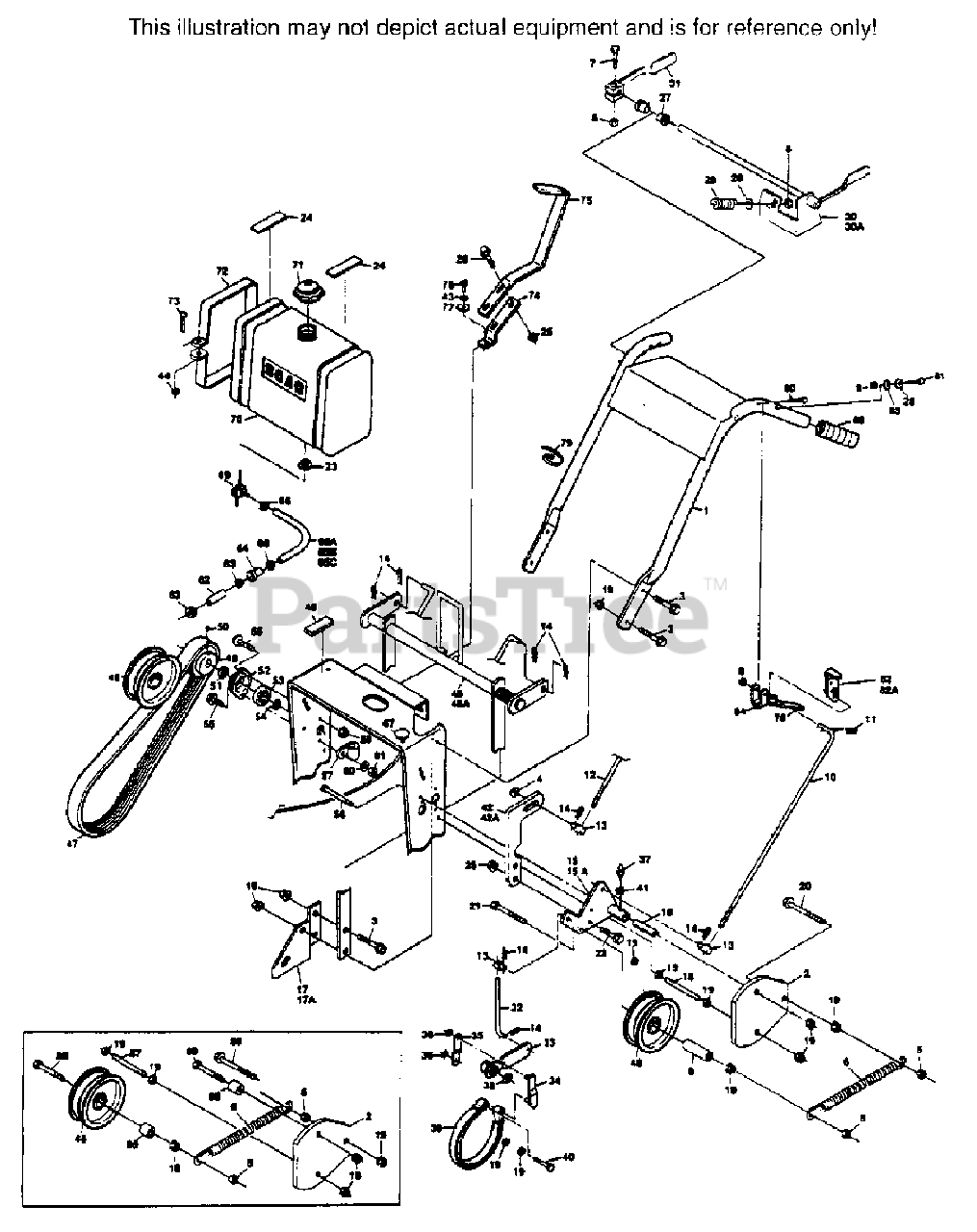

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Scag 46601

HANDLE ASSEMBLY(FITS SW 32, 36, 48)
(Superseded to 46801)

$326.99

$

Usually ships in 2-12 days

0

1

Scag 46624

HANDLE ASSEMBLY(FITS SW 52, 61, 72)
(Superseded to 46856)

$401.99

$

Usually ships in 2-12 days

0

2

Scag 421360

BELT GAURD

$25.99

$

Usually ships in 2-12 days

0

3

Scag 04017-27

CAPSCREW, 3/8-16 X 1" SERRATED FLANGE

$1.49

$

In Stock, Qty 20+

0

4

WASHER, 25/64 X 15/16 X 12 GA.

$

$

Not available

5

HEX NUT, 3/8-16 ELASTIC STOP

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

6

Scag 48755

SPRING, IDLER

$10.99

$

In Stock, Qty 6

0

7

HEX HEAD BOLT 5/16-18 X 1-1/4"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

8

HEX NUT 5/16-18 ELASTIC STOP

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

9

Scag 43269

SPACER, IDLER SPRING

$4.99

$

Usually ships in 2-12 days

0

10

Scag 44004

CONTROL ROD, STEERING

$13.99

$

Usually ships in 2-12 days

0

11

Scag 04062-02

HAIR PIN, SMALL

$0.99

$

In Stock, Qty 20+

0

12

Scag 44098

ROD, TRACTION CONTROL

$30.99

$

Usually ships in 2-12 days

0

13

Scag 43032

SWIVEL JOINT

$6.49

$

Usually ships in 2-12 days

0

14

Scag 04062-01

HAIR PIN, LARGE

$0.99

$

In Stock, Qty 20+

0

15

Scag 45550

IDLER BRACKET, RH
(Superseded to 45847)

$45.99

$

In Stock, only 1 left!

0

15A

Scag 45549

IDLER BRACKET, LH
(Superseded to 45846)

$45.99

$

In Stock, only 2 left!

0

16

Scag 43092

IDLER SLEEVE

$6.49

$

In Stock, only 4 left!

0

17

Scag 421372

MOUNTING BRACKET, TRACTION CONTROL, LH

$

$

Not available

17A

Scag 421373

MOUNTING BRACKET, TRACTION CONTROL, RH

$

$

Not available

18

Scag 04004-01

SUPPORT BELT GUARD

$8.49

$

Usually ships in 2-12 days

0

19

NUT, 3/8-16, SERRATED FLANGE

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

20

Scag 04017-31

CAPSCREW, 3/8-16 X 2" SERRATED FLANGE

$

$

Currently unavailable

21

HEX HEAD BOLT, 3/8-16 X 4-1/2"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

22

Scag 04017-16

CAPSCREW, 5/16-18 X 3/4" SERRATED FLANGE

$0.99

$

In Stock, Qty 10

0

23

Scag 48309

BUSHING
(Superseded to 482571)

$12.99

$

In Stock, Qty 20+

0

24

Scag 48292

RUBBER PADS,(UPPER)

$3.99

$

Usually ships in 2-12 days

0

25

Scag 04019-03

NUT, 5/16-18 SERRATED FLANGE

$0.99

$

In Stock, Qty 16

0

26

Scag 04017-17

CAPSCREW, 5/16-18 X 1" SERRATED FLANGE

$0.99

$

Usually ships in 2-12 days

0

27

Scag 48312

BUSHING

$0.99

$

In Stock, Qty 8

0

28

WASHER, 5/16-3/8 X 7/8 X .083"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

29

Scag 48951

SPRING, OPERATOR'S PRESENCE

$0.99

$

In Stock, only 1 left!

0

30

Scag 45516

OPERATOR'S PRESENCE LEVER, LH(SMALL FRAME)
(Superseded to 45573)

$60.99

$

Usually ships in 2-12 days

0

30A

Scag 45538

OPERATOR'S PRESENCE LEVER, LH(LARGE FRAME)
(Superseded to 45571)

$60.99

$

Usually ships in 2-12 days

0

31

Scag 45141

OPERATOR'S PRESENCE LEVER, RH
(Superseded to 45572)

$54.99

$

Usually ships in 2-12 days

0

32

Scag 44005

BRAKE ROD

$7.49

$

Usually ships in 2-12 days

0

33

Scag 45092

BRAKE LEVER

$32.99

$

Usually ships in 2-12 days

0

34

Scag 45093

BRAKE LINK

$22.99

$

Usually ships in 2-12 days

0

35

Scag 42254

BRAKE LINK PLATE

$14.99

$

Usually ships in 2-12 days

0

36

Scag 04024-01

NUT, 3/8 PUSH-ON

$1.49

$

In Stock, Qty 6

0

37

Scag 48114-05

GREASE FITTING, STRAIGHT, 1/4-28

$1.49

$

In Stock, Qty 10

0

38

Scag 04050-01

RETAINING RING, 5/8 EXT.-"E"

$0.99

$

In Stock, Qty 20+

0

39

Scag 48210

BRAKE BAND

$34.99

$

Usually ships in 2-12 days

0

40

HEX HEAD BOLT, 3/8-16 X 2"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

41

Scag 04031-08

1/4" INTERNAL TOOTH LOCKWASHER

$0.99

$

In Stock, Qty 10

0

42

Scag 421428

TRACTION LEVER, LH

$

$

Not available

42A

Scag 421429

TRACTION LEVER, RH

$

$

Not available

43

LOCKWASHER, 1/4 SPRING

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

44

HEX NUT, 1/4-20

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

45

Scag 45554

TRACTION LEVER WELDMENT(SMALL FRAME)

$

$

Not available

45A

Scag 45555

TRACTION LEVER WELDMENT(LARGE FRAME)

$

$

Not available

46

Scag 48205

RUBBER PAD(LOWER)

$4.49

$

Usually ships in 2-12 days

0

47

Scag 48202A

BELT, WHEEL DRIVE

$104.99

$

In Stock, Qty 9

0

48

Scag 48198

IDLER PULLEY, WHEEL DRIVE
(Superseded to 483211)

$43.99

$

Usually ships in 2-12 days

0

49

Scag 48199

PULLEY, JACKSHAFT(INCLUDES 50)

$51.99

$

Usually ships in 2-12 days

0

50

SETSCREW, HEX SOCKET KNURL CUP PT. 5/16-18

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

51

Scag 43098

SPACER, JACKSHAFT PULLEY

$3.49

$

In Stock, only 2 left!

0

52

Scag 48223

FLANGE, JACKSHAFT BEARING

$5.99

$

In Stock, only 1 left!

0

53

Scag 48224

BEARING, JACKSHAFT

$13.99

$

In Stock, Qty 20+

0

54

Scag 04050-09

RETAINING RING, 5/8 EXT.-BASIC

$0.99

$

In Stock, Qty 10

0

55

Scag 04017-06

CAPSCREW, 1/4-20 X 1" SERRATED FLANGE

$0.99

$

Usually ships in 2-12 days

0

56

HEX HEAD BOLT, 3/8-16 X 4"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

57

Scag 48030-09

CLAMP

$1.49

$

In Stock, only 4 left!

0

58

Scag 04017-05

CAPSCREW, 5/16-18 X 3/4 SERRATED FLANGE

$0.99

$

In Stock, Qty 20+

0

59

Scag 04019-02

NUT, 1/4-20 SERRATED FLANGE

$0.99

$

In Stock, Qty 20+

0

60

FLAT WASHER, 5/16 X 3/4 X .065

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

61

1/4-20 ELASTIC STOP NUT

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

65

Scag 48058

FUEL HOSE 1/4" ID, 10"(KOHLER ONLY)
(Superseded to 483617)

$0.99

$

In Stock, Qty 20+

0

66

Scag 48059-01

CLAMP, FUEL HOSE

$0.99

$

In Stock, Qty 20+

0

68

Scag 48159

GRIP, HANDLE

$3.49

$

In Stock, Qty 11

0

69

Scag 48308

VALVE, FUEL SHUT OFF
(Superseded to 483747)

$30.99

$

In Stock, Qty 6

0

70

Scag 46174

FUEL TANK ASSEMBLY(INCLUDES BUSHING & VALVE)
(Superseded to 46846)

$248.99

$

Usually ships in 2-12 days

0

71

Scag 48311

FUEL TANK CAP
(Superseded to 483791)

$36.99

$

In Stock, only 1 left!

0

72

Scag 421239

STRAP, FUEL TANK

$25.99

$

In Stock, Qty 5

0

73

MACHINE SCREW, 1/4-20 X 2 ROUND HEAD SLOTTED

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

74

Scag 42388

SHIFTER LEVER

$13.99

$

Usually ships in 2-12 days

0

75

Scag 421241

SHIFTER LEVER EXTENSION
(Superseded to 461163)

$53.99

$

In Stock, only 1 left!

0

76

Scag 48144

GRIP, STEERING LEVER

$1.49

$

Usually ships in 2-12 days

0

77

Scag 04043-01

WASHER, 17/64 X 7/8 X 1/8 HT

$40.99

$

In Stock, only 3 left!

0

78

Scag 04001-55

HEX HEAD BOLT, 1/4-28 X 3/4 GRADE 8

$0.99

$

Usually ships in 2-12 days

0

79

Scag 48028-05

CABLE TIE

$

$

Not available

80

HEX HEAD BOLT, 5/16-18 X 2-1/2"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

81

HEX HEAD BOLT, 5/16-18 X 2"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

82

Scag 42257-01

NEUTRAL LATCH, RH
(Superseded to 461242)

$15.99

$

In Stock, only 2 left!

0

82A

Scag 42257-02

NEUTRAL LATCH, LH
(Superseded to 461241)

$14.99

$

In Stock, only 1 left!

0

83

Scag 04032-01

CURVED SPRING WASHER

$0.99

$

In Stock, only 3 left!

0

84

Scag 46089

STEERING LEVER(INCLUDES GRIP)
(Superseded to 483042)

$44.99

$

In Stock, only 1 left!

0

85

Scag 43286

SPACER

$2.49

$

In Stock, Qty 10

0

86

Scag 04017-28

CAPSCREW, 3/16 X 1-1/4 SERRATED FLANGE

$1.49

$

In Stock, Qty 8

0

87

Scag 04004-17

STUD, 3/8-16 X 5"

$2.99

$

In Stock, Qty 7

0

88

HEX HEAD BOLT, 3/8-16 X 3-1/4"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

89

HEX HEAD BOLT, 3/8-16 X 4-1/2"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available
