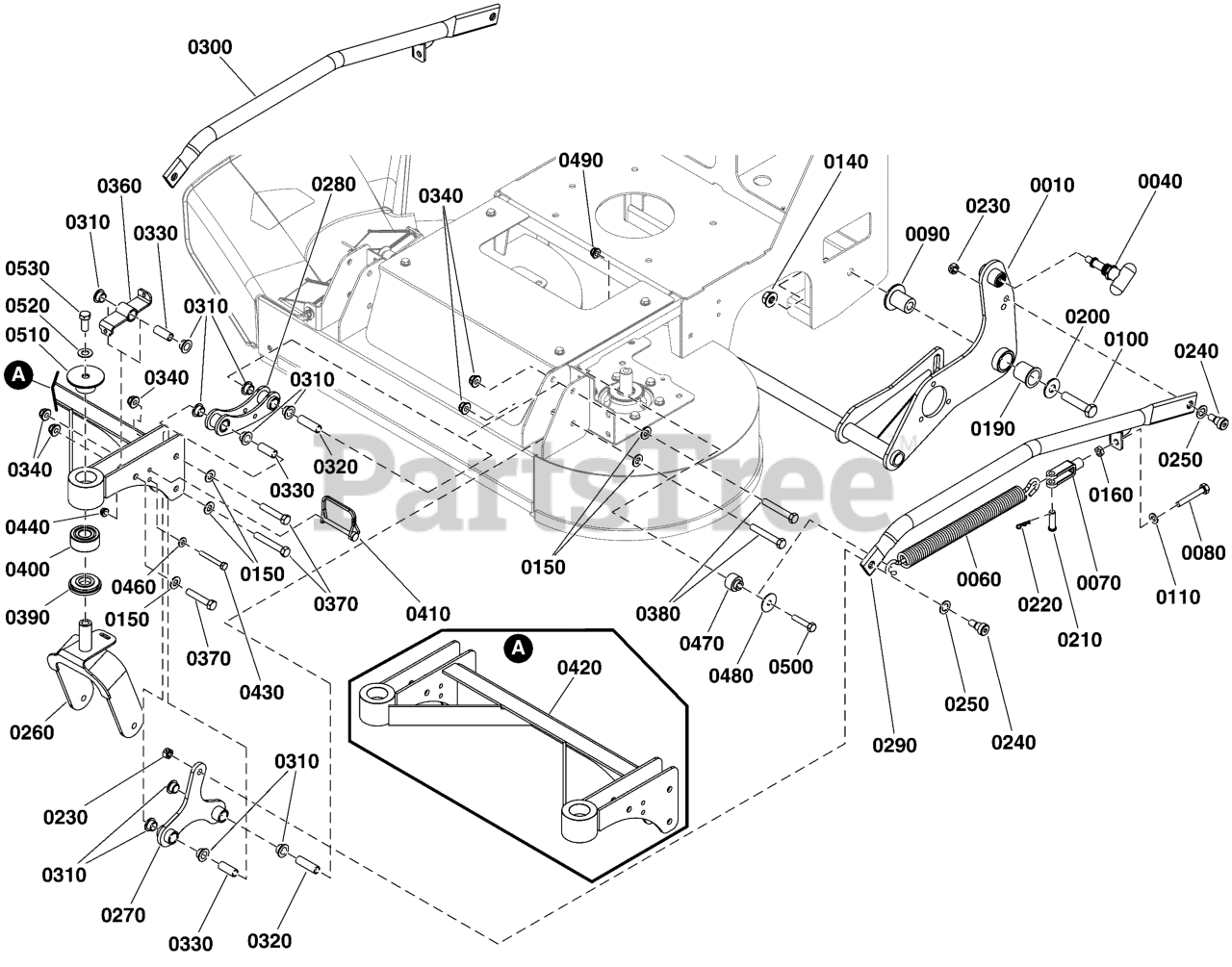

SW 15 (5901864) - Snapper Pro SW15 Series 32" Walk-Behind Mower, 10hp Honda Cut Height Adjustment and Front Casters Group S/N: 4001119053 and Above Parts Diagram

SW15 Series 32" Walk-Behind Mower, 10hp Honda

Cut Height Adjustment and Front Casters Group S/N: 4001119053 and Above Parts Diagram

  • Title

0010

Snapper Pro 5417551D

WELD, REAR DIFF MOUNT, SW15 - RED
(Superseded to 5417551DFS)

$201.99

$

Usually ships in 2-12 days

0

0040

Snapper Pro 5104609

PULL PIN, 3/8" DIA X 9/16" STROKE
(Superseded to 5104609FS)

$39.99

$

Usually ships in 2-12 days

0

0060

Snapper Pro 5023355

SPRING-EXT, 1.00 ODX13.25LGX.177WR, BLK
(Superseded to 5023355SM)

$49.99

$

In Stock, only 1 left!

0

0070

Snapper Pro 5100375

CLEVIS, 5/16-18, 3/8 PIN HOLE, CLR ZINC
(Superseded to 5100375YP)

$20.99

$

In Stock, only 1 left!

0

0080

Snapper Pro 5025055X18

BOLT, 5/16-18 X 2-1/4 TFL, GD5 YZ
(Superseded to 5025055X18YP)

$3.99

$

In Stock, only 1 left!

0

0090

Snapper Pro 5106380

SPACER, SHOULDER, WALK
(Superseded to 5106380FS)

$13.99

$

Usually ships in 2-12 days

0

0100

Snapper Pro 5025017X18

BOLT, 1/2-13 X 2-1/4" GD5 CZ
(Superseded to 5025017X18SM)

$5.99

$

Usually ships in 2-12 days

0

0110

Snapper Pro 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

0140

Snapper Pro 5025396

NUT, Hex Flange, Nylock, 1/2-13
(Superseded to 770225)

$3.49

$

In Stock, Qty 8

0

0150

Snapper Pro 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

0160

Snapper Pro 5025388

NUT, 5/16-18 HEX JAM
(Superseded to 5025388YP)

$3.99

$

Usually ships in 2-12 days

0

0190

Snapper Pro 5023343

BUSHING, 1.00 X 1.13 X 1.38, Plastic
(Superseded to 5023343SM)

$6.49

$

In Stock, only 3 left!

0

0200

Snapper Pro 5025150

WASHER, 1/2" USSZ
(Superseded to 5025150SM)

$3.99

$

In Stock, only 3 left!

0

0210

Snapper Pro 5025214X8

PIN-CLEVIS, 3/8 X 1 YZ
(Superseded to 5025214X8FS)

$6.99

$

Usually ships in 2-12 days

0

0220

Snapper Pro 5025211

PIN, HAIR, .0585 X 1-1/8, 1/4 EYE, YZ
(Superseded to 5025211SM)

$3.99

$

In Stock, only 1 left!

0

0230

Snapper Pro 5025100

NUT, Hex, Side Lock, 3/8-16
(Superseded to 5025100SM)

$3.49

$

Usually ships in 2-12 days

0

0240

Snapper Pro 5025356

BOLT, 3/8-16 X 3/8", 1/2" SHOULDER
(Superseded to 5025356SM)

$6.99

$

In Stock, Qty 6

0

0250

Snapper Pro 80003590

WASHER,.516IDX.875ODX.06,FLAT,ZC/CL
(Superseded to 703128)

$3.49

$

In Stock, Qty 20+

0

0260

Snapper Pro 5420296D

WELD, CASTER YOKE, SW15 - RED
(Superseded to 5420296DFS)

$81.99

$

Usually ships in 2-12 days

0

0270

Snapper Pro 5418456D

WELD, MAIN PIVOT LINK, SW15 - RED
(Superseded to 5418456DFS)

$34.99

$

Usually ships in 2-12 days

0

0280

Snapper Pro 5418457D

WELD, TOP LINK, SW15 - RED
(Superseded to 5418457DFS)

$34.99

$

Usually ships in 2-12 days

0

0290

Snapper Pro 5418880AA

WELD, DECK HEIGHT ARM, LH - BLK
(Superseded to 5418880AAFS)

$67.99

$

Usually ships in 2-12 days

0

0300

Snapper Pro 5418881AA

WELD, DECK HEIGHT ARM, RH - BLK
(Superseded to 5418881AAFS)

$75.99

$

Usually ships in 2-12 days

0

0310

Snapper Pro 5107741

BUSHING, IGUS, .50ID X .63OD X .38
(Superseded to 5107741FS)

$2.49

$

Usually ships in 2-12 days

0

0320

Snapper Pro 5107740

SPACER, .38 X .50 X 1.63, CZ
(Superseded to 5107740FS)

$2.99

$

Usually ships in 2-12 days

0

0330

Snapper Pro 5041931

SPACER, .38 X .50 X 1.25, CZ
(Superseded to 5041931SM)

$5.99

$

Usually ships in 2-12 days

0

0340

Snapper Pro 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 17

0

0360

Snapper Pro 5419257AA

WELD, CASTER LOCK, FW15 - BLK
(Superseded to 5419257AAFS)

$30.99

$

Usually ships in 2-12 days

0

0370

Snapper Pro 5025013X18

BOLT, 3/8-16 X 2-1/4" GD5 CZ
(Superseded to 5025013X18SM)

$3.99

$

In Stock, only 1 left!

0

0380

Snapper Pro 5025013X20

BOLT, 3/8-16 X 2-1/2" GD5 CZ
(Superseded to 84007037)

$2.99

$

Usually ships in 2-12 days

0

0390

Snapper Pro 1735323

SHIELD-ARBOR, 2.050OD 46" MWR
(Superseded to 1735323YP)

$6.99

$

In Stock, Qty 20+

0

0400

Snapper Pro 5105576

BEARING 5204-2RS, DOUBLE ROW
(Superseded to 5105576FS)

$19.99

$

Usually ships in 2-12 days

0

0410

Snapper Pro 5107926

LOCKING PIN, .25" X 2.5", CZ
(Superseded to 5107926FS)

$4.99

$

Usually ships in 2-12 days

0

0420

Snapper Pro 5420289D

WELD, SW15 FRONT END - RED
(Superseded to 5420289DFS)

$219.99

$

Usually ships in 2-12 days

0

0430

Snapper Pro 5025010X16

BOLT, 1/4-20 X 2", GD5
(Superseded to 5025010X16FS)

$2.99

$

Usually ships in 2-12 days

0

0440

Snapper Pro 5025391

NUT, 1/4-20 Hex Nylock Flange
(Superseded to 5025391FS)

$3.99

$

Usually ships in 2-12 days

0

0460

Snapper Pro 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

0470

Snapper Pro 5104655

SPACER, .328 X 1.0 X .85, CZ
(Superseded to 5104655FS)

$7.99

$

Usually ships in 2-12 days

0

0480

Snapper Pro 5025164

WASHER, 5/16" Fender
(Superseded to 5025164SM)

$3.99

$

Usually ships in 2-12 days

0

0490

Snapper Pro 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

0500

Snapper Pro 5025011X12

BOLT, 5/16-18 X 1-1/2" GD5 YZ
(Superseded to 5025011X12SM)

$3.99

$

Usually ships in 2-12 days

0

0510

Snapper Pro 5108853

WASHER, DEBRIS, WALK
(Superseded to 5108853FS)

$11.99

$

Usually ships in 2-12 days

0

0520

Snapper Pro 80004028

WSHR,7/16 ID X .065 THK, FLAT,ZINC/CLEAR
(Superseded to 703183)

$3.99

$

In Stock, only 2 left!

0

0530

Snapper Pro 80020425

CAPSCREW-HEX HD 7/16-14X1.000 G5 ZC/CL
(Superseded to 2820676SM)

$4.49

$

In Stock, Qty 6

0
