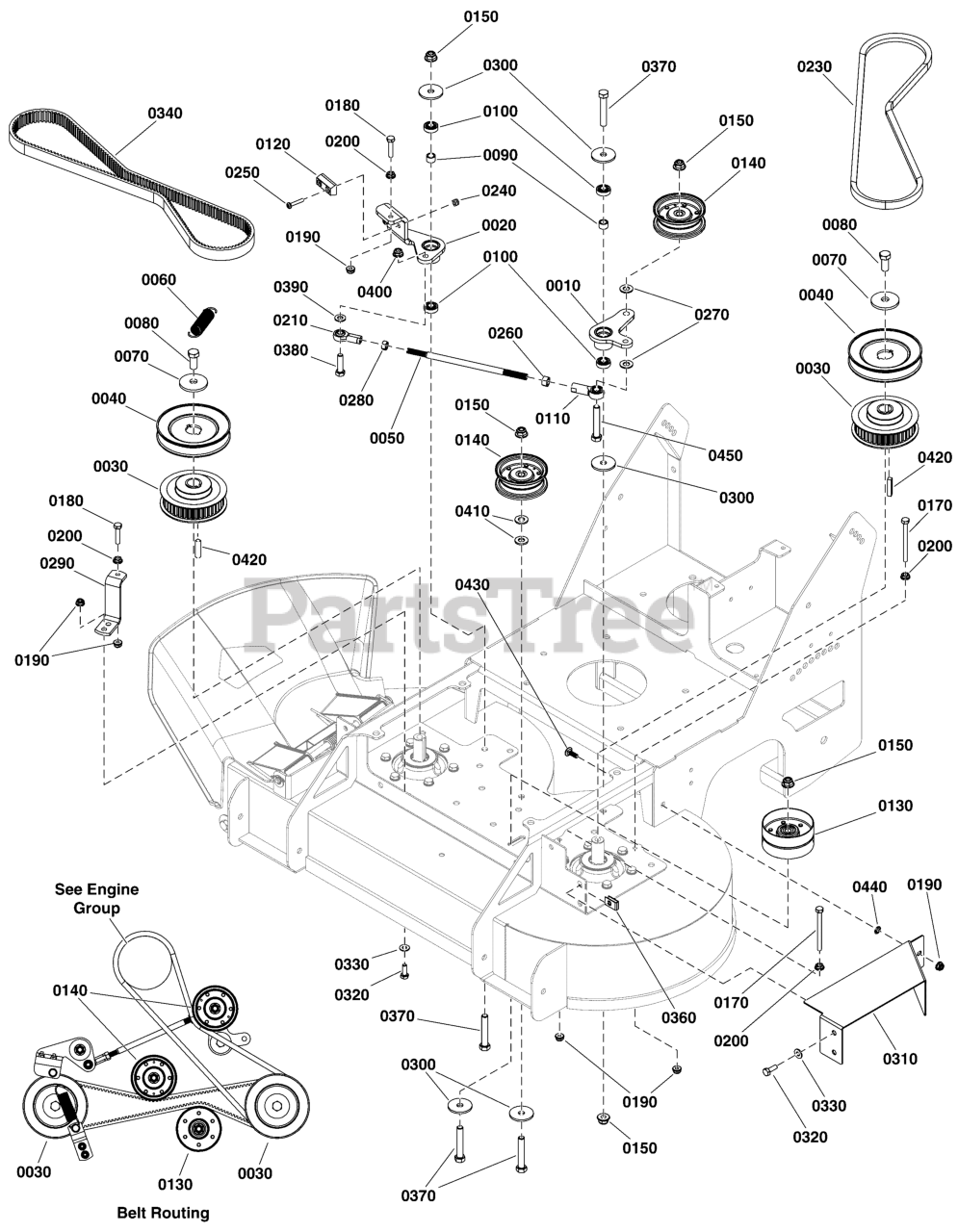

SW 15 (5901864) - Snapper Pro SW15 Series 32" Walk-Behind Mower, 10hp Honda Pulleys, Belt, and Idler Arm Group Parts Diagram

SW15 Series 32" Walk-Behind Mower, 10hp Honda

Pulleys, Belt, and Idler Arm Group Parts Diagram

  • Title

0010

Snapper Pro 5417803AA

WELD, BLADE ENGAGEMENT ARM - BLK
(Superseded to 5417803AAFS)

$24.99

$

Usually ships in 2-12 days

0

0020

Snapper Pro 5417804AA

WELD, BRAKE ENGAGEMENT ARM - BLK
(Superseded to 5417804AAFS)

$34.99

$

Usually ships in 2-12 days

0

0030

Snapper Pro 5106475

PULLEY, TIMED, 20MM, 38 TOOTH
(Superseded to 5106475FS)

$92.99

$

Usually ships in 2-12 days

0

0040

Snapper Pro 1732951

PULLEY, .68" Deep-Groove OD 4.6"
(Superseded to 1732951SM)

$19.99

$

In Stock, only 4 left!

0

0050

Snapper Pro 5106429

ROD, BRAKE ADJUSTMENT, FW15
(Superseded to 5106429FS)

$13.99

$

Usually ships in 2-12 days

0

0060

Snapper Pro 5101339

SPRING, EXTENSION, 3.281 X .751 X .075 WIRE
(Superseded to 5101339FS)

$13.99

$

Usually ships in 2-12 days

0

0070

Snapper Pro 1656916

WASHER, .475 ID x 1.75 OD x .156 Thick Spring, Black
(Superseded to 1656916SM)

$7.49

$

In Stock, Qty 20+

0

0080

Snapper Pro 80020425

CAPSCREW-HEX HD 7/16-14X1.000 G5 ZC/CL
(Superseded to 2820676SM)

$4.49

$

In Stock, Qty 5

0

0090

Snapper Pro 5103676

SPACER, .39 X .55 X .38, PM, CZ
(Superseded to 5103676YP)

$6.49

$

Usually ships in 2-12 days

0

0100

Snapper Pro 5102003

BEARING, .375" ID X .875" OD X .341" THK
(Superseded to 5102003YP)

$9.49

$

Usually ships in 2-12 days

0

0110

Snapper Pro 5021683

BALL JOINT, 3/8-24 FEMALE
(Superseded to 5021683FS)

$32.99

$

Usually ships in 2-12 days

0

0120

Snapper Pro 5106441

PAD, BRAKE, A SECTION PULLEY
(Superseded to 5106441FS)

$34.99

$

Usually ships in 2-12 days

0

0130

Snapper Pro 5106481

PULLEY, IDLER, FLAT, 3.22" OD X .3/8" ID
(Superseded to 5106481FS)

$35.99

$

Usually ships in 2-12 days

0

0140

Snapper Pro 5106480

PULLEY, IDLER, 2.75"OD X .37"ID, INSERT
(Superseded to 5106480FS)

$32.99

$

In Stock, only 2 left!

0

0150

Snapper Pro 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 11

0

0170

Snapper Pro 5025010X24

BOLT, 1/4-20 X 3 GD5 CZ
(Superseded to 5025010X24YP)

$3.99

$

Usually ships in 2-12 days

0

0180

Snapper Pro 5025010X10

BOLT, 1/4-20 X 1-1/4 GD5 CZ
(Superseded to 5025010X10SM)

$3.99

$

In Stock, Qty 9

0

0190

Snapper Pro 5025391

NUT, 1/4-20 Hex Nylock Flange
(Superseded to 5025391FS)

$3.99

$

Usually ships in 2-12 days

0

0200

Snapper Pro 5025126

NUT, 1/4-20 HEX SERR. FLANGE
(Superseded to 5025126FS)

$4.49

$

Usually ships in 2-12 days

0

0210

Snapper Pro 5104494

BALL JOINT 5/16-24 LH FEMALE BRONZE RACE
(Superseded to 5104494YP)

$18.99

$

Usually ships in 2-12 days

0

0230

Snapper Pro 5106381

BELT, A-SEC, 42.31" EL, ARAMID WRAP
(Superseded to 5106381FS)

$39.99

$

In Stock, only 4 left!

0

0240

Snapper Pro 5025271

NUT, Hex, Nylon Lock, #10-24
(Superseded to 5025271FS)

$3.99

$

Usually ships in 2-12 days

0

0250

Snapper Pro 5025270

SCREW, #10-24 X 1 RS, CZ
(Superseded to 5025270SM)

$3.49

$

Usually ships in 2-12 days

0

0260

Snapper Pro 5025035

NUT, 3/8-24 HEX (SV)
(Superseded to 5025035SM)

$3.49

$

Usually ships in 2-12 days

0

0270

Snapper Pro 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

0280

Snapper Pro 5023212

NUT, 5/16-24 HEX, LH
(Superseded to 5023212SM)

$3.49

$

Usually ships in 2-12 days

0

0290

Snapper Pro 5418455AA

MOUNT, DECK SPRING - BLK
(Superseded to 5418455AAFS)

$10.99

$

Usually ships in 2-12 days

0

0300

Snapper Pro 5100548

WASHER, .390 X 1.50 X .109, YZ
(Superseded to 5100548SM)

$4.49

$

In Stock, only 1 left!

0

0310

Snapper Pro 5418450D

PLATE, GUARD, LH, SW15 - RED
(Superseded to 5418450DFS)

$23.99

$

Usually ships in 2-12 days

0

0320

Snapper Pro 5025010X6

BOLT, 1/4"-20 X 3/4" GD5 YZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 13

0

0330

Snapper Pro 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

0340

Snapper Pro 5106484

BELT, SYNCHRO, 1120-8MPT-20
(Superseded to 5106484FS)

$96.99

$

Usually ships in 2-12 days

0

0360

Snapper Pro 5022665

BODY CLIP, 1/4-20 X 1/2" DEEP
(Superseded to 5022665SM)

$3.49

$

Usually ships in 2-12 days

0

0370

Snapper Pro 5025013X18

BOLT, 3/8-16 X 2-1/4" GD5 CZ
(Superseded to 5025013X18SM)

$3.99

$

In Stock, only 1 left!

0

0380

Snapper Pro 5025055X10

BOLT, 5/16-18 X 1-1/4 GD5 TFL, CZ
(Superseded to 5025055X10YP)

$3.49

$

In Stock, only 1 left!

0

0390

Snapper Pro 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

0400

Snapper Pro 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

0410

Snapper Pro 5025293

WASHER, 3/8" GR. 9 FLAT
(Superseded to 5025293SM)

$3.99

$

In Stock, Qty 7

0

0420

Snapper Pro 5050407X10

KEY, 1/4" SQ. X 1-1/4
(Superseded to 5050407X10YP)

$3.99

$

In Stock, only 1 left!

0

0430

Snapper Pro 80003518

BOLT,1/4-20X0.750,GR5,STD NECK,SQ,ZC/CL
(Superseded to 703575)

$3.99

$

In Stock, only 3 left!

0

0440

Snapper Pro 80004801

BOLT,1/4,PUSHNUT RETAINER,PHOSPHATE/OIL
(Superseded to 703826)

$3.49

$

In Stock, Qty 6

0

0450

Snapper Pro 5025013X20

BOLT, 3/8-16 X 2-1/2" GD5 CZ
(Superseded to 84007037)

$2.99

$

Usually ships in 2-12 days
