SW 15 (5901864) - Snapper Pro SW15 Series 32" Walk-Behind Mower, 10hp Honda Rear Drive Group Parts Diagram

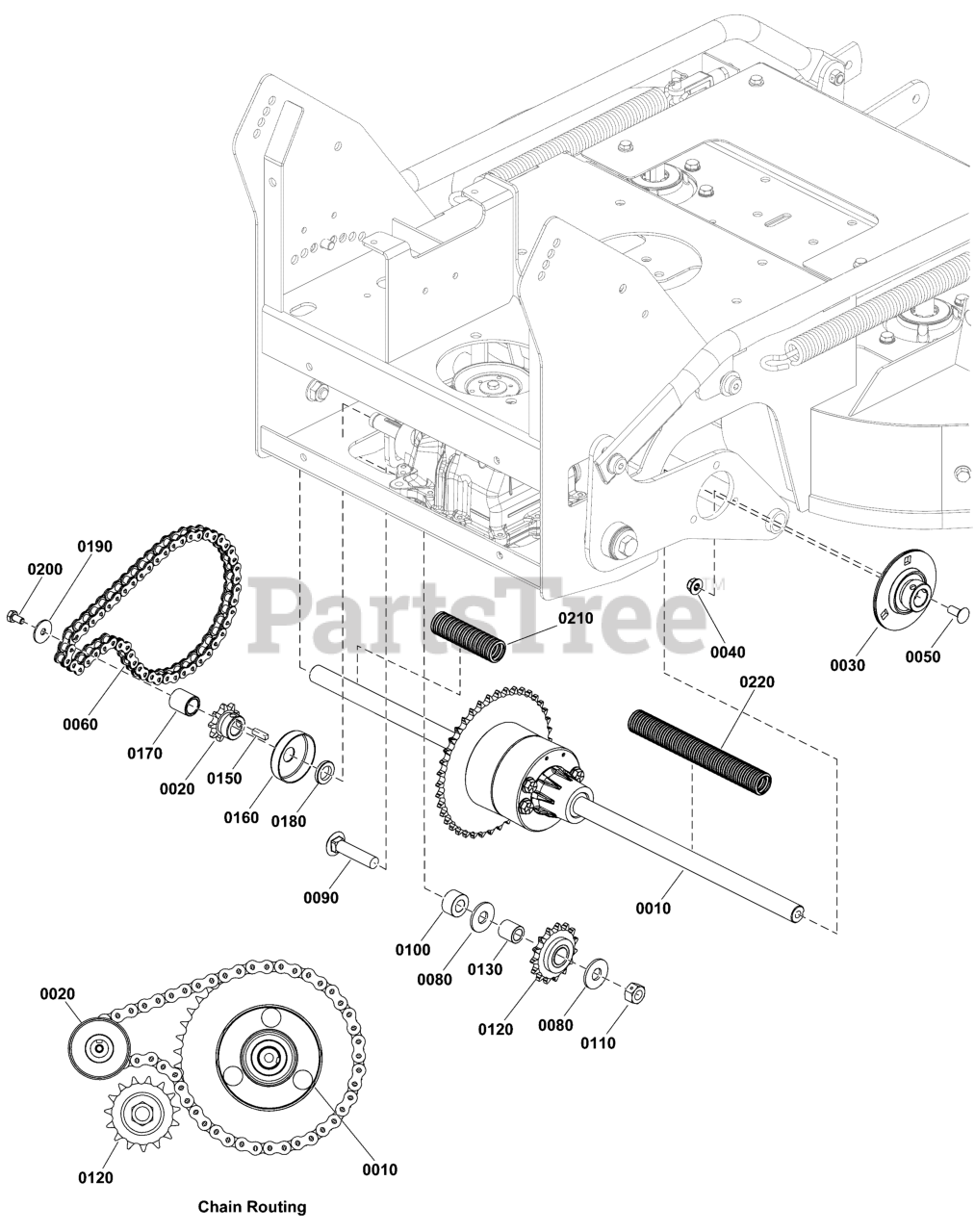

SW15 Series 32" Walk-Behind Mower, 10hp Honda

Rear Drive Group Parts Diagram

  • Title

0010

Snapper Pro 5106304

DIFFERENTIAL ASM. FW15
(Superseded to 5106304FS)

Note: (Includes item #0010-10).

$557.99

$

Usually ships in 2-12 days

0

0010-10

Snapper Pro 5106304X1

SPROCKET, 40 TOOTH. W15

Note: (Not illustrated).

$106.99

$

Usually ships in 2-12 days

0

0020

Snapper Pro 5106406

SPROCKET, #40B9, HRD TEETH X .625 BORE
(Superseded to 5106406FS)

$14.99

$

Usually ships in 2-12 days

0

0030

Snapper Pro 5106319

BEARING, 3 BOLT FLG, 3/4 ID, SAPF204-12
(Superseded to 5106319FS)

$16.99

$

Usually ships in 2-12 days

0

0040

NUT 5/16-18 HEX FLNG CNTR LCK ZC/CL

$

$

Not available

0050

Snapper Pro 5025145X6

BOLT, 5/16-18 X 3/4, CARRIAGE, GD5, CZ
(Superseded to 5025145X6SM)

$3.99

$

Usually ships in 2-12 days

0

0060

Snapper Pro 5106552

CHAIN, #40, O-RING, 51 LINKS
(Superseded to 5106552FS)

$39.99

$

Usually ships in 2-12 days

0

0060-10

Snapper Pro 5106552X1

#40 OFFSET LINK, O-RING TYPE

Note: (Not an illustrated part)

$105.99

$

Usually ships in 2-12 days

0

0060-20

Snapper Pro 5106552X2

#40 MASTER LINK, O-RING TYPE

Note: (Not an illustrated part)

$15.99

$

Usually ships in 2-12 days

0

0080

Snapper Pro 5025150

WASHER, 1/2" USSZ
(Superseded to 5025150SM)

$3.99

$

In Stock, only 3 left!

0

0090

Snapper Pro 5025324X18

BOLT, CARRIAGE, 1/2-13 X 2-1/4", GD5 CZ
(Superseded to 5025324X18FS)

$5.49

$

In Stock, Qty 5

0

0100

Snapper Pro 5101162

SPACER, .52 X 1.00 X .56, PM, CZ
(Superseded to 5101162YP)

$7.49

$

In Stock, only 1 left!

0

0110

Snapper Pro 5025332

NUT, 1/2-13 Hex Side Lock
(Superseded to 5025332SM)

$3.49

$

In Stock, only 1 left!

0

0120

Snapper Pro 5107558

SPROCKET, ASM, TENSIONER
(Superseded to 5107558FS)

$42.99

$

In Stock, only 1 left!

0

0130

Snapper Pro 5107556

SPACER, .50 X .75 X .78, CZ
(Superseded to 5107556FS)

$4.49

$

Usually ships in 2-12 days

0

0150

Snapper Pro 5050403X4

KEY, 3/16" SQ. X 3/4
(Superseded to 5050403X4YP)

$2.99

$

Usually ships in 2-12 days

0

0160

Snapper Pro 5107882

DEBRIS COVER
(Superseded to 5107882FS)

$3.99

$

Usually ships in 2-12 days

0

0170

Snapper Pro 5107878

BUSHING, .64 X .875 X .969
(Superseded to 5107878FS)

$7.99

$

Usually ships in 2-12 days

0

0180

Snapper Pro 5107879

SPACER, .630 X .10 X .155
(Superseded to 5107879FS)

$5.49

$

Usually ships in 2-12 days

0

0190

Snapper Pro 5025288

WASHER, 1/4" Fender
(Superseded to 5025288YP)

$3.99

$

In Stock, Qty 5

0

0200

Snapper Pro 5025457

BOLT, 1/4-28 X 1/2, GD5 YZ
(Superseded to 5025457SM)

$3.99

$

Usually ships in 2-12 days

0

0210

Snapper Pro 5050862X3P5

WIRE LOOM, 3/4 ID X 3.5 IN
(Superseded to 5050862X3P5FS)

$2.99

$

Usually ships in 2-12 days

0

0220

Snapper Pro 5050862X7P5

WIRE LOOM, 3/4 ID X 7.5 IN
(Superseded to 5050862X7P5FS)

$2.99

$

Usually ships in 2-12 days

0
