SW 15 (5901864) - Snapper Pro SW15 Series 32" Walk-Behind Mower, 10hp Honda Transaxle SERVICE Parts - Hydro-Gear RT-310 (5105873) Parts Diagram

SW15 Series 32" Walk-Behind Mower, 10hp Honda

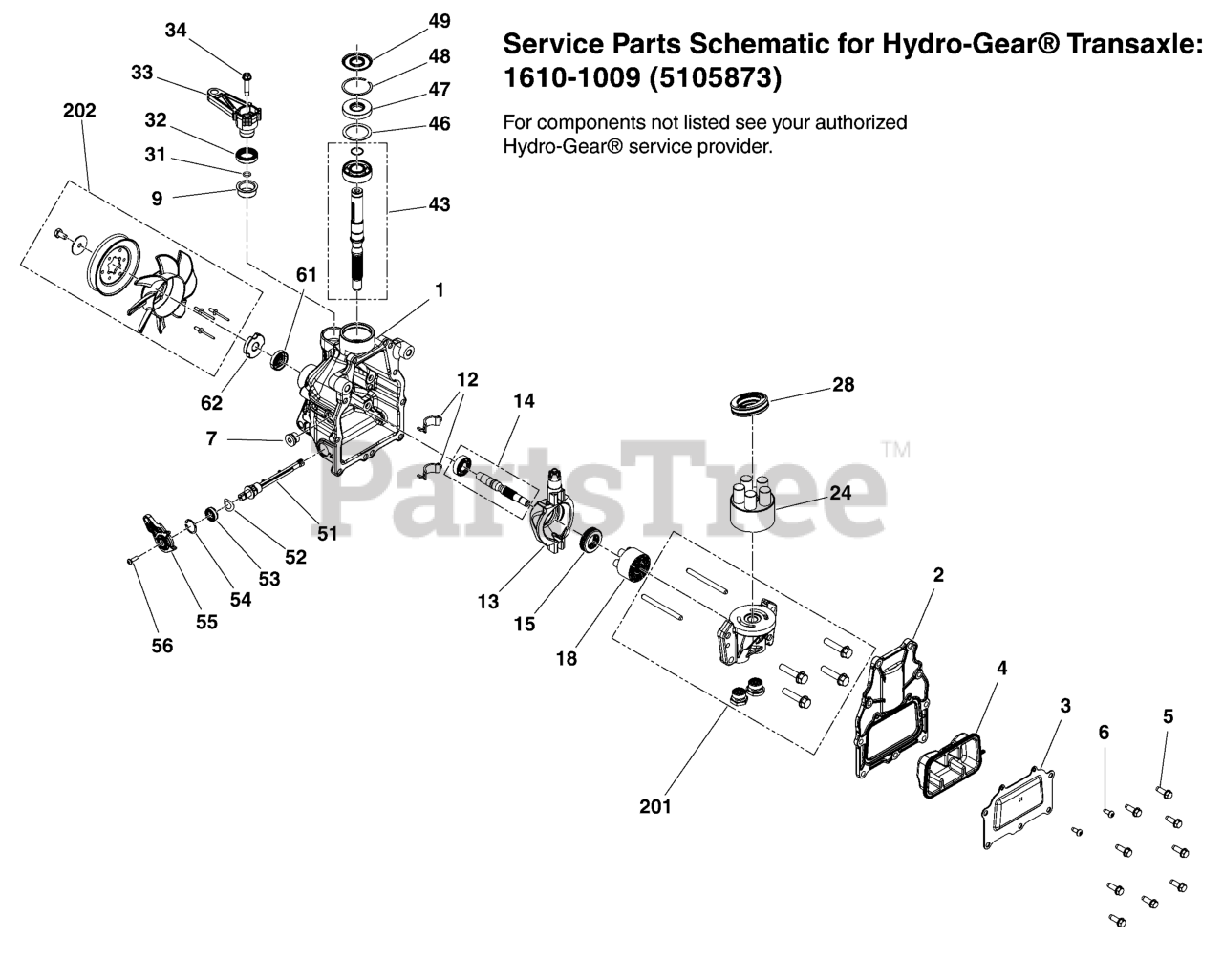

Transaxle SERVICE Parts - Hydro-Gear RT-310 (5105873) Parts Diagram

  • Title

1

HOUSING, MAIN

$

$

Not available

2

COVER

$

$

Not available

3

PLATE, EXPANSION

$

$

Not available

4

BLADDER

$

$

Not available

5

SCREW, HEX WASHER 1/4-20 X .75

$

$

Not available

6

BOLT, SELF-TAPPING

$

$

Not available

7

PLUG, 9/16-18 STR THREAD SOCKET HEAD

$

$

Not available

9

GUIDE, PLASTIC ALIGNMENT

$

$

Not available

12

BEARING, CRADLE

$

$

Not available

13

SWASH_PLATE

$

$

Not available

14

KIT, INPUT SHAFT

$

$

Not available

15

BEARING, THRUST 21 X 35 X 10

$

$

Not available

18

KIT, 3cc BLOCK

$

$

Not available

24

KIT, BLOCK 10cc CYLINDER

$

$

Not available

28

BEARING, THRUST 30 x 52 x 13

$

$

Not available

31

O-RING, -011, .301 X .07, 70A

$

$

Not available

32

SEAL, LIP 20 X 30 X 7

$

$

Not available

33

ARM, CONTROL

$

$

Not available

34

SCREW, HEX WASHER

$

$

Not available

43

KIT, MOTOR SHAFT

$

$

Not available

46

Snapper Pro 1730272

SPACER (50951)

$

$

Not available

47

Snapper Pro 5100161X3

OUTPUT SHAFT SEAL, 17X40X7, HR #51161

$17.99

$

Usually ships in 2-12 days

0

48

RING, M40, RET, INT

$

$

Not available

49

SLEEVE, SEAL GUARD

$

$

Not available

51

ACTUATOR, BYPASS

$

$

Not available

52

WASHER, .45 X .73 X .01, SPRING

$

$

Not available

53

Snapper Pro 5104471X1

SEAL, .375 X .750 X .25 LIP, H/G 51626
(Superseded to 84003137)

$9.99

$

Usually ships in 2-12 days

0

54

BYPASS RETAINING RING 2

$

$

Not available

55

ARM, BYPASS

$

$

Not available

56

SCREW, M4 X 16, WUPLAST

$

$

Not available

61

SEAL, .47 X 1.10 X .28, LIP, TC4

$

$

Not available

62

HUB, PULLEY DIA. 141

$

$

Not available

200

KIT, SEAL

$

$

Not available

201

KIT, CENTER SECTION

$

$

Not available

202

KIT, FAN/PULLEY

$

$

Not available
