SW-18CVE - Scag Walk-Behind Mower, 18hp Kohler (SN: 3220001 - 3229999) 18CVE Instrument Panel Parts Diagram

Walk-Behind Mower, 18hp Kohler

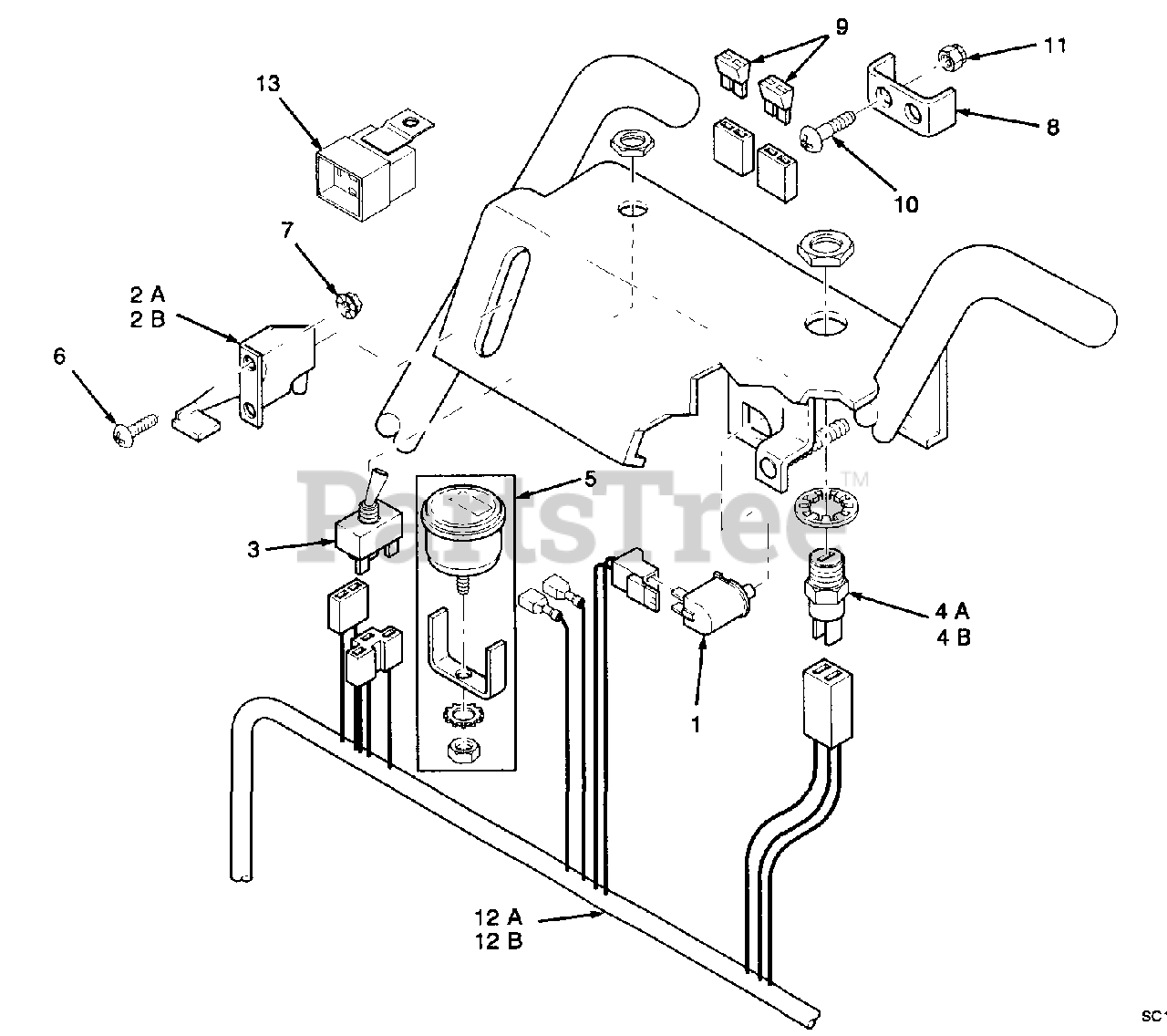

18CVE Instrument Panel Parts Diagram

  • Title

1

Scag 48717

Switch, Neutral Interlock

$10.99

$

In Stock, only 1 left!

0

2A

Throttle Control

Note: Not used on this model

$

$

Not available

2B

Scag 48946

Throttle Control

$32.99

$

In Stock, Qty 9

0

3

Scag 48787

Engagement Switch, Electric Clutch

Note: (Includes hardware)

$38.99

$

In Stock, only 1 left!

0

4A

Key Switch

Note: Not used on this model, (Includes hardware)

$

$

Not available

4B

Scag 48798

Key Switch

Note: (Includes hardware)

$27.99

$

In Stock, Qty 20+

0

5

Scag 48023

Hour Meter

Note: (Dealer installed)

$195.99

$

In Stock, only 1 left!

0

6

Screw, #10-32 x .50 Phillips Washer Head

$

$

Not available

7

Scag 04019-01

Nut, #10-32 Serrated Flange Hex Head

$0.99

$

Usually ships in 2-12 days

0

8

Scag 42413

Bracket, Fuse Holder

$41.99

$

Usually ships in 2-12 days

0

9

Scag 48298

Blade Fuse, 20A

$3.99

$

Usually ships in 2-12 days

0

10

Screw, #10-32 x 1-1/2"

$

$

Not available

11

Scag 04021-01

Nut, #10-32 Elastic Stop

$0.99

$

In Stock, Qty 10

0

12A

Scag 481267

Handle Wire Harness, Electric Start

$227.99

$

Usually ships in 2-12 days

0

12B

Handle Wire Harness, Manual Start

Note: Not used on this model

$

$

Not available

Scag 48030-09

Clamp, Wire Harness

Note: Not shown

$1.49

$

In Stock, only 4 left!

0

13

Scag 48788

Relay

Note: (Electric Start Only)

$29.99

$

In Stock, only 1 left!

0
