SW 20 (5900539) - Snapper Pro SW20 Series 36" Walk-Behind Mower, 15hp Kawasaki Deck Lift Group (Kawasaki FS Engines) Parts Diagram

SW20 Series 36" Walk-Behind Mower, 15hp Kawasaki

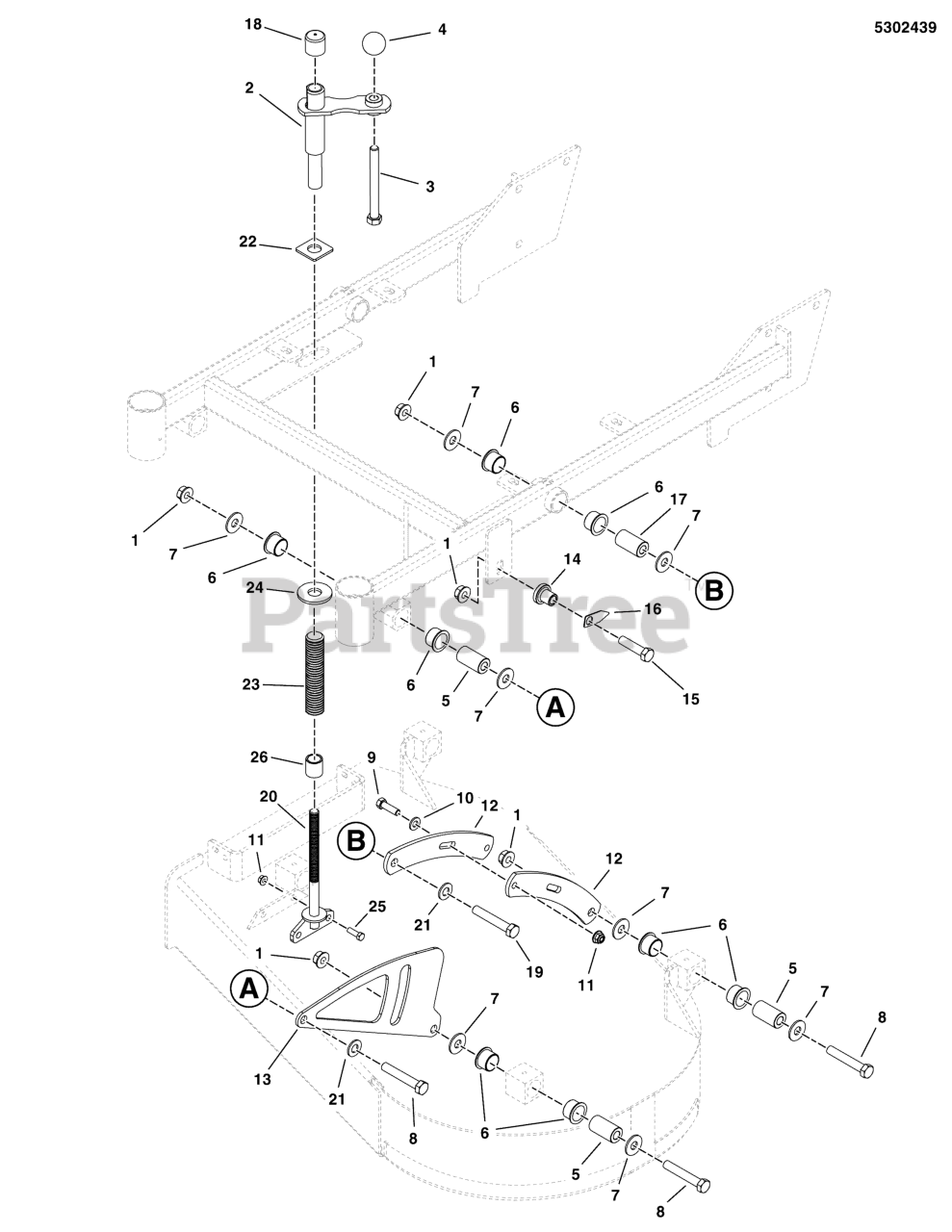

Deck Lift Group (Kawasaki FS Engines) Parts Diagram

  • Title

1

Snapper Pro 5025396

NUT, Hex Flange, Nylock, 1/2-13
(Superseded to 770225)

$3.49

$

In Stock, Qty 14

0

2

Snapper Pro 5102774A

DECK CRANK, SW30 - BLK
(Superseded to 5102774AAFS)

$86.99

$

Usually ships in 2-12 days

0

3

Snapper Pro 5025017X40

BOLT-1/2-13 X 5 GD5 YZ
(Superseded to 5025017X40SM)

$6.49

$

In Stock, only 3 left!

0

4

Snapper Pro 5021733

KNOB, PLASTIC, 1/2-13
(Superseded to 5021733SM)

$9.49

$

In Stock, only 2 left!

0

5

Snapper Pro 5101413

SPACER, .52 X 1.00 X 1.83, CZ
(Superseded to 5101413FS)

$12.99

$

Usually ships in 2-12 days

0

6

Snapper Pro 5023356

BUSHING, 1.00X1.13X.75, PLA
(Superseded to 5023356SM)

$6.49

$

Usually ships in 2-12 days

0

7

Snapper Pro 5025150

WASHER, 1/2 USS
(Superseded to 5025150SM)

$3.99

$

In Stock, only 3 left!

0

8

Snapper Pro 5025017X24

BOLT, 1/2-13 X 3" GD5 CZ
(Superseded to 5025017X24SM)

$5.99

$

In Stock, Qty 9

0

9

Snapper Pro 5025013X10

BOLT, 3/8-16 X 1-1/4" GD5 CZ
(Superseded to 5025013X10SM)

$3.99

$

In Stock, only 2 left!

0

10

Snapper Pro 5025293

WASHER, 3/8 GD.9 FLAT
(Superseded to 5025293SM)

$3.99

$

In Stock, Qty 5

0

11

Snapper Pro 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

12

Snapper Pro 5407433D

BAR, DECK LIFT - ADJ

$24.99

$

Usually ships in 2-12 days

0

13

Snapper Pro 5405594D

PLATE, DECK HEIGHT INDICATOR - SNP RED

$39.99

$

Usually ships in 2-12 days

0

14

Snapper Pro 5102136

SPACER, .52 X .75 X 1.06 SHLDR, CZ

$13.99

$

Usually ships in 2-12 days

0

15

Snapper Pro 5025017X16

BOLT, 1/2-13 X 2" GD5 CZ
(Superseded to 5025017X16YP)

$4.49

$

Usually ships in 2-12 days

0

16

Snapper Pro 5102143

POINTER, DECK HEIGHT, SW30

$3.99

$

Usually ships in 2-12 days

0

17

Snapper Pro 5043366

SPACER, .50 X 1.00 X 2.25

$13.99

$

Usually ships in 2-12 days

0

18

Snapper Pro 5102086

CAP, VINYL, 1.062 X 1.00 BLK
(Superseded to 5102086FS)

$2.99

$

Usually ships in 2-12 days

0

19

Snapper Pro 5025017X28

BOLT, 1/2-13 X 3-1/2, HEX HD, GD5, CZ (SV)
(Superseded to 5025017X28SM)

$5.99

$

In Stock, only 1 left!

0

20

Snapper Pro 5101485

ROD, DECK LIFT, SW30-52-61

$63.99

$

Usually ships in 2-12 days

0

21

Snapper Pro 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, only 3 left!

0

22

Snapper Pro 5102751

WASHER, SQ, .823ID, X 1.63SQ X .14TH, CZ

$3.99

$

Usually ships in 2-12 days

0

23

Snapper Pro 5102085

SPRING, COMP, .840 X 1.044 X 6.7, BLK

$21.99

$

Usually ships in 2-12 days

0

24

Snapper Pro 5025183

WASHER, 3/4 USS

$2.99

$

Usually ships in 2-12 days

0

25

Snapper Pro 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, Qty 7

0

26

Snapper Pro 5102946

SPACER, .64 X .82 X .88, CZ
(Superseded to 5102946FS)

$12.99

$

Usually ships in 2-12 days

0
