SW 35 (5901417) - Snapper Pro SW35 CC Series 61" Walk-Behind Mower, 28hp Briggs & Stratton, CARB 61" Mower Deck Group - Housing, Covers, Spindles & Blades S/N: 2017775878 & Below Parts Diagram

SW35 CC Series 61" Walk-Behind Mower, 28hp Briggs & Stratton, CARB

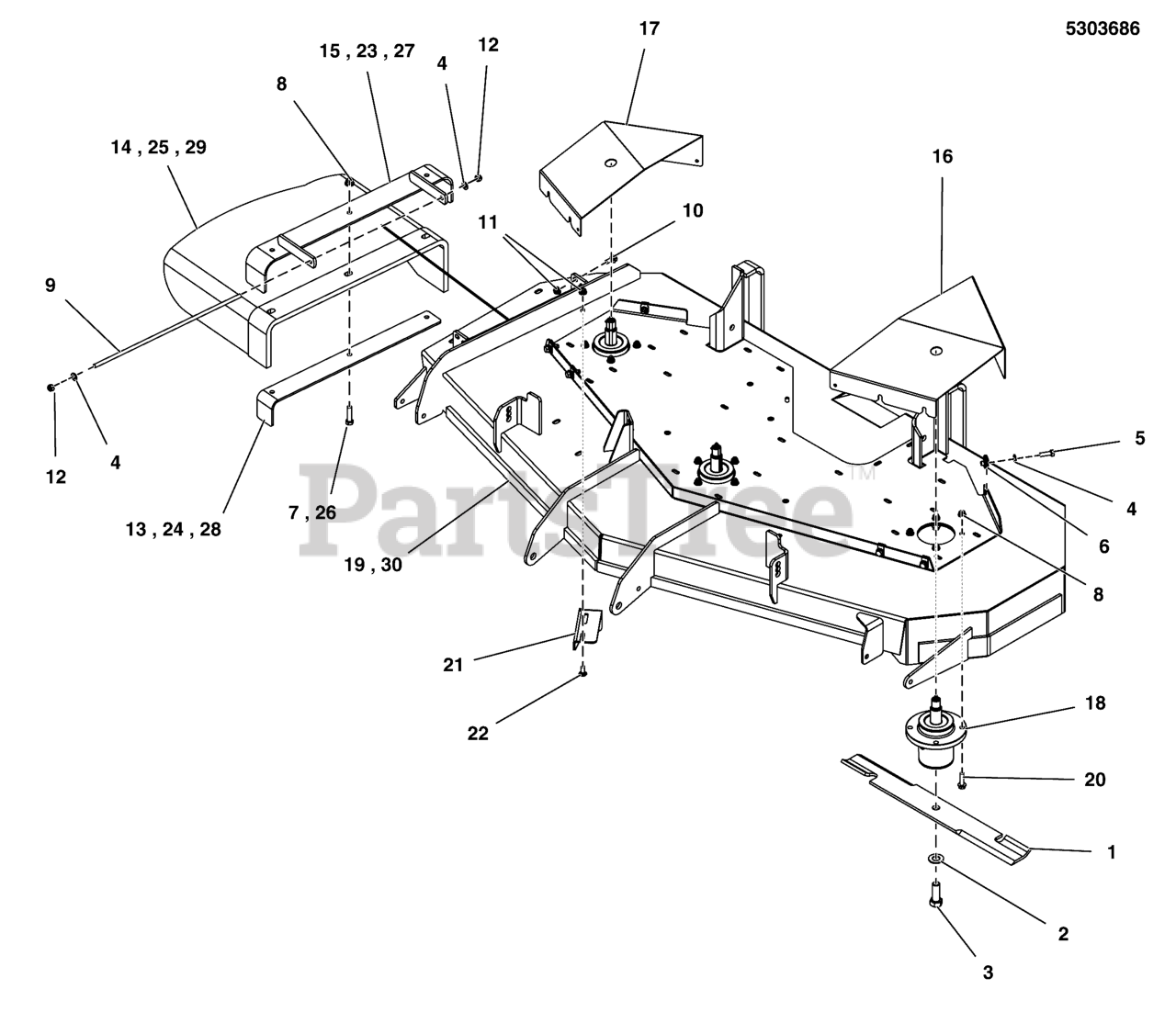

61" Mower Deck Group - Housing, Covers, Spindles & Blades S/N: 2017775878 & Below Parts Diagram

  • Title

1

Snapper Pro 5101755S

BLADE SET, 61 DECK (3)

Note: (SV)(Set of 3 blades)

$83.99

$

In Stock, only 3 left!

0

2

Snapper Pro 5025477

WASHER, BLADE BOLT, 9/16" F436, CZ
(Superseded to 5025477SM)

$4.49

$

In Stock, Qty 20+

0

3

Snapper Pro 5025320X14

BOLT, 5/8-11 X 1-3/4 GD8
(Superseded to 5025320X14FS)

$4.49

$

Usually ships in 2-12 days

0

4

Snapper Pro 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

5

Snapper Pro 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 2 left!

0

6

Snapper Pro 5022308

BODY CLIP, 5/16-18-7GA MATERIAL
(Superseded to 5022308SM)

$5.99

$

In Stock, only 2 left!

0

7

Snapper Pro 5025013X12

BOLT, 3/8-16 X 1-1/2" GD5 CZ
(Superseded to 5025013X12SM)

Note: (S/N: 2017100600 & Below)

$3.99

$

Usually ships in 2-12 days

0

8

Snapper Pro 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

9

Snapper Pro 5061300

ROD, MOUNT, CHUTE 61, CZ
(Superseded to 5061300FS)

$11.99

$

Usually ships in 2-12 days

0

10

Snapper Pro 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 2 left!

0

11

Snapper Pro 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

12

Snapper Pro 5025045

NUT, 5/16-24 HEX NYLON LOCK
(Superseded to 5025045SM)

$3.49

$

In Stock, Qty 15

0

13

Snapper Pro 5402360A

SUPPORT, DISCHARGE CHUTE, 61/72 - BLK
(Superseded to 5402360AYP)

Note: (S/N: 2017100600 & Below)

$46.99

$

Usually ships in 2-12 days

0

14

Snapper Pro 5412499

CHUTE, BEND, RUBBER, 125 DEG (5103719)

Note: (S/N: 2017100600 & Below)

$168.99

$

Usually ships in 2-12 days

0

15

Snapper Pro 5412418A

WELD, FRAME, CHUTE, 61" - BLK

Note: (S/N: 2017100600 & Below)

$44.99

$

Usually ships in 2-12 days

0

16

Snapper Pro 5412187D

GUARD, DECK, 61, LH - RED
(Superseded to 5412187DFS)

$64.99

$

Usually ships in 2-12 days

0

17

Snapper Pro 5412188D

GUARD, DECK, 61, RH - RED
(Superseded to 5412188DFS)

$53.99

$

Usually ships in 2-12 days

0

18

Snapper Pro 5061095

ASSM, SPINDLE, LOW PROFILE
(Superseded to 5061095FS)

$231.99

$

Usually ships in 2-12 days

0

19

Snapper Pro 5600727

DECK SHELL W/ DECALS, 61, SW35 (5411927D)

Note: (S/N: 2017178849 & Below)

$2746.99

$

Usually ships in 2-12 days

0

20

Snapper Pro 5025390X10

BOLT, 3/8-16 X 1-1/4, FLANGE, GD5, CZ
(Superseded to 5025390X10FS)

$2.99

$

Usually ships in 2-12 days

0

21

Snapper Pro 5401344A

PLATE, DEFLECTOR - BLK
(Superseded to 84003247)

$12.99

$

Usually ships in 2-12 days

0

22

Snapper Pro 5025145X6

BOLT, 5/16-18 X 3/4, CARRIAGE
(Superseded to 5025145X6SM)

$3.99

$

In Stock, Qty 20+

0

23

Snapper Pro 5413400A

WELD, MOUNT, DISCHARGE CHUTE - BLK
(Superseded to 5413400AA)

Note: (S/N: 2017100601 - 2017178849)

$68.99

$

Usually ships in 2-12 days

0

24

Snapper Pro 5413500

CHUTE, RUBBER DISCHARGE (5104442)

Note: (S/N: 2017100601 - 2017178849)

$216.99

$

Usually ships in 2-12 days

0

25

Snapper Pro 5413398A

SUPPORT, DISCHARGE CHUTE - BLK

Note: (S/N: 2017100601 - 2017178849)

$31.99

$

Usually ships in 2-12 days

0

26

Snapper Pro 5025146X12

BOLT, 3/8-16 X 1-1/2, CARRIAGE, GD5, CZ
(Superseded to 5025146X12YP)

Note: (S/N: 2017100601 & Above)

$4.49

$

Usually ships in 2-12 days

0

27

Snapper Pro 84008171

MOUNT

Note: (S/N: 2017178850 & Above)

$92.99

$

Usually ships in 2-12 days

0

28

Snapper Pro 5413385A

SUPPORT, DISCHARGE CHUTE - BLK
(Superseded to 84003245)

Note: (S/N: 2017178850 & Above)

$29.99

$

In Stock, Qty 5

0

29

Snapper Pro 5413499

CHUTE, RUBBER DISCHARGE (5104442)

Note: (S/N: 2017178850 & Above)

$160.99

$

Usually ships in 2-12 days

0

30

Snapper Pro 5600894

DECK SHELL W/ DECALS, 61, SW35 (5414555D)

Note: (S/N: 2017178850 & Above)

$2746.99

$

Usually ships in 2-12 days

0
