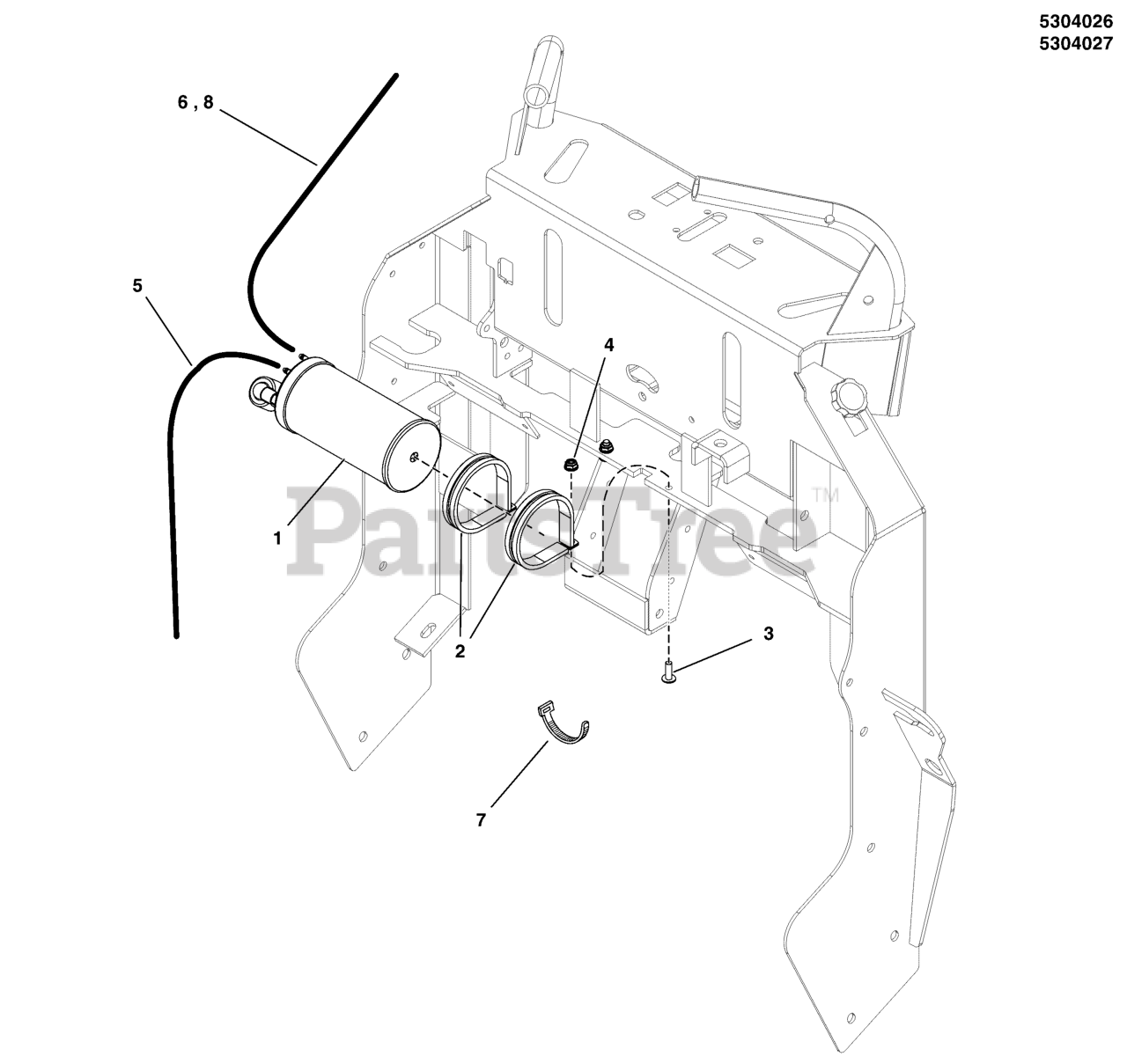

SW 35 (5901417) - Snapper Pro SW35 CC Series 61" Walk-Behind Mower, 28hp Briggs & Stratton, CARB EVAP Canister Group (CAL Models) Parts Diagram

SW35 CC Series 61" Walk-Behind Mower, 28hp Briggs & Stratton, CARB

EVAP Canister Group (CAL Models) Parts Diagram

  • Title

1

Snapper Pro 313036

CNSTR, CARB, 6 GAL
(Superseded to 313036GS)

$231.99

$

Usually ships in 2-12 days

0

2

Snapper Pro 5103055

CLAMP, 3" ID, CUSHIONED, STAINLESS
(Superseded to 5103055YP)

$8.49

$

Usually ships in 2-12 days

0

3

Snapper Pro 5025299X6

USE 5106757 - SCREW,1/4-20X3/4, ZINC
(Superseded to 5106757)

$3.49

$

Usually ships in 2-12 days

0

4

Snapper Pro 5025391

NUT, 1/4-20 HEX NYLOCK FLANGE
(Superseded to 5025391FS)

$4.49

$

In Stock, Qty 7

0

5

Snapper Pro 7700552X25

HOSE, VAPOR, 5MM ID, 25.00 LG

$

$

Currently unavailable

6

Snapper Pro 7700552X28

HOSE, VAPOR, 5MM ID, 28.00 LG
(Superseded to 7700552X28FS)

Note: (Briggs & Stratton Models)

$7.49

$

Usually ships in 2-12 days

0

7

Snapper Pro 5021030

TIE,SELF-LOCKING, 6"
(Superseded to 5021030SM)

$2.99

$

In Stock, only 2 left!

0

8

Snapper Pro 7700552X31

HOSE, VAPOR, 5MM ID, 31.00 LG
(Superseded to 7700552X32YP)

Note: (Kawasaki Models)

$10.99

$

In Stock, only 2 left!

0
