SW 45 (5901904) - Snapper Pro SW45 CC Series 61" Walk-Behind Mower, 21hp Kawasaki 61" Mower Deck Group - Pulleys, Belt and Idler Arm Parts Diagram

SW45 CC Series 61" Walk-Behind Mower, 21hp Kawasaki

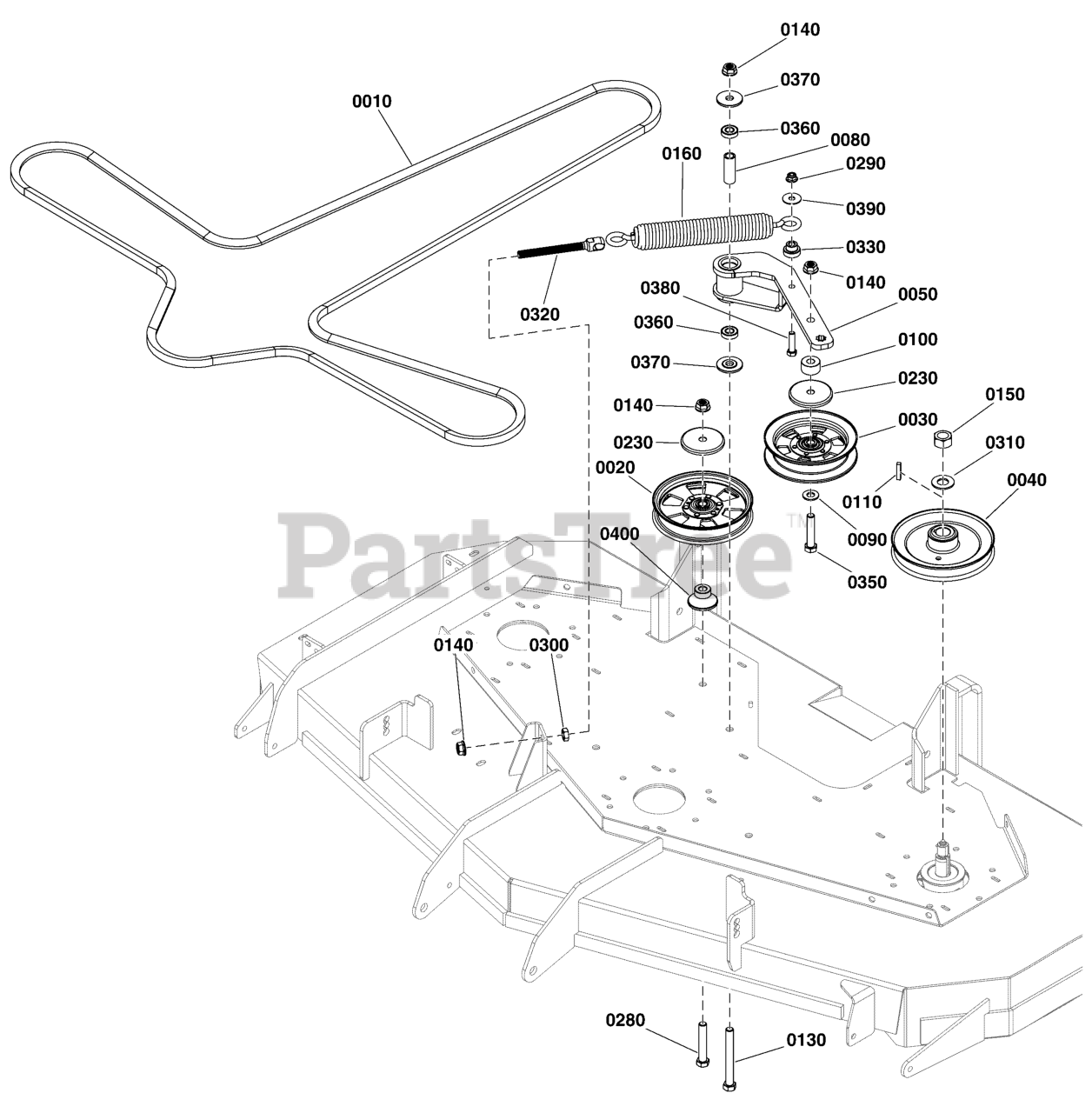

61" Mower Deck Group - Pulleys, Belt and Idler Arm Parts Diagram

  • Title

0010

Snapper Pro 5103872

BELT, 5V, 163.40EL, LG ARAMID, WRPD, RC
(Superseded to 5103675)

$148.99

$

Usually ships in 2-12 days

0

0020

Snapper Pro 5104717

PULLEY, FLT IDLR, 6.0 X 1.0 X .50, CZ
(Superseded to 5104717YP)

$58.99

$

Usually ships in 2-12 days

0

0030

Snapper Pro 5104716

PULLEY,IDLER,BACKSIDE,NOSEAM 6.25ODX.5ID
(Superseded to 5104716YP)

$60.99

$

In Stock, only 1 left!

0

0040

Snapper Pro 5100700

PULLEY, 6.93 EOD X 25MM, SPLIT
(Superseded to 5100700SM)

$79.99

$

In Stock, Qty 6

0

0050

Snapper Pro 5412371AA

WELD, TENSION ARM, CUTTER DECK - BLK
(Superseded to 5412371AAFS)

$219.99

$

Usually ships in 2-12 days

0

0080

Snapper Pro 5104172

SPACER, .505 X .75 X 2.085, CZ
(Superseded to 5104172FS)

$8.99

$

Usually ships in 2-12 days

0

0090

Snapper Pro 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$4.49

$

In Stock, Qty 20+

0

0100

Snapper Pro 5047142

SPACER, .52 X 1.25 X .70, PM, CZ
(Superseded to 5047142SM)

$9.49

$

Usually ships in 2-12 days

0

0110

Snapper Pro 5050407X10

KEY, 1/4" SQ. X 1-1/4
(Superseded to 5050407X10YP)

$4.49

$

In Stock, Qty 12

0

0130

Snapper Pro 5025017X36

BOLT, 1/2-13 X 4-1/2" GD5 YZ
(Superseded to 5025017X36SM)

$6.49

$

In Stock, only 2 left!

0

0140

Snapper Pro 5025396

NUT, Hex Flange, Nylock, 1/2-13
(Superseded to 770225)

$3.49

$

In Stock, Qty 17

0

0150

Snapper Pro 5025405

NUT, 3/4-16 Hex
(Superseded to 5025405SM)

$3.99

$

In Stock, Qty 8

0

0160

Snapper Pro 5104166

SPRING, EXT, 1.5ODX12.25X.234WIRE BLK
(Superseded to 5104166YP)

$79.99

$

In Stock, only 2 left!

0

0230

Snapper Pro 5105145

SHIELD, BEARING, 1/2 ID X 2-7/8 OD, CZ
(Superseded to 5105145YP)

$4.49

$

Usually ships in 2-12 days

0

0280

Snapper Pro 5025017X24

BOLT, 1/2-13 X 3" GD5 CZ
(Superseded to 5025017X24SM)

$5.99

$

In Stock, Qty 6

0

0290

Snapper Pro 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

0300

Snapper Pro 5025089

NUT, 1/2-20 Hex Jam
(Superseded to 5025089SM)

$4.49

$

In Stock, only 3 left!

0

0310

Snapper Pro 5025406

WASHER, 3/4 BELLEVILLE CL/ZC
(Superseded to 5025406FS)

$3.99

$

Usually ships in 2-12 days

0

0320

Snapper Pro 5105849

SPRING PULLER, 1/2-20, 6.00
(Superseded to 5105849YP)

$18.99

$

Usually ships in 2-12 days

0

0330

Snapper Pro 5102406

SPACER, .38 X 1.13 X .781 STEP, CZ
(Superseded to 5102406FS)

$16.99

$

Usually ships in 2-12 days

0

0350

Snapper Pro 5025017X20

BOLT, 1/2-13 X 2-1/2" GD5 CZ
(Superseded to 5025017X20SM)

$5.49

$

In Stock, only 1 left!

0

0360

Snapper Pro 7078243

BEARING, BALL, AXLE
(Superseded to 7078243YP)

$10.99

$

In Stock, Qty 7

0

0370

Snapper Pro 5103262

SPACER, IDLER ARM, 1/2, PM
(Superseded to 5103262YP)

$8.49

$

Usually ships in 2-12 days

0

0380

Snapper Pro 5025013X12

BOLT, 3/8-16 X 1-1/2" GD5 CZ
(Superseded to 5025013X12SM)

$3.99

$

Usually ships in 2-12 days

0

0390

Snapper Pro 5025165

WASHER, 3/8" Fender
(Superseded to 5025165SM)

$4.49

$

In Stock, Qty 12

0

0400

Snapper Pro 5103430

IDLER MOUNT
(Superseded to 5103430YP)

$10.99

$

Usually ships in 2-12 days

0
