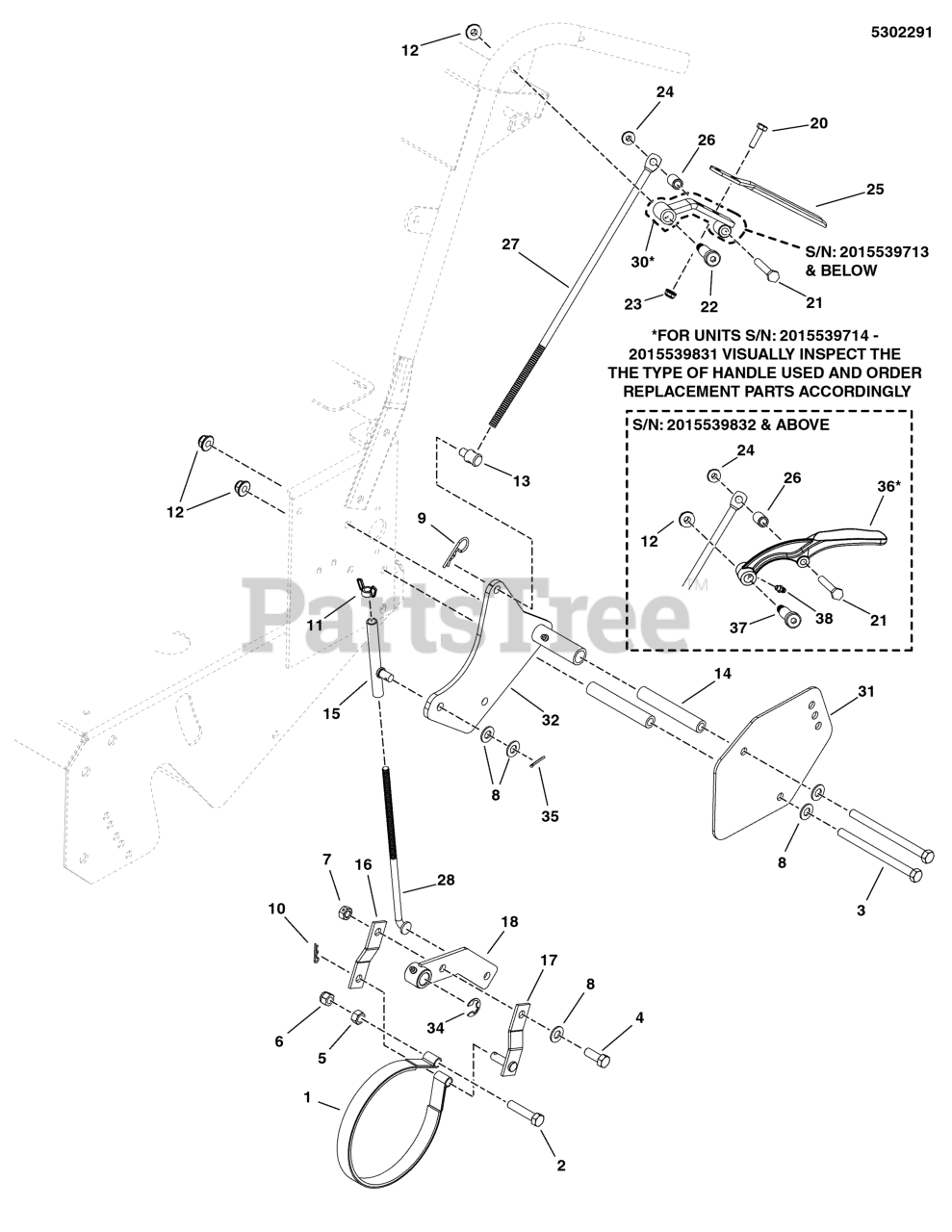

SW 5 (5900966) - Snapper Pro SW5 Series 32" Walk-Behind Mower, 16hp Briggs & Stratton, Side-Discharge Brake Group Parts Diagram

SW5 Series 32" Walk-Behind Mower, 16hp Briggs & Stratton, Side-Discharge

Brake Group Parts Diagram

  • Title

1

Snapper Pro 5021840

BAND, 6 BRAKE
(Superseded to 5021840FS)

$33.99

$

Usually ships in 2-12 days

0

2

Snapper Pro 5025013X14

BOLT, 3/8-16 X 1-3/4" GD5 CZ
(Superseded to 5025013X14SM)

$4.49

$

In Stock, Qty 5

0

3

Snapper Pro 5025013X40

BOLT, 3/8-16 X 5 GD5 YZ
(Superseded to 5025013X40SM)

$4.49

$

Usually ships in 2-12 days

0

4

Snapper Pro 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, only 3 left!

0

5

Snapper Pro 5025034

NUT, 3/8-16 HEX
(Superseded to 5025034SM)

$2.99

$

Usually ships in 2-12 days

0

6

Snapper Pro 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 7

0

7

Snapper Pro 5025100

NUT, 3/8-16 HEX SIDE LOCK
(Superseded to 5025100SM)

$3.49

$

In Stock, Qty 11

0

8

Snapper Pro 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

9

Snapper Pro 5025210

PIN, HAIR, .0915 X 1-7/8
(Superseded to 5025210YP)

$3.99

$

In Stock, Qty 9

0

10

Snapper Pro 5025211

PIN, HAIR, .0585 X 1-1/8, 1/4 EYE, YZ
(Superseded to 5025211SM)

$3.99

$

In Stock, only 2 left!

0

11

Snapper Pro 5025277

NUT, 5/16-18 WING NYLON LOCK

$3.99

$

Usually ships in 2-12 days

0

12

Snapper Pro 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

13

Snapper Pro 5041482

ADJUSTER, BRAKE LINKAGE

$28.99

$

Usually ships in 2-12 days

0

14

Snapper Pro 5044648

SPACER, .38 X .63 X 4.00, CZ

$

$

Currently unavailable

15

Snapper Pro 5044654D

BRAKE ADJUSTER WELDMENT - RED

$

$

Currently unavailable

16

Snapper Pro 5044661D

LINKAGE, BRAKE BAND - RED

$

$

Currently unavailable

17

Snapper Pro 5044662D

BRAKE LINKAGE WELDMENT - RED

$

$

Currently unavailable

18

Snapper Pro 5407293D

WELD, LEVER, BRAKE BAND, LH - RED

$

$

Currently unavailable

19

Snapper Pro 5407294D

WELD, LEVER, BRAKE BAND, RH - RED

Note: (Not Shown)

$

$

Currently unavailable

20

Snapper Pro 5025010X6

BOLT, 1/4-20 X 3/4, GD5
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

21

Snapper Pro 5025011X22

BOLT, 5/16-18 X 2-3/4, GD 5, YZ
(Superseded to 5025011X22YP)

$3.49

$

Usually ships in 2-12 days

0

22

Snapper Pro 5025220

BOLT-3/8-16 x 1-1/2, 1/2 SHOULDER
(Superseded to 5025220SM)

Note: (S/N: 2015539713 & Below)

$12.99

$

Usually ships in 2-12 days

0

23

Snapper Pro 5025391

NUT, 1/4-20 HEX NYLOCK FLANGE
(Superseded to 5025391FS)

$4.49

$

In Stock, only 3 left!

0

24

Snapper Pro 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

25

Snapper Pro 5407391A

SUPPORT, BRAKE HANDLE - BLK

Note: (S/N: 2015539713 & Below)

$11.99

$

Usually ships in 2-12 days

0

26

Snapper Pro 5102812

SPACER, .33 X .51 X 1.00, CZ
(Superseded to 5102812YP)

$7.99

$

Usually ships in 2-12 days

0

27

Snapper Pro 5102829

ROD, PARKING BRAKE, SW5

$

$

Currently unavailable

28

Snapper Pro 5102888

ROD, BRAKE LINK, SW5

$

$

Currently unavailable

29

Snapper Pro 5403307D

*WELD, REVERSE HANDLE - RH - RED

Note: (S/N: 2015539713 & Below)

$

$

Currently unavailable

30

Snapper Pro 5403959D

*WELD, REVERSE HANDLE - LH - RED

Note: (S/N: 2015539713 & Below)

$45.99

$

Usually ships in 2-12 days

0

31

Snapper Pro 5407811D

GUARD, DRIVE BELT - RED
(Superseded to 5407811DFS)

$24.99

$

Usually ships in 2-12 days

0

32

Snapper Pro 5407813D

WELD, DRIVE IDLER PIVOT, LH - RED

$

$

Currently unavailable

33

Snapper Pro 5407814D

WELD, DRIVE IDLER PIVOT, RH - RED
(Superseded to 5407814DFS)

Note: (Not Shown)

$130.99

$

Usually ships in 2-12 days

0

34

Snapper Pro 5021867

RING, RETAINING, 5/8 SHAFT

$

$

Currently unavailable

35

Snapper Pro 80002736

PIN, 3/32 X 0.750, COT, ZINC/CLEAR
(Superseded to 703312)

$4.49

$

In Stock, Qty 5

0

36

Snapper Pro 5102556A

*HANDLE, REVERSING - BLK
(Superseded to 5102556AAFS)

Note: (S/N: 2015539832 & Above)

$40.99

$

Usually ships in 2-12 days

0

37

Snapper Pro 5025223

BOLT, 3/8-16 X 1, 1/2 SHOULDER
(Superseded to 5025223SM)

Note: (S/N: 2015539832 & Above)

$7.99

$

Usually ships in 2-12 days

0

38

Snapper Pro 5020095

GREASE FITTING, 1/4-28 STRAIGHT
(Superseded to 5020095SM)

Note: (S/N: 2015539832 & Above)

$4.49

$

In Stock, only 1 left!

0
