SW 5 (5900966) - Snapper Pro SW5 Series 32" Walk-Behind Mower, 16hp Briggs & Stratton, Side-Discharge Fuel Tank & Supply Group Parts Diagram

SW5 Series 32" Walk-Behind Mower, 16hp Briggs & Stratton, Side-Discharge

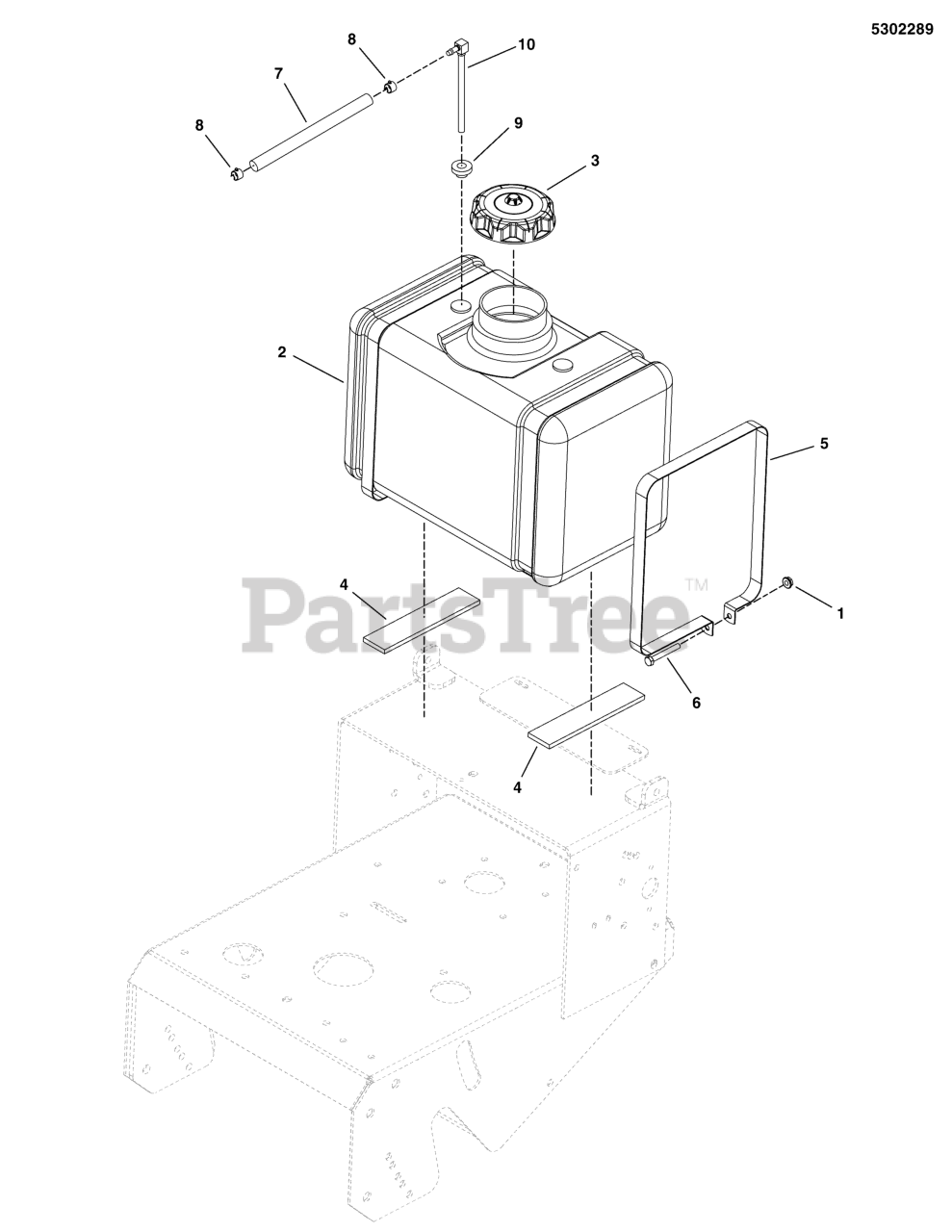

Fuel Tank & Supply Group Parts Diagram

  • Title

1

Snapper Pro 5025126

NUT, 1/4-20 HEX SERR. FLANGE
(Superseded to 5025126FS)

$4.49

$

Usually ships in 2-12 days

0

2

Snapper Pro 5102833

TANK, 5 GAL, W DROP TUBE/VENT
(Superseded to 5102833YP)

Note: (Includes Ref No. 9 & 10)

$420.99

$

Usually ships in 2-12 days

0

3

Snapper Pro 5103005

FUEL CAP, 3-1/2", MANAGED VENT OUT, 12"
(Superseded to 84005958)

$41.99

$

In Stock, only 1 left!

0

4

Snapper Pro 5100810

PAD, RUBBER MOUNT
(Superseded to 5100810YP)

$9.49

$

Usually ships in 2-12 days

0

5

Snapper Pro 5403445A

STRAP, FUEL TANK
(Superseded to 5403445AYP)

$23.99

$

Usually ships in 2-12 days

0

6

Snapper Pro 5025010X10

BOLT, 1/4-20 X 1-1/4, GD5
(Superseded to 5025010X10SM)

$3.99

$

In Stock, Qty 7

0

7a

Snapper Pro 5050831X21

HOSE, 1/4" FUEL, 21.00"
(Superseded to 5050831X21FS)

Note: (Kawasaki Models)

$12.99

$

Usually ships in 2-12 days

0

7b

Snapper Pro 5050831X18

HOSE, 1/4" FUEL, 18.00"
(Superseded to 5050831X18FS)

Note: (Briggs & Stratton Models)

$9.49

$

Usually ships in 2-12 days

0

8

Snapper Pro 93807

CLAMP, HOSE, EXTERNAL, 1/2 - RED
(Superseded to 691038)

$3.99

$

In Stock, Qty 20+

0

9

Snapper Pro 1726400

BUSHING-FUEL TANK RED RUBBER
(Superseded to 1726400FS)

$11.99

$

In Stock, Qty 12

0

10

Snapper Pro 5101261

PICKUP TUBE ASM, FUEL TANK, 8.0" (SV)

$35.99

$

Usually ships in 2-12 days

0

11

Snapper Pro 5102833X1

GROMMET

Note: (SV)(Grommet for fuel tank 5102833)

$10.99

$

Usually ships in 2-12 days

0
