Scag SW36A-14FS - Scag 36" Walk-Behind Mower, 14hp Kawasaki (SN: N4200001 - N4299999) 32'' & 36A CUTTER DECKS Parts Lookup with Diagrams

1

Scag 461847

Cutter Deck w/Decals

$1211.99

$

Usually ships in 2-12 days

2

Scag 461663

Cutter Spindle Assembly

$263.99

$

In Stock, Qty 20+

3

Scag 43312

Spacer, Outside, Cutter Spindle

$19.99

$

In Stock, only 1 left!

5

Scag 481022

Tapered Bearing Set (Two Bearings W/Race)

$61.99

$

In Stock, Qty 11

6

Scag 43644

Housing, Spindle

$60.99

$

Usually ships in 2-12 days

7

Scag 04001-154

Bolt, 5/16-18 x 4-3/4" Hex Head

$2.99

$

In Stock, Qty 13

8

Scag 43589

Spindle Shaft, Tapered Brng

$59.99

$

In Stock, Qty 7

9

Scag 04001-51

Capscrew, Hex Head 3/8-16 x 3-3/4"

$1.49

$

In Stock, Qty 20+

10

Scag 04063-08

Key, 1/4 x 1/4 x 2.0"

$1.49

$

In Stock, Qty 20+

11

Scag 43592

Spacer, Cutter Blade - Small

$4.49

$

In Stock, Qty 20+

12

Scag 04001-175

Bolt, Hex Head 5/16-18 x 1-1/2" Grade 8

$0.99

$

In Stock, Qty 12

13

Scag 482245

Spring, Discharge Chute

$11.99

$

In Stock, Qty 6

14

Scag 04019-03

Nut, Serrated Flange 5/16-18 (Right Front Engine Mounting, Briggs and Kohler Only)

$0.99

$

In Stock, Qty 16

15

Scag 481707

Cutter Blade 18" (marbane)

$23.99

$

In Stock, Qty 20+

15A

Scag 481711

Cutter Blade 18" Hi Lift (marbane)

$41.99

$

In Stock, only 3 left!

16

Scag 04043-06

Flatwasher, 5/8-.688 x 1-3/4 x .134 HD

$1.99

$

In Stock, Qty 20+

17

Scag 04001-41

BOLT, HEX HEAD, 5/8-11 X 9-1/2 GR.5

$15.99

$

In Stock, Qty 20+

18

Scag 461023

Caster Assembly

$427.99

$

Usually ships in 2-12 days

19

Scag 04017-16

Capscrew, 5/16-18 x .75 Serrated Flange Hex Head

$0.99

$

In Stock, Qty 10

20A

Scag 461356

Discharge Chute Assembly

(Superseded to 461295) 

$70.99

$

In Stock, only 2 left!

20A

Scag 462469

Discharge Chute Assy. (CA)

$152.99

$

In Stock, only 2 left!

20A

Scag 425872

Turbo Baffle

$66.99

$

In Stock, only 2 left!

21

Scag 04021-10

HEX NUT, ELASTIC STOP LOCK, 5/16-18

$0.99

$

In Stock, Qty 20+

22

Scag 04001-09

Bolt, Heax Head 5/16-18 x 1" (48V / 52V)

$0.99

$

In Stock, Qty 16

23A

Scag 462393

Belt Cover Assy (Incl. Decal)

$156.99

$

Usually ships in 2-12 days

24

Scag 04043-04

Flatwasher, 3/8 (.391 x .938 x .105 HD) Grade 8

$0.99

$

In Stock, Qty 20+

25

Scag 04029-03

WINGNUT, PLASTIC 3/8-16 X .875

$2.49

$

In Stock, Qty 20+

26

Scag 482744

Pulley, 5.75 O.D. (Gasoline Engines)

$30.99

$

In Stock, Qty 8

27

Scag 48926

Hub, Tapered 1-1/8" Bore

$31.99

$

In Stock, Qty 19

28

Scag 04001-172

Bolt, Hex Head 1/4-20 x 1" Grade 8 Black

$0.99

$

In Stock, Qty 20+

29

Scag 04020-09

Hex Locknut, Elastic Stop, 3/8-16

$0.99

$

In Stock, Qty 20+

30A

Scag 48204

BELT CUTTER DK SM36

$41.99

$

In Stock, Qty 6

31

Scag 04021-22

Lock Nut, 5/16-18 Elastic Stop Grade 8

$0.99

$

In Stock, Qty 20+

32

Scag 04021-05

Bolt, Hex Head 3/8-16 x 1" Ser. Flg.

$0.99

$

In Stock, Qty 20+

33

Scag 04019-04

NUT, 3/8-16 SERRATED FLANGE HEX HEAD

$0.99

$

In Stock, Qty 20+

34

Scag 04004-02

Bolt, 5/16-18 x 1" Hex Head

$1.99

$

Usually ships in 2-12 days

35

Scag 04017-37

Serr. Fl. Hex Head Capscrew, 1/2-13 x 1-3/4

$2.49

$

In Stock, only 4 left!

36

Scag 04117-04

Nut, Elastic Stop 1/2-13, (STT-52 & STTII-52)

$1.49

$

In Stock, Qty 8

37

Scag 43277

SPACER, J-PULL ROD

$6.49

$

Usually ships in 2-12 days

38

Scag 04041-12

Flatwasher, 3/8 (.375 x 1-1/2" x 16 ga.)

$0.99

$

In Stock, Qty 11

39

Scag 04021-09

HEX NUT, ELASTIC STOP LOCK, 3/8-16

$0.99

$

In Stock, Qty 20+

40

Scag 43681

Pivot, Idler - Short

$24.99

$

Usually ships in 2-12 days

41

Scag 461841

Idler Arm Assy.

$82.99

$

Usually ships in 2-12 days

42

Scag 48224

BEARINGS, BALL, NEUTRAL RETURN

$13.99

$

In Stock, Qty 20+

43

Scag 04001-62

Capscrew, Hex Head 3/8-16 x 3.25"

$1.49

$

In Stock, Qty 20+

44

Scag 44078

J-Hook, Idler Pulley

$6.99

$

In Stock, only 2 left!

45

Scag 483215

Idler Pulley, Belt Clutch

$62.99

$

In Stock, Qty 20+

46

Scag 481024

SEAL, 2.00 O.D. X 1.50 BORE

$4.99

$

In Stock, Qty 20+

47

Scag 43297

SPINDLE BUSHING, BOTTOM

$9.99

$

In Stock, only 2 left!

48

Scag 43296

SLEEVE, CUTTER SPINDLE

$8.49

$

In Stock, only 3 left!

49

Scag 481035

Nut , Spec ial 1 -1/ 1 6 - 1 8

$7.99

$

In Stock, Qty 9

50

Scag 48677

RELIEF FITTING, TAPERED BEARING SPINDLE

$9.49

$

In Stock, only 1 left!

51

Scag 481025

Seal, 2.00" O.D. x 1.625" Bore

$4.99

$

In Stock, Qty 20+

52

Scag 484368

Cap, Spindle (not shown) 61" Only

$5.49

$

In Stock, Qty 12

53

Scag 04029-04

Wing Nut, 3/8-16 (Small) Top side

$2.99

$

In Stock, Qty 7

54

Scag 48114-04

GREASE FITTING, STR. 1/4-28 SELF TAP.

$1.49

$

In Stock, Qty 20+

55

Scag 04021-09

HEX NUT, ELASTIC STOP LOCK, 3/8-16

$0.99

$

In Stock, Qty 20+

56

Scag 04030-03

Lockwasher, 5/16 (.317 x .586 x .078) Helical Spring

$0.99

$

In Stock, Qty 20+

57

Scag 04003-23

Carriage Bolt, 3/8-16 x 1.0"

$1.49

$

In Stock, Qty 20+

58

Scag 423783

Baffle, Flange - 36A

$77.99

$

Usually ships in 2-12 days

59

Scag 483174

Pad, Deck Wear

$34.99

$

In Stock, only 2 left!

60

Scag 04003-12

Bolt, 5/16-18 x .75 RHSN Carriage

$0.99

$

In Stock, Qty 15

61

Scag 04040-04

Flatwasher, 5/16-.344 x .688 x .065 (48V / 52V)

$0.99

$

In Stock, Qty 20+

62

Scag 04021-04

Nut, Center Lock, 5/16-18(32)

$0.99

$

In Stock, Qty 20+

63

Scag 424367

Quick Pin, 5/16" Dia.

$2.49

$

In Stock, Qty 8

64

Scag 424661

Heatshield, 16" Small Frame

$17.99

$

Usually ships in 2-12 days

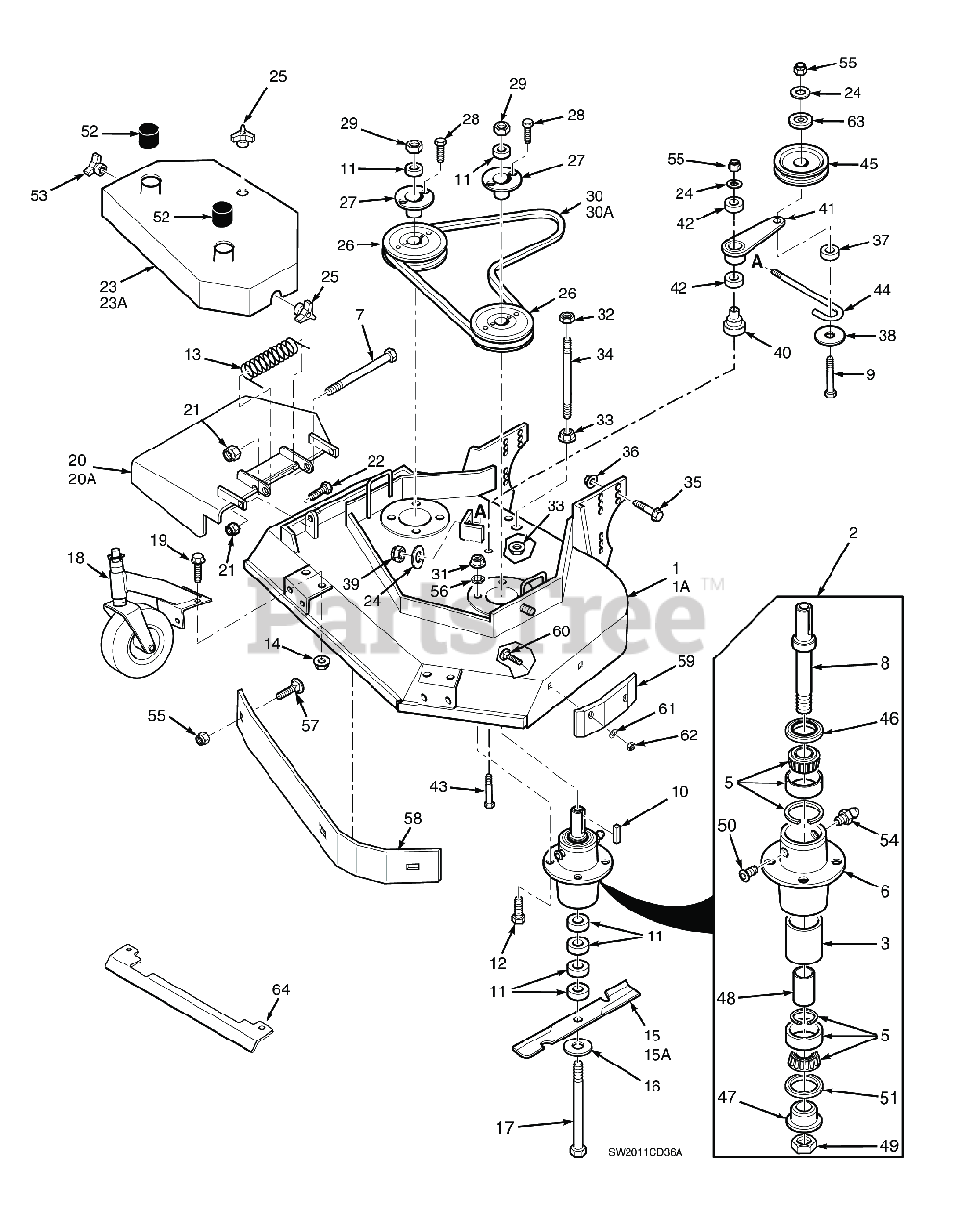

SW36A-14FS - Scag 36" Walk-Behind Mower, 14hp Kawasaki (SN: N4200001 - N4299999) 32'' & 36A CUTTER DECKS Parts Diagram

32'' & 36A CUTTER DECKS Parts Diagram
