SWM-61A - Scag Walk-Behind 61" Mower Deck (SN: A3500001 - A3599999) Cutter Decks 61A Parts Diagram

Walk-Behind 61" Mower Deck

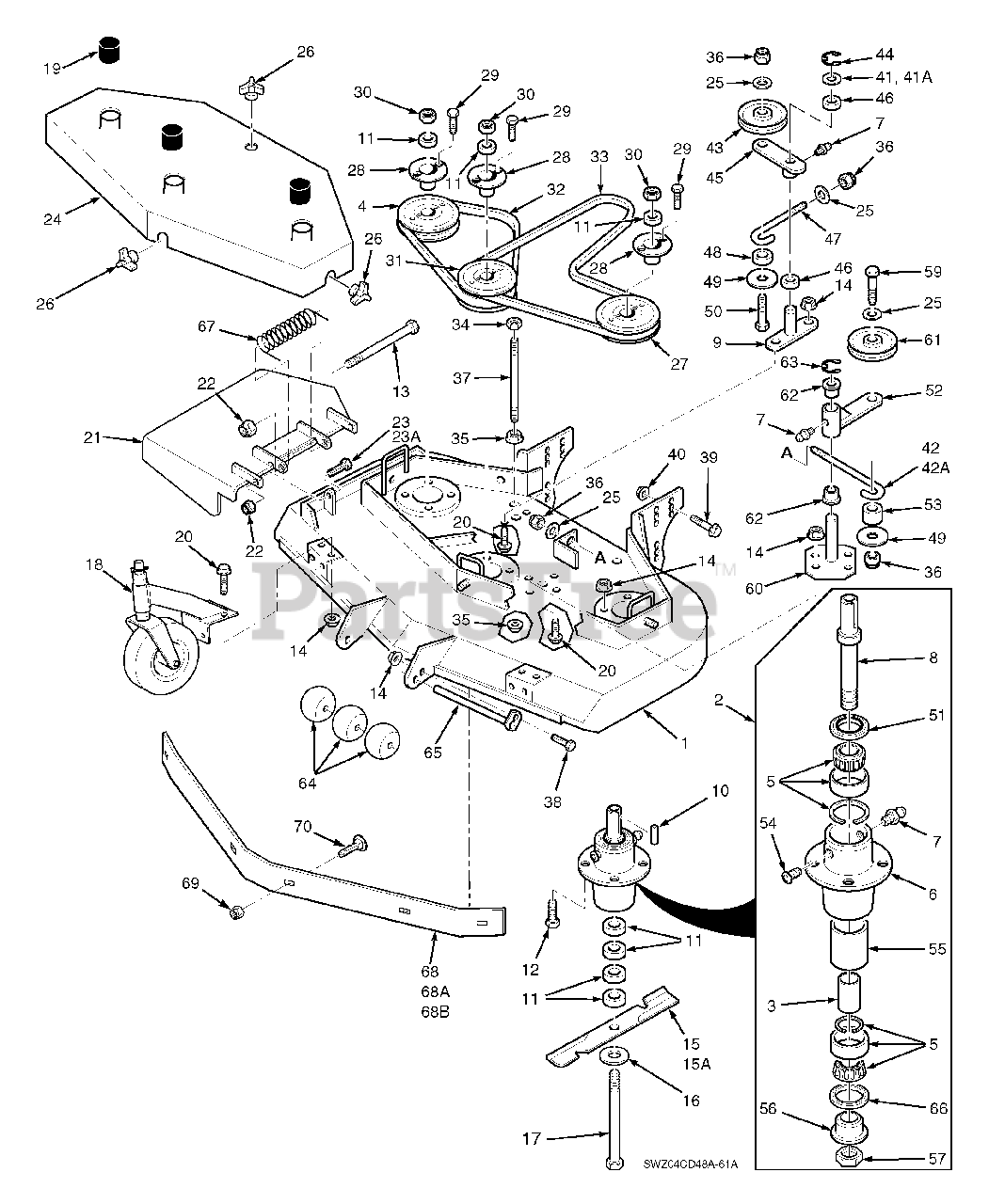

Cutter Decks 61A Parts Diagram

  • Title

1

Cutter Deck

Note: (Inc. Decals); NOT USED

$

$

Not available

1

Cutter Deck

Note: (Inc. Decals); NOT USED

$

$

Not available

1

Cutter Deck

Note: (Inc. Decals); NOT USED

$

$

Not available

1

Scag 461653

Cutter Deck

Note: (Inc. Decals)

$1830.99

$

Usually ships in 2-12 days

0

2

Scag 461663

Spindle Assembly

$263.99

$

In Stock, Qty 20+

0

3

Scag 43296

Spacer, Inside

$8.49

$

In Stock, only 3 left!

0

4

Scag 482744

Pulley

$30.99

$

In Stock, Qty 8

0

5

Scag 481022

Tapered Bearing (Two)

$61.99

$

In Stock, Qty 11

0

6

Scag 43644

Spindle Housing

$60.99

$

Usually ships in 2-12 days

0

7

Scag 48114-04

Grease Fitting Str. 5/16

$1.49

$

In Stock, Qty 20+

0

8

Scag 43589

Spindle Shaft, Tapered Brng

$59.99

$

In Stock, Qty 7

0

9

Scag 45037

Idler Pivot

$31.99

$

Usually ships in 2-12 days

0

10

Scag 04063-08

Key, 1/4 x 1/4 x 2"

$1.49

$

In Stock, Qty 20+

0

11

Scag 43592

Spacer, Cutter Blade - Small

$4.49

$

In Stock, Qty 20+

0

12

Scag 04001-175

Bolt, 5/16-18 x 1-1/2" Hex Head Gr 8

$0.99

$

In Stock, Qty 12

0

13

Scag 04001-154

Bolt, 5/16-18 x 4-3/4" Hex Head

$2.99

$

In Stock, Qty 13

0

14

Scag 04019-03

Serrated Flange Nut, 5/16-18

$0.99

$

In Stock, Qty 16

0

15

Cutter Blade 16-1/2"

Note: NOT USED

$

$

Not available

Cutter Blade 18"

Note: NOT USED

$

$

Not available

Scag 481708

Cutter Blade 21"

$27.99

$

In Stock, Qty 20+

0

15A

Cutter Blade 16-1/2" Hi Lift

Note: NOT USED

$

$

Not available

Cutter Blade 18" Hi Lift

Note: NOT USED

$

$

Not available

Scag 481712

Cutter Blade 21" Hi Lift

$53.99

$

Usually ships in 2-12 days

0

16

Scag 04043-06

Flatwasher,5/8" (.688 x 1.75 x .134)

$1.99

$

In Stock, Qty 20+

0

17

Scag 04001-41

Hex Head Bolt, 5/8-11 x 9-1/2"

$15.99

$

In Stock, Qty 20+

0

18

Scag 46079

Caster Assembly

Note: (See "Handle Assembly Large Frame (20")"

$405.99

$

Usually ships in 2-12 days

0

19

Scag 48098

Spindle Shield

$2.49

$

In Stock, Qty 14

0

20

Scag 04017-16

Capscrew, 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 10

0

21

Scag 461296

Discharge Chute

$70.99

$

In Stock, Qty 5

0

Discharge Chute

Note: NOT USED

$

$

Not available

22

Scag 04021-10

Nut, 5/16-18 Elastic Elastic Stop

$0.99

$

In Stock, Qty 20+

0

23

Scag 04001-11

Bolt, 5/16-18 x 1-1/2" Hex Head(front)

$0.99

$

In Stock, Qty 15

0

23A

Scag 04001-12

Bolt, 5/16-18 x 1-3/4" Hex Head(rear)

$0.99

$

In Stock, Qty 20+

0

24

Belt Cover

Note: (Includes decals); NOT USED

$

$

Not available

24

Belt Cover

Note: (Includes decals); NOT USED

$

$

Not available

24

Belt Cover

Note: (Includes decals); NOT USED

$

$

Not available

24

Scag 461583

Belt Cover
(Superseded to 491879)

Note: (Includes decals)

$434.99

$

Usually ships in 2-12 days

0

25

Scag 04043-04

Flat Washer, 3/8" Special

$0.99

$

In Stock, Qty 20+

0

26

Scag 04029-03

Wing Nut, 3/8-16 (Large)

$2.49

$

In Stock, Qty 20+

0

27

Pulley

Note: NOT USED

$

$

Not available

Scag 482745

Pulley

$31.99

$

In Stock, Qty 10

0

28

Scag 48926

Tapered Hub

$31.99

$

In Stock, Qty 19

0

29

Scag 04001-172

Bolt, 1/4-20 x 1" Hex Head

$0.99

$

In Stock, Qty 20+

0

30

Scag 04020-09

Nut, 5/8-11 Hex

$0.99

$

In Stock, Qty 20+

0

31

Pulley, Double

Note: NOT USED

$

$

Not available

Scag 48940

Pulley, Double

$188.99

$

Usually ships in 2-12 days

0

32

Belt, RH Blade Drive

Note: NOT USED

$

$

Not available

Belt, RH Blade Drive

Note: NOT USED

$

$

Not available

Scag 48265

Belt, RH Blade Drive

$41.99

$

Usually ships in 2-12 days

0

33

Belt, Blade Drive

Note: NOT USED

$

$

Not available

Belt, Blade Drive

Note: NOT USED

$

$

Not available

Scag 48088

Belt, Blade Drive

$75.99

$

Usually ships in 2-12 days

0

34

Scag 04021-05

Nut, 3/8-16, Nut Centerlock

$0.99

$

In Stock, Qty 20+

0

35

Scag 04019-04

Nut, 3/8-16, Serrated Flange

$0.99

$

In Stock, Qty 20+

0

36

Scag 04021-09

Nut, 3/8-16 Elastic Stop

$0.99

$

In Stock, Qty 20+

0

37

Scag 04004-02

Support, Belt Cover

$1.99

$

Usually ships in 2-12 days

0

38

Scag 04001-09

Bolt, 5/16-18 x 1" Hex Head

$0.99

$

In Stock, Qty 16

0

39

Scag 04017-36

Cpscrw,1/2-13 x 1" Ser Flng Hex Hd

$2.99

$

In Stock, only 2 left!

0

40

Scag 04112-05

Nut, 1/2-13 Spiralock

$2.99

$

Usually ships in 2-12 days

0

41

Scag 04041-08

Flat Washer 3/4" Special

$0.99

$

In Stock, Qty 20+

0

41A

Scag 04041-08S

Flat Washer 3/4" Special

$0.99

$

In Stock, Qty 20+

0

42

Scag 44078

J-Hook

$6.99

$

In Stock, only 2 left!

0

42A

J-Hook

Note: NOT USED

$

$

Not available

43

Scag 48181

Idler Pulley, "V" Groove

$26.99

$

In Stock, Qty 14

0

44

Scag 04050-02

Retaining Ring, 3/4" Ext."E"

$0.99

$

In Stock, Qty 10

0

45

Scag 46081

Idler Arm Assy.

Note: (Incl. 7 & 46)

$47.99

$

Usually ships in 2-12 days

0

46

Scag 48100-05

Bronze Bearing

$0.99

$

In Stock, Qty 18

0

47

Scag 43028

J-Rod, Idler Pulley

$4.99

$

In Stock, only 2 left!

0

48

Scag 43077

Spacer, J-Rod

$4.99

$

In Stock, only 1 left!

0

49

Scag 04041-12

Washer, 3/8 x 1-1/2 x 16 ga.

$0.99

$

In Stock, Qty 11

0

50

Scag 04001-46

Bolt, 3/8-16 x 2-1/4" Hex Head

$0.99

$

In Stock, Qty 20+

0

51

Scag 481024

Seal, Cutter Spindle

$4.99

$

In Stock, Qty 20+

0

52

Scag 46748

Idler Arm Assy

Note: (Includes 62 & 7)

$100.99

$

Usually ships in 2-12 days

0

53

Scag 43277

Spacer, J-Rod

$6.49

$

Usually ships in 2-12 days

0

54

Scag 48677

Relief Fitting, Cutter Spindle

$9.49

$

In Stock, only 1 left!

0

55

Scag 43312

Spacer, Outside, Cutter Spindle

$19.99

$

In Stock, only 1 left!

0

56

Scag 43297

Spindle Bushing

$9.99

$

In Stock, only 2 left!

0

57

Scag 481035

Nut, Cutter Spindle

$7.99

$

In Stock, Qty 9

0

58

Scag 04029-04

Wing Nut, 3/8-16

$2.99

$

In Stock, Qty 7

0

59

Scag 04001-77

Bolt, 3/8-16 x 3-1/2" Hex Head

$1.49

$

In Stock, Qty 13

0

60

Scag 45329

Idler Pivot

$40.99

$

Usually ships in 2-12 days

0

61

Scag 482416

Idler Pulley, Belt Clutch
(Superseded to 483215)

$62.99

$

In Stock, Qty 20+

0

62

Scag 48100-02

Bronze Bearing

$3.99

$

Usually ships in 2-12 days

0

63

Scag 04050-05

Retaining Ring

$0.99

$

In Stock, Qty 20+

0

64

Scag 482295

Guide Roller

$9.99

$

In Stock, Qty 20+

0

65

Scag 45944

Roller Shaft

$22.99

$

In Stock, Qty 16

0

66

Scag 481025

Seal, Cutter Spindle

$4.99

$

In Stock, Qty 20+

0

67

Scag 482245

Spring, Chute Return

$11.99

$

In Stock, Qty 6

0

68

Baffle Weldment 48A

Note: NOT USED

$

$

Not available

68A

Baffle Weldment 52A

Note: NOT USED

$

$

Not available

68B

Scag 423792

Baffle Weldment 61A

$112.99

$

Usually ships in 2-12 days

0

69

Scag 04021-09

Nut, Hex Elastic Stop 3/8-16

$0.99

$

In Stock, Qty 20+

0

70

Scag 04003-23

Bolt, Carriage 3/8-16 x 1"

$1.49

$

In Stock, Qty 20+

0
