SWU36A-15KA - Scag Ultimate 36" Walk-Behind Mower, 15hp Kawasaki (SN: 6190001 - 6199999) Engine Deck Parts Diagram

Ultimate 36" Walk-Behind Mower, 15hp Kawasaki

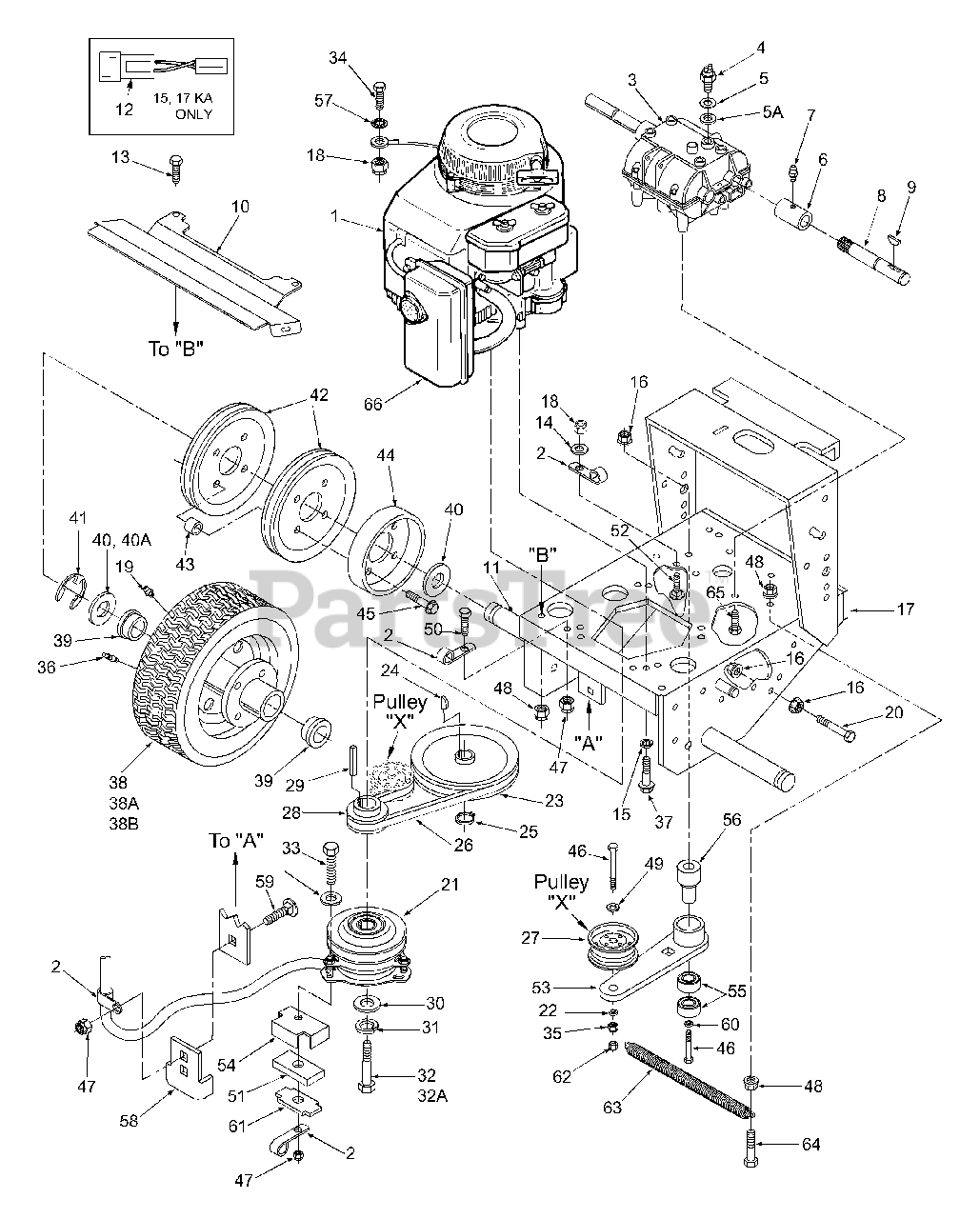

Engine Deck Parts Diagram

  • Title

1

Scag 482144

Engine,15HP Kawasaki (FH451V - AS02)

$

$

Currently unavailable

1

Scag 481563

Engine, 17HP Kawasaki (FH500V)

$

$

Currently unavailable

2

Scag 48030-09

Cable Clamp

$1.49

$

In Stock, only 4 left!

0

3

Scag 481580

Transmission, 5-speed (Peerless 700-070, 9 spline)

$800.99

$

Usually ships in 2-12 days

0

4

Scag 48231

Neutral Safety Switch

$39.99

$

In Stock, only 1 left!

0

5

Scag 48122-01

Fibre Washer, thin

$0.99

$

Usually ships in 2-12 days

0

5A

Scag 48122-02

Fibre Washer, thick

$0.99

$

Usually ships in 2-12 days

0

6

Scag 481581

Coupler, Jackshaft

$41.99

$

In Stock, only 2 left!

0

7

Scag 48114-05

Grease Fitting, straight 1/4-28

$1.49

$

In Stock, Qty 10

0

8

Scag 481582

Jackshaft

Note: (Fits SW32,36 & 48)

$42.99

$

In Stock, only 2 left!

0

9

Scag 04063-09

Key, Hi-Pro #9

$1.49

$

In Stock, Qty 9

0

10

Scag 422737

Heat Shield, 36" & 48"
(Superseded to 423476)

$76.99

$

Usually ships in 2-12 days

0

10

Scag 422883

Heat Shield, 52"

$

$

Not available

11

Scag 43085

Wheel Axle (SW36,48)

$53.99

$

Usually ships in 2-12 days

0

12

Scag 481717

Wire Harness Adaptor, 17KA

$13.99

$

Usually ships in 2-12 days

0

13

Scag 04017-16

Bolt, 5/16-18 X .75" Serrated Flange Hex Head

$0.99

$

In Stock, Qty 10

0

14

Scag 04040-14

Flat Washer 1/4" (.312 X .75 X .065)

$0.99

$

In Stock, Qty 7

0

15

Scag 04030-03

Lock Wshr. 5/16"

$0.99

$

In Stock, Qty 20+

0

16

Scag 04019-04

Nut, 3/8-16 Serrated Flange

$0.99

$

In Stock, Qty 20+

0

17

Scag 46765

Engine Deck
(Superseded to 461743)

$449.99

$

Usually ships in 2-12 days

0

18

Scag 04021-08

Nut, 1/4-20 Elastic Stop

$0.99

$

In Stock, Qty 10

0

19

Scag 48114-04

Grease Fitting, 1/4-28 Self Tap

$1.49

$

In Stock, Qty 20+

0

20

Scag 04001-51

Bolt, 3/8-16 x 3-3/4" Hex Head

$1.49

$

In Stock, Qty 20+

0

21

Scag 461073

Electric Clutch (Ogura)
(Superseded to 461397)

$332.99

$

Usually ships in 2-12 days

0

22

Scag 04041-07

Washer, 3/8" (.391 x .938 x .105)

$0.99

$

In Stock, Qty 18

0

23

Scag 48197

Pulley, Transmission Input

$36.99

$

Usually ships in 2-12 days

0

24

Scag 04063-07

Key, Woodruff #9

$0.99

$

In Stock, Qty 15

0

25

Scag 04050-09

Retaining Ring, 5/8" Ext, Basic

$0.99

$

In Stock, Qty 20+

0

26

Scag 48203

Belt, Transmission Drive

$28.99

$

In Stock, Qty 12

0

27

Scag 481048

Idler Pulley, Transmission
(Superseded to 483208)

$34.99

$

In Stock, Qty 10

0

28

Scag 481666

Pulley, Traction Drive

$53.99

$

Usually ships in 2-12 days

0

29

Scag 04063-19

Key, 1/4 x 1/4 x 3/4"

$0.99

$

In Stock, only 3 left!

0

30

Scag 04041-28

Flat Washer, 7/16" Special

$2.99

$

In Stock, Qty 10

0

31

Scag 04030-05

Lock Washer,7/16"

$0.99

$

In Stock, Qty 14

0

32

Scag 04001-101

Bolt, 7/16-20 x 2-1/2" Hex Head (Kohler Only)

$2.49

$

In Stock, Qty 5

0

32A

Scag 04002-15

Cpsrw, M10-1.5 x 55 Metric Hex Hd (Kawasaki)

$

$

Currently unavailable

33

Scag 04001-12

Bolt, 5/16-18 x 1-3/4" Hex Head

$0.99

$

In Stock, Qty 20+

0

34

Scag 04002-07

Bolt, M8-1.25 x 1.0

$0.99

$

In Stock, Qty 12

0

35

Scag 04021-09

Nut, 3/8-16 Elastic Stop

$0.99

$

In Stock, Qty 20+

0

36

Valve Stem

Note: Purchase Locally

$

$

Not available

37

Scag 04018-01

Bolt, M8-1.25 x M25 Metric Hex Hd

$

$

Not available

38

Scag 481841

Wheel Assembly

Note: (Incl. 38A-38B)

$181.99

$

Usually ships in 2-12 days

0

38A

Scag 481842

Tire, 15 x 6.0-6, Turf Saver

$100.99

$

Usually ships in 2-12 days

0

38B

Scag 481859

Rim & Bearing Assembly

Note: (Incl. 39)

$344.99

$

Usually ships in 2-12 days

0

39

Scag 481858

Wheel Brng. NWC (OD 1.984 - 1.980)

$26.99

$

Usually ships in 2-12 days

0

40

Scag 04042-05

Washer, 1-1/16 x 1-3/4 x 12 ga

$0.99

$

In Stock, Qty 20+

0

40A

Scag 04041-14

Washer, 1-1/16 x 1-1/2 x 18 ga

$0.99

$

In Stock, Qty 18

0

41

Scag 04050-08

Retaining Ring, 1" Ext.- "E"

$0.99

$

In Stock, Qty 20+

0

42

Scag 48200

Pulley, Wheel Drive

$34.99

$

In Stock, only 3 left!

0

43

Scag 43088

Spacer, Wheel Pulley

$15.99

$

In Stock, only 1 left!

0

44

Scag 48209

Brake Drum

$19.99

$

Usually ships in 2-12 days

0

45

Scag 04017-19

Bolt, 5/16-18 x 1-1/2" Serrated Flange

$1.49

$

Usually ships in 2-12 days

0

46

Scag 04001-22

Capscrew, Hex Head 3/8-16 x 2.75"

$1.49

$

In Stock, Qty 11

0

47

Scag 04021-10

Nut, 5/16-18 Elastic Stop

$0.99

$

In Stock, Qty 20+

0

48

Scag 04019-03

Nut, 5/16-18 Serrated Flange Hex Head

$0.99

$

In Stock, Qty 20+

0

49

Scag 04041-07

Flatwasher, 3/8 (.391 x .938 x .105)

$0.99

$

In Stock, Qty 18

0

50

Scag 04001-08

Bolt, 5/16-18 x .75" Hex Head

$0.99

$

In Stock, Qty 20+

0

51

Scag 481716

Rubber Pad, Clutch Stop

$11.99

$

In Stock, only 2 left!

0

52

Scag 04003-02

Bolt, 1/4-20 x .75" Carriage

$0.99

$

In Stock, Qty 20+

0

53

Scag 461169

Idler Arm, Trans. Drive

$127.99

$

Usually ships in 2-12 days

0

54

Scag 422533

Backing Plate

$14.99

$

Usually ships in 2-12 days

0

55

Scag 48224

Ball Bearing

$13.99

$

In Stock, Qty 20+

0

56

Scag 43504

Hub Idler Pivot

$28.99

$

In Stock, only 1 left!

0

57

Scag 04031-09

Lock Washer Internal Tooth

$0.99

$

In Stock, Qty 8

0

58

Scag 421370

Anti Rotation Bracket

$22.99

$

Usually ships in 2-12 days

0

59

Scag 04003-04

Bolt, 5/16-18 x 1" Carriage

$0.99

$

In Stock, only 2 left!

0

60

Scag 04043-04

Flatwasher, 3/8 (.391 x .938 x .105 HD) Grade 8

$0.99

$

In Stock, Qty 20+

0

61

Scag 422534

Plate, Backing

$5.49

$

In Stock, only 1 left!

0

62

Scag 04021-05

Nut, 3/8-16 Elastic Stop

$0.99

$

In Stock, Qty 20+

0

63

Scag 481835

Spring, Return Drive Idler
(Superseded to 483526)

$25.99

$

In Stock, Qty 16

0

64

Scag 04001-02

Bolt, Hex Head 3/8-16 x 2.75"

$0.99

$

Usually ships in 2-12 days

0

65

Scag 04017-16

Capscrew, 5/16-18 x .75 Serrated Flange Hex Head

$0.99

$

In Stock, Qty 10

0

66

Scag 12-068-64

Muffler, Kohler

Note: (Purchase from Kohler Only)

$

$

Currently unavailable

66

Scag 49070-7002

17KA Muffler

Note: (Purchase from Kawasaki Only)

$

$

Currently unavailable
