SWU48-17KA - Scag Ultimate 48" Walk-Behind Mower, 17hp Kawasaki (SN: 4760001 - 4769999) Instrument Panel Parts Diagram

Ultimate 48" Walk-Behind Mower, 17hp Kawasaki

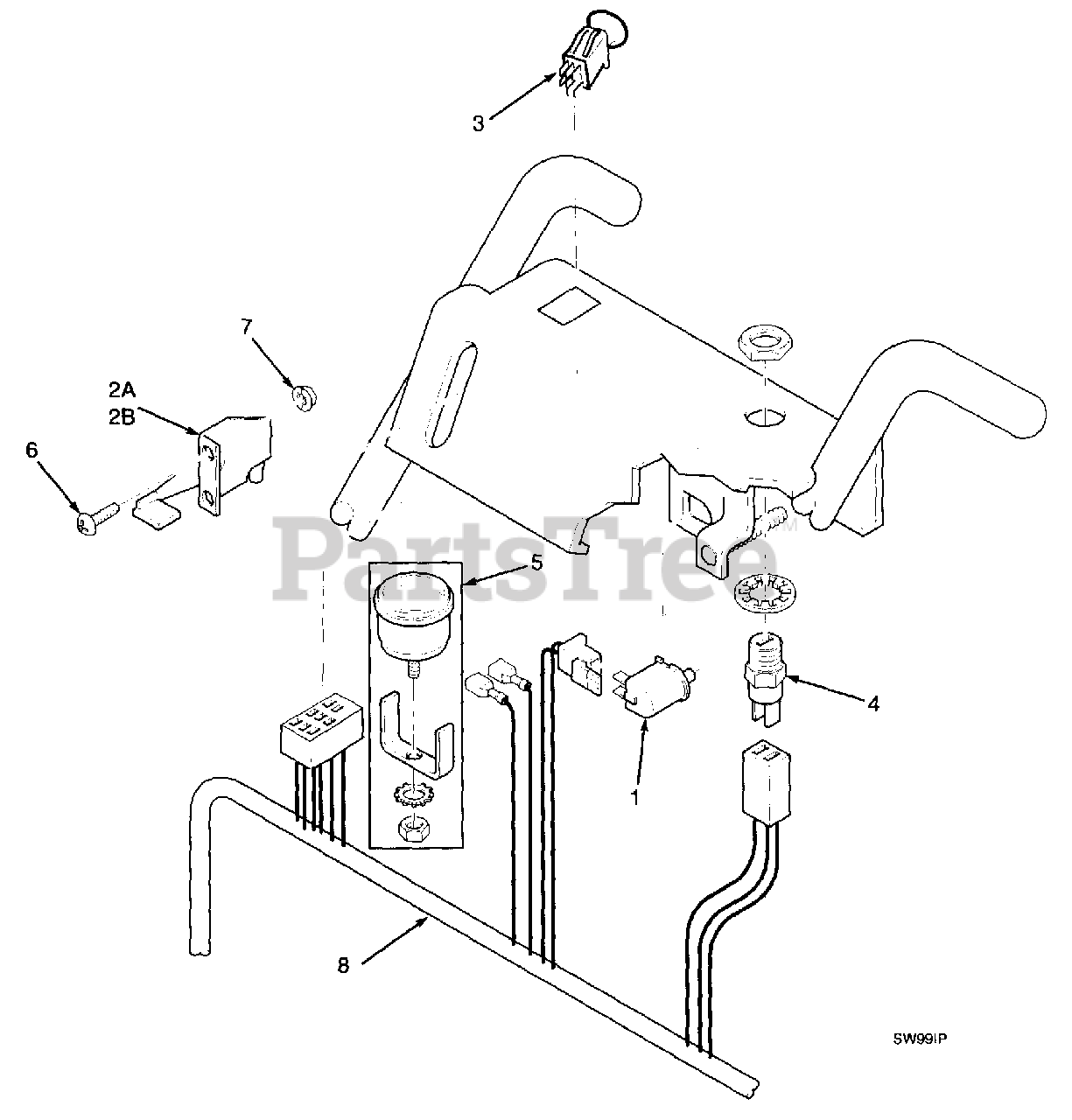

Instrument Panel Parts Diagram

  • Title

1

Scag 48717

Switch, Neutral Interlock

$10.99

$

Usually ships in 2-12 days

0

2A

Throttle Control (15kh)

Note: (Not used on this Model)

$

$

Not available

2B

Scag 48946

Throttle Control (17KA)

$32.99

$

In Stock, Qty 16

0

3

Scag 481687

Engagement Switch, Electric Clutch
(Superseded to 483957)

$46.99

$

In Stock, Qty 20+

0

4

Scag 48609

Key Switch

Note: (Includes hardware)

$13.99

$

In Stock, Qty 7

0

5

Scag 48023

Hour Meter

Note: (Dealer Installed)

$195.99

$

In Stock, only 1 left!

0

6

Screw, #10-32 x .50 Phillips Washer Head

Note: (Common hardware which should be purchased locally. All bolts grade 5 plated, all other fasteners zinc plated.)

$

$

Not available

7

Scag 04019-01

Nut, #10-32 Serrated Flange Hex Head

$0.99

$

Usually ships in 2-12 days

0

8

Scag 481678

Handle Wire Harness, Manual Start
(Superseded to 482711)

$105.99

$

In Stock, only 3 left!

0

Scag 48030-09

Clamp, Wire Harness

Note: (Not Shown)

$1.49

$

Usually ships in 2-12 days

0
