SWZ-20CVE - Scag Walk-Behind Mower, 20hp Kohler (SN: 4110001 - 4119999) Engine Deck Parts Diagram

Walk-Behind Mower, 20hp Kohler

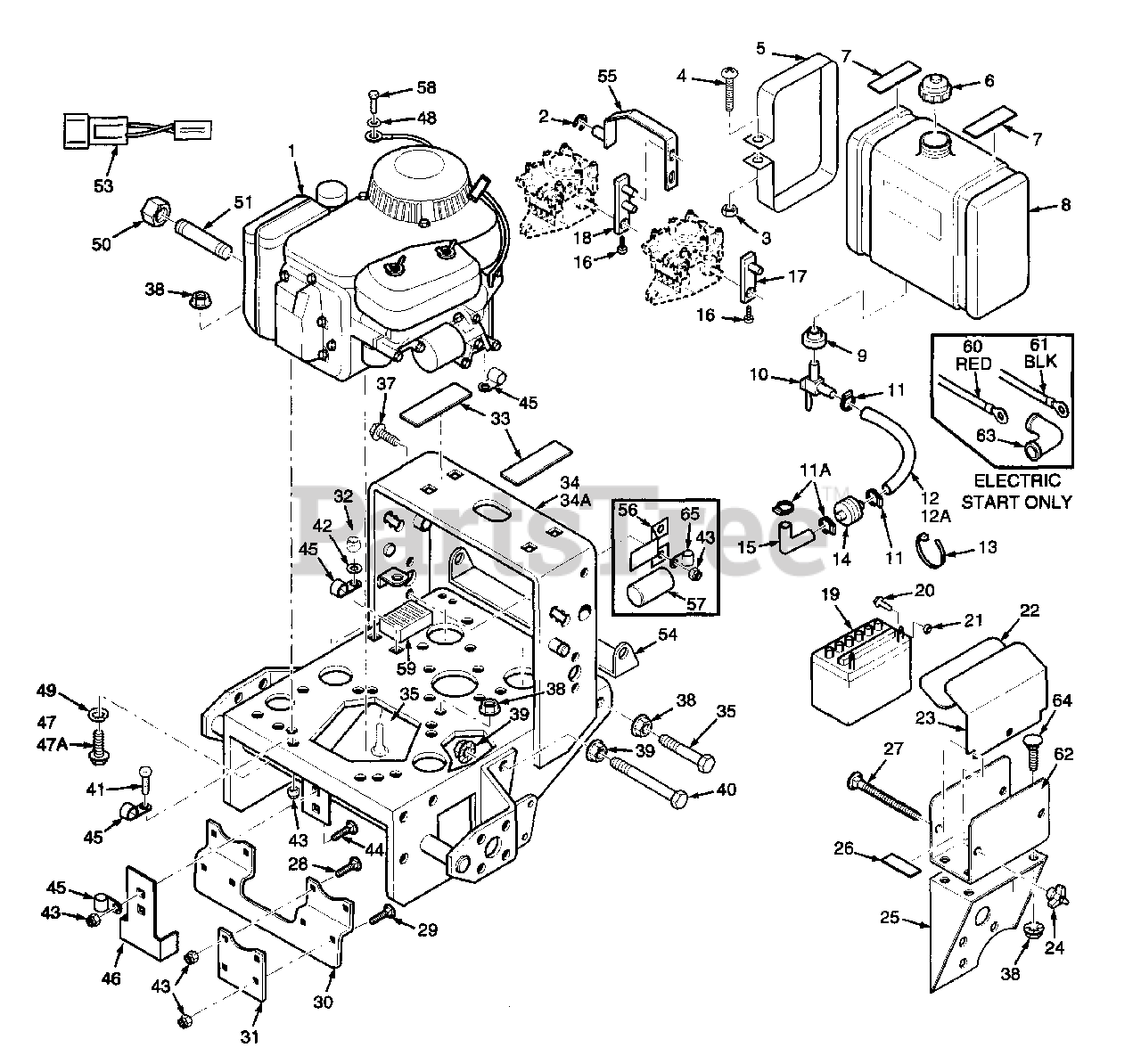

Engine Deck Parts Diagram

  • Title

1

Scag 48971

Engine 20CVE Kohler Command

$

$

Not available

2

Scag 04050-10

Retaining Ring, 1/2" Ext. "E"

$0.99

$

In Stock, Qty 6

0

3

Scag 04020-02

Hex Nut, 1/4-20

$0.99

$

In Stock, Qty 9

0

4

Scag 04010-10

Screw, 1/4-20 x 2" Rnd. Hd. Phil.

$0.99

$

In Stock, Qty 12

0

5

Scag 421239

Strap, Fuel Tank

$25.99

$

In Stock, Qty 5

0

6

Scag 481603

Cap, Fuel Tank
(Superseded to 483791)

$36.99

$

In Stock, only 1 left!

0

7

Scag 48292

Pad, Rubber - Fuel Tank - Upper

$3.99

$

Usually ships in 2-12 days

0

8

Scag 46846

Fuel Tank Assy.

Note: (Incl. 9, 10)

$248.99

$

Usually ships in 2-12 days

0

9

Scag 48309

Bushing
(Superseded to 482571)

$12.99

$

In Stock, Qty 20+

0

10

Scag 48308

Valve, Fuel Shut-off
(Superseded to 483747)

$30.99

$

In Stock, Qty 6

0

11

Clamp, Fuel Hose

Note: (Not used on this model.)

$

$

Not available

11A

Fuel Hose, 1/4 ID x 20" KA

Note: (Not used on this model.)

$

$

Not available

12

Fuel Hose, 1/4 ID x 23"

Note: (Not used on this model.)

$

$

Not available

12A

Scag 48058

Fuel Hose, 1/4 ID x 23"
(Superseded to 483617)

$0.99

$

In Stock, Qty 20+

0

13

Scag 48028-05

Cable Tie

$

$

Not available

14

Fuel Filter

Note: (Not used on this model.)

$

$

Not available

15

Fuel Hose, 7/32 ID x 3-1/2"

Note: (Not used on this model.)

$

$

Not available

16

Capscrew, #10-32 x 1 Soc. Hd.

Note: (Not used on this model.)

$

$

Not available

17

Scag 46323

Lever Assy., Pump Control - LH

$54.99

$

Usually ships in 2-12 days

0

18

Scag 46324

Lever Assy., Pump Control - RH

$54.99

$

Usually ships in 2-12 days

0

19

Scag 48015

Battery

$

$

Not available

20

Scag 04001-44

Bolt, 1/4-20 x .50"

$0.99

$

In Stock, Qty 10

0

21

Scag 04020-02

Nut, 1/4-20

$0.99

$

In Stock, Qty 9

0

22

Scag 48099

Pad

$5.99

$

Usually ships in 2-12 days

0

23

Scag 42392

Battery Cover

$47.99

$

Usually ships in 2-12 days

0

24

Scag 04029-01

Wing Nut, 1/4-20

$2.49

$

In Stock, only 4 left!

0

25

Scag 45685

Battery Support
(Superseded to 423356)

$131.99

$

In Stock, only 1 left!

0

26

Scag 48661

Pad, Rubber

$4.99

$

In Stock, only 2 left!

0

27

Scag 04003-01

Bolt, 1/4-20 x 6" Carriage
(Superseded to 04003-39)

$1.49

$

In Stock, Qty 11

0

28

Scag 04003-28

Carriage Bolt, 5/16-18 x 2"

$0.99

$

Usually ships in 2-12 days

0

29

Scag 04003-04

Carriage Bolt, 5/16-18 x 1"

$0.99

$

In Stock, only 4 left!

0

30

Scag 422553

Stiffener

$60.99

$

Usually ships in 2-12 days

0

31

Scag 422552

Plate, Backing

$18.99

$

Usually ships in 2-12 days

0

32

Scag 04021-08

Nut, 1/4-20 Elastic Stop

$0.99

$

In Stock, Qty 10

0

33

Scag 48205

Pad, Rubber - Fuel Tank, Lower

$4.49

$

Usually ships in 2-12 days

0

34

Engine Deck, 16" Wide, W/Decls.

Note: (Not used on this model.)

$

$

Not available

34A

Scag 46947

Engine Deck, 20" Wide, W/Decls.
(Superseded to 461750)

$643.99

$

Usually ships in 2-12 days

0

35

Scag 04003-09

Bolt,1/4-20 x 1-1/4" Hex Head

$0.99

$

In Stock, Qty 9

0

36

Scag 04019-02

Nut, 1/4-20 Serrated Flange

$0.99

$

In Stock, Qty 20+

0

37

Scag 04017-18

Capscr., 5/16-18 x 1.25 Sr. Flg.

$1.49

$

Usually ships in 2-12 days

0

38

Scag 04019-03

Nut, 5/16-18 Serr. Flange

$0.99

$

In Stock, Qty 16

0

39

Scag 04019-04

Nut, 3/8-16 Serr. Flange

$0.99

$

In Stock, Qty 20+

0

40

Scag 04001-22

Bolt, 3/8-16 x 2-3/4" Hex Head

$1.49

$

In Stock, Qty 11

0

41

Scag 04001-08

Hex Head Bolt, 5/16-18 x .75"

$0.99

$

In Stock, Qty 20+

0

42

Scag 04040-14

Flat Washer 1/4"

$0.99

$

In Stock, Qty 7

0

43

Scag 04021-10

Nut, 5/16-18 Elastic Stop

$0.99

$

In Stock, Qty 20+

0

44

Scag 04003-04

Carriage Bolt, 5/16-18 x 1"

$0.99

$

In Stock, only 4 left!

0

45

Scag 48030-09

Clamp

$1.49

$

In Stock, only 4 left!

0

46

Scag 421370

Clutch Bracket

$22.99

$

Usually ships in 2-12 days

0

47

Scag 04017-19

Capscr, 5/16-18 x 1.50" Sr. Flg.

$1.49

$

Usually ships in 2-12 days

0

47A

Metric HH Bolt, M8-1.25 x M30

Note: (Not used on this model.)

$

$

Not available

48

Scag 04031-09

Lock Washer, 5/16 Int. Tooth

$0.99

$

In Stock, Qty 8

0

49

Lock Washer, 5/16

Note: (Not used on this model.)

$

$

Not available

50

Scag 48257

Pipe Cap

$2.49

$

In Stock, only 1 left!

0

51

Scag 48402-04

Pipe, 4.75" Nipple

$10.99

$

Usually ships in 2-12 days

0

53

Wire Hrns. Adapter, 17KA

Note: (Not used on this model.)

$

$

Not available

54

Scag 45419

Pulley Guard, 20" Frame

$59.99

$

Usually ships in 2-12 days

0

55

Scag 45283

Shaft Weldment, RH Pump Cntl.

$48.99

$

Usually ships in 2-12 days

0

56

Bracket, Capacitor

Note: (Not used on this model.)

$

$

Not available

57

Condenser

Note: (Not used on this model.)

$

$

Not available

58

Metric H H Bolt, 8-1.25 x 10

Note: (Not used on this model.)

$

$

Not available

59

Regulator

Note: (Not used on this model.)

$

$

Not available

60

Scag 48029-02

Battery Cable, 31.5" Red

$16.99

$

Usually ships in 2-12 days

0

61

Scag 48029-14

Battery Cable, 31.5 Black

$16.99

$

Usually ships in 2-12 days

0

62

Scag 421703

Battery Box
(Superseded to 423308)

$54.99

$

Usually ships in 2-12 days

0

63

Scag 48126

Rubber Boot

$8.99

$

Usually ships in 2-12 days

0

64

Scag 04003-12

Carriage Bolt, 5/16-18 x .75

$0.99

$

In Stock, Qty 20+

0

65

Cable Clamp, .75 ID

Note: (Not used on this model.)

$

$

Not available
