SWZ48V-15FS - Scag 48" Walk-Behind Mower, 15hp Kawasaki (SN: N4600001 - N4699999) HYDRAULIC ASSEMBLY Parts Diagram

48" Walk-Behind Mower, 15hp Kawasaki

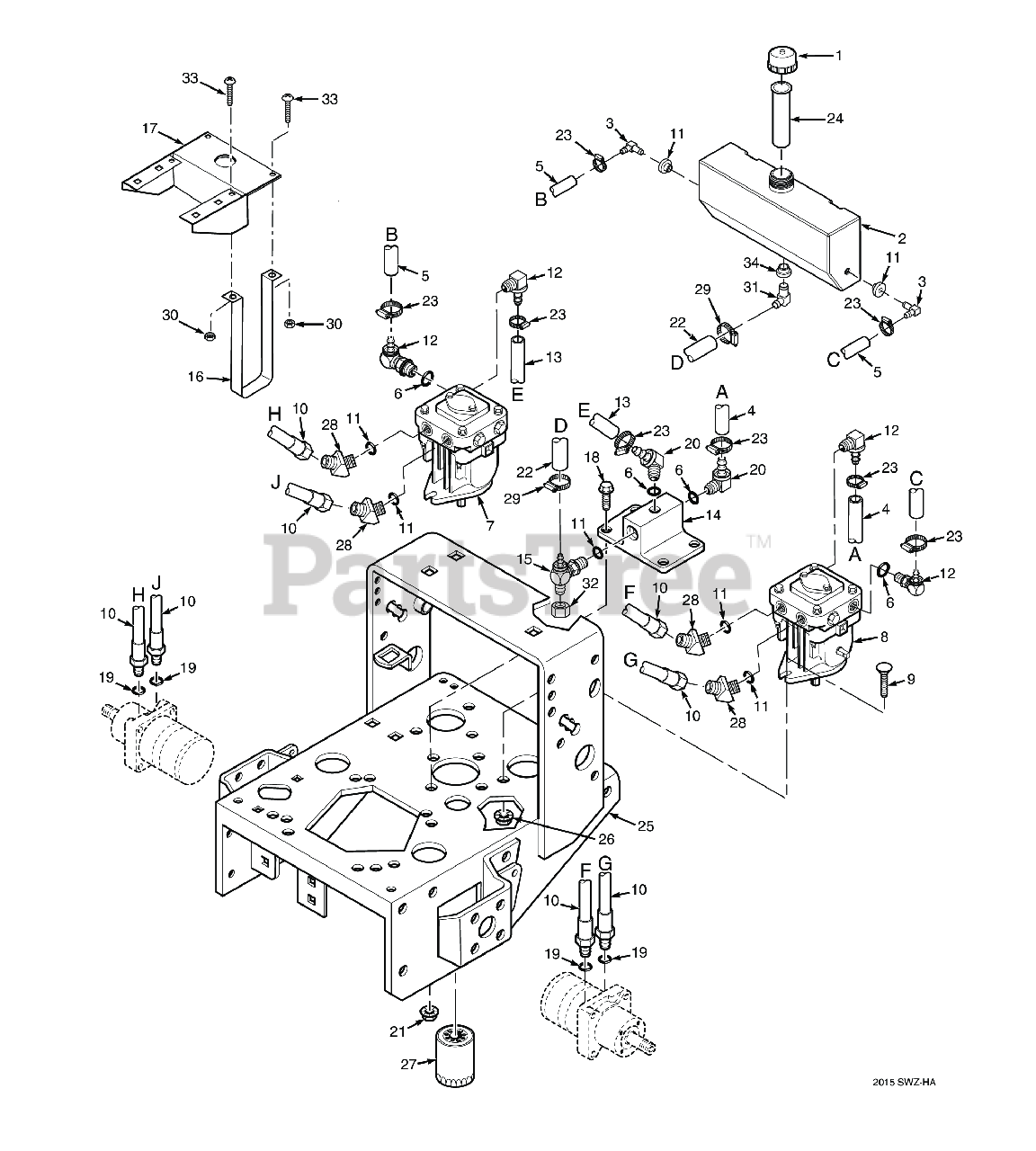

HYDRAULIC ASSEMBLY Parts Diagram

  • Title

1

Scag 481164

CAP, HYDRAULIC TANK

$18.99

$

In Stock, only 4 left!

0

2

Scag 462773

Oil Reservoir (With Fittings)

$246.99

$

In Stock, only 1 left!

0

3

Scag 482572

Elbow, 90 Degree, 9/16-18 JIC x 9/16 O-Ring

$10.99

$

Usually ships in 2-12 days

0

4

Scag 48811

Hose, 3/8" ID - 10-1/4" Long (Order By The Inch)

$0.99

$

In Stock, Qty 20+

0

5

Scag 48811

Hose, 3/8" ID - 10-1/4" Long (Order By The Inch)

$0.99

$

In Stock, Qty 20+

0

6

Scag 48603-06

"O" RING, 5/64 X 15/32 ID

$6.99

$

In Stock, only 2 left!

0

7

Scag 483097

Pump, PG-1JQQ-DY1X-XXXX (R.H.)

$844.99

$

Usually ships in 2-12 days

0

8

Scag 483098

Pump, PG-1GQQ-DY1X-XXXX (L.H.)

$840.99

$

Usually ships in 2-12 days

0

9

Scag 04003-11

SHORT SQ. NECK CARRIAGE BOLT, 3/8-16 X 1-1/4"

$0.99

$

In Stock, Qty 7

0

10

Scag 481265

Hose, Pump to Wheel Motor

$68.99

$

Usually ships in 2-12 days

0

11

Scag 482571

Bushing, 0.56" Dia. Viton

$12.99

$

In Stock, Qty 20+

0

12

Scag 482266-03

Elbow, 90 deg. 7/16-20 JIC to 9/16-18 "O" Ring

$24.99

$

In Stock, only 2 left!

0

13

Scag 48811

Hose, 3/8" ID - 10-1/4" Long (Order By The Inch)

$0.99

$

In Stock, Qty 20+

0

14

Scag 482417

Filter Head Assembly

$128.99

$

Usually ships in 2-12 days

0

15

Scag 482477

Tee, 3/8" O-Ring x JIC x 1/2" Hose

$34.99

$

Usually ships in 2-12 days

0

16

Scag 422794

Strap, Hydraulic Tank

$41.99

$

In Stock, only 1 left!

0

17

Scag 422793

Bracket, Hydraulic Tank

$100.99

$

Usually ships in 2-12 days

0

18

Scag 04017-16

Capscrew, 5/16-18 x .75 Serrated Flange Hex Head

$0.99

$

In Stock, Qty 10

0

19

Scag 48603-04

"O" RING, 3/32 X 3/4 ID

$8.99

$

In Stock, only 2 left!

0

20

Scag 482266-01

Elbow, 90 Degree - 9/16" O-Ring x 3/8" Hose

$32.99

$

Usually ships in 2-12 days

0

21

Scag 04019-03

Nut, Serrated Flange 5/16-18 (Right Front Engine Mounting, Briggs and Kohler Only)

$0.99

$

In Stock, Qty 12

0

22

Scag 482305

Hose, Formed 1/2" ID

$76.99

$

Usually ships in 2-12 days

0

23

Scag 48136-13

Clamp, .69" Max. / .25" Min. Dia.

$7.49

$

In Stock, only 3 left!

0

24

Scag 481507

Insert, Filler Neck

$13.99

$

In Stock, only 1 left!

0

25

Scag 462287

Engine Deck (16" Wide) with Decals - Small Frame

$894.99

$

Usually ships in 2-12 days

0

25

Scag 462288

Engine Deck (20" Wide) with Decals - Large Frame

$658.99

$

Usually ships in 2-12 days

0

26

Scag 04019-04

NUT, 3/8-16 SERRATED FLANGE HEX HEAD

$0.99

$

In Stock, Qty 20+

0

27

Scag 48462-01

OIL FILTER, SPECIAL

$26.99

$

In Stock, Qty 20+

0

28

Scag 48485-01

Elbow, 45 Deg. - 3/4-16 JIC Male x Male 3/4-16 O-Ring

$23.99

$

Usually ships in 2-12 days

0

29

Scag 48136-05

Clamp, Cable 3/4" I.D.

$3.99

$

In Stock, only 2 left!

0

30

Scag 04021-08

HEX, NUT, ELASTIC STOP LOCK, 1/4-20

$0.99

$

In Stock, Qty 10

0

31

Scag 482574

Fitting, 90 Degree - 1/2" Hose

$18.99

$

Usually ships in 2-12 days

0

32

Scag 48571-02

CAP, 3-4-16 JIC

$5.99

$

Usually ships in 2-12 days

0

33

Scag 04010-10

Machine Screw, Round Head, 1/4-20 x 2.00"

$0.99

$

In Stock, Qty 12

0

34

Scag 482573

Bushing, 0.78" Dia. Viton

$13.99

$

In Stock, only 1 left!
