SWZT48-15FS - Scag 48" Walk-Behind Mower, 15hp Kawasaki (SN: L3500001 - L3599999) 48" Cutter Deck Parts Diagram

48" Walk-Behind Mower, 15hp Kawasaki

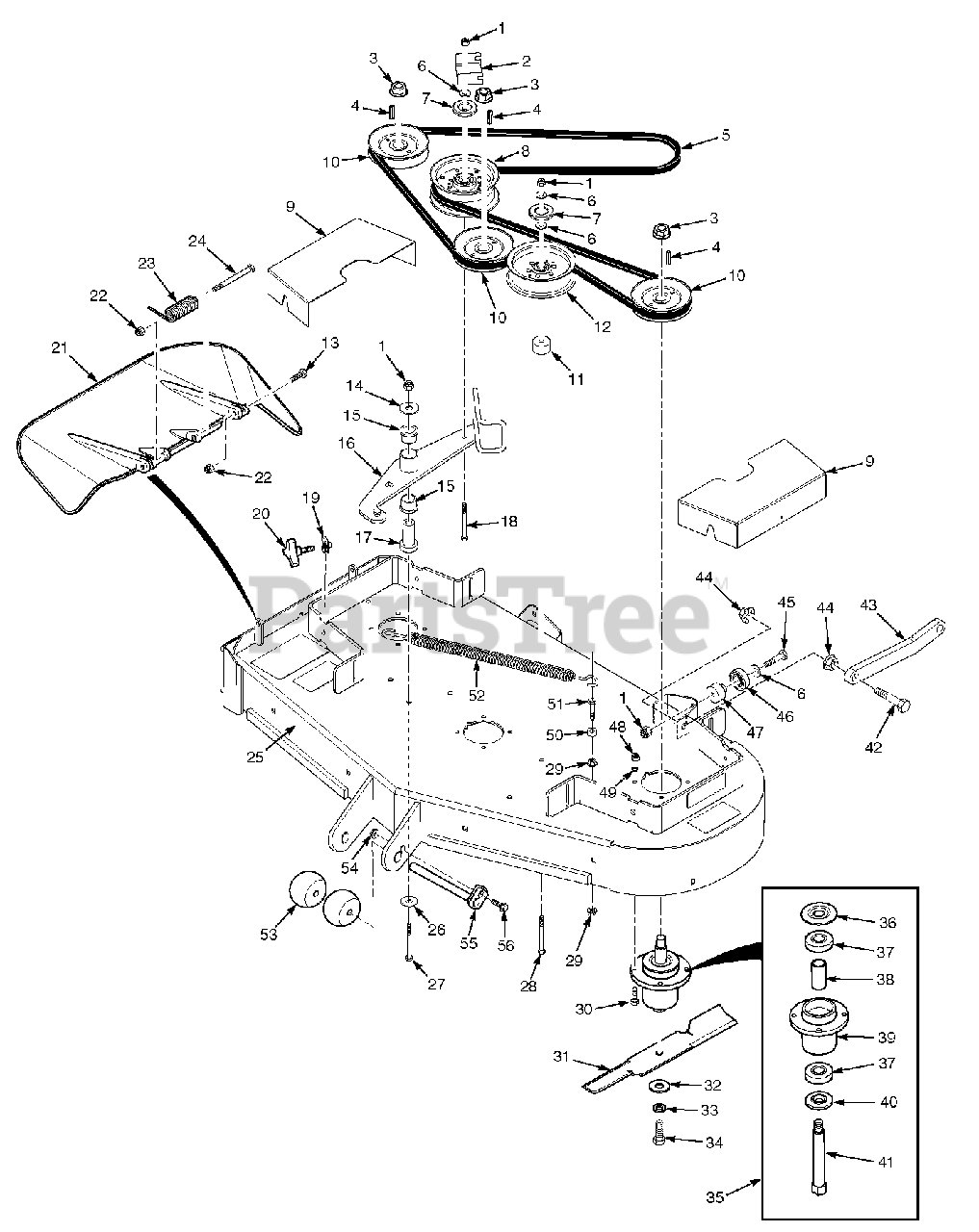

48" Cutter Deck Parts Diagram

  • Title
1

Scag Part# 04021-09

Nut, Elastic Stop 3/8-16
Usually ships in 1 day

$

$0.19

0

2

Scag Part# 424615

Bracket, Belt Guide
Usually ships in 1 day

$

$4.44

0

3

Scag Part# 04112-06

Nut, 3/4-16 Spiral Lock
Usually ships in 1 day

$

$10.01

0

4

Scag Part# 04063-01

Key, 1/4 x 1/4 x 1-1/4"
Usually ships in 1 day

$

$1.03

0

5

Scag Part# 484618

Belt, Cutter Deck
Usually ships in 1 day

$

$100.70

0

6

Scag Part# 04043-04

Flatwasher, 3/8-.391 x .938 x .105
Usually ships in 1 day

$

$0.65

0

7

Scag Part# 424367

Dust Shield
Usually ships in 1 day

$

$1.79

0

8

Scag Part# 483851

Pulley, 5" Idler
Usually ships in 5 to 10 days

$

$48.87

0

9

Scag Part# 425978

Belt Cover
Usually ships in 5 to 10 days

$

$30.49

0

10

Scag Part# 483323

Pulley, 5.13" OD - 25mm Bore
Usually ships in 1 day

$

$28.48

0

11
Usually ships in 5 to 10 days

$

$5.68

0

12

Scag Part# 483422

Pulley, 5" Idler
Usually ships in 5 to 10 days

$

$17.81

0

13

Scag Part# 04001-12

Bolt, Hex Head 5/16-18 x 1-3/4"
Usually ships in 1 day

$

$0.43

0

14

Scag Part# 04041-11

Flatwasher, 3/8-.406 x 1-1/2"
Usually ships in 1 day

$

$1.39

0

Usually ships in 1 day

$

$6.64

0

16

Scag Part# 462191

Idler Arm

Note: (incl. item #15)

Usually ships in 1 day

$

$115.67

0

17

Scag Part# 43708

Pivot, Idler
Usually ships in 1 day

$

$28.03

0

18

Scag Part# 04001-62

Bolt, Hex Head 3/8-16 x 3-1/4"
Usually ships in 1 day

$

$1.03

0

19

Scag Part# 04110-04

U-Nut, 3/8-16
Usually ships in 1 day

$

$5.07

0

20

Scag Part# 481625-01

Knob w/Stud
Usually ships in 1 day

$

$2.36

0

21

Scag Part# 462031

Discharge Chute Assembly
Usually ships in 1 day

$

$58.08

0

Scag Part# 462472

CA Discharge Chute

Note: California Models Only (not shown)

Usually ships in 5 to 10 days

$

$126.46

0

Scag Part# 425619

Turbo Baffle

Note: California Models Only (not shown)

Usually ships in 5 to 10 days

$

$33.62

0

22

Scag Part# 04021-10

Nut, Elastic Stop 5/16-18
Usually ships in 1 day

$

$0.09

0

23

Scag Part# 482245

Spring, Discharge Chute
Usually ships in 1 day

$

$9.60

0

24

Scag Part# 04001-154

Bolt, Hex Head 5/16-18 x 4-3/4"
Usually ships in 1 day

$

$2.33

0

25

Scag Part# 462655

Cutter Deck w/Decals, SMWZT-48
Usually ships in 5 to 10 days

$

$923.54

0

26

Scag Part# 04041-38

Flatwasher, 3/8-.406 x 2.25" x .188
Usually ships in 1 day

$

$2.90

0

27

Scag Part# 04001-51

Bolt, Hex Head 3/8-16 x 3-3/4"
Usually ships in 1 day

$

$1.20

0

28

Scag Part# 04001-77

Bolt, Hex Head 3/8-16 x 3-1/2"
Usually ships in 1 day

$

$1.11

0

29

Scag Part# 04019-04

Nut, Serrated Flange 3/8-16
Usually ships in 1 day

$

$0.25

0

30

Scag Part# 04001-175

Bolt, Hex Head 5/16-18 x 1-1/2" Gr.8
Usually ships in 1 day

$

$0.31

0

31

Scag Part# 482877

Cutter Blade, 16-1/2"
Usually ships in 1 day

$

$19.10

0

32

Scag Part# 04043-06

Flatwasher, 5/8-.688 x 1.75 x .134 HD
Usually ships in 1 day

$

$1.57

0

33

Scag Part# 04030-07

Lockwasher, 1/2 Spring
Usually ships in 1 day

$

$0.88

0

34

Scag Part# 04001-121

Bolt, Hex Head 5/8-11 x 1-1/2"
Usually ships in 1 day

$

$1.73

0

35

Scag Part# 461950

Spindle Assembly
Usually ships in 1 day

$

$121.35

0

36

Scag Part# 483304

Debris Shield
Usually ships in 1 day

$

$5.55

0

37
Usually ships in 1 day

$

$11.83

0

38
Usually ships in 5 to 10 days

$

$19.51

0

39

Scag Part# 462014

Spindle Housing Assembly

Note: (Incl. item #37, 38)

Usually ships in 5 to 10 days

$

$114.44

0

40

Scag Part# 43694

Protector, Bearing
Usually ships in 5 to 10 days

$

$24.83

0

41

Scag Part# 43695

Shaft, Spindle
Usually ships in 1 day

$

$43.52

0

42

Scag Part# 04001-72

Bolt, Hex Head 1/2-13 x 2"
Usually ships in 1 day

$

$1.69

0

43
Usually ships in 5 to 10 days

$

$15.57

0

44

Scag Part# 04019-06

Nut, Serrated Flange 1/2-13
Usually ships in 1 day

$

$0.65

0

45

Scag Part# 04001-46

Bolt, Hex Head 3/8-16 x 2-1/4"
Usually ships in 1 day

$

$0.74

0

46
Usually ships in 1 day

$

$4.80

0

47

Scag Part# 43703

Spacer, Bearing
Usually ships in 5 to 10 days

$

$10.17

0

48

Scag Part# 04021-22

Nut, Elastic Stop 5/16-18 Gr.8
Usually ships in 1 day

$

$0.23

0

49

Scag Part# 04030-03

Lockwasher, 5/16 Spring
Usually ships in 1 day

$

$0.06

0

50
Usually ships in 1 day

$

$7.85

0

51

Scag Part# 04001-136

Bolt, Hex Head 3/8-16 x 1-1/2 Gr.8
Usually ships in 1 day

$

$0.42

0

52

Scag Part# 483375

Spring, Idler
Usually ships in 5 to 10 days

$

$75.25

0

53

Scag Part# 482295

Wheel, Anti-Scalp
Usually ships in 1 day

$

$8.42

0

54

Scag Part# 04019-03

Nut, Serrated Flange 5/16-18
Usually ships in 1 day

$

$0.15

0

55

Scag Part# 461926

Shaft Weldment
Usually ships same day

Currently unavailable

$

$

56

Scag Part# 04001-09

Bolt, Hex Head 5/16-18 x 1"
Usually ships in 1 day

$

$0.27

0
