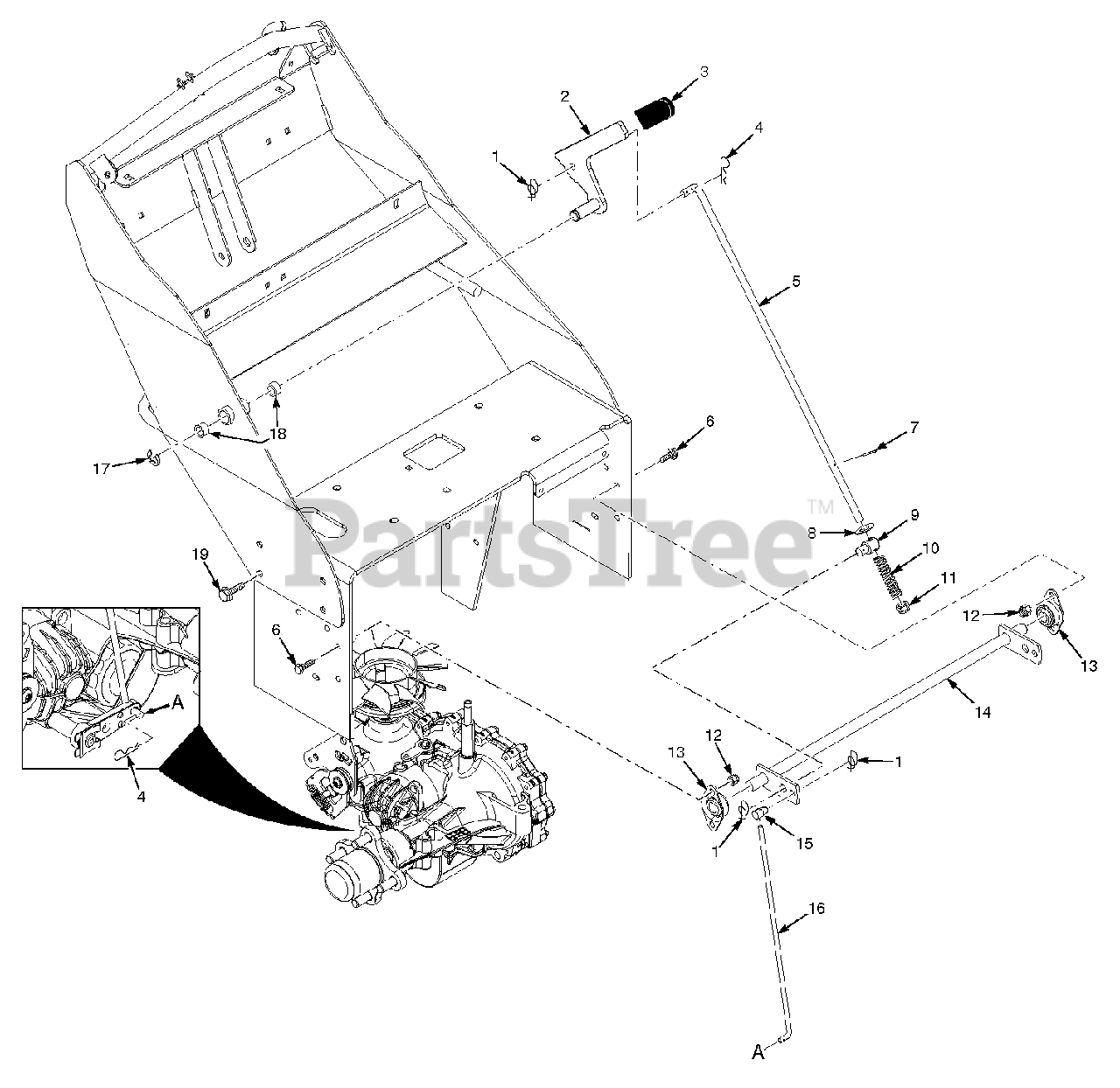

SWZT48-15FS - Scag 48" Walk-Behind Mower, 15hp Kawasaki (SN: L3500001 - L3599999) Brake Components Parts Diagram

48" Walk-Behind Mower, 15hp Kawasaki

Brake Components Parts Diagram

  • Title
1

Scag Part# 04069-01

Pin, Rue Cotter 3/8" Dia.
Usually ships in 1 day

$

$1.02

0

2

Scag Part# 462515

Brake Lever w/Grip
Usually ships in 5 to 10 days

$

$38.07

0

3

Scag Part# 481548

Grip, Brake Lever
Usually ships in 1 day

$

$5.30

0

4

Scag Part# 04062-02

Hair Pin, .080 x 1.19"
Usually ships in 1 day

$

$0.19

0

5

Scag Part# 44187

Rod, Brake Linkage
Usually ships in 5 to 10 days

$

$18.55

0

6

Scag Part# 04017-16

Cpscrw, 5/16-18 x 3/4"Serrated Flange HH
Usually ships in 1 day

$

$0.54

0

7

Scag Part# 04061-02

Cotter Pin, 3/32 x 3/4"
Usually ships in 1 day

$

$0.23

0

8

Scag Part# 04040-05

Flatwasher, 3/8-.406 x .812 x .065
Usually ships in 1 day

$

$0.07

0

9

Scag Part# 43751

Bushing, Pivot Slide
Usually ships in 5 to 10 days

$

$12.01

0

10

Scag Part# 484175

Spring, Brake
Usually ships in 5 to 10 days

$

$28.13

0

11

Scag Part# 04021-18

Nut, Elastic Stop 3/8-24
Usually ships in 1 day

$

$1.33

0

12

Scag Part# 04021-10

Nut, Elastic Stop 5/16-18
Usually ships in 1 day

$

$0.09

0

13

Scag Part# 48796

Bearing, Self Aligning 5/8" I.D.
Usually ships in 1 day

$

$11.02

0

14

Scag Part# 452358

Weldment, Brake Bellcrank
Usually ships in 5 to 10 days

$

$45.59

0

15

Scag Part# 43726

Joint, Swivel
Usually ships in 1 day

$

$11.45

0

16

Scag Part# 44165

Rod, Brake Adjustment
Usually ships in 1 day

$

$7.25

0

17

Scag Part# 04050-01

Ring, Retaining 5/8" External "E"
Usually ships in 1 day

$

$0.26

0

Usually ships in 5 to 10 days

$

$6.76

0
